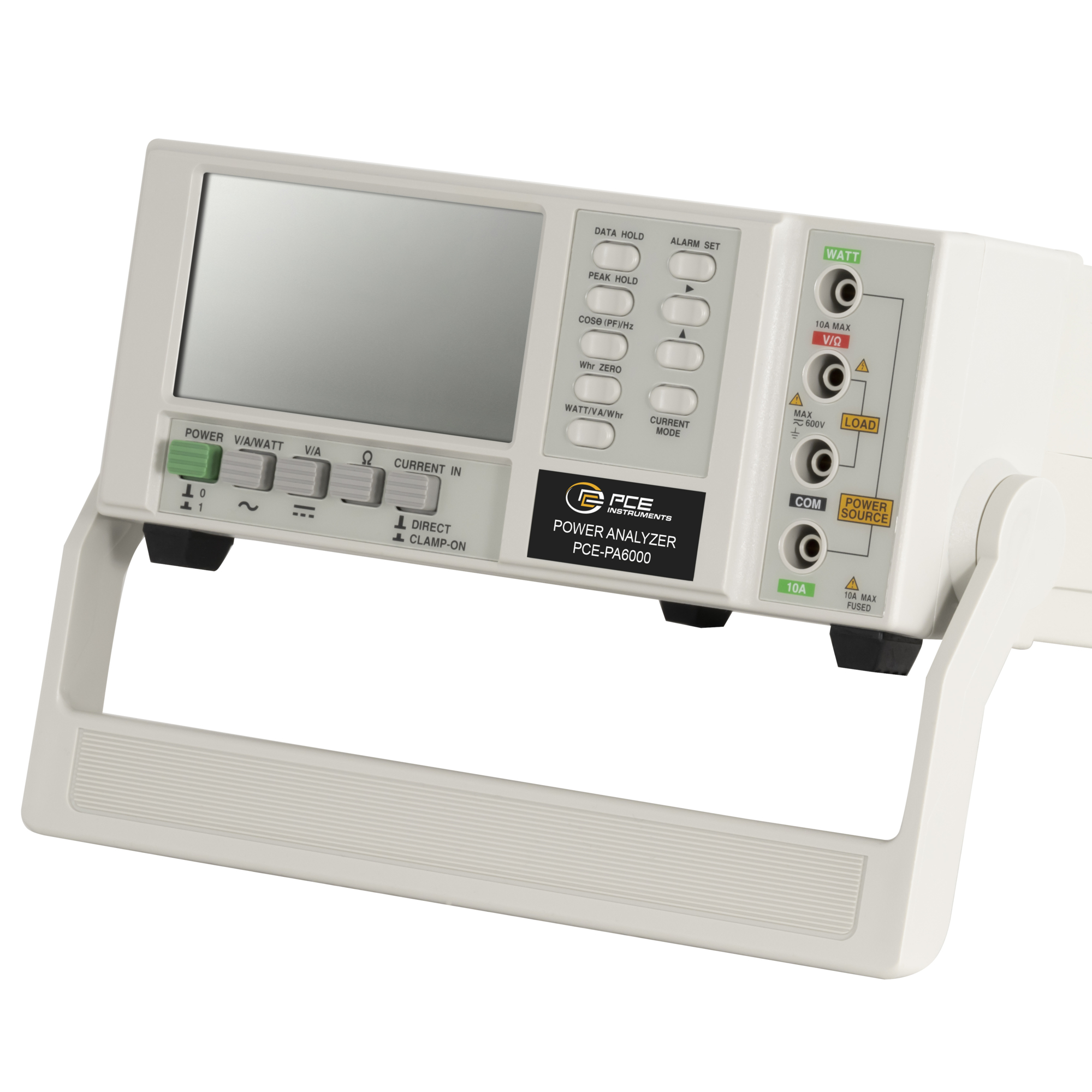

PCE Power Analyzer — Measures Active and Apparent Power, Power Factor, Energy Consumption, AC/DC Voltage and Current, Resistance, Frequency, Model# PCE-PA6000

Item# 6919350
PCE Power Analyzer — Measures Active and Apparent Power, Power Factor, Energy Consumption, AC/DC Voltage and Current, Resistance, Frequency, Model# PCE-PA6000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

PCE Power Analyzer — Measures Active and Apparent Power, Power Factor, Energy Consumption, AC/DC Voltage and Current, Resistance, Frequency, Model# PCE-PA6000

Click or Tap image to Zoom

$726.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Multimeter function Measurement of direct current connecting a sensor head or current clamp Measures effective and apparent power Measures power factor Measures energy consumption (kWh) Data hold / Peak hold Function Hold / Alarm function High / Low Interface RS-232 Powered by mains adaptor or batteries Safety standards: IEC-11-1; CAT II 6V This image shows the optional PCE-PA-ADP current adaptor Amp clamp adaptor for measuring current indirectly up to 1A without interrupting the conductor. Range: 2 / 1DCA / ACA Accuracy: ±1.5 / 2% DCA zero reset Dimensions: 19 x 64 x 33mm Maximum diameter of the conductor: 33.5mm Amp clamp adaptor for the PCE-PA 6 power meter The images above show the software which is used to analyse data and is supplied with the power meter. It can show 4 measurement values at a time and the graphic display can easily store data over an extended period to be analysed later.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The power meter power analyzer can be used as a desktop or portable instrument for measuring active power, apparent power, power factor, energy consumption, AC voltage, AC current, DC voltage, DC current, resistance and frequency. The power / performance measurement can be performed with this power analyzer either directly with the supplied test leads, or indirectly by current clamps.

What's Included

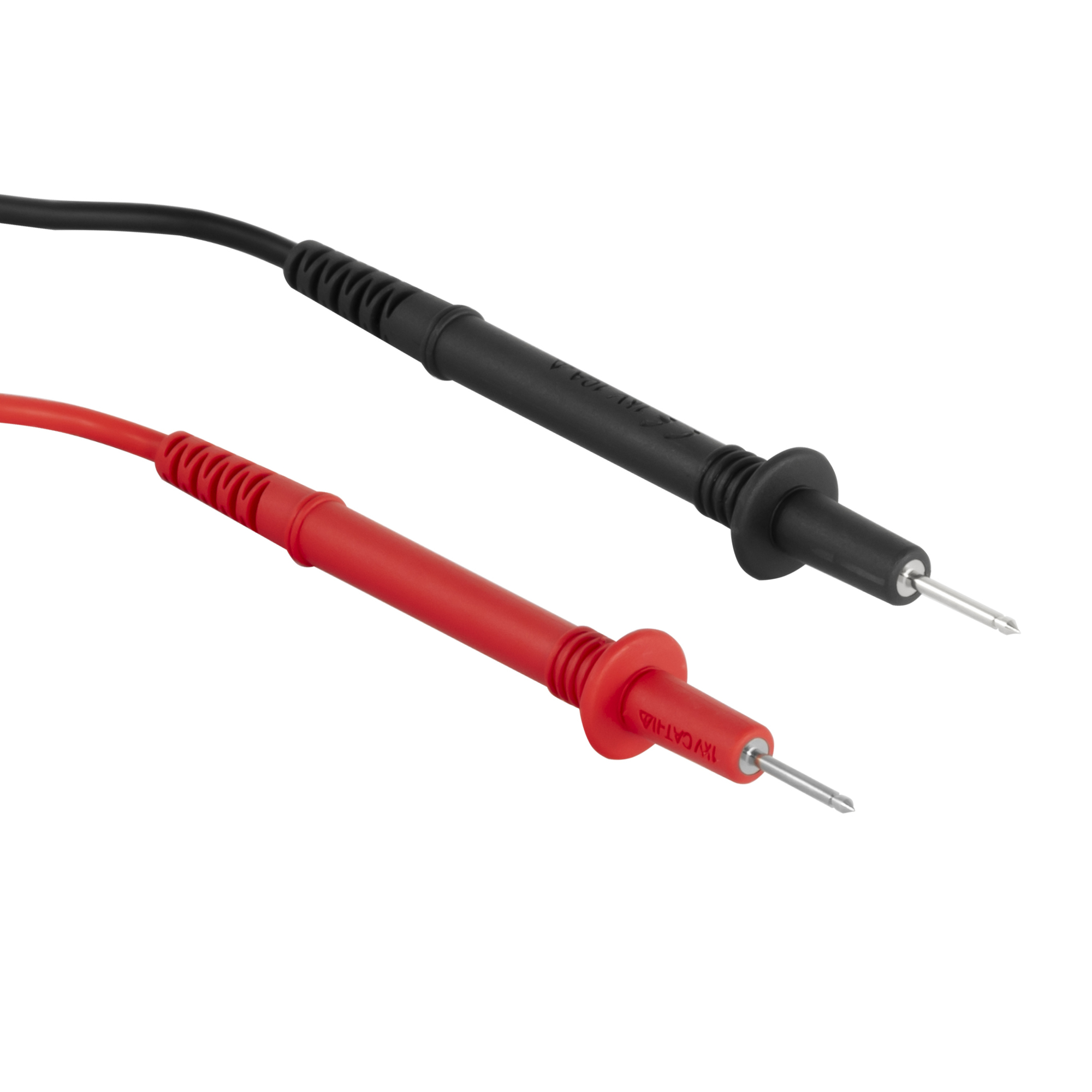

    (1) Contents PCE-PA6 power Analyser Set of test cables RS-232 cable 6 x Batteries User's manual Soft-lut-usb software is available in the accessories tab

Features + Benefits

  • Multimeter function Measurement of direct current connecting a sensor head or current clamp Measures effective and apparent power Measures power factor Measures energy consumption (kWh) Data hold / Peak hold Function Hold / Alarm function High / Low Interface RS-232 Powered by mains adaptor or batteries Safety standards: IEC-11-1; CAT II 6V This image shows the optional PCE-PA-ADP current adaptor Amp clamp adaptor for measuring current indirectly up to 1A without interrupting the conductor. Range: 2 / 1DCA / ACA Accuracy: ±1.5 / 2% DCA zero reset Dimensions: 19 x 64 x 33mm Maximum diameter of the conductor: 33.5mm Amp clamp adaptor for the PCE-PA 6 power meter The images above show the software which is used to analyse data and is supplied with the power meter. It can show 4 measurement values at a time and the graphic display can easily store data over an extended period to be analysed later.

Key Specs

AttributeSpecification

item#

6919350

Brand

PCE INSTRUMENTS

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

10.0 LB

Product Weight

8.2000 lb

Dimensions L x W x H (in.)

15.16 x 5.91 x 10.83 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
