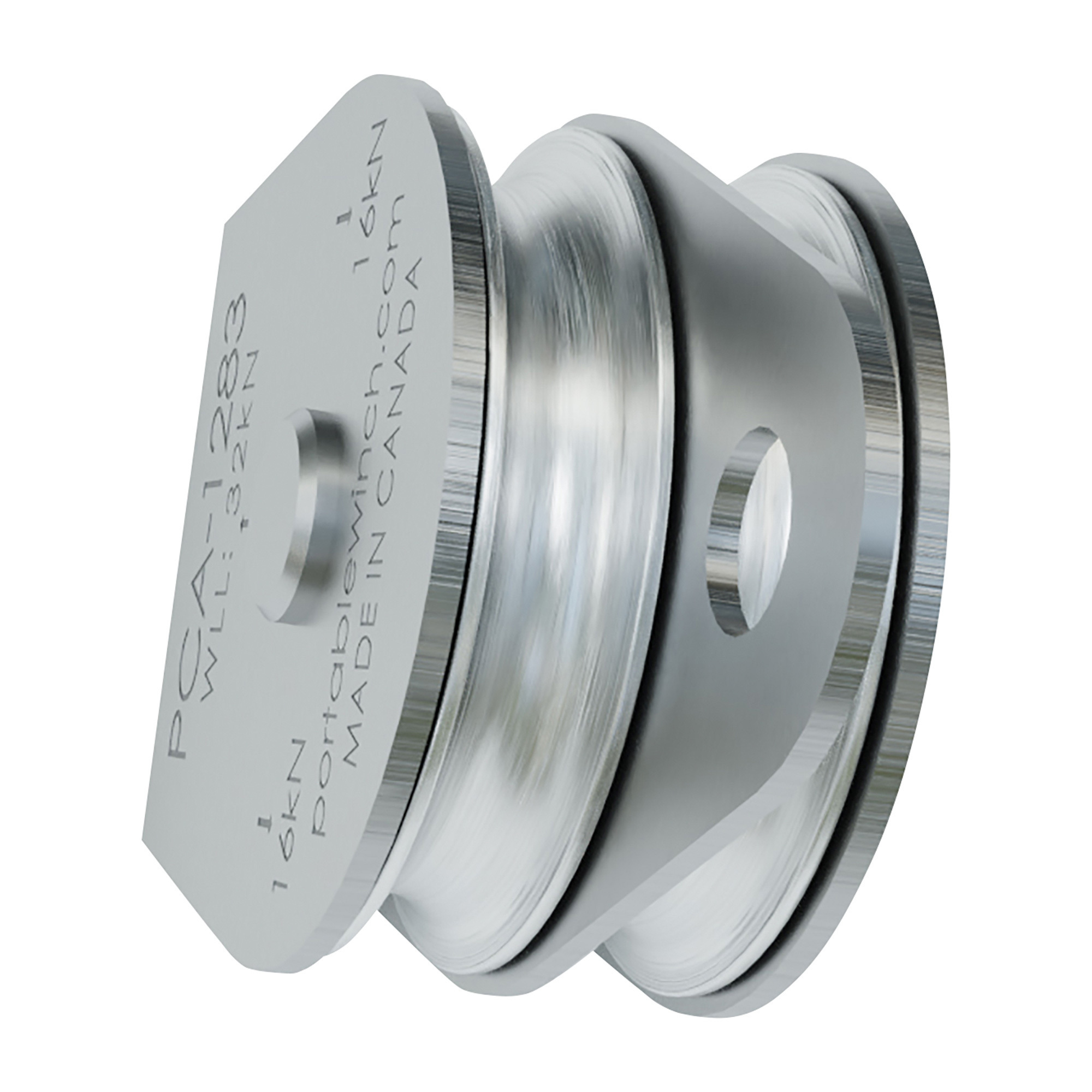

Portable Winch Stainless Steel Double Swing Side Pulley, 7200-Lb. Capacity, Model# PCA-1283

Item# 97276
Portable Winch Stainless Steel Double Swing Side Pulley, 7200-Lb. Capacity, Model# PCA-1283

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Portable Winch Stainless Steel Double Swing Side Pulley, 7200-Lb. Capacity, Model# PCA-1283

Click or Tap image to Zoom

$100.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Double swing side pulley opens to install rope and keep it from going out
  • Two 3in. aluminum sheaves are mounted on a self-lubricating bronze bearing and provide 98% efficiency
  • Sides, center plate and shaft are made of stainless steel
  • Hole at bottom of center plate allows user to attach end of rope with carabiner
  • Minimum breaking strength is 22,250 lbs.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Portable Winch Stainless Steel Double Swing Side Pulley opens to install rope and keep it from going out. Its two 3in. aluminum sheaves are mounted on a self-lubricating bronze bearing and provide an efficiency of 98%. The sides, the center plate and the shaft are made of stainless steel. Pulley is robust and durable. A hole at the bottom of the center plate allows user to attach the end of the rope with a carabiner when needed. Minimum breaking strength is 22,250 lbs. Ideal for use with 10mm diameter rope.

What's Included

    (1) Double swing side pulley

Features + Benefits

  • Double swing side pulley opens to install rope and keep it from going out
  • Two 3in. aluminum sheaves are mounted on a self-lubricating bronze bearing and provide 98% efficiency
  • Sides, center plate and shaft are made of stainless steel
  • Hole at bottom of center plate allows user to attach end of rope with carabiner
  • Minimum breaking strength is 22,250 lbs.
  • Ideal for use with 10mm diameter rope
  • When using this pulley along with the single pulley PCA-1275, you can quadruple the pulling strength
  • With 2 double pulleys, you can generate 5 times the pulling strength

Key Specs

AttributeSpecification

item#

97276

Brand

Portable Winch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.2 LB

Max. Capacity

20,250 lb

Application

Double swing side pulley for portable winch
AttributeSpecification

Capacity (lbs.)

20,250

Works With

Portable winch

Product Type

Winch Kits

Product Weight

2.2000 lb

Dimensions L x W x H (in.)

7.25 x 3.18 x 1.93 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Can this pulley be used with wire cable 3/8" dia.?

    1 answer

    1. The PCA-1283 pulley can be used with a minimum 1/4" rope diameter and a maximum 3/8" rope diameter.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
