Portable Winch Gas-Powered Capstan Winch, 2,200-Lb. Pulling Capacity, 2.1 HP, Honda GHX-50 Engine, Model# PCW5000

Item# 14784
"Portable Winch Gas-Powered Capstan Winch, 2,200-Lb. Pulling Capacity, 2.1 HP, Honda GHX-50 Engine, Model# PCW5000"
Portable Winch Gas-Powered Capstan Winch, 2,200-Lb. Pulling Capacity, 2.1 HP, Honda GHX-50 Engine, Model# PCW5000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Portable Winch Gas-Powered Capstan Winch, 2,200-Lb. Pulling Capacity, 2.1 HP, Honda GHX-50 Engine, Model# PCW5000

Click or Tap image to Zoom

$1879.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Features the GXH50 engine by Honda, a commercial grade engine that will never let you down.
  • The Original Portable Winch, assembled in Canada.
  • Pulls 2,200 lbs, which can be multiplied with the use of block and tackles.
  • Compatible with polyester 1/2" rope.
  • Unlimited length of rope, thanks to the capstan that doesn't accumulate rope.

See full description

Complete Your Solution

  • Portable Winch Gas-Powered Capstan Winch, 2,200-Lb. Pulling Capacity, 2.1 HP, Honda GHX-50 Engine, Model# PCW5000
  • Portable Winch Rope, 656ft.L x 1/2in. Dia., 7275 Lbs. Breaking Strength, Model# PCA-1216M
  • Portable Winch Tree/Pole Mount, For Portable Capstan Winch, Model# PCA-1263
  • Portable Winch Log Skidding Cone, Model# PCA-1290
Price for all four:

$3124.00

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

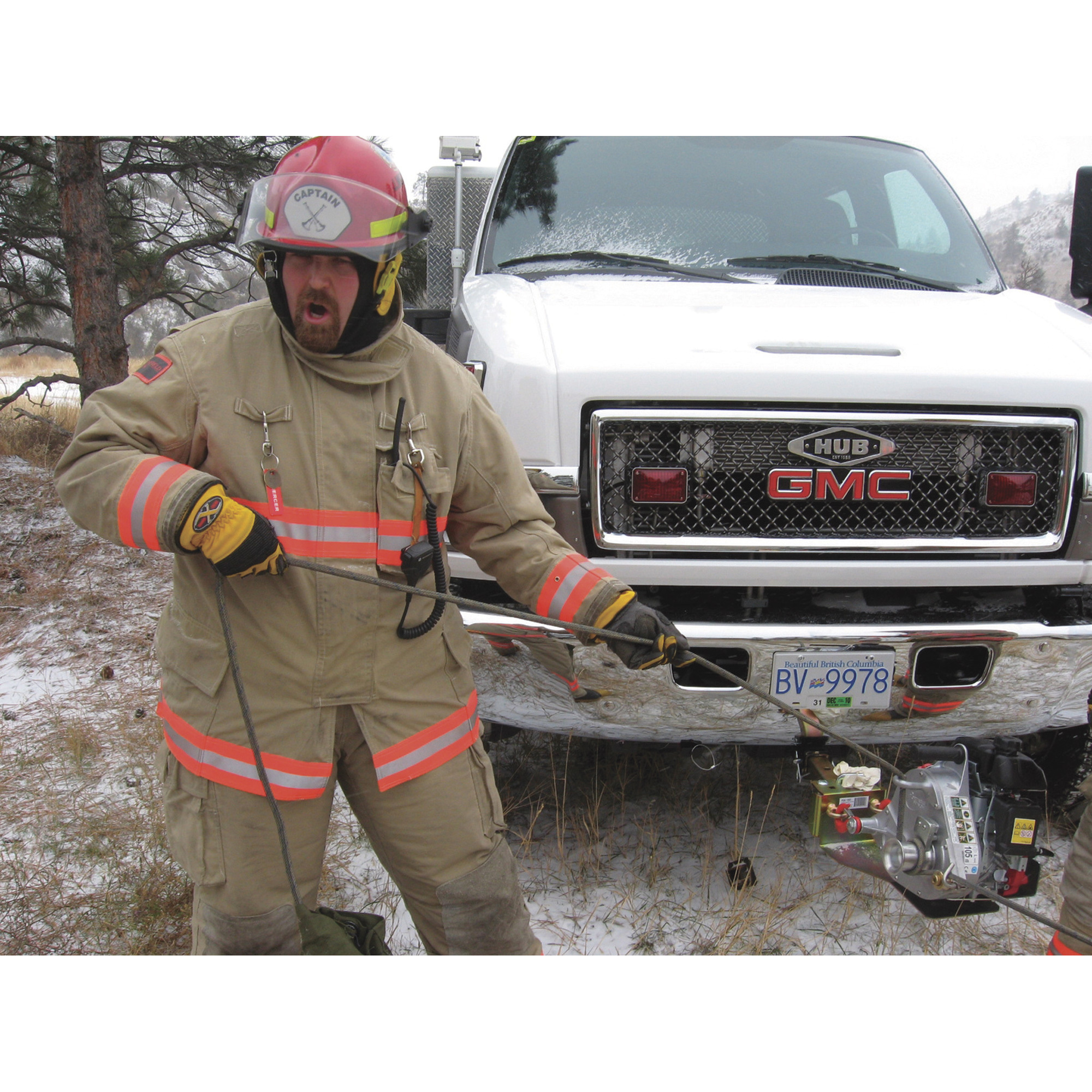

If you ever need to bring down hung-up trees, pull out-of-reach logs, get a vehicle un-stuck or haul a moose out of the woods this lightweight, portable, gas-powered winch, with 2,200-lb. pulling capacity is for you. Weighing only 35 lbs., you can bring the Portable Winch and its powerful 2.1 HP Honda GXH-50 4-stroke engine anywhere and anchor it to anything with the included 2in. x 6ft. sling. Pulling distance is only limited by the length of your rope.

What's Included

    (1) Winch

Downloads

Product Manual
Additional Product Info
Play Item Video

Features + Benefits

  • Features the GXH50 engine by Honda, a commercial grade engine that will never let you down.
  • The Original Portable Winch, assembled in Canada.
  • Pulls 2,200 lbs, which can be multiplied with the use of block and tackles.
  • Compatible with polyester 1/2" rope.
  • Unlimited length of rope, thanks to the capstan that doesn't accumulate rope.
  • Weighs 35 lbs, making it portable, hand-carriable directly where it is needed.
  • Guaranteed for 5 years

Key Specs

AttributeSpecification

item#

14784

Brand

Portable Winch

Manufacturer's Warranty

5 year limited warranty

Ship Weight

0.66 LB

Horsepower

2.1 HP

Capacity (Line Pull)

2,200 lb

Application

Multiple

Gear Type

Spur

Line Speed

40 ft./min.

Gear Ratio

110:1

Rope Diameter

1/2 in
AttributeSpecification

Rope Material

Polyester

Brake Type

Drum

Remote

No

Automatic Load Holding

No

Freespooling

No

Underwater Use

No

Engine Displacement

50 cc

Engine Brand

Honda

Engine Model

GXH50

Mounting Hardware Included

Yes

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What is the best rope to use for the capstan winch

    1. I've checked prices every where. The rope that is sold with this winch is fairly priced. Other rope is cheaper but you can expect it to break at any time. Get good rope from Portable Winch. You will worry a lot less.

      Helpful?

    2. I have used a 1/2 inch, low stretch rope to pull some pretty heavy logs over rough terrain and never had a problem. The rope I use is rated for 8100 lbs. despite the fact I never drag anything more than a thousand pounds or so. If you click on the Accessory tab for the winch you can purchase one in three different lengths. (P.S. don't use a rope that has a lot of stretch to it. That rules out most of what is available in hardware stores)

      Helpful?

    3. The best rope to use on the Portable Gas-Powered Capstan Winch is an 8100 pound tensile strength rope.

      Helpful?

  2. capstan sizes

    I need to pull in a light load (fish pot) from 300 ft. Are there larger capstans that can be attached to increase line speed?

    1. This comes standard with a 57mm capstan. Optional 85mm is available, but you will find smaller of the two easier to control. That's important.

      Helpful?

    2. We do offer a larger Capstan drum for this winch. See Below.

      Helpful?

  3. Will 9/16" or 3/4" rope work with this, or strictly 1/2"?

    1 answer

    1. Per the manual, We recommend using double-braided polyester rope with a
      minimum diameter of 10 mm (3/8''). Maximum rope diameter is 16 mm (5/8"). For most
      situations, we recommend using 12 or 13 mm (1/2'') double braid polyester rope.

      Helpful?

  4. What is the Yellow item on the logs in the video?

    1 answer

    1. The yellow item is called a "skidding cone" that is designed to prevent snags and catching when placed in front of material pulling a load that might have branches, limbs, appendages caught in movement.

      Helpful?

  5. are there any logging accesories

    1 answer

    1. Among the accessories for this unit that can be purchased are a skidding cone to prevent snags when winching through forested area, a case to hold the winch and accessories, a padded waterproof case, an optional capstan drum that is 3-3/8 inches diameter, a portable winch rope bag with shoulder straps capable of holding 328 feet of 1/2 inch rope, a portable winch tree/pole mount for anchoring, a bundle of 1/2 x 328 8200 lb capacity tow rope and 1/2 x 492 feet of same capacity tow rope. See below for accessory details.

      Helpful?

  6. Do you sell the PCW5000HS (High Speed) version?

    They make a High Speed version with a different gear ratio. It can use either size capstan and will lift 350kg. Can we buy it from Northern or do we need to go to the Canadian manufacturer?

    1 answer

    1. Northern Tools can get the model PCW-5000HS. The item number is 34998. Please call 1-800-556-7885 for price and availability.

      Helpful?
