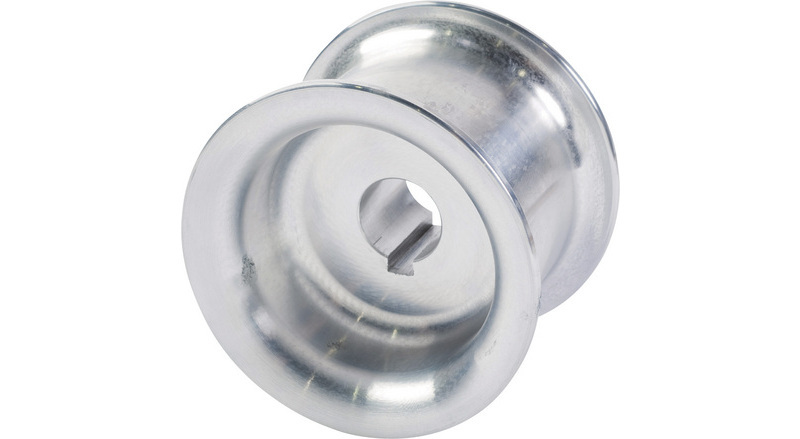

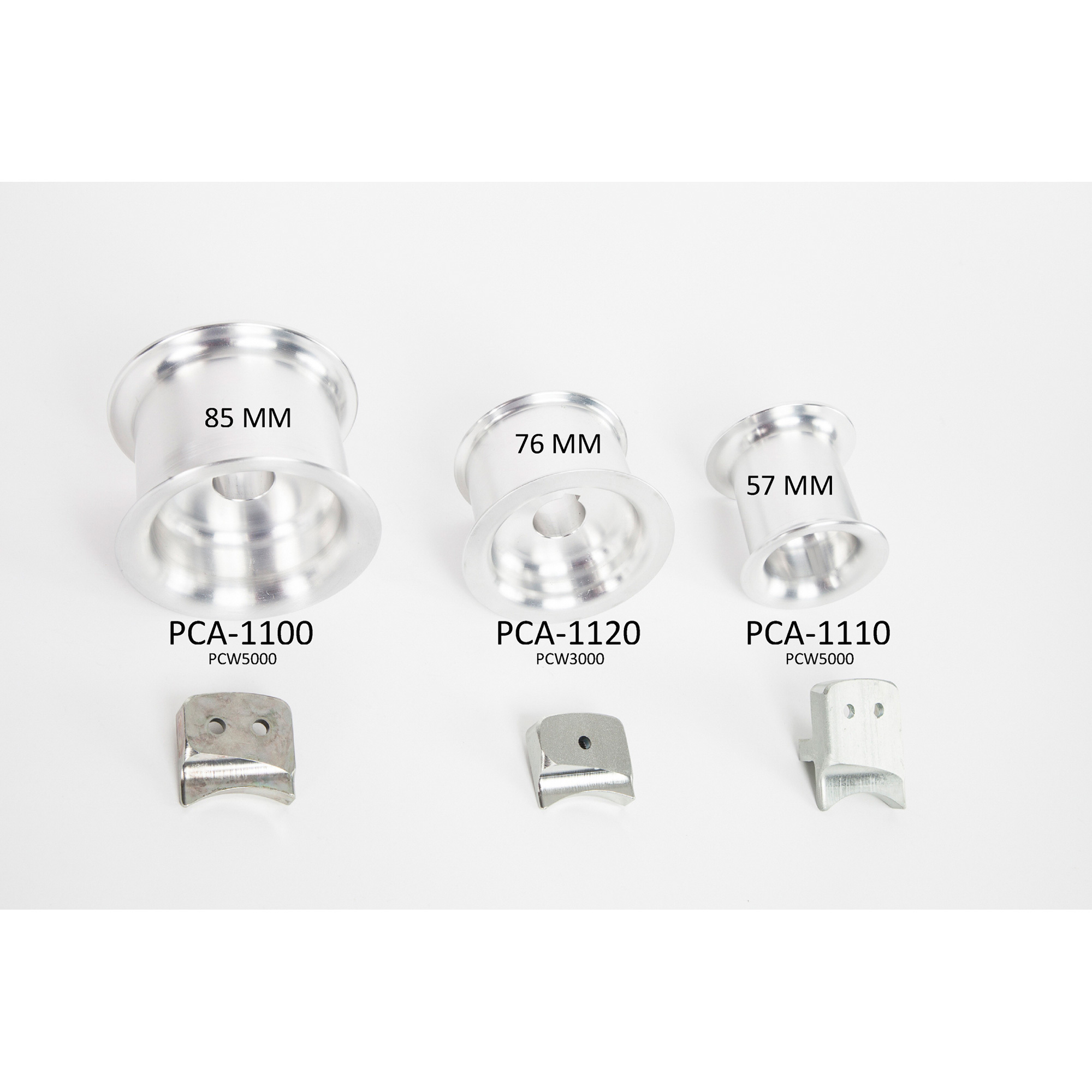

Portable Winch Capstan Drum, 3 3/8in. Dia., Model# PCA-1100

Item# 16129
Portable Winch Capstan Drum, 3 3/8in. Dia., Model# PCA-1100

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Portable Winch Capstan Drum, 3 3/8in. Dia., Model# PCA-1100

Click or Tap image to Zoom

$105.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 60 FPM max. line speed
  • 1,400-lbs. max. capacity

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This Capstan Drum from Portable Winch lets you use the Portable Capstan Winch to quickly do low-capacity pulling jobs.

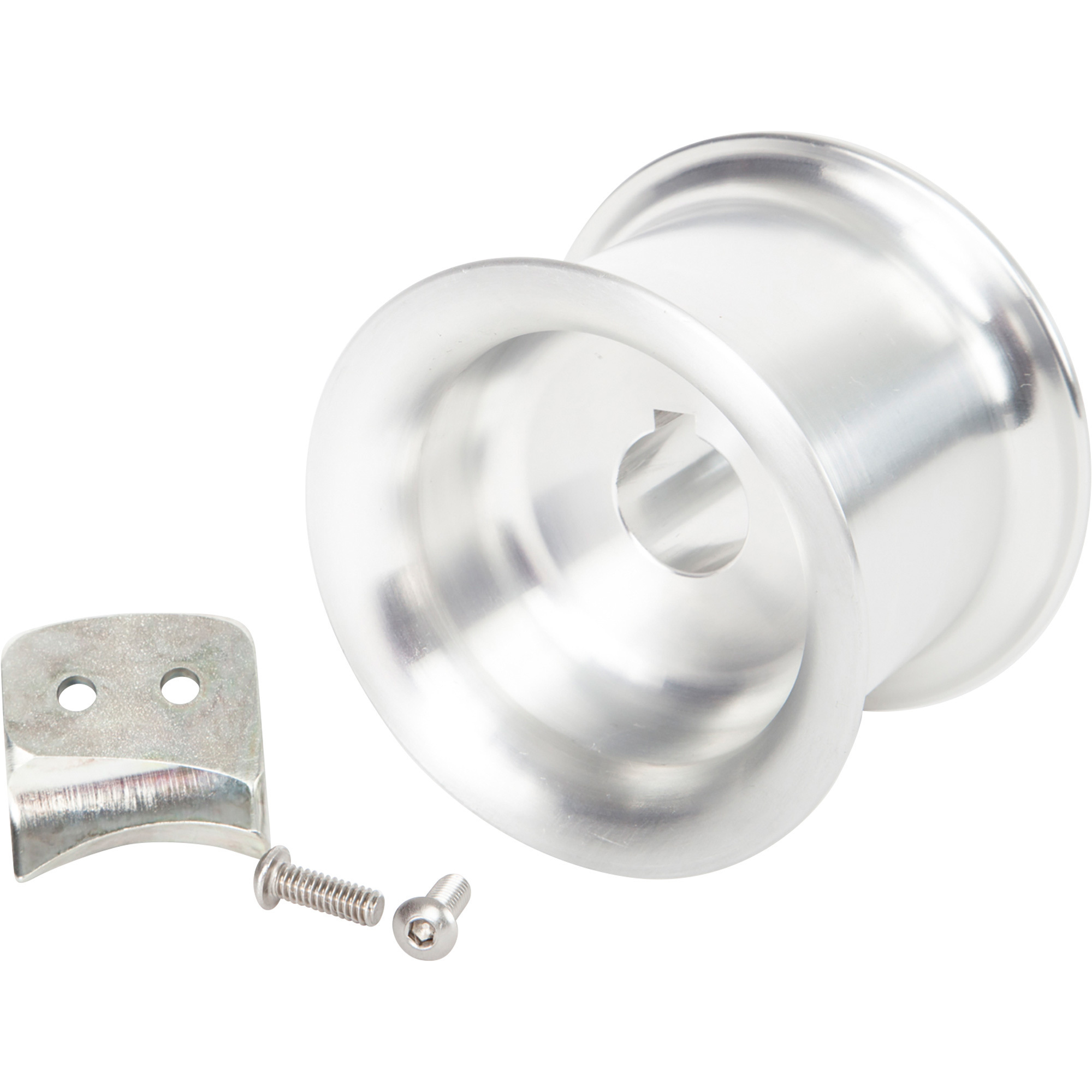

What's Included

    (1) Drum (1) Rope guide (2) Screws

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 60 FPM max. line speed
  • 1,400-lbs. max. capacity

Key Specs

AttributeSpecification

item#

16129

Brand

Portable Winch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

2.09 LB

Max. Capacity

1,400 lb
AttributeSpecification

Application

Drum

Capacity (lbs.)

1,400

Works With

Portable Capstan winch

Product Type

Drums

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. what is the bore dimension?

    I need to know the length of the bore. also, is the inner bore section centered along the length of the drum, or is it off-set?

    1 answer

    1. The manufacturer states the shaft size required for this drum is 1in. diameter by 1.43in. long. The bore is off-set from the drum.

      Helpful?

  2. what are the dimensions of the keyway?

    1 answer

    1. The keyway on this capstan drum measures 1-1/4" (L) x 3/10" (W).

      Helpful?

  3. What are the overall dimensions of the drum?

    What length is the drum flange to flange and what is the diameter of the drum please across the flange?

    1 answer

    1. The overall dimensions of the drum are 4.5". The diameter of the flange where the rope wraps around is 3.3". This drum has a 1" shaft opening and is 4.5: high. The length flange to flange would be 3.3" and the distance across each flange is .6".

      Helpful?

  4. Who is the manufacturer of this drum?

    1 answer

    1. This product is owned and manufactured by Portable Winch Company.

      Helpful?

  5. what materila is the drum made of....aluminum???

    1 answer

    1. Yes, this drum is made of aluminum.

      Helpful?

  6. What is the bore size?

    1 answer

    1. The center shaft hole size or bore size is 1 inch on this winch capstan drum.

      Helpful?

  7. what size shaft does the portable winch capstan drum Model#PCA-1100 require

    1 answer

    1. The manufacturer states the shaft size required for this Drum is 1in. diameter by 1.43in. in long

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
