The winch will require a 12 volt DC minimum 660 CCA battery. The amperage draw at 0 pound line pull is 80 amps, 3000 pounds is 160 amps, 6000 pounds is 230 amps, 9000 pounds is 280 amps and 12000 pounds is 360 amps. The wattage requirement is approximately 960 watts at 0 pound line pull, 3000 pounds is 1920 watts, 6000 pounds is 2760 watts, 9000 pounds is 3360 watts and 12000 pounds is 4320 watts.

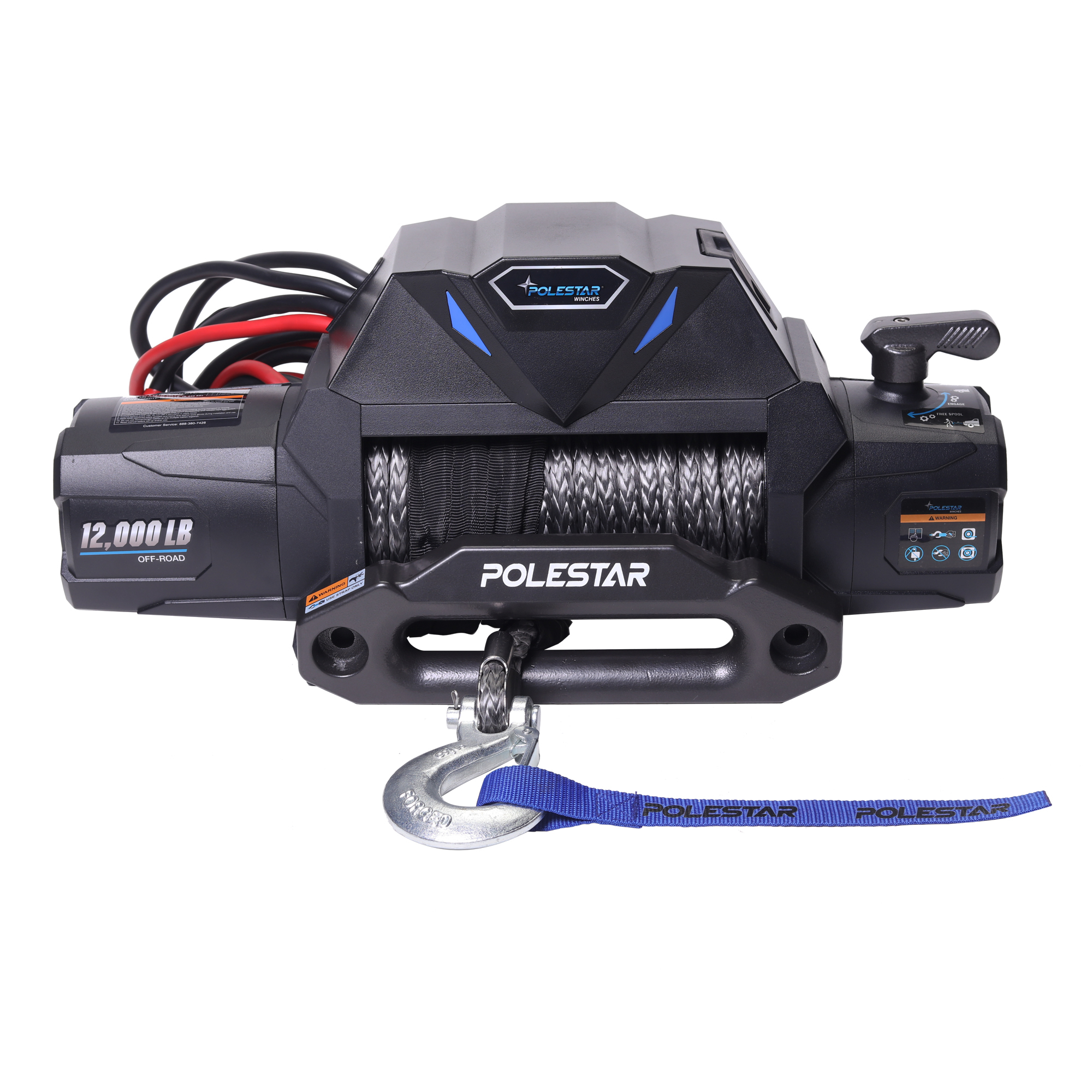

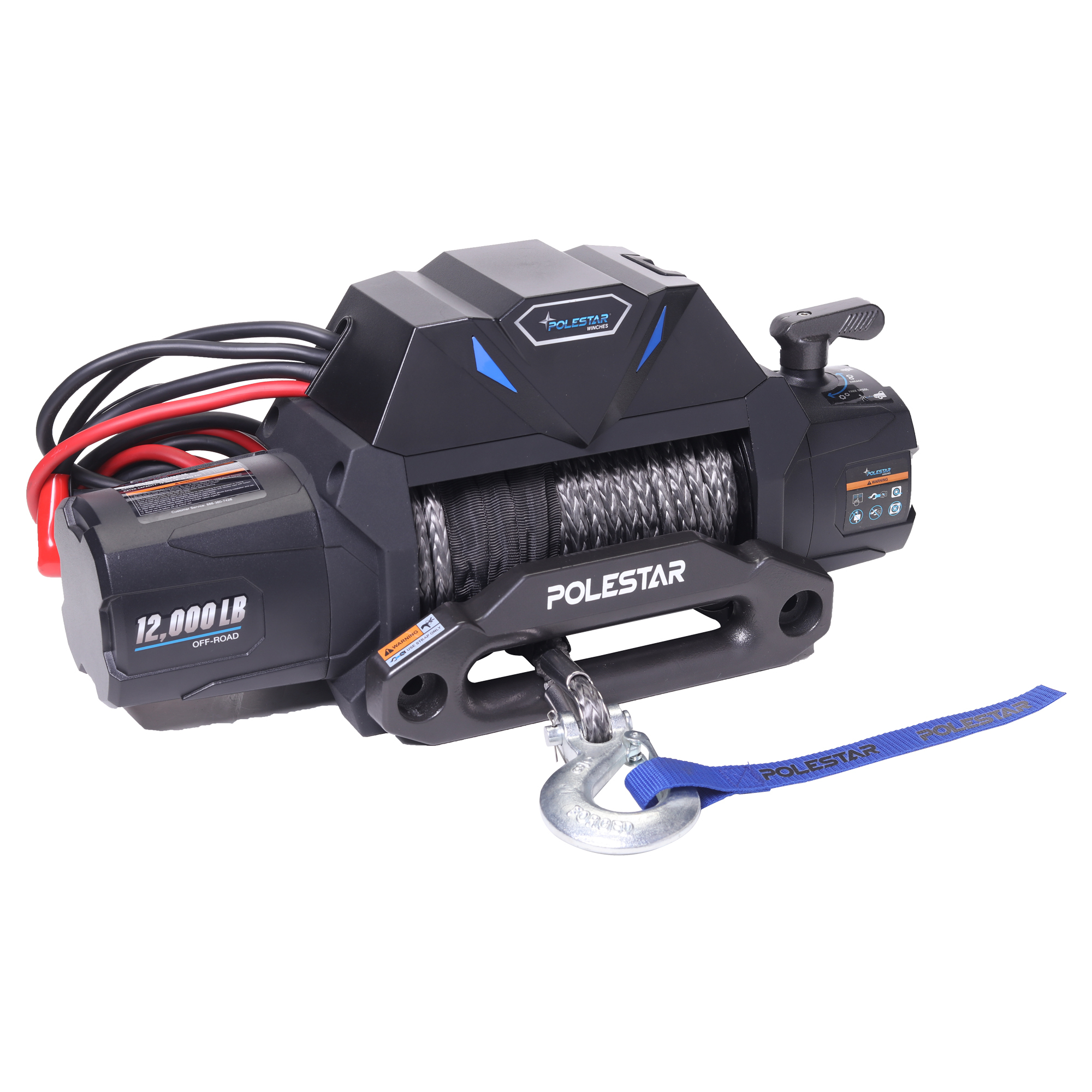

PoleStar Electric Truck Winch — 12,000-Lb. Capacity, 12V DC, Integrated, Synthetic Rope
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$559.99
- 12,000-Lb. Pulling Capacity Delivers powerful pulling performance for truck, trailer, and off-road recovery applications.

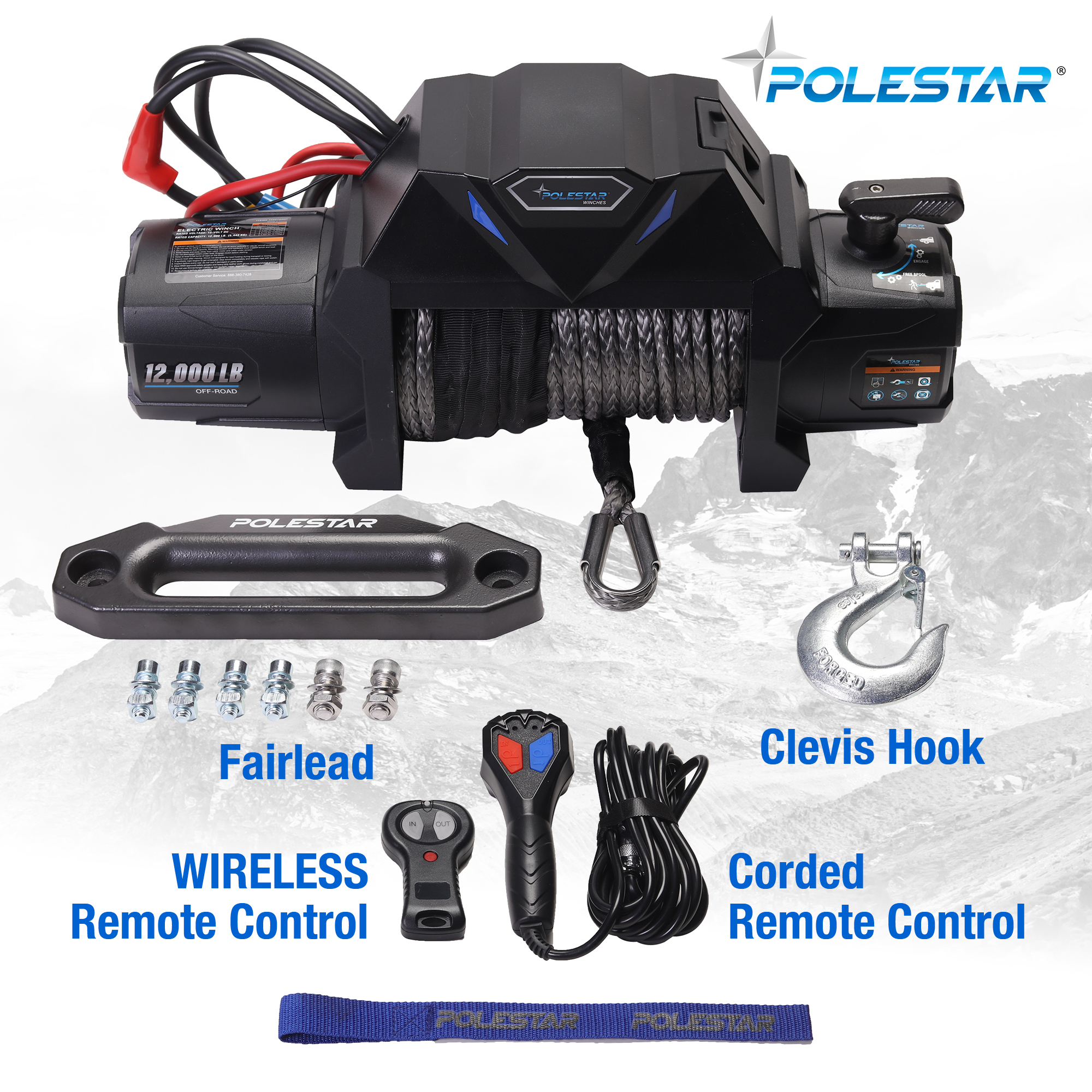

- Includes Wired and Wireless Remote Controls Offers flexible operation with both wired and wireless remotes for added convenience and control.
- 7 HP Series-Wound Motor High-performance motor helps provide strong, consistent pulling power during demanding use.

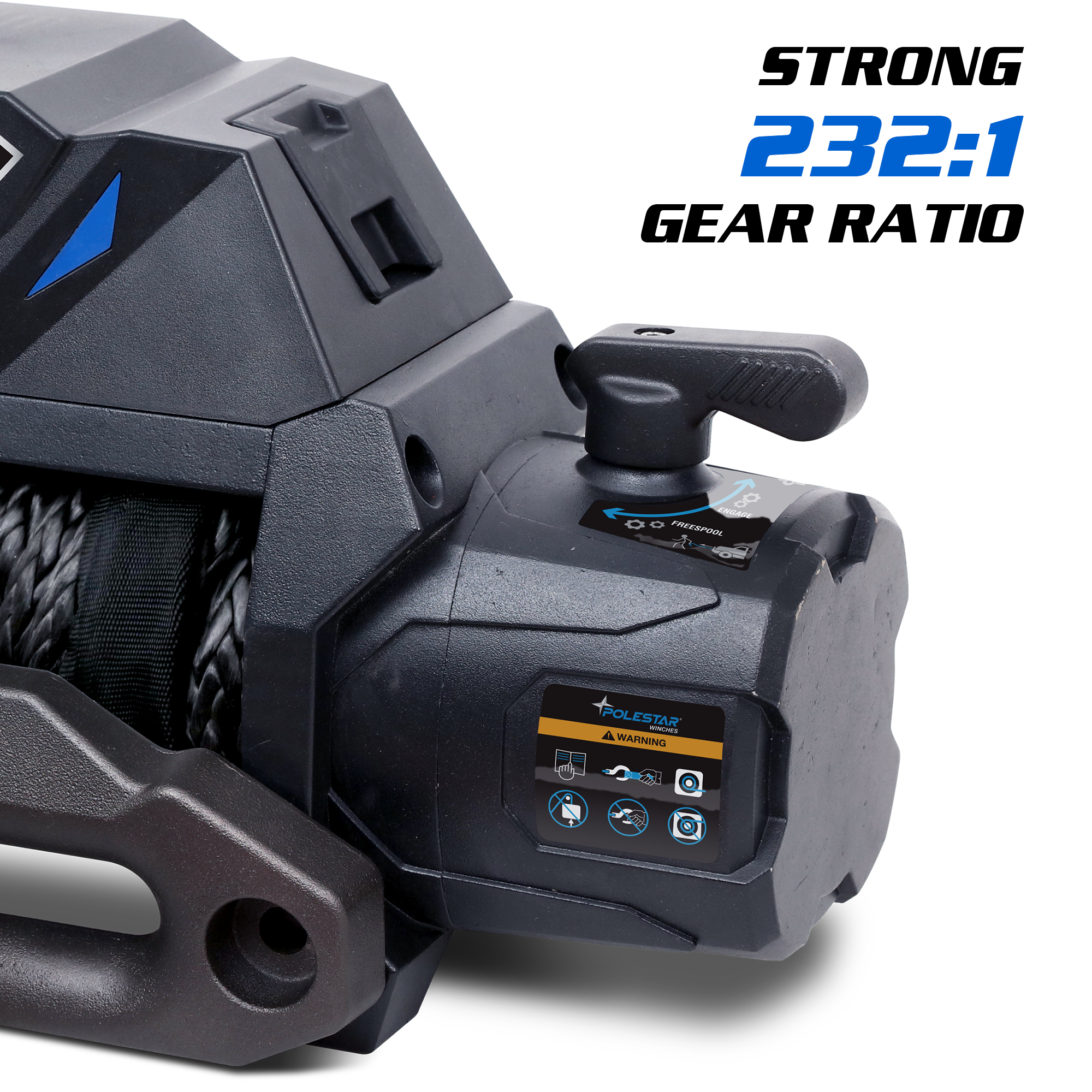

- Three-Stage Planetary Gear System Delivers fast line speed and dependable pulling performance.
- Automatic Brake System Helps hold the load securely and supports safe, controlled winching.
Prop 65 Warning: See Details
See full description
See All DC Powered Winches
See All Polestar DC Powered Winches
Currently Viewing This Product
Specifications
Specifications
PoleStar Electric Truck Winch — 12,000-Lb. Capacity, 12V DC, Integrated, Synthetic Rope
Dutton-Lainson StrongArm 12 Volt DC Electric Winch, 3000-Lb. Capacity, Model# SA9000DC

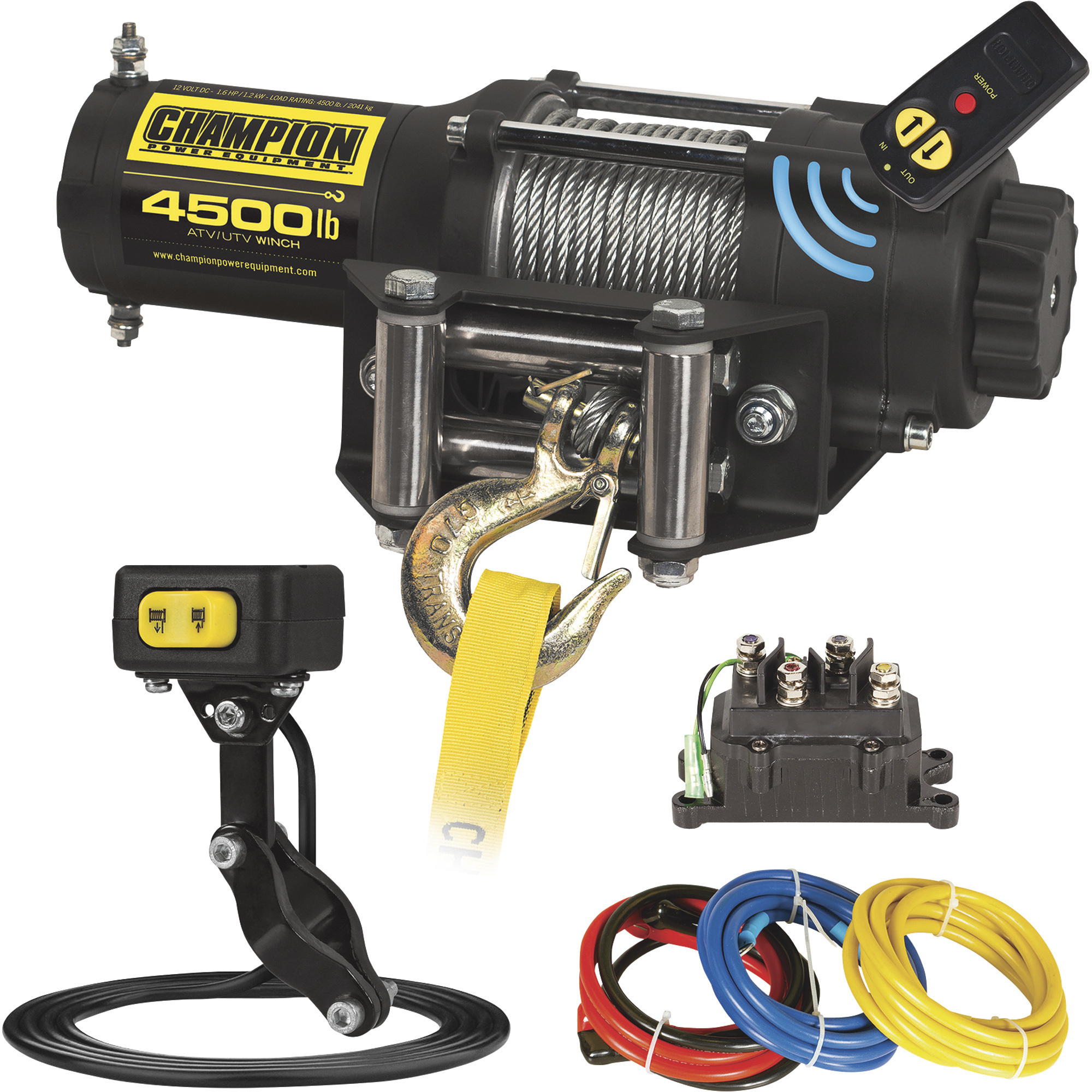

Champion 12 Volt DC Powered Electric ATV/UTV Wireless Winch, 4500-Lb. Capacity, Aircraft Cable, Model# 14560

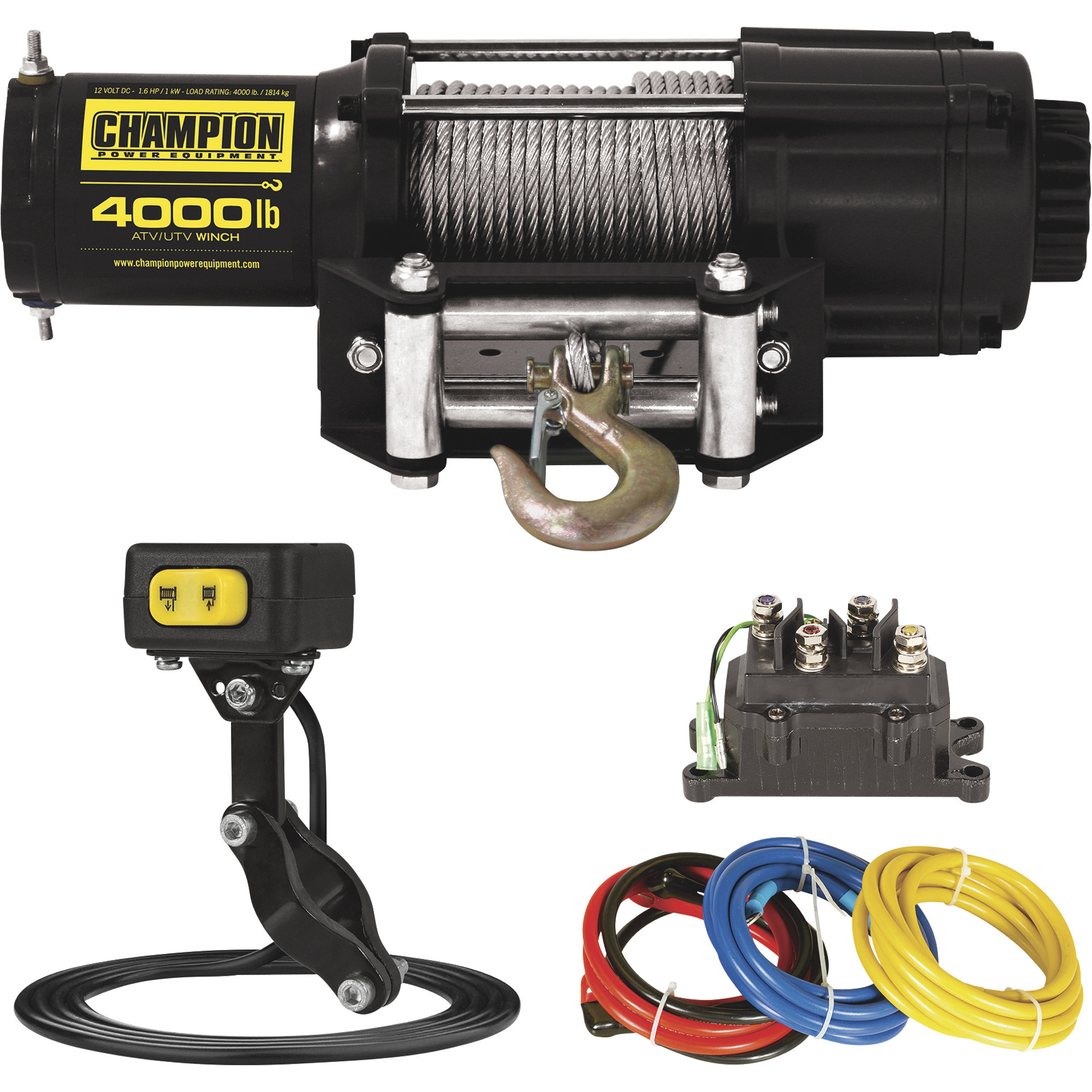

Champion 12 Volt DC Powered Electric ATV/UTV Winch, 4000-Lb. Capacity, Aircraft Cable, Model# 14001
Capacity (Line Pull)
Same
12,000 lb
3,000 lb
4,500 lb
4,000 lb
Application
Same
Truck
Multiple
Multiple
Multiple
Line Speed
Same
19 ft./min.
11 ft./min.
4.6 ft./min.
3.3 ft./min.
Gear Ratio
Same
232:01:00
570:1
180:1
180:1
Brake Type
Same
Automatic
Other
-
-
Remote
Same
Yes
No
Yes
Yes
Automatic Load Holding
Same
Yes
-
-
-
Freespooling
Same
Yes
Yes
Yes
Yes
Underwater Use
Same
No
-
-
-
Mounting Hardware Included
Same
Yes
No
No
No
Dimensions L x W x H (in.)
Same
21.26 x 15.55 x 7.76 in
-
-
-
Product Weight
Same
60.3200 lb
-
-
-
Horsepower
Same
-
-
1.6 HP
1.4 HP
Volts
Same
-
-
12
12
Gear Type
Same
-
-
Planetary
Planetary
Rope Length
Same
-
-
38 ft
49 ft
Rope Diameter
Same
-
-
1/4 in
7/32 in
Rope Material
Same
-
-
Galvanized Steel
Galvanized Steel
Fairlead Type
Same
-
-
Roller
Roller
Remote Cord Length
Same
-
-
-
13.8 ft
