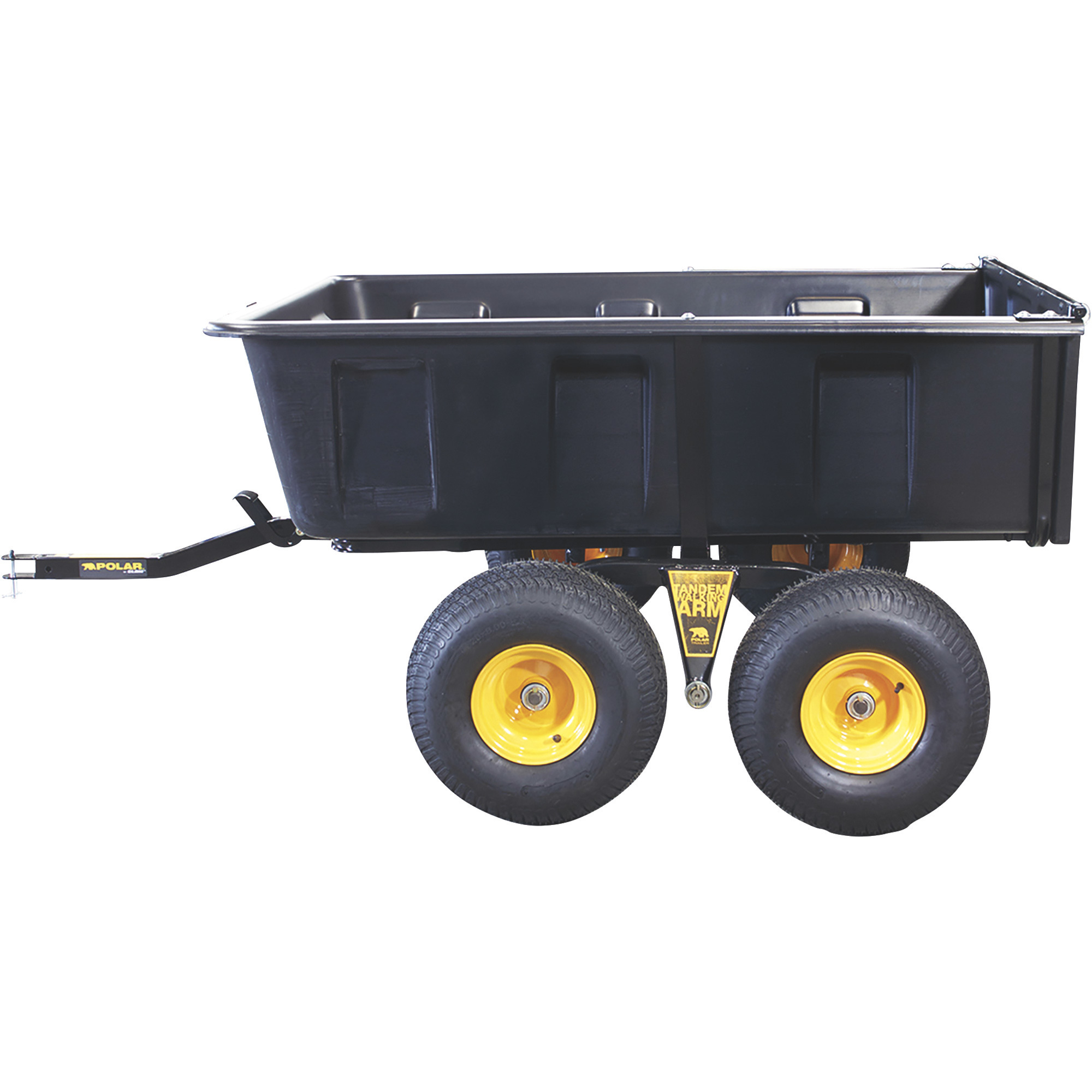

Polar Trailer HD Max Tandem Axle Trailer, 1,800-Lb. Capacity, Model# 10813

Item# 61574
Polar Trailer HD Max Tandem Axle Trailer, 1,800-Lb. Capacity, Model# 10813

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Polar Trailer HD Max Tandem Axle Trailer, 1,800-Lb. Capacity, Model# 10813

Click or Tap image to Zoom

  • Two 1in. dia. axles and four 20 x 8.00-8 pneumatic tires team with a Tandem Walking Arm™ design that provides exceptional stability over tough, uneven terrain
  • Large-capacity unit hauls up to 1,800 lbs./27 cu. ft.
  • Tilt and pivot frame offers the ability to pull the tailgate, and dump the payload right where it needs to be, performing clean and easy dumps
  • Quick-release foot-controlled tipper latch allows for hands-free operation
  • Heavy-duty poly tub resists rust and corrosion

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Polar Trailer HD Max Tandem Axle Trailer enables you to haul up to 1,800-lb. (27 cu. ft.) loads over just about any terrain. Maneuver the trailer into position, pull the tailgate, and easily dump the payload right where it needs to be. Some assembly required.

What's Included

    (1) Polar Trailer HD Max tandem axle trailer (4) Tires

Downloads

Product Manual

Features + Benefits

  • Two 1in. dia. axles and four 20 x 8.00-8 pneumatic tires team with a Tandem Walking Arm™ design that provides exceptional stability over tough, uneven terrain
  • Large-capacity unit hauls up to 1,800 lbs./27 cu. ft.
  • Tilt and pivot frame offers the ability to pull the tailgate, and dump the payload right where it needs to be, performing clean and easy dumps
  • Quick-release foot-controlled tipper latch allows for hands-free operation
  • Heavy-duty poly tub resists rust and corrosion
  • Tough steel frame is built to last
  • Sealed ball bearings never need greasing
  • 90in.L x 55in.W x 37in/H overall size

Key Specs

AttributeSpecification

item#

61574

Brand

Polar Trailer

Manufacturer's Warranty

5 year limited warranty

Ship Weight

280.0 LB

Load Capacity

1,800 lb
AttributeSpecification

Capacity

27 ft³

Deck Material

Poly

Frame Material

Steel

Product Type

Dump Trailer

Axle Diameter

1 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Ware is this product made? I'm not into China made products

    1 answer

    1. This item is manufactured in China.

      Helpful?

  2. Does this fully empty when tipped or do you have to shovel some of the material to empty it? If it has to be shoveled out, how much material is left to be shoveled out

    1 answer

    1. This would depend on the material being dumped, something with a high moisture content may need help, but dryer material will likely be fine. There is no standard or rule for how much might have to be pushed out manually. This trailer has a 40 degree dump angle.

      Helpful?

  3. Will a ball hitch work on this trailer?  If so, what size

    1 answer

    1. The coupler kit for this would be our part #POL8260. This will fit a 2" ball and can be ordered through our parts department at 1-800-657-0516.

      Helpful?

  4. What is the spacing between the inner edges of the wheels? I'm trying to figure out if it can fit over my garden beds so that I can spread compost.

    1 answer

    1. The spacing between the wheels on this trailer would be 47 1/2".

      Helpful?

  5. what is the ground speed ratings on wheel bearings?

    1 answer

    1. The maximum speed of the bearings and trailer is 10 MPH.

      Helpful?

  6. Is it easy to pull by hand if it is empty?

    1 answer

    1. The trailer can easily be pulled by hand if needed. It may prove to be difficult over longer distances.

      Helpful?

  7. Is it stable when not hooked to anything while you load with a smell loader bucket?

    1 answer

    1. The tandem axle does provide stability to the trailer when it is not attached to anything as long as the load is distributed evenly.

      Helpful?

  8. what is the dump angle ?

    1 answer

    1. The Polar Trailer HD MAX features a 40 degree dump angle.

      Helpful?

  9. bed size?

    1 answer

    1. This Polar Sport tandem axle trailer has a body size of 65" long x 47" wide x 17 1/8" high overall. The inside dimensions are 61 1/8" long at the top and 58 3/8" long at the bottom by 43 1/4" wide by 17 1/8" high.

      Helpful?

  10. DOES THE MANUFACTURER MAKE SIDE RAILS ?

    DOES THE MANUFACTURER MAKE SIDE RAILS ?

    1 answer

    1. Side rails are not available for this trailer.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
