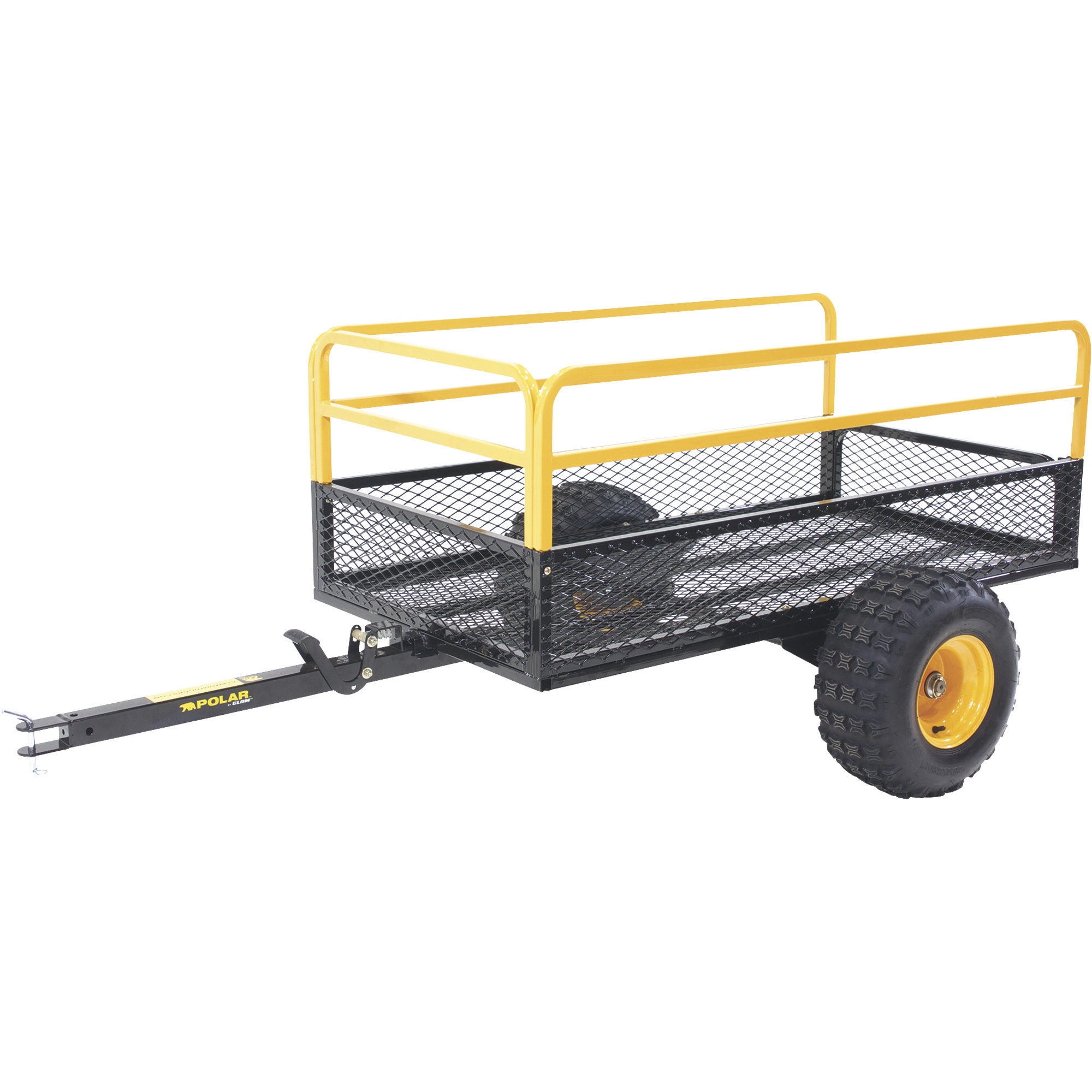

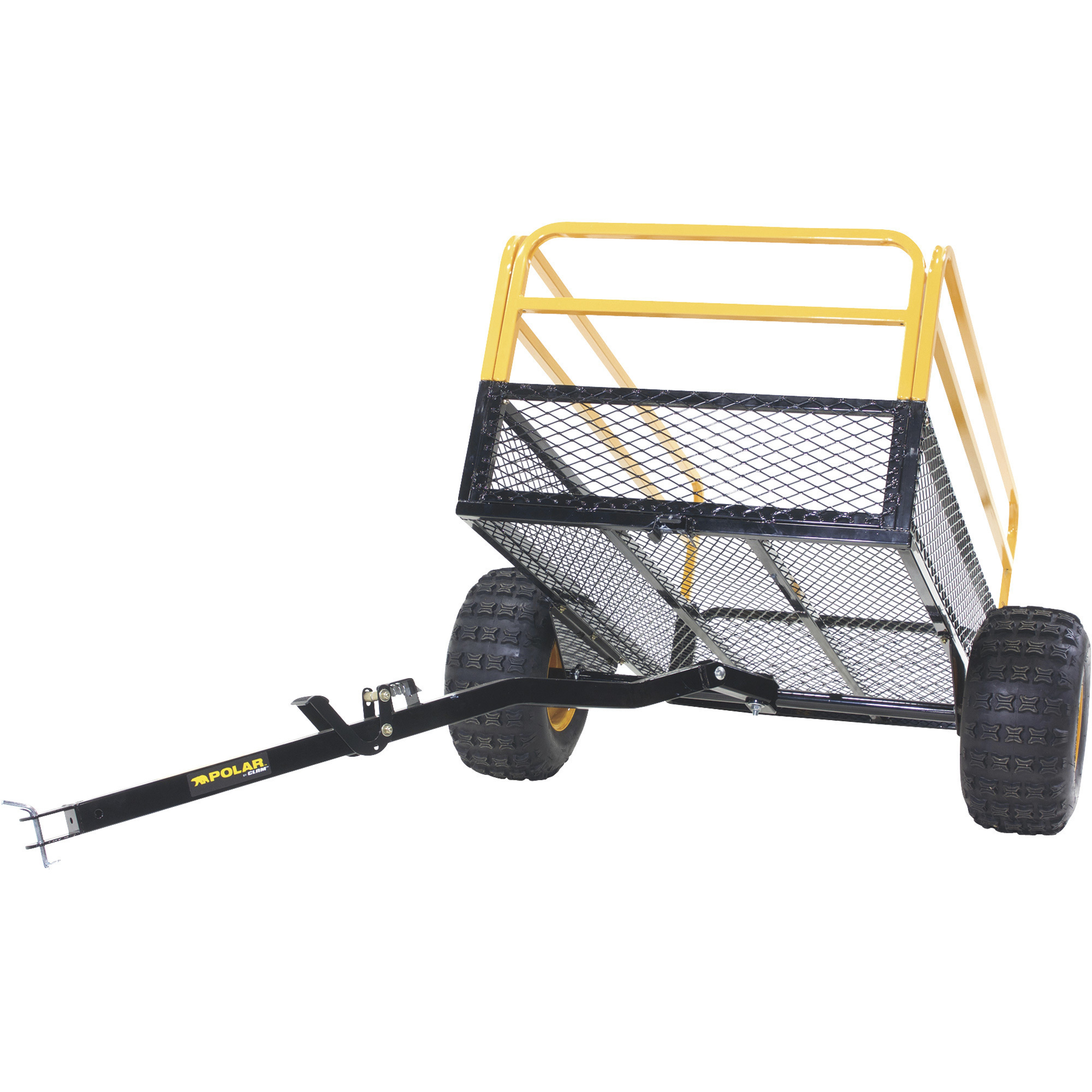

Polar Mesh Trailer, Single Axle, 1400-Lb. Capacity, Model# HDM1400

Item# 56078
"Polar Mesh Trailer, Single Axle, 1400-Lb. Capacity, Model# HDM1400"
Top Seller
Polar Mesh Trailer, Single Axle, 1400-Lb. Capacity, Model# HDM1400

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Polar Mesh Trailer, Single Axle, 1400-Lb. Capacity, Model# HDM1400

Click or Tap image to Zoom

$539.99

Buy 3 or more at $496.79 ea.

  • Shipping:

    Available now
    $19.99 Same Day

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    2 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Pass-through axle provides 8in. of ground clearance, which meets or exceeds most ATVs or utility vehicles

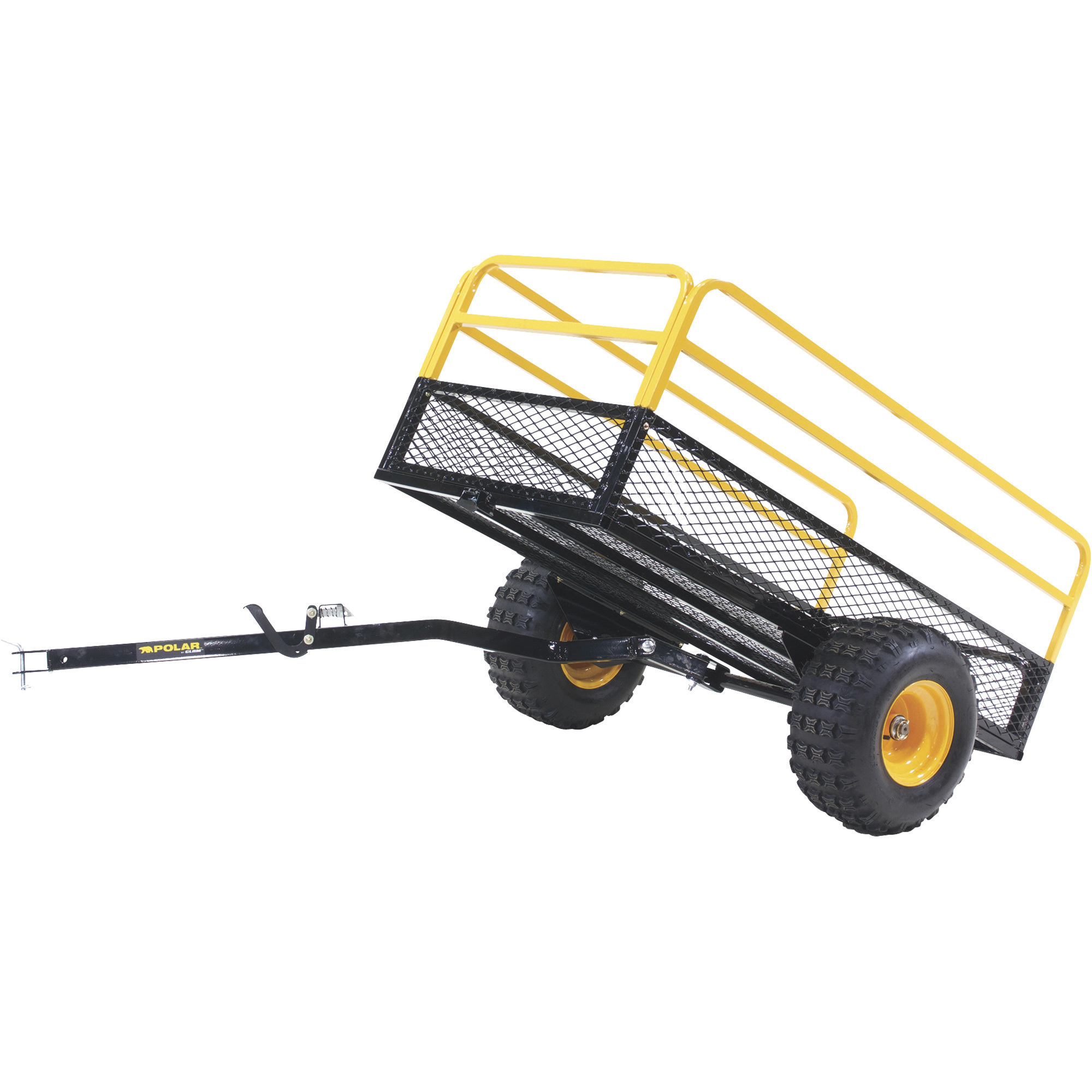

  • Original Tilt & Swivel frame with quick-release, foot-controlled tipper latch makes unloading easier
  • Rugged, all-steel frame with durable powder-coat finish
  • Removable tailgate and side rails offer easy bed access
  • One-piece diamond steel mesh cargo bed holds up to 1400 lbs.

See full description

Complete Your Solution

  • Polar Mesh Trailer, Single Axle, 1400-Lb. Capacity, Model# HDM1400
  • Polar Trailer Foot Pedal Latch, Model# 10537
  • Polar Long Handle Equipment Rack, 3-Tool Capacity, Model# 10517
  • SmartStraps RatchetX Aluminum Tie-Downs, 14ft.L, 3,000-Lb. Breaking Strength, 4-Pack, Orange, Model# 349
Price for all four:

$692.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Single Axle Polar Mesh Trailer delivers the toughness you've come to expect from each Polar trailer. A diamond steel mesh cargo basket boasts a 23 cu. ft. load size capacity and hauls up to 1400 lbs. Some assembly required.

What's Included

    (1) Trailer (1) Set of side rails (2) Tires

Downloads

Product Manual

Features + Benefits

  • Pass-through axle provides 8in. of ground clearance, which meets or exceeds most ATVs or utility vehicles
  • Original Tilt & Swivel frame with quick-release, foot-controlled tipper latch makes unloading easier
  • Rugged, all-steel frame with durable powder-coat finish
  • Removable tailgate and side rails offer easy bed access
  • One-piece diamond steel mesh cargo bed holds up to 1400 lbs.
  • Cargo bed is 60in.L x 32in.W x 10in.H
  • Extra-high ground clearance helps decrease trail hangups
  • Heavy-duty tires with 4-ply turf tread for great traction
  • Sealed ball bearings never need greasing
  • Tow behind any ATV with the 5/8in. pin-style hitch, or add a 2in. channel trailer coupler (Item# 605663, sold separately) for easy connection to an ATV or tractor with ball hitch
  • Tongue is pre-drilled to accept a coupler, but trailer coupler and hardware are sold separately

Key Specs

AttributeSpecification

item#

56078

Brand

Polar Trailer

Manufacturer's Warranty

5 year limited warranty

Ship Weight

182.0 LB

Load Capacity

1,400 lb

Capacity

23 ft³
AttributeSpecification

Deck Material

Other

Frame Material

Steel

Product Type

Dump Trailer

Side Rails Included

Yes

Axle Diameter

1 in

Reviews

Questions & Answers

181 Reviews This action will navigate to reviews.

Questions

1–10 of 47 Questions
Sort by:

  1. Can this trailer be towed behind a vehicle on the road?

    Is the trailer street legal. with the appropriate coupler?

    1. No. Tires are not rated for road use, does not have high speed bearing hubs either. And the tongue does not use a DOT approved hitch. Simply a hole and pin attachment for riding mowers.

      Helpful?

    2. No it is able to be used only behind atv's, lawn tractors, etc.

      Helpful?

    3. No, it is not street legal. Tires are not rated for streets or highways.

      Helpful?

    4. This Polar trailer is for off-road use only.

      Helpful?

  2. Does the tailgate slide up out or how is it removed?

    1. Slidesup

      Helpful?

    2. slides up in out ..its good if u have two ppl u can dump and spread mulch dirt gravel by lifting the tailgate a lil and driving and spreading as u go instead of a full dump in one spot

      Helpful?

    3. The Tailgate slides up between brackets to remove.

      Helpful?

  3. Needed horsepower to tow

    I have a John Deere D170 Lawn Tractor with a 25 Hp engine. Will that be enough for towing this trailer with a load of , say 400 lbs ?"\

    1. That should be more than adequate unless the terrain you are trying to traverse is really bad or wet.

      Helpful?

    2. should work fine - the wide tires help the trailer float across the ground

      Helpful?

    3. A 25 horsepower garden tractor would provide more than enough power to tow this trailer with a 400 pound load inside of it.

      Helpful?

  4. carton size and weight

    what is the dimensions and weight of this carton ?

    1. Really close to 6' by 4' wide and about 16" tall. And very heavy! Over 120 lbs. It did slide into the back of our Honda Pilot. Sales associates loaded it for me and I simply opened the box and removed it part by part.

      Helpful?

    2. Too late to answer as I just destroyed the carton but length and width wise it just fit on a single wooden pallet--I'd guess not more than 8-10" high. Weight was 150 lb according to the invoice. I had lift gate service so all I had to do was empty the carton and begin putting it together, I'm 80 years old and there was nothing too heavy that I couldn't handle alone--and did,

      Helpful?

    3. Shipping dimensions in inches are 61 L X 33 W X 10 H and ship weight is 165 lbs.

      Helpful?

  5. Will the axle bearings handle speeds of 25 or so mph, hauling on county roads or during trail rides loaded with camping gear?

    1. Not meant for road speeds or travel

      Helpful?

    2. The maximum tow speed rating for this trailer is 10 mph.

      Helpful?

  6. could this trailer be used to haul Horse manure?

    1. Don't see why not. It'll need a piece plywood on the bottom of the trailer and some flat material for the side against the railing. Just don't load it more than 1,400 lbs

      Helpful?

    2. This trailer should not be used for horse manure. Please see a better choice for that application shown below.

      Helpful?

  7. How long is tongue?

    I have a basket bolted to the back of my ATV so concerned about sharp turns. Cargo dimensions read 60 inches and overall length as 92 inches. Just to make sure, tongue length from cargo basket to hitch is 32"?

    1. Should be fine, but you can add about 4 more inches by adding the optional 2" ball coupler

      Helpful?

    2. This trailer has a tongue that is 32" long. This measurement is taken from the end of the tongue to the front of the cargo basket/bed.

      Helpful?

  8. Can I buy just the cargo bed

    1 answer

    1. Please contact the manufacturer directly for the replacement cargo bed.

      Helpful?

  9. Is there an attachment point on this trailer for installing a pull handle for manual movement?

    1 answer

    1. There would not be an area on the trailer to attach a pull handle to it.

      Helpful?

  10. What size valve stem on the wheels and where can I get a replacement stem?

    1 answer

    1. The replacement wheel for your Polar HDM1400 trailer is a tubeless 18x9.5- 8 tire on a 3 1/4-inch hub. It uses a 0.453-inch valve stem hole and is compatible with standard TR-413 or TR-415 snap-in stems. The Powerhorse 18x9.5- 8 wheel is available through our sister company, Jacks Small Engines, under Part# POL105012. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Lawn + Garden Utility Trailers

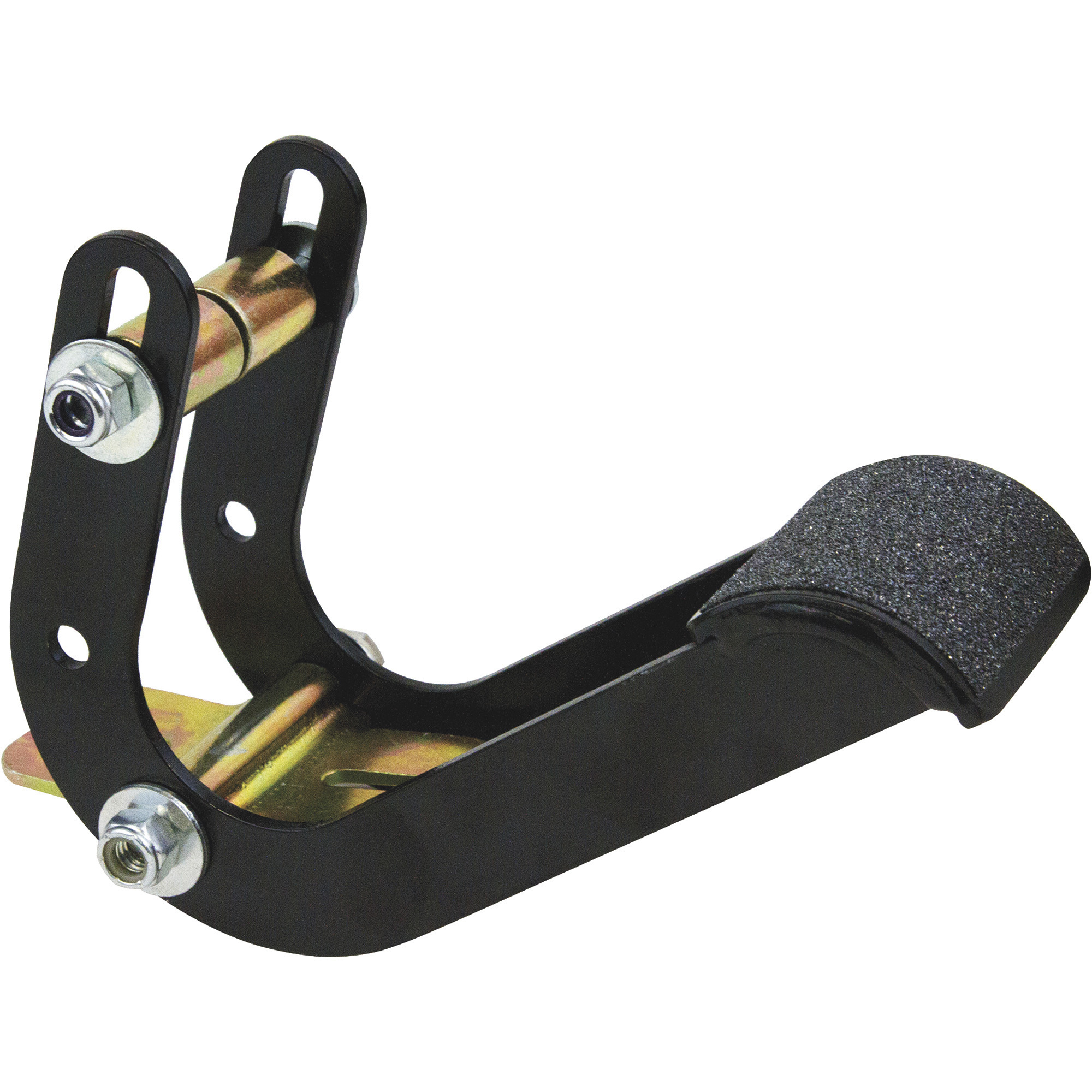

Polar Trailer Foot Pedal Latch, Model# 10537
4.7 out of 5 stars. 7 reviews

Polar Trailer Foot Pedal Latch, Model# 10537

Item # 56080

$49.99
See All Equipment Racks
Polar Long Handle Equipment Rack, 3-Tool Capacity, Model# 10517
5.0 out of 5 stars. 1 review

Polar Long Handle Equipment Rack, 3-Tool Capacity, Model# 10517

Item # 61564

$62.99
See All Tarps

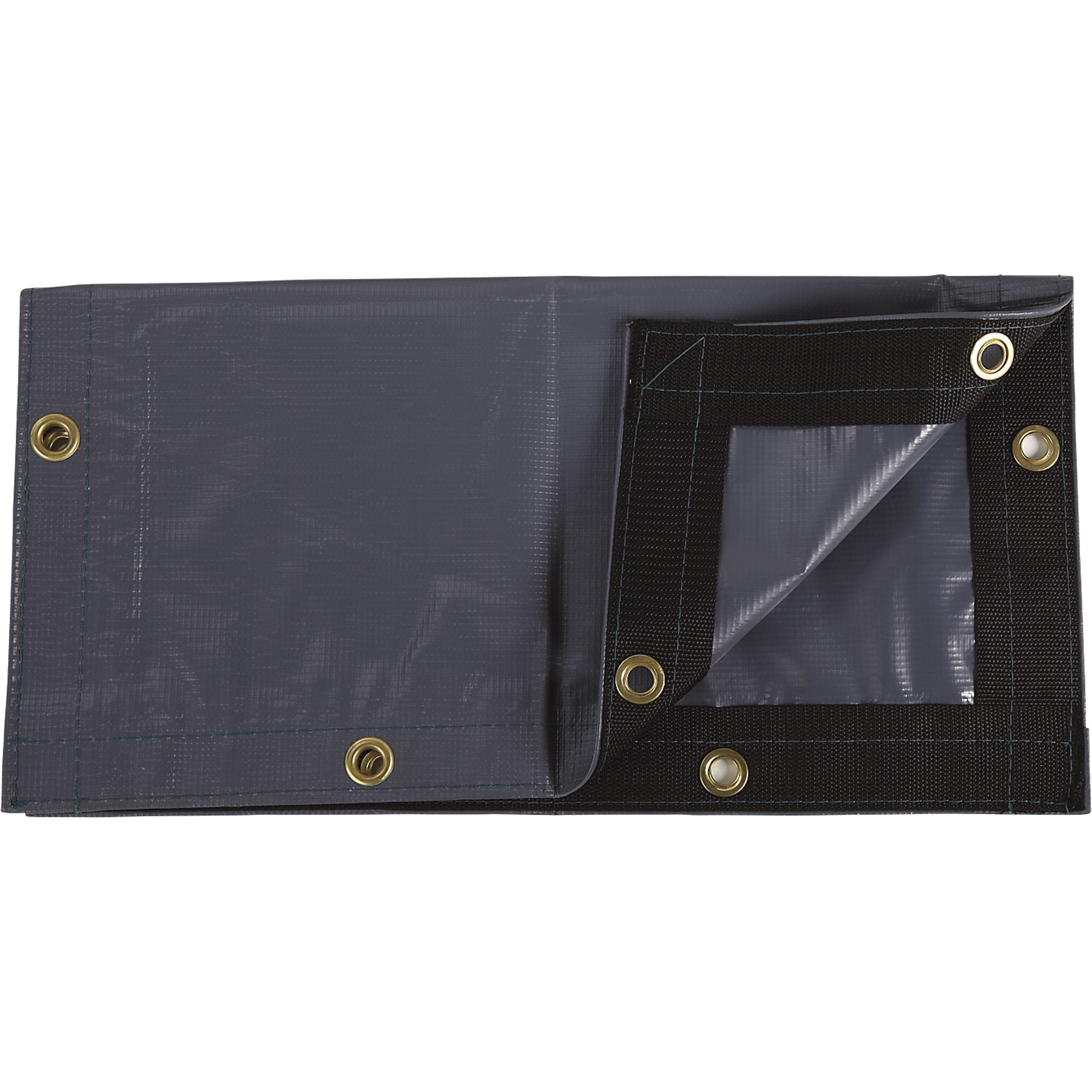

Weather Guard 11.2-Oz. Extreme-Duty PVC Tarp, 8ft. x 10ft., Charcoal Gray
