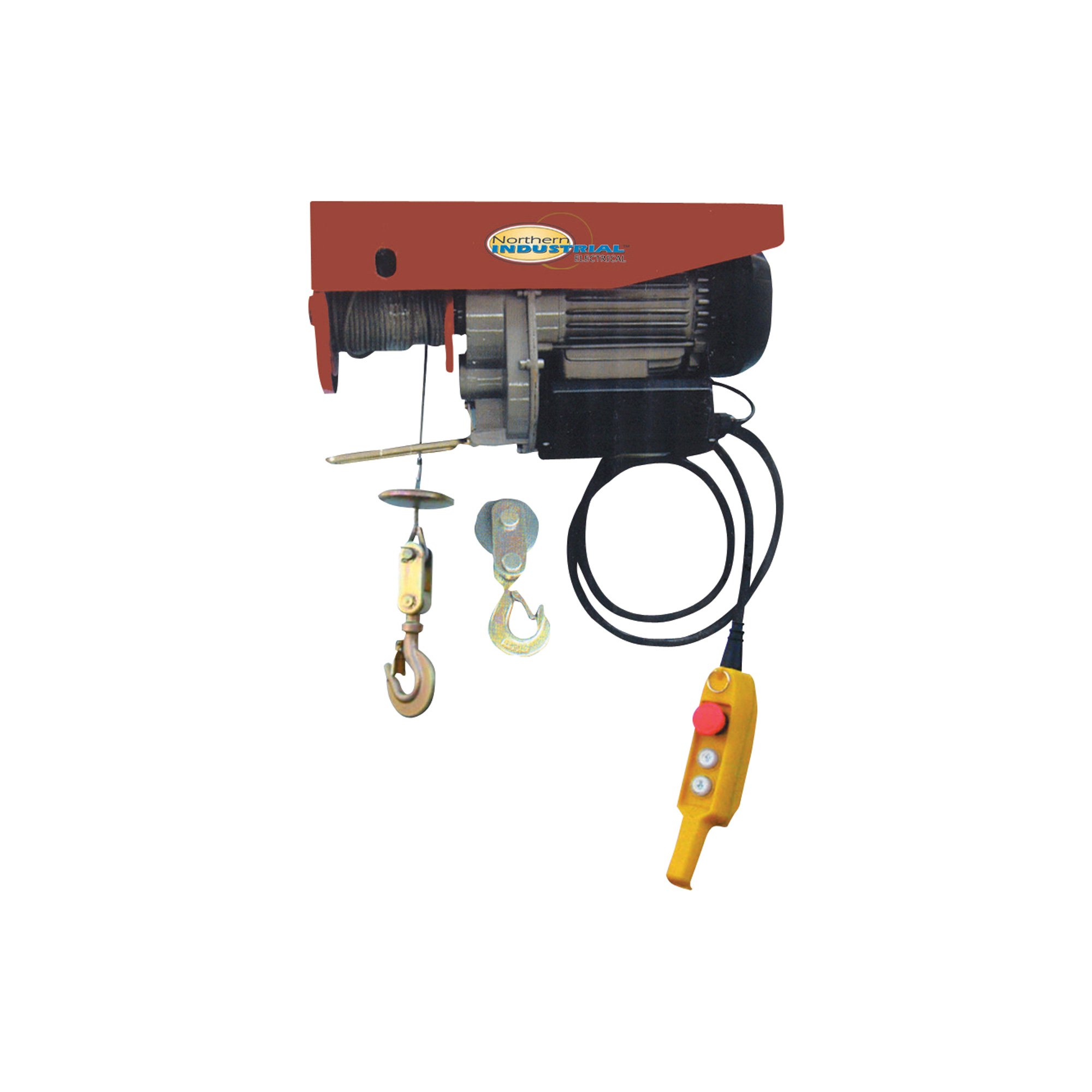

Please see replacement Item# 48306. Northern Industrial Tools Electric Hoist — 750/1500-Lb. Capacity

Item# 142260
Please see replacement Item# 48306. Northern Industrial Tools Electric Hoist — 750/1500-Lb. Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Please see replacement Item# 48306. Northern Industrial Tools Electric Hoist — 750/1500-Lb. Capacity

Click or Tap image to Zoom

  • 110V single-phase motor
  • Power cord cable is 14 gauge
  • Remote buttons are spring loaded - unit stops when button is released
  • 53in. remote cord
  • Emergency stop button

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Heavy-duty electric hoist has 750-lb. capacity with single line, 1500-lb. capacity with double line. 16-gauge antitwist wire, spring-loaded remote buttons and emergency stop button. Great for lifting engines, tables, lumber, shop equipment and a whole range of other products. The biggest advantage to this hoist is that you do not need to climb a ladder and crank a lever; you can remain on the ground to control operations.

What's Included

  • (1) Electric hoist
  • (1) Switch handle
  • (1) Hook
  • (1) Mounting kit

Downloads

Product Manual

Features + Benefits

  • 110V single-phase motor
  • Power cord cable is 14 gauge
  • Remote buttons are spring loaded - unit stops when button is released
  • 53in. remote cord
  • Emergency stop button
  • Mounting hole dimensions: 4 1/2in. x 8 5/8in.; holes are 3/8in. diameter
  • Complies with IP54 and IP65 standards
  • Handle has an emergency stop switch
  • Thermal protection device
  • Single hook and double hook, two operations to choose

Key Specs

AttributeSpecification

item#

142260

Brand

Northern Industrial Tools

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

44.0 LB

Amps

15

Single Line Lift Capacity

750 lb

Double Line Lift Capacity

1,500 lb

Single Line Lift Height

36 ft
AttributeSpecification

Double Line Lift Height

18 ft

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

39 ft

Cable Diameter

0.15 in

Duty Cycle

10 min

Horsepower

2 HP

Dimensions L x W x H (in.)

16 x 6.3 x 9.8 in

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. width between mounting holes?

    I would like to mount this directly to the underside of a 4x10 beam (with a custom bracket fitted over the top). How wide apart are the mounting holes center to center?

    1. 4.5 inches

      Helpful?

    2. The mounting holes are 4 1/2" apart from side to side.

      Helpful?

  2. Can this hoist be mounted directly to a wooden beam?

    1. Yes, but I would through-bolt it (bolts running from the mounting plate up through the entire beam with nus on the far end). There is not a lot of space to do this, but it can be done. A better way would be to make a mounting bracket, secure the bracket to your beam, and then mount the hoist's bracket to your bracket. JBK

      Helpful?

    2. This electric hoist is designed to be attached to a beam or steel pipe and held in place by using both of the included hangers. Northern Tool cannot recommend or advise on mounting it directly to a wooden beam while not using the hangers. Mounting it in non-intended ways may void the warranty.

      Helpful?

  3. Can you tell me if this has adequate service factor to lift light loads (100#)- on a one minute frequency all day long?

    1. I was lifting material easily that weight from 8 AM through 6 PM and had no issues. The motor and housing kept cool and it didn't struggle at all. The outside temp was around 82 degrees. My lift intervals were probably every 5 minutes and were at full cable length capacity. .

      Helpful?

    2. The Northern Industrial Electric Hoist has a 20% duty cycle which will run for 2 minutes of every 10 minutes.

      Helpful?

  4. What is the correct size of pipe to connect the hoist to?

    I thought I read somewhere that it should be attached to a 2" pipe. I now can't find anything about what size of pipe to connect it to for safety and what size the brackets will fit over.

    1. I used 2" rigid conduit.

      Helpful?

    2. The hangers included with this electric hoist will accommodate a pipe up to 2" in diameter.

      Helpful?

  5. How do I order parts for a 142260 Electric hoist?

    I need the shaft or I would call it the armature.

    1. You can view the owner's manual in PDF form by finding this product on the website. There is a phone number for parts and service in the owner's manual. I've had to use it before.

      Helpful?

    2. Parts for this electric hoist are available through the Northern Tool Parts department. Please call 1-800-222-5381 for price and availability. The Parts department is open Monday-Friday, 7am-6pm Central time and Saturday, 8am-2pm.

      Helpful?

  6. How do you increase the lifting capacity?

    How do you increase the lifting capacity from 750 to 1500 pounds exactly. It said to double the line. Is this with an included pulley system? Is the lifting height reduced?

    1. Yes, the cable goes through a pulley, that has a hook attached to it, and then hooks to a hole in the hoist housing. This in turn decreases the length of the cable by 50%. It also decreases the speed by 50%.

      Helpful?

    2. This electric hoist's capacity can be doubled to 1500 lbs. by placing the hook at the end of the cable into the hole in the housing that's pictured just above the cable drum. The included pulley block is then used to attach the item you're lifting. This reduces the lifting height capacity from 39 feet to approximately 19-1/2 feet.

      Helpful?

  7. Does this hoist use a standard household plug

    1. Yes, it does use a regular 110 V outlet.

      Helpful?

    2. Yes, the Northern Industrial Electric Hoist will come a 3-prong, standard household plug.

      Helpful?

  8. Do you offer mounting brackets for your hoist frame

    The mounting brackets that come with the electric hoist are for round pipe. Do you sell brackets to mount the electric hoist to your square tubing electric hoist frame?

    1 answer

    1. Square tubing mounting brackets are not available for this electric hoist.

      Helpful?

  9. Can the hoist safely operate while mounted upside down?

    Because of the short length of the control cable, I would like to attach this hoist to the accessible bottom part of a gantry and thread the wire rope through a pulley at the top of the gantry to pull the loads up. So can this hoist be operated upside down with the winch pulling the cable downward?

    1 answer

    1. This hoist is designed to be mounted in a specific manner for lifting. It should not be mounted upside down.

      Helpful?

  10. What is the height of this hoist itself?

    I have limited vertical space and need to see if it would fit. What height does the hoist take up from top of mounting to hook (if there's a difference in single line vs double, please provide both heights).

    1 answer

    1. The dimension from where the top of winch mounts to the hook when fully retracted is 14 11/16". The single and double line would be approximately the same dimension.

      Helpful?
