Ironton Electric Cable Hoist, 220-lb. Single-Line Capacity/440-Lb. Double-Line Capacity, 38ft./19ft. Lift

Item# 4584189
"Ironton Electric Cable Hoist, 220-lb. Single-Line Capacity/440-Lb. Double-Line Capacity, 38ft./19ft. Lift"
Ironton Electric Cable Hoist, 220-lb. Single-Line Capacity/440-Lb. Double-Line Capacity, 38ft./19ft. Lift

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Electric Cable Hoist, 220-lb. Single-Line Capacity/440-Lb. Double-Line Capacity, 38ft./19ft. Lift

Click or Tap image to Zoom

$149.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    4 in stock at Fredericksburg VA - Pickup in under 1 hr

  • Lifts loads quickly and easily at the push of a button
  • Rated to lift 220 lbs. up to 38ft. on a single line or 440 lbs. up to 19ft. on a double line
  • 5/8 HP motor delivers a quick lifting speed of 33 feet per minute
  • 120 Volts power motor for longer 10-minute duty cycles at 20%
  • Includes 38ft.L x 1/8in. diameter cable

See full description

Complete Your Solution

  • Ironton Electric Cable Hoist, 220-lb. Single-Line Capacity/440-Lb. Double-Line Capacity, 38ft./19ft. Lift
  • SmartStraps Web Sling, 3,200-Lb. Breaking Strength, 4ft. x 2in., Model# 841
  • Milwaukee Hard Hat with 4-Point Ratcheting Suspension, Type 1, Class E, Front Brim, White, Model# 48-73-11--
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
Price for all four:

$193.14

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton 120 Volt Electric Hoist can be used to lift loads quickly and easily at the push of a button. This hoist is rated to lift 220 lbs. up to 38ft. on a single line or 440 lbs. up to 19ft. on a double line. The 5/8 HP motor delivers a quick lifting speed of 33 FPM for a single line, 16-1/2 FPM for a double line. Includes a 38ft.L x 1/8in. diameter cable.

What's Included

    (1) Ironton Electric Cable Hoist (1) Mounting kit (1) Pulley hook

Downloads

Product Manual

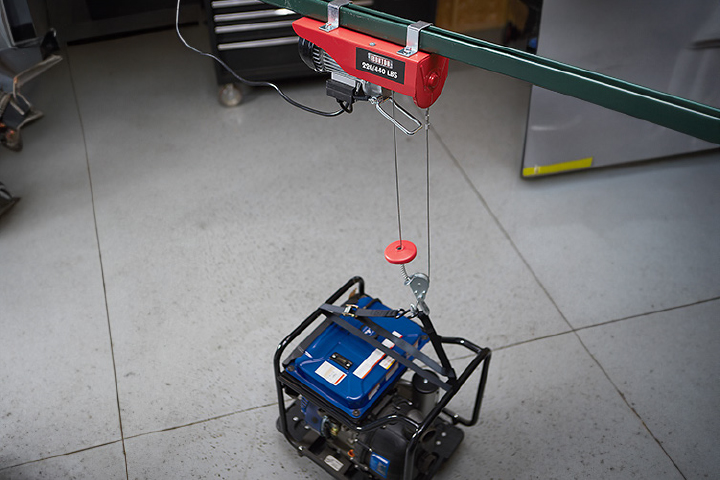

FLEXIBLE APPLICATIONS

With the ability to switch between SINGLE and DOUBLE LINE CONFIGURATIONS, this hoist provides flexibility for different lifting demands, making it ideal for a variety of residential and commercial projects

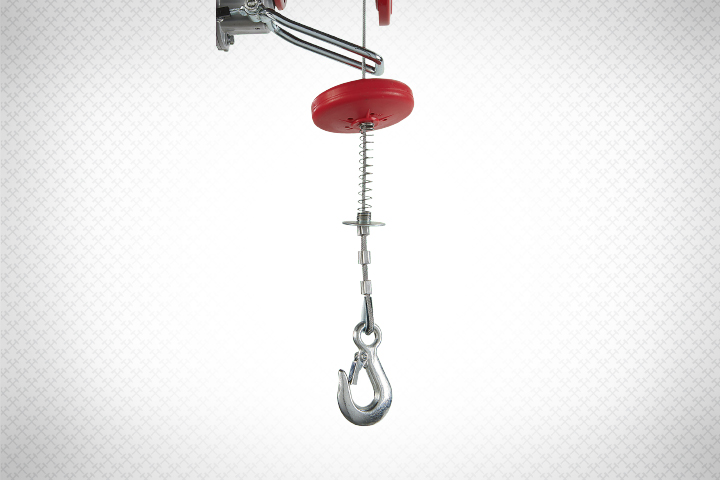

EFFICIENT LIFTING

The Ironton Electric Cable Hoist is designed to make lifting operations smoother and faster, whether you’re working with 220 LBS. or DOUBLING THE LOAD. Its efficient motor ensures rapid movement of materials, enhancing productivity

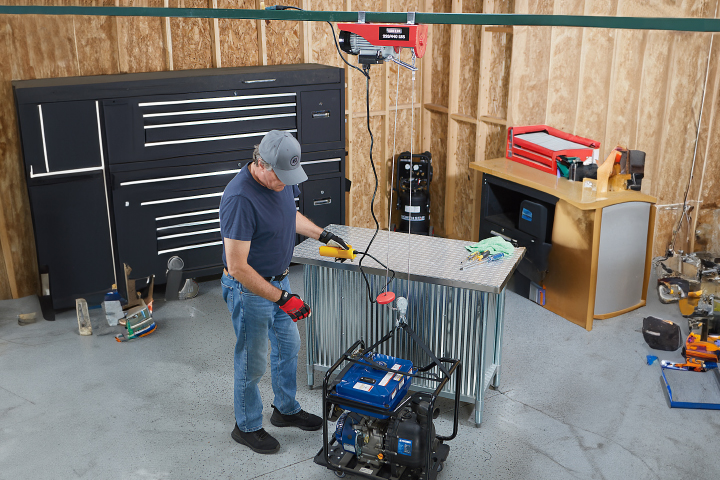

RELIABLE PERFORMANCE

Built to perform, this hoist features a POWERFUL MOTOR and a ROBUST CABLE that can handle demanding lifting tasks repeatedly with consistent reliability

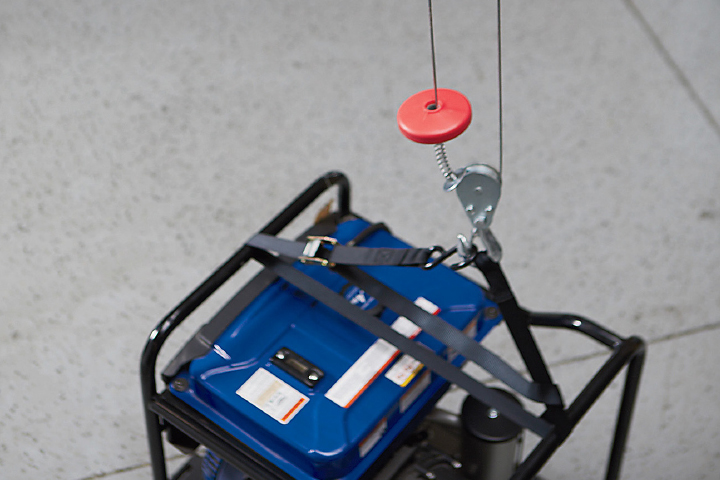

SAFETY AND DURABILITY

This hoist not only meets essential safety standards but is also constructed with QUALITY MATERIALS to ensure DURABILITY and LONG-TERM USE, protecting both the user and the materials being lifted

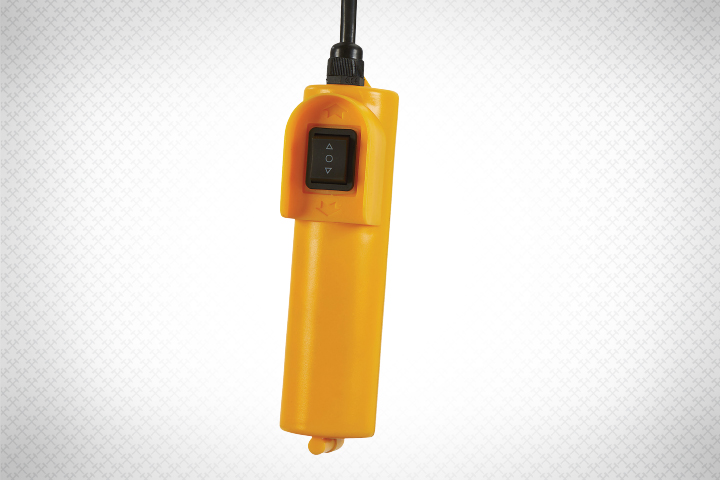

EASY-TO-USE DESIGN

Operate with ease using a simple BUTTON PUSH, eliminating the manual effort and reducing the time INVOLVED IN HANDLING HEAVY LOADS

Features + Benefits

  • Lifts loads quickly and easily at the push of a button
  • Rated to lift 220 lbs. up to 38ft. on a single line or 440 lbs. up to 19ft. on a double line
  • 5/8 HP motor delivers a quick lifting speed of 33 feet per minute
  • 120 Volts power motor for longer 10-minute duty cycles at 20%
  • Includes 38ft.L x 1/8in. diameter cable

Key Specs

AttributeSpecification

item#

4584189

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

23.0 LB

Amps

4.1

Single Line Lift Capacity

220 lb

Double Line Lift Capacity

440 lb

Single Line Lift Height

38 ft

Double Line Lift Height

19 ft
AttributeSpecification

Single Line Lift Speed

33 ft./min.

Double Line Lift Speed

16.5 ft./min.

Cable Length

38 ft

Cable Diameter

1/8 in

Duty Cycle

20%-10min min

Phase

Single-phase

Product Weight

22.0000 lb

Dimensions L x W x H (in.)

13.78 x 8.26 x 5.71 in

Reviews

Questions & Answers

Questions

1–10 of 21 Questions
Sort by:

  1. what is the size of the square steel tube needed to support hoist and maximum weight 500 lb.. Plus what is the gauge of of the tubing for strength, and where can you get the tubing plus suggest length.

    1 answer

    1. This hoist is designed to be mounted on standard 1.6 in. × 1.6 in. square tubing. While no specific wall thickness is required, the mounting tube should not exceed 43.3 ft. in length, as longer lengths may affect performance and safety.

      Helpful?

  2. can I mount it upside down? I want to mount it in the basement and run up to a pulley on the next floor to operate a dumb waiter.

    1 answer

    1. This hoist is designed to be mounted to an overhead pipe or beam using the included mounting brackets. We do not recommend mounting it upside down for operation as this would void the warranty.

      Helpful?

  3. What's the electrical draw when using that winch

    1 answer

    1. This hoist draws a maximum of 4.1 amps at 120V.

      Helpful?

  4. How long is the power cord on this?

    1 answer

    1. The power cord is 25.59" long.

      Helpful?

  5. Can this motor be put on a rheostat to slow it down?

    1 answer

    1. This hoist cannot be connected to a rheostat to slow the motor down because it has an induction motor.
      The speed of the induction motor is constant.

      Helpful?

  6. Does it come with a certified load test

    1 answer

    1. This hoist's load test has been approved with C/ETL certification.

      Helpful?

  7. how long is the controlling line cable and how many conductors are in it? can a longer one be bought?

    1 answer

    1. The remote control cable length is 1.6 meters (5.25 ft.) long. There is one capacitor, 60UF, in the controller. A longer controller is not available for purchase at this time; however, it can be lengthened to whatever the user finds suitable as long as it is done by an electrician.

      Helpful?

  8. Need a new switch

    1 answer

    1. The rocker switch for the remote, part #IRN4584189-69, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  9. Does winch include a hooked pulley for double line operation?

    1 answer

    1. This hoist includes the snatch block needed to set it up for double line operation.

      Helpful?

  10. Can I get a 1/8" replacement cable, mine has been broken

    1 answer

    1. The 40' x 1/8" wire rope, part #IRN4584189-13, is available our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?
