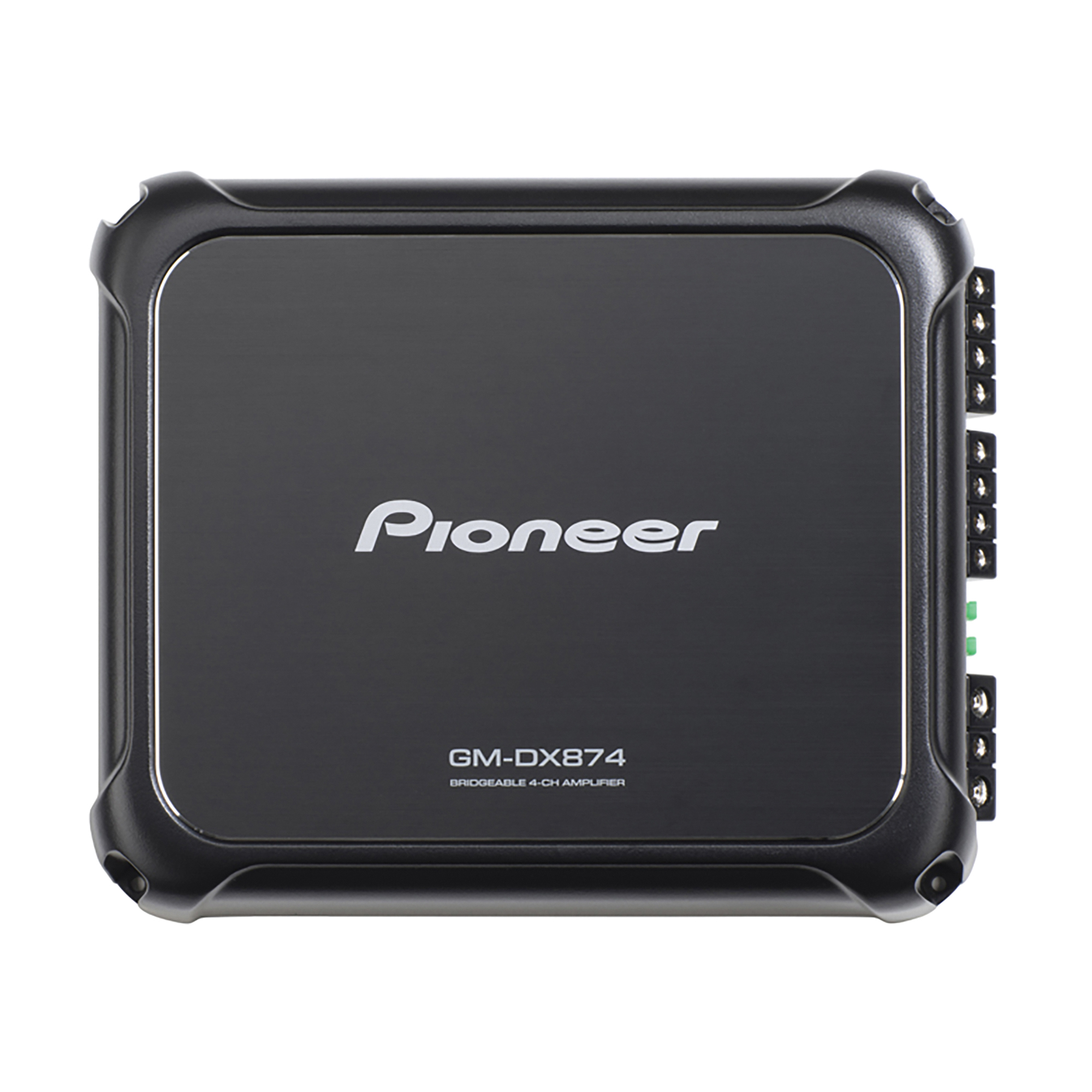

Pioneer 4-Channel Class D Amplifier — 1200W Max, Hi-Res Audio Certified, Wired Bass Boost Remote, Model# GM-DX874

Item# 7186186
1 Included
Pioneer 4-Channel Class D Amplifier — 1200W Max, Hi-Res Audio Certified, Wired Bass Boost Remote, Model# GM-DX874

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pioneer 4-Channel Class D Amplifier — 1200W Max, Hi-Res Audio Certified, Wired Bass Boost Remote, Model# GM-DX874

Click or Tap image to Zoom

$269.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Max power output: 1,200 watts; 200 watts x 4 channels at 4 ohms; 600 watts x 2 channels at 4 ohms bridged
  • RMS power output: 100 watts x 4 channels at 4 ohms, 125 watts x 4 channels at 1 ohm, 150 watts x 4 channels at 2 ohms, and 300 watts x 2 channels at 4 ohms bridged
  • 1-ohm to 8-ohm allowable load impedance
  • Designed to power automotive speakers and subwoofers
  • Class D technology makes it smaller in size for greater installation options

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Pioneer® GM-DX874 4-Channel Class D Amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50 kHz, for Hi-Res Audio Certified playback. Pioneer® uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.

What's Included

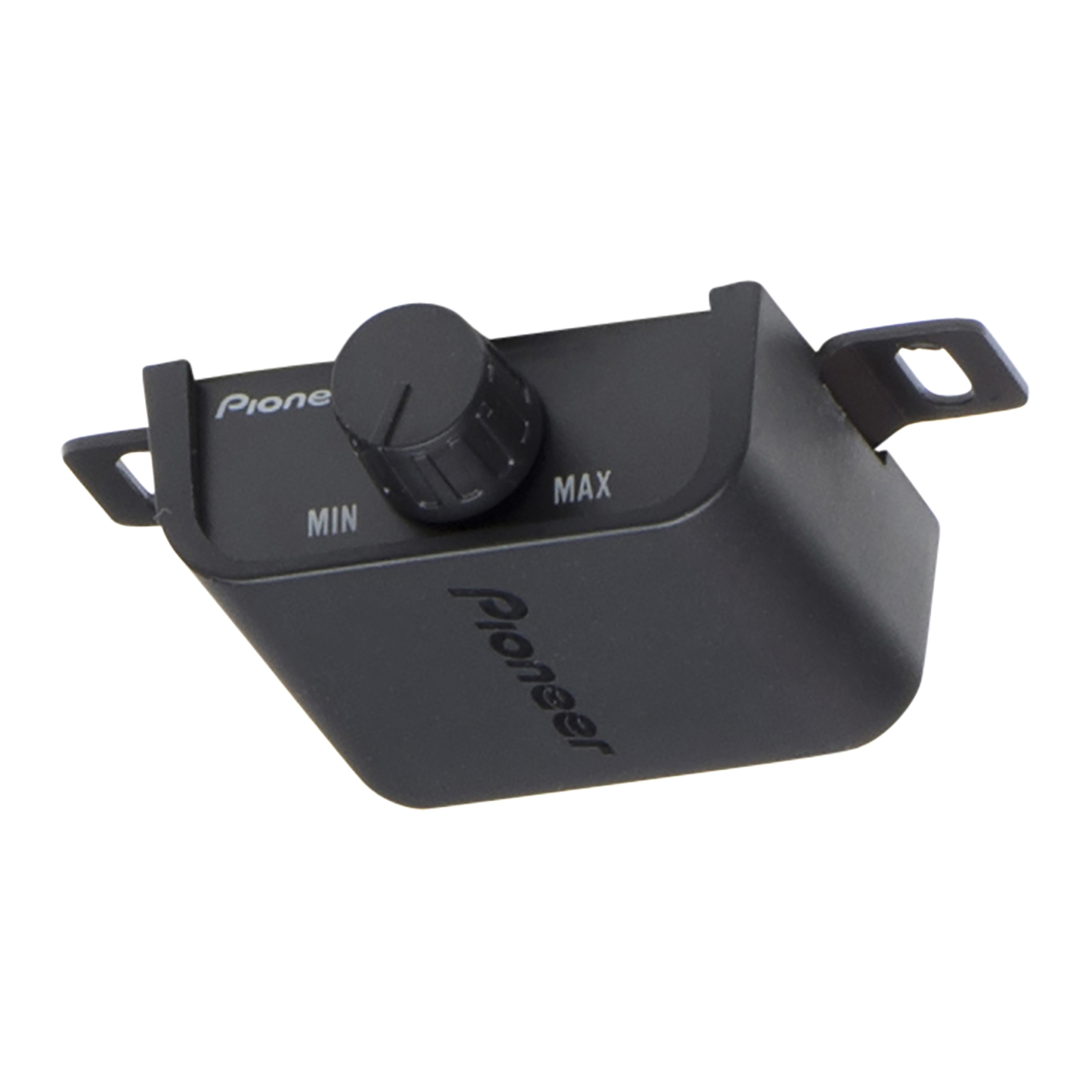

    (1) Amplifier (1) Bass remote and cable (1) Speaker-to-RCA adapter (4) Screws (1) Terminal tool

Features + Benefits

  • Max power output: 1,200 watts; 200 watts x 4 channels at 4 ohms; 600 watts x 2 channels at 4 ohms bridged
  • RMS power output: 100 watts x 4 channels at 4 ohms, 125 watts x 4 channels at 1 ohm, 150 watts x 4 channels at 2 ohms, and 300 watts x 2 channels at 4 ohms bridged
  • 1-ohm to 8-ohm allowable load impedance
  • Designed to power automotive speakers and subwoofers
  • Class D technology makes it smaller in size for greater installation options
  • Frequency response: 10 Hz to 50 kHz; Hi-Res Audio certified
  • 50 Hz bass boost
  • Made from high-quality, textured aluminum panel and tough frame plus high-quality audio components for long life
  • PCS (Protection Control System) continuously monitors input voltage, current consumption, and operating temperature to automatically adjust amp’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments
  • Gold-plated RCA terminals for accurate signal with increased electrical conductivity; prevent corrosion and provide enhanced durability with excellent wear resistance
  • Fuse rating: 30 amps x 2
  • Dimensions: 9-7/8 in. x 2-3/8 in. x 8-1/2 in.
  • Weight: 5.5 lbs. (not including leads for wiring)
  • Includes 2 installed ATO fuses, bass boost remote and control cable, speaker level to RCA input adapter, installation screws, wire terminal tool, owner’s manual, and warranty sheet

Key Specs

AttributeSpecification

item#

7186186

Brand

Pioneer

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.5 LB

Product Type

Amplifier

Max. Watts

1,200
AttributeSpecification

Noise Rating

75 dB

Bluetooth

No

Color

Black

Included (qty.)

1

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

8.5 x 9.875 x 2.375 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
