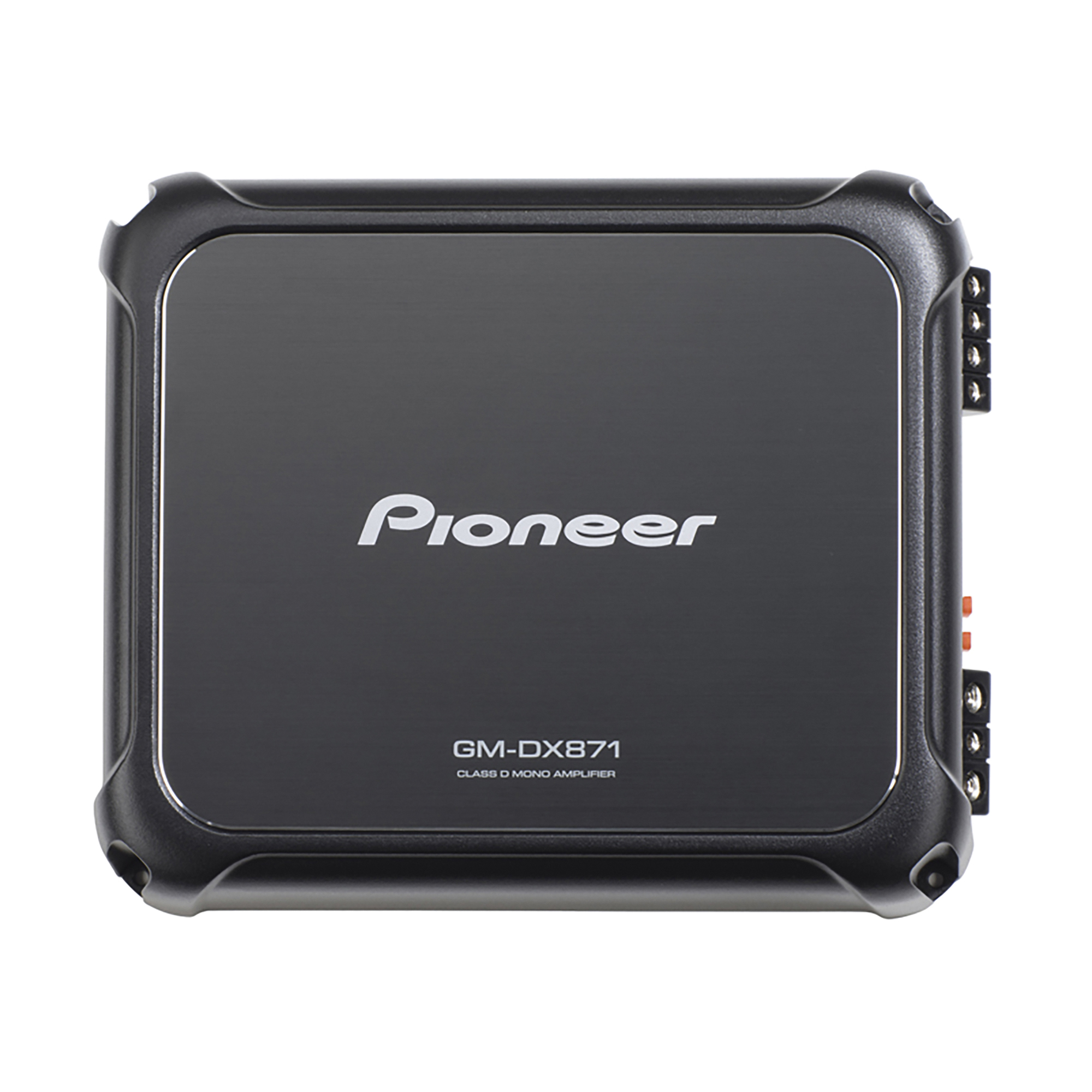

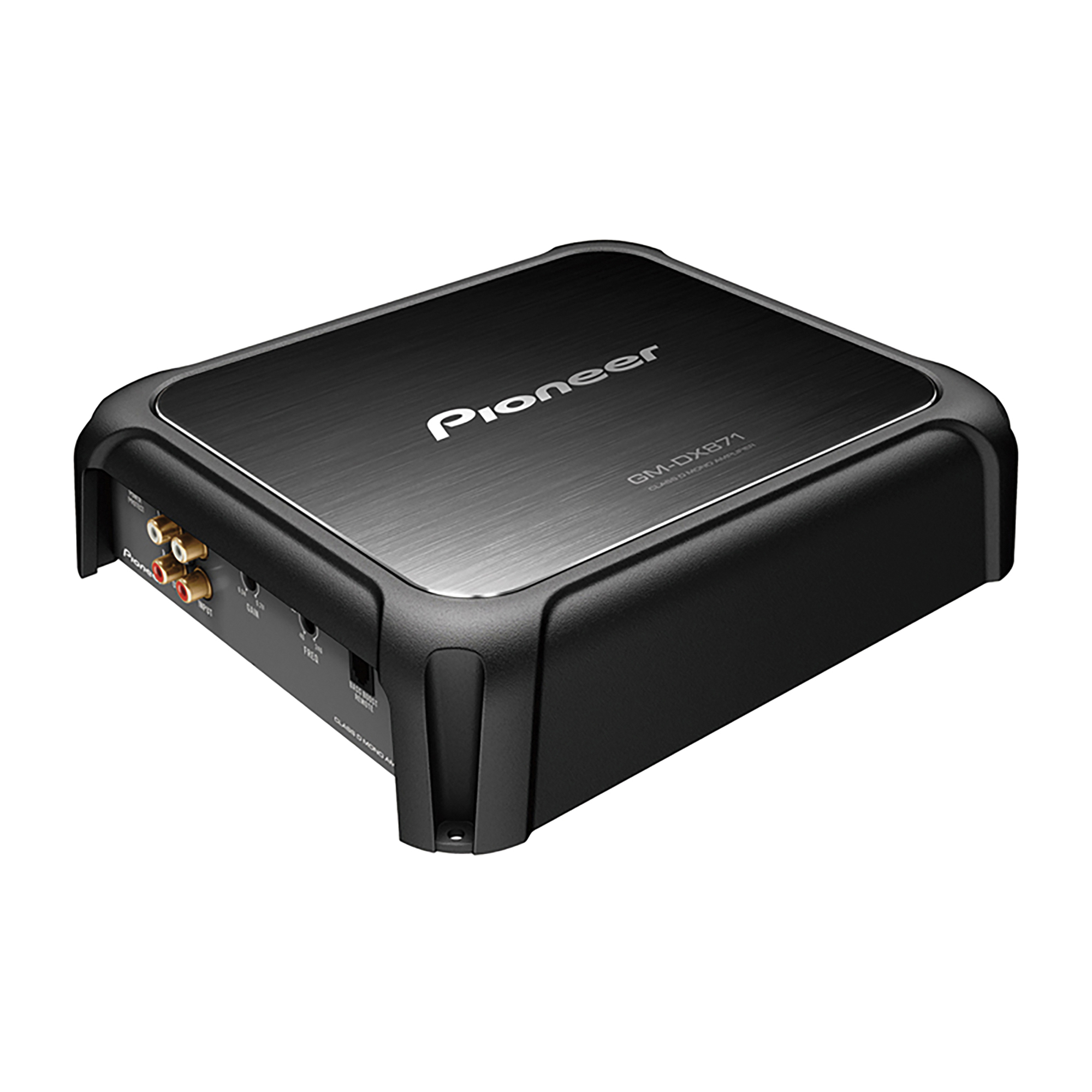

Pioneer® GM-DX871 1,600-Watt-Max 1-Channel Class D Amplifier with Wired Bass Boost Remote

Item# 7186311
1 Included
Pioneer® GM-DX871 1,600-Watt-Max 1-Channel Class D Amplifier with Wired Bass Boost Remote

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pioneer® GM-DX871 1,600-Watt-Max 1-Channel Class D Amplifier with Wired Bass Boost Remote

Click or Tap image to Zoom

$269.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1,600 watts max x 1 channel at 1 ohm; 800 watts RMS x 1 channel at 1 ohm; 500 watts RMS x 1 channel at 2 ohms; 300 watts RMS x 1 channel at 4 ohms; 1-ohm to 8-ohm allowable load impedance
  • Designed to power automotive subwoofers
  • Class D technology makes it smaller in size for greater installation options
  • Frequency response on subwoofer channel: 10 Hz to 240 Hz
  • Made from high-quality, textured aluminum panel and tough frame plus high-quality audio components for long life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Pioneer® GM-DX871 mono subwoofer amplifier can deliver up to 800 watts RMS (1,600 watts max) to your subwoofer, for powerful bass that will give every song a strong and heavy beat. Highly efficient Class D technology keeps this powerful amp running as cool as it looks. And it allows for a small chassis that fits in a lot of out of the way spaces.

What's Included

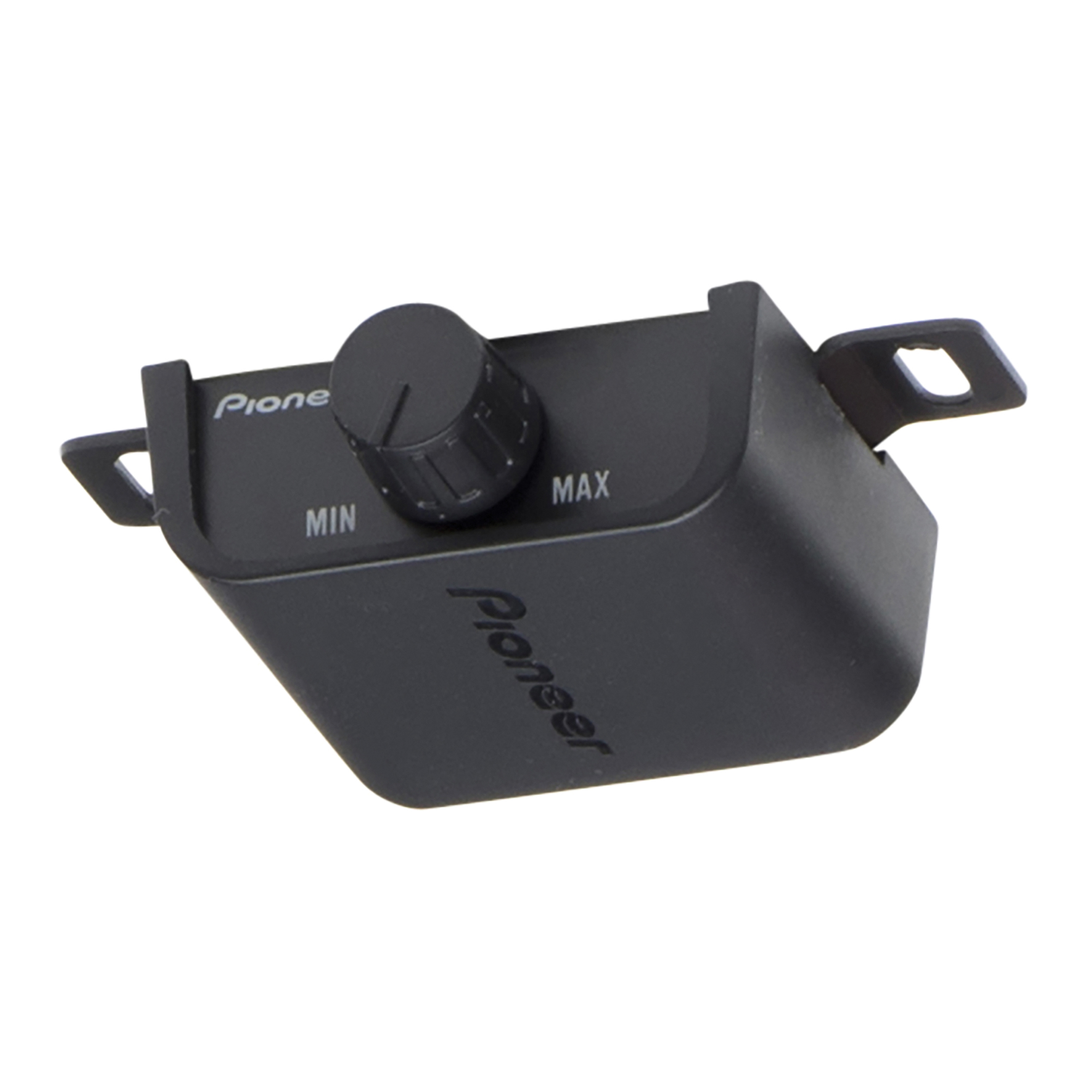

    (1) Amplifier (1) Bass Boost remote and cable (1) Speaker-to-RCA adapter (4) Screws (1) Terminal tool

Features + Benefits

  • 1,600 watts max x 1 channel at 1 ohm; 800 watts RMS x 1 channel at 1 ohm; 500 watts RMS x 1 channel at 2 ohms; 300 watts RMS x 1 channel at 4 ohms; 1-ohm to 8-ohm allowable load impedance
  • Designed to power automotive subwoofers
  • Class D technology makes it smaller in size for greater installation options
  • Frequency response on subwoofer channel: 10 Hz to 240 Hz
  • Made from high-quality, textured aluminum panel and tough frame plus high-quality audio components for long life

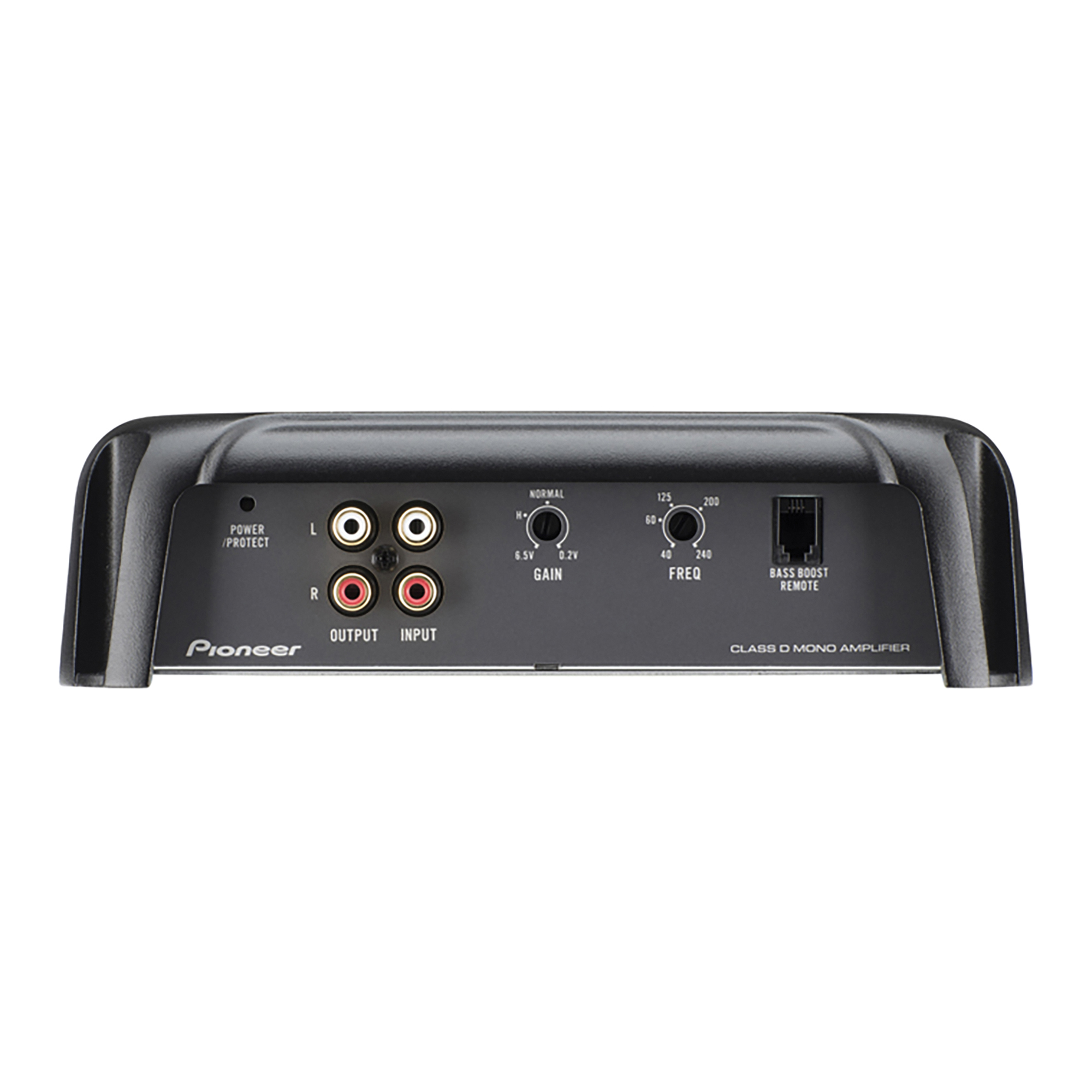

  • Variable LPF from 40 Hz to 240 Hz makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences; bass boost at 50 Hz
  • PCS (Protection Control System) continuously monitors input voltage, current consumption, and operating temperature to automatically adjust amp’s output to ensure operational stability during long listening sessions or when installed in high-temperature environments
  • Gold-plated RCA terminals for accurate signal with increased electrical conductivity; prevent corrosion and provide enhanced durability with excellent wear resistance

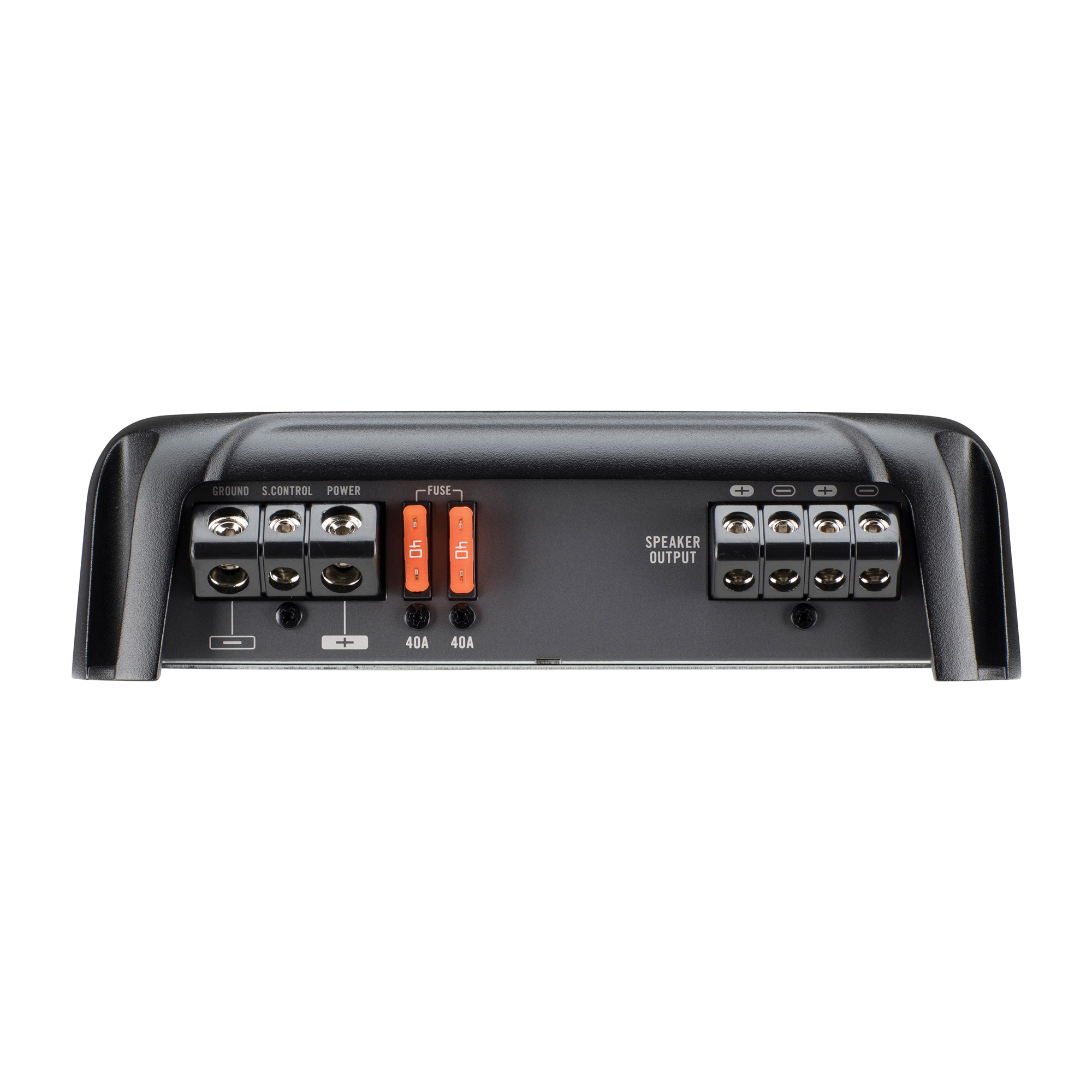

  • Fuse rating: 40 amps x 2
  • Dimensions: 9-7/8 in. x 2-3/8 in. x 8-1/2 in.
  • Weight: 6 lbs. (not including leads for wiring)
  • Includes 2 installed ATO fuses, bass boost remote and control cable, speaker level to RCA input adapter, installation screws, wire terminal tool, owner’s manual, and warranty sheet

Key Specs

AttributeSpecification

item#

7186311

Brand

Pioneer

Manufacturer's Warranty

1 year limited warranty

Ship Weight

6.8 LB

Product Type

Amplifier

Max. Watts

1,600
AttributeSpecification

Bluetooth

No

Color

Black

Included (qty.)

1

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

8.5 x 9.875 x 2.375 in
