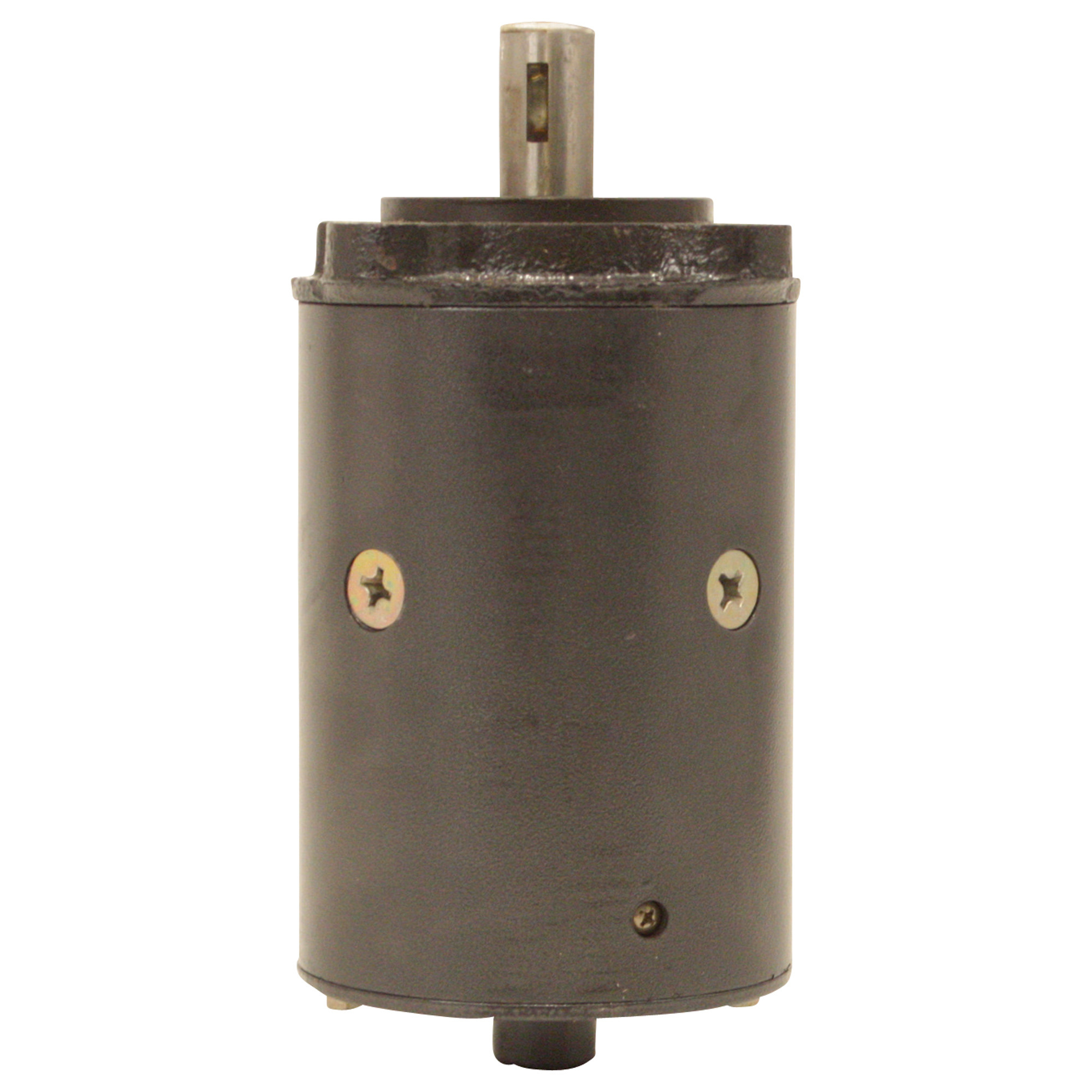

Pierce Arrow Replacement Winch Motor, Model# PS534CH

Item# 3309073
Pierce Arrow Replacement Winch Motor, Model# PS534CH

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Pierce Arrow Replacement Winch Motor, Model# PS534CH

Click or Tap image to Zoom

$209.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Pierce Chevy LB Dump Kit is engineered for heavy-duty performance, boasting a robust 4000-lb. load capacity, though it is essential to ensure that cargo does not exceed the Gross Vehicle Weight (GVW) of your pickup truck. This efficient kit elevates the cargo box to a 45° angle in just 10 seconds, facilitating quick and easy unloading. It includes a powerful 12V DC hydraulic pump, a durable cylinder, and all necessary hardware for installation. Designed for reliability and ease of use, this dump kit enhances the functionality of your Chevy truck, making it an indispensable tool for demanding tasks.

Downloads

Product Manual

Key Specs

AttributeSpecification

item#

3309073

Brand

Pierce

Manufacturer's Warranty

2 year limited warranty
AttributeSpecification

Ship Weight

19.8 LB

Volts

12

Horsepower

1.5 HP

Reviews

Questions & Answers

Questions

1–9 of 9 Questions
Sort by:

  1. what is the max rpm ?

    1 answer

    1. The max RPM rating on this winch motor is 2500.

      Helpful?

  2. what size is the mtg ring

    1 answer

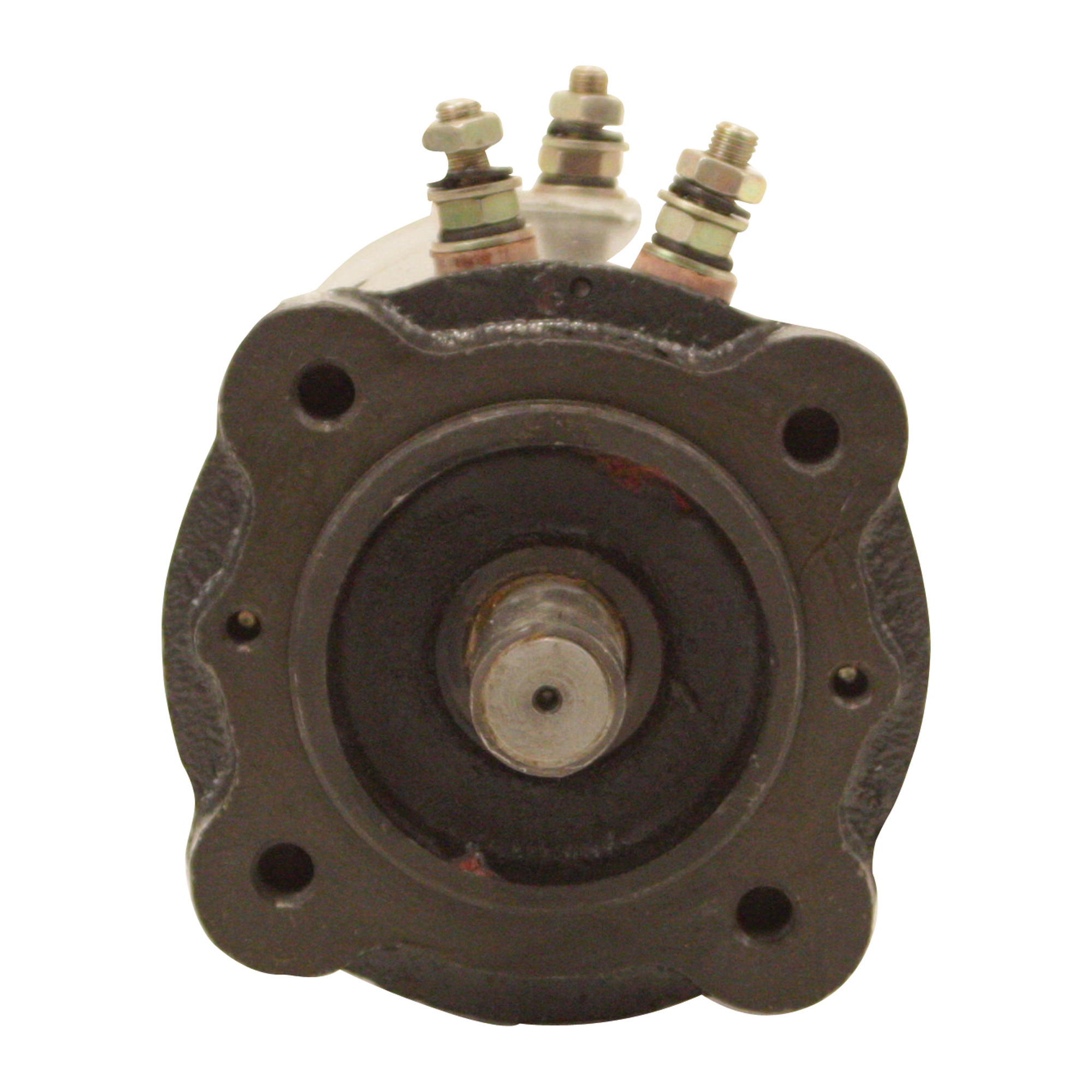

    1. This motor is a direct replacement for select Pierce Arrow winches. The mounting ring has a 4" bolt circle.

      Helpful?

  3. Is this motor submersible?

    1 answer

    1. This winch motor is not submersible.

      Helpful?

  4. Is this motor permanent magnet or series wound?

    1 answer

    1. This motor is series wound.

      Helpful?

  5. How far does the 3/4" diameter shaft stick out beyond the body of the motor?

    1 answer

    1. The length of the shaft is 1 inch.

      Helpful?

  6. Is this winch motor reversible and how long is the shaft?

    1 answer

    1. The winch motor is reversible and it has a 3/4" shaft.

      Helpful?

  7. Is this motor rated for continuous or intermitent duty? If intermitent, what duty cycle?

    1 answer

    1. The motor is rated for intermittent duty and the duty cycle is rated at 10 percent.

      Helpful?

  8. what is the shaft size

    1 answer

    1. The Pierce Arrow Replacement Winch Motor has a 3/4" shaft.

      Helpful?

  9. Im wondering if this will fit my winch

    i have a Ramsey 6000 winch I don't know how old it it it was given to me without a motor over the weekend

    1 answer

    1. If your Ramsey winch has a keyed shaft and takes a 3 post motor and is the MBJ model it will work on your winch.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
