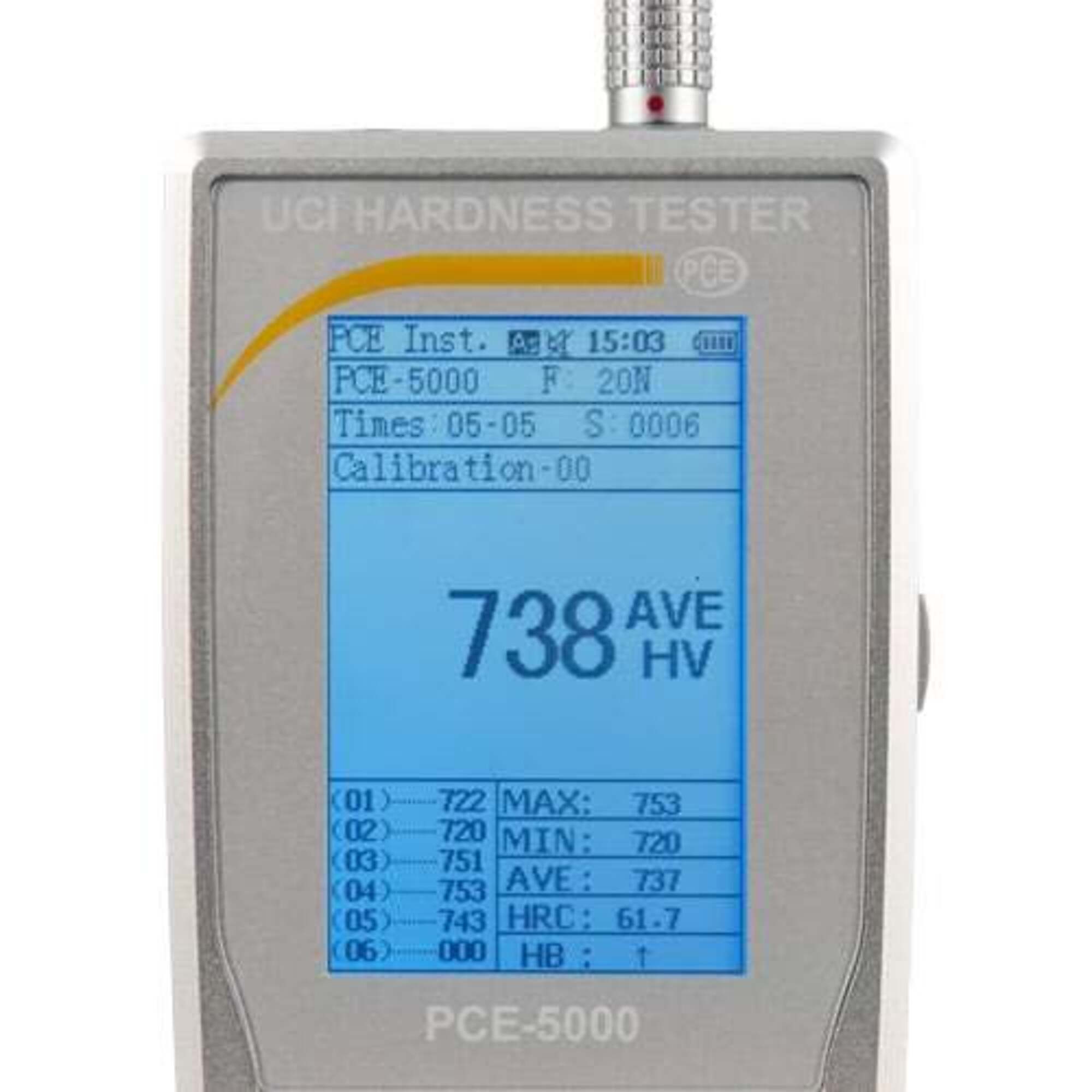

PCE Instruments Ultrasonic Hardness Tester — Portable, ASTM A138 UCI Method, Measures Metal Hardness, Model# PCE-5000

Item# 6915754
PCE Instruments Ultrasonic Hardness Tester — Portable, ASTM A138 UCI Method, Measures Metal Hardness, Model# PCE-5000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

PCE Instruments Ultrasonic Hardness Tester — Portable, ASTM A138 UCI Method, Measures Metal Hardness, Model# PCE-5000

Click or Tap image to Zoom

$7799.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Measures the hardness of metals and alloys with a minimum thickness of 2 mm Displays measurements in Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Brinell (HB), Vickers (HV) and MPa (N/mm²) SI units Measuring range: 61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC, 85 … 650 HB, 50 … 999 HV, 255 … 2180 MPa (N/mm²) Accuracy: ± 1.5 HR, ± 3% HB, ± 3% HV Stores up to 2000 measurement groups / 20 calibration sets to memory Provides measurements in just 2 seconds Probe fits into small spaces and hard-to-reach places Features a large and easy-to-read LCD screen, simple calibration and an RS-232 interface

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

A portable hardness tester or durometer that uses the ASTM A138 ultrasonic contact impedance (UCI) method to measure the hardness of metals and alloys to measure on a minimum material thickness of 2 mm / .08in.

What's Included

    (1) PCE-5000 UCI durometer with 4.2V battery 2 N probe (standard) Protective cap for probe (silicon) Probe cable USB cable USB charger RS-232 interface cable Screwdriver Vibration-resistant carrying case User manual

Features + Benefits

  • Measures the hardness of metals and alloys with a minimum thickness of 2 mm Displays measurements in Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Brinell (HB), Vickers (HV) and MPa (N/mm²) SI units Measuring range: 61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC, 85 … 650 HB, 50 … 999 HV, 255 … 2180 MPa (N/mm²) Accuracy: ± 1.5 HR, ± 3% HB, ± 3% HV Stores up to 2000 measurement groups / 20 calibration sets to memory Provides measurements in just 2 seconds Probe fits into small spaces and hard-to-reach places Features a large and easy-to-read LCD screen, simple calibration and an RS-232 interface

Key Specs

AttributeSpecification

item#

6915754

Brand

PCE INSTRUMENTS

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3.0 LB
AttributeSpecification

Case Included

Yes

Product Weight

1.9800 lb

Dimensions L x W x H (in.)

6.38 x 3.19 x 1.22 in
