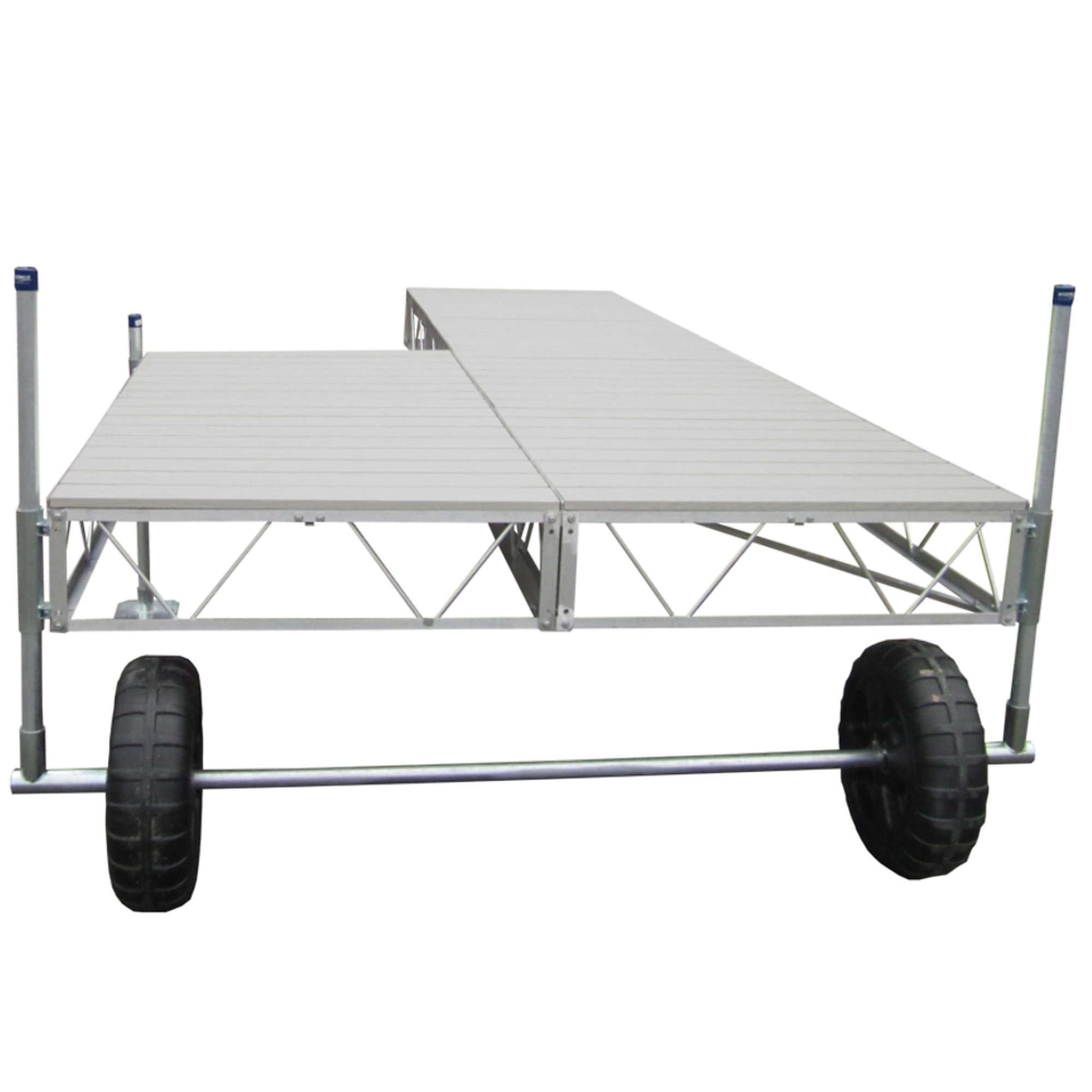

Patriot Docks 16' Patio Roll-In Pipe Dock with Gray Aluminum Decking

Item# 5110495
"Patriot Docks, 16ft. Patio Roll-In Dock with Gray Aluminum Decking, Length 192 in, Width 96 in, Model# 10563"
1 Pieces
Patriot Docks 16' Patio Roll-In Pipe Dock with Gray Aluminum Decking

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Patriot Docks 16' Patio Roll-In Pipe Dock with Gray Aluminum Decking

Click or Tap image to Zoom

$3527.49

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Available in 16ft., 24ft., 32ft., and 40ft. patio roll-in dock configurations
  • Patio-style layout provides increased deck space and usable waterfront area
  • Roll-in design simplifies seasonal installation and removal
  • Marine-grade 6061-T6 aluminum truss frames provide lightweight strength and corrosion resistance
  • Adjustable pipe legs allow leveling on varying lake bottoms and shoreline conditions

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Patriot Docks Patio Roll-In Pipe Dock provides a durable and versatile waterfront docking solution designed for seasonal installation, stable shoreline access, and long-term freshwater performance. Available in 16ft., 24ft., 32ft., and 40ft. lengths, these modular roll-in dock systems combine the strength of marine-grade aluminum construction with adjustable pipe supports for dependable use in a variety of lakefront and recreational waterfront environments. The patio-style layout offers increased deck width and usable surface area, making it ideal for relaxing, swimming, fishing, boat access, and waterfront entertaining. Constructed from marine-grade 6061-T6 aluminum truss frames, the dock system delivers lightweight strength, corrosion resistance, and long-lasting structural durability. The roll-in design allows the dock to be installed or removed seasonally by rolling the system into or out of the water using integrated wheel assemblies, reducing heavy lifting during setup and removal. Adjustable pipe legs with foot plates provide stable support on varying lake bottoms while allowing height adjustments to accommodate changing shoreline and water conditions. Available decking options include gray or tan polypropylene, gray or brown aluminum, and untreated Red Western Cedar to match different waterfront styles and maintenance preferences. Polypropylene decking provides low-maintenance durability, aluminum decking offers lightweight corrosion-resistant performance, and cedar decking delivers a traditional natural wood appearance. The modular drop-in decking panel design simplifies assembly and future maintenance. Ideal for residential lakefront properties and seasonal dock installations, the Patriot Docks Patio Roll-In Pipe Dock combines modular flexibility, adjustable support, and durable aluminum construction for dependable long-term waterfront use.

What's Included

    (1) 16’ Includes - (3) 4x8 Truss Frames, (6) 4x4 Decking Panels, (2) Plastic Dock Wheels, (3) 4ft Pipe, (3) Pipe Holders, (1) Footplates, (1) Axle Converter Pair, + Included Hardware

Features + Benefits

  • Available in 16ft., 24ft., 32ft., and 40ft. patio roll-in dock configurations
  • Patio-style layout provides increased deck space and usable waterfront area
  • Roll-in design simplifies seasonal installation and removal
  • Marine-grade 6061-T6 aluminum truss frames provide lightweight strength and corrosion resistance
  • Adjustable pipe legs allow leveling on varying lake bottoms and shoreline conditions
  • Aluminum decking provides durable, low-maintenance performance with powder-coated wood-grain finish options
  • Steel foot plates improve dock stability and weight distribution
  • Integrated wheel assemblies reduce lifting during dock installation and removal
  • Modular dock sections allow future expansion and layout flexibility
  • Designed for residential lakefront and recreational waterfront applications

Key Specs

AttributeSpecification

item#

5110495

Brand

Patriot Docks

Manufacturer's Warranty

Lifetime Limited warranty

Ship Weight

486.0 LB

Product Type

Dock

Pieces (qty.)

1

Length

192 in
AttributeSpecification

Width

96 in

Height

48 in

Material Type

Aluminum

Color

Silver

Weather Resistant

Yes

Product Weight

486.0000 lb

Dimensions L x W x H (in.)

192.0 x 96.0 x 48.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited warranty
