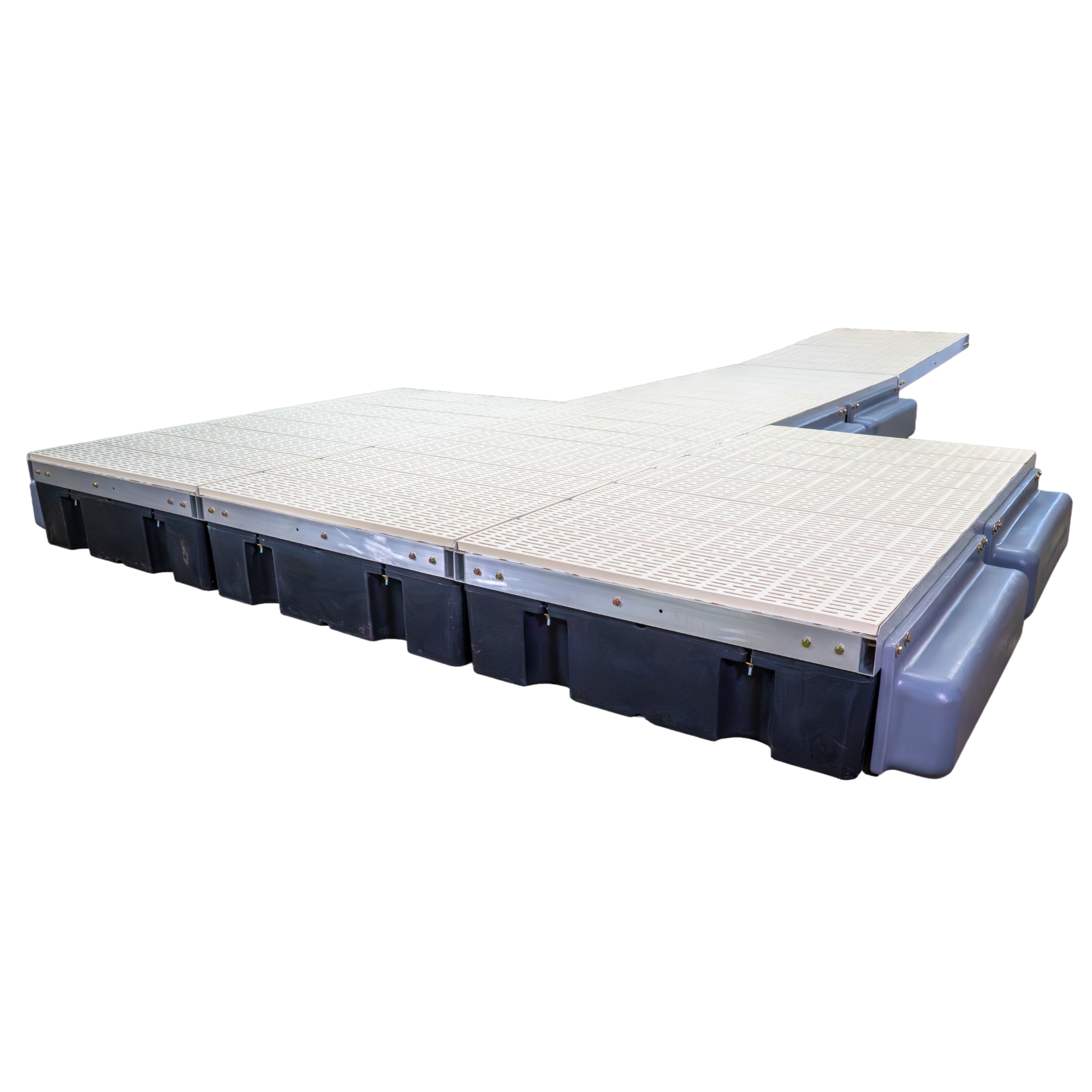

Patriot Docks 24' T-Shaped Low-Profile Premium Floating Dock with Tan Poly Decking

Item# 5957813
45 Pieces
Patriot Docks 24' T-Shaped Low-Profile Premium Floating Dock with Tan Poly Decking

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Patriot Docks 24' T-Shaped Low-Profile Premium Floating Dock with Tan Poly Decking

Click or Tap image to Zoom

$7076.35

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Premium floating dock system designed for fluctuating water levels and deeper water
  • Available in 24ft., 32ft., and 40ft. T-shaped floating dock configurations
  • T-shaped layout increases stability and usable dock space
  • Marine-grade 6061-T6 aluminum frames provide lightweight strength and corrosion resistance
  • Low-profile frame design improves water access for swimming, kayaks, and paddlecraft

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Patriot Docks T-Shaped Premium Floating Dock delivers maximum buoyancy, increased stability, and expanded usable dock space for residential waterfront applications. Available in 24ft., 32ft., and 40ft. lengths, these modular floating dock systems combine the convenience of low-profile aluminum dock frames with premium foam-filled flotation and side stability floats for enhanced performance in changing water conditions. Designed for lakes, reservoirs, rivers, and waterfronts with fluctuating water levels or deeper water depths, these floating docks automatically rise and fall with the water level without the need for seasonal height adjustments. Constructed from marine-grade 6061-T6 aluminum, the low-profile floating dock frames provide lightweight strength, corrosion resistance, and easy seasonal handling. The T-shaped layout creates additional surface area and improved side-to-side stability, making it ideal for relaxing, fishing, launching kayaks, or docking watercraft. Premium side stability floats mounted along the outer edges increase buoyancy while also helping protect boats and personal watercraft during docking. These complete floating dock packages include 4ft. x 8ft. modular floating dock sections, foam-filled float drums, side stability floats, hinge kits, piling sleeves, and drop-in decking panels for simplified installation and future expansion. Decking options include gray or tan polypropylene, gray or brown aluminum, and untreated Red Western Cedar to match a variety of waterfront styles and maintenance preferences. The drop-in decking system simplifies assembly while allowing easy panel removal for seasonal service or upgrades. Ideal for residential lakefront properties and recreational waterfront use, the Patriot Docks T-Shaped Premium Floating Dock system combines modular flexibility, premium flotation capacity, and low-maintenance aluminum construction for dependable long-term waterfront performance.

What's Included

    (1) Includes: (5) 4x8 low profile tubular frames; (8) 48x24x12 rectangular floats; (8) float mounting bracket set; (2) low profile hinge kit; (4) steel piling sleeves; (10) 4x4 deck panels, (8) 43"x13"x7" Side Stability Floats and mounting hardware

Features + Benefits

  • Premium floating dock system designed for fluctuating water levels and deeper water
  • Available in 24ft., 32ft., and 40ft. T-shaped floating dock configurations
  • T-shaped layout increases stability and usable dock space

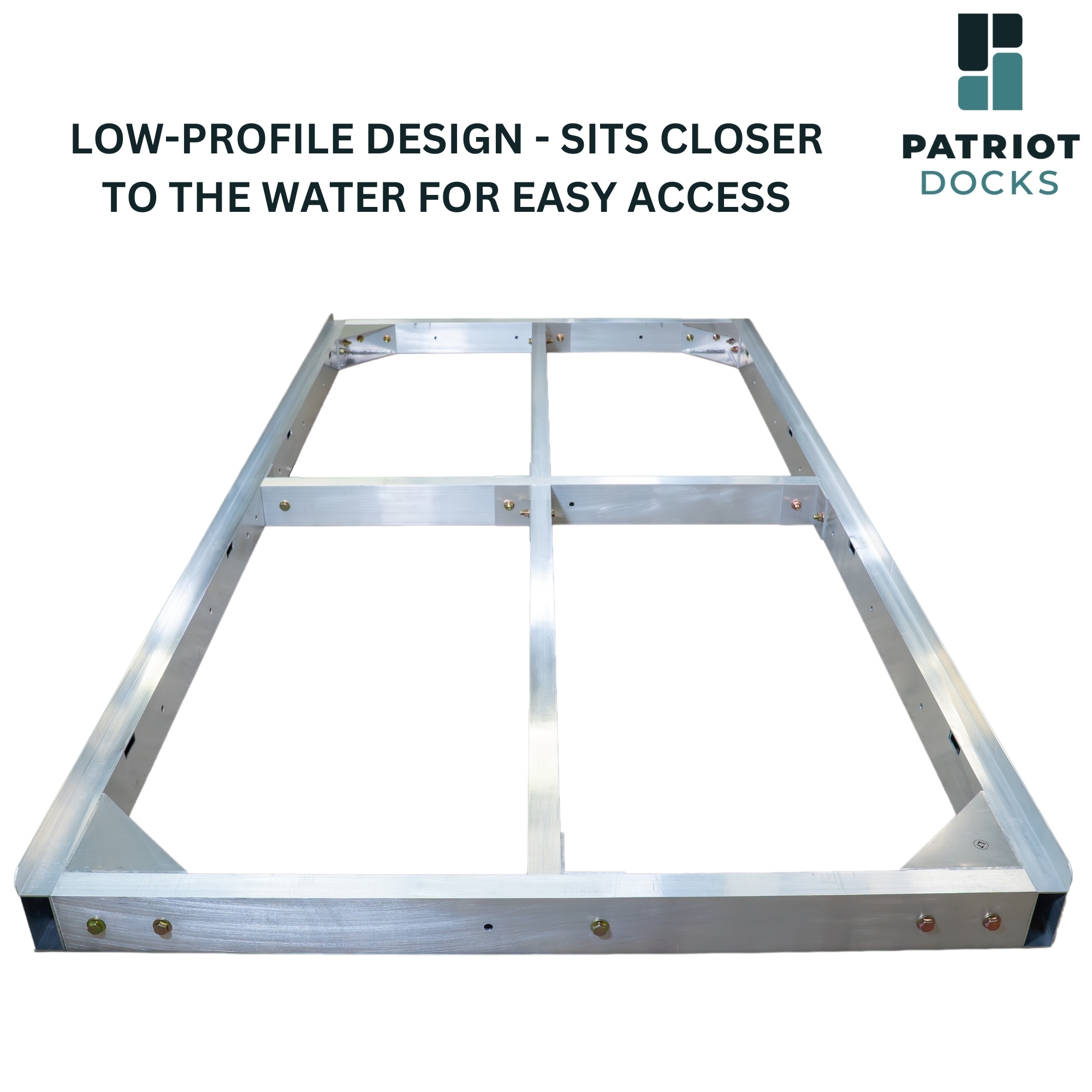

  • Marine-grade 6061-T6 aluminum frames provide lightweight strength and corrosion resistance
  • Low-profile frame design improves water access for swimming, kayaks, and paddlecraft

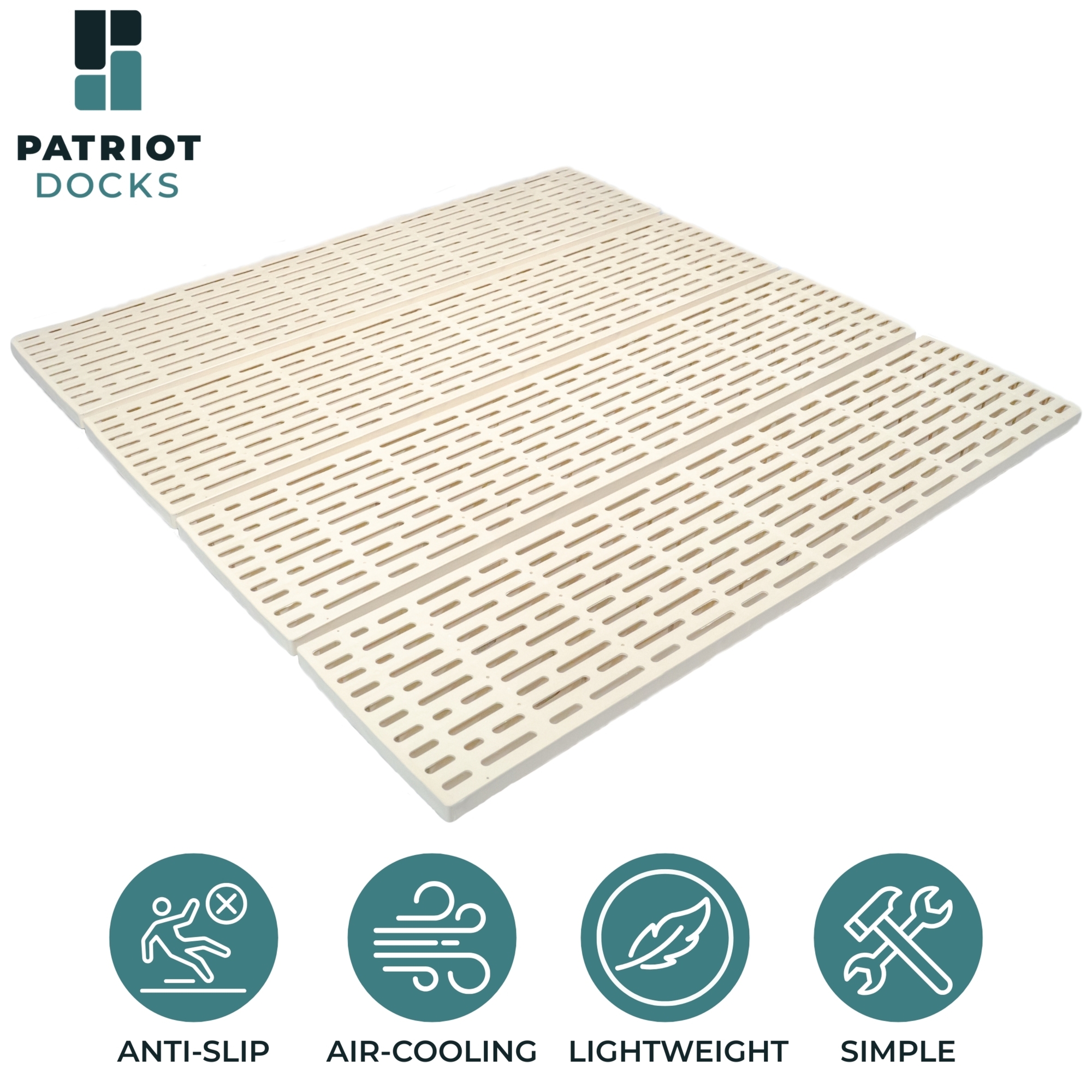

  • Polypropylene decking resists moisture, UV exposure, cracking, and splintering

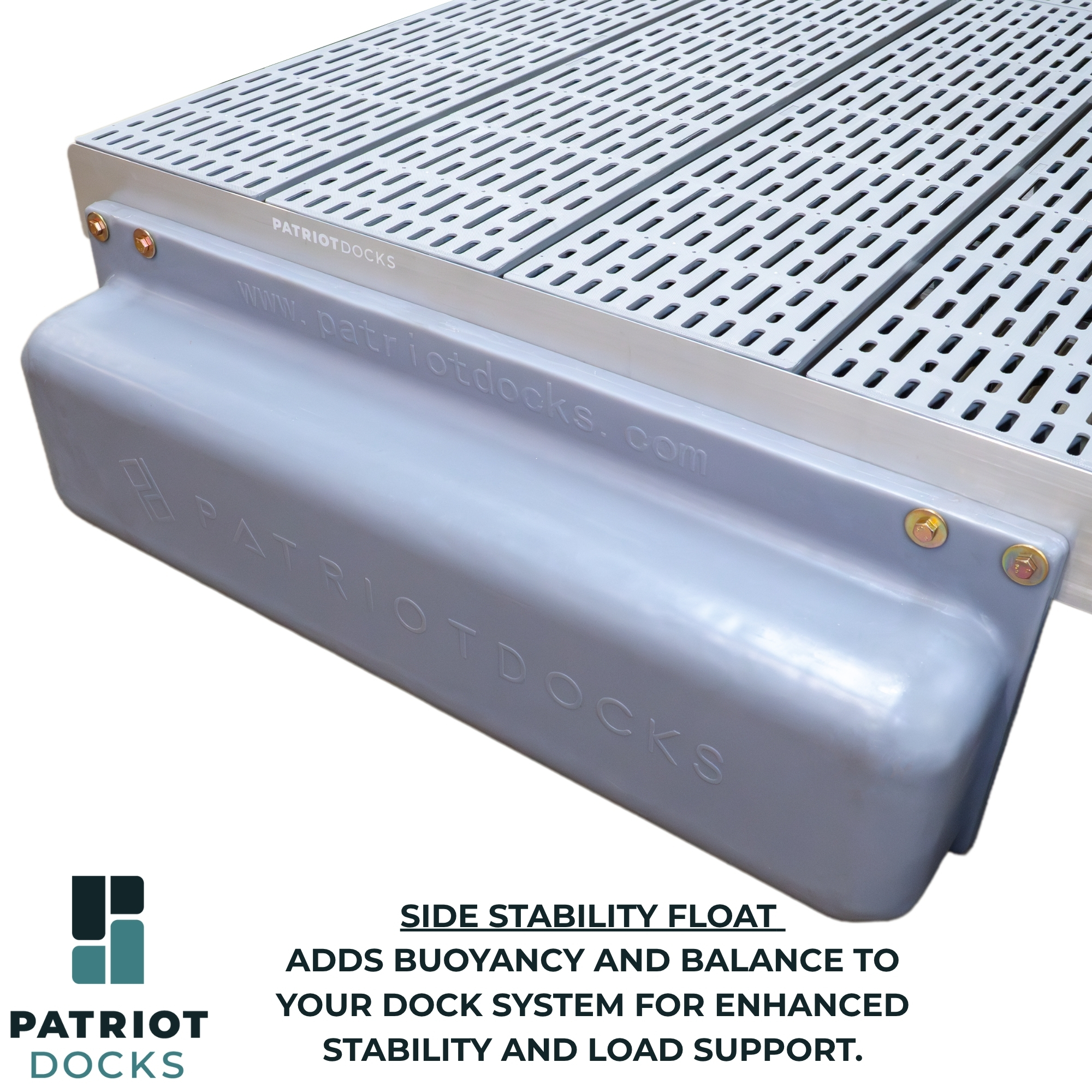

  • Premium side stability floats increase buoyancy and help protect watercraft during docking
  • Modular dock sections allow future expansion and layout customization
  • Hinged frame connections reduce stress and allow natural dock articulation
  • Designed for residential lakefront and recreational waterfront applications

Key Specs

AttributeSpecification

item#

5957813

Brand

Patriot Docks

Manufacturer's Warranty

No limited warranty

Ship Weight

1092.0 LB

Product Type

Floating Dock System

Pieces (qty.)

45

Length

288 in
AttributeSpecification

Width

144 in

Material Type

Combination

Color

Tan

Capacity

1,171 lb

Weather Resistant

Yes

Product Weight

1092.0000 lb

Dimensions L x W x H (in.)

288.0 x 144.0 x 23.0 in

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. How much does each piece weight.

    1 answer

    1. Each frame weighs 45 pounds. Each stability float weighs 14 pounds. Each dock float weighs 35 pounds and each decking panel weighs 30 pounds.

      Helpful?

  2. Do you offer more accessories. Like ladder and rails. What is the maximum weight capacity?

    1 answer

    1. The dock ladder item number 83374 (model 10827) will work with the floating dock. The maximum weight capacity is 375 pounds. Northern Tool does not sell railing.

      Helpful?

Warranty

Manufacturer's Warranty

No limited warranty
