Product Summary

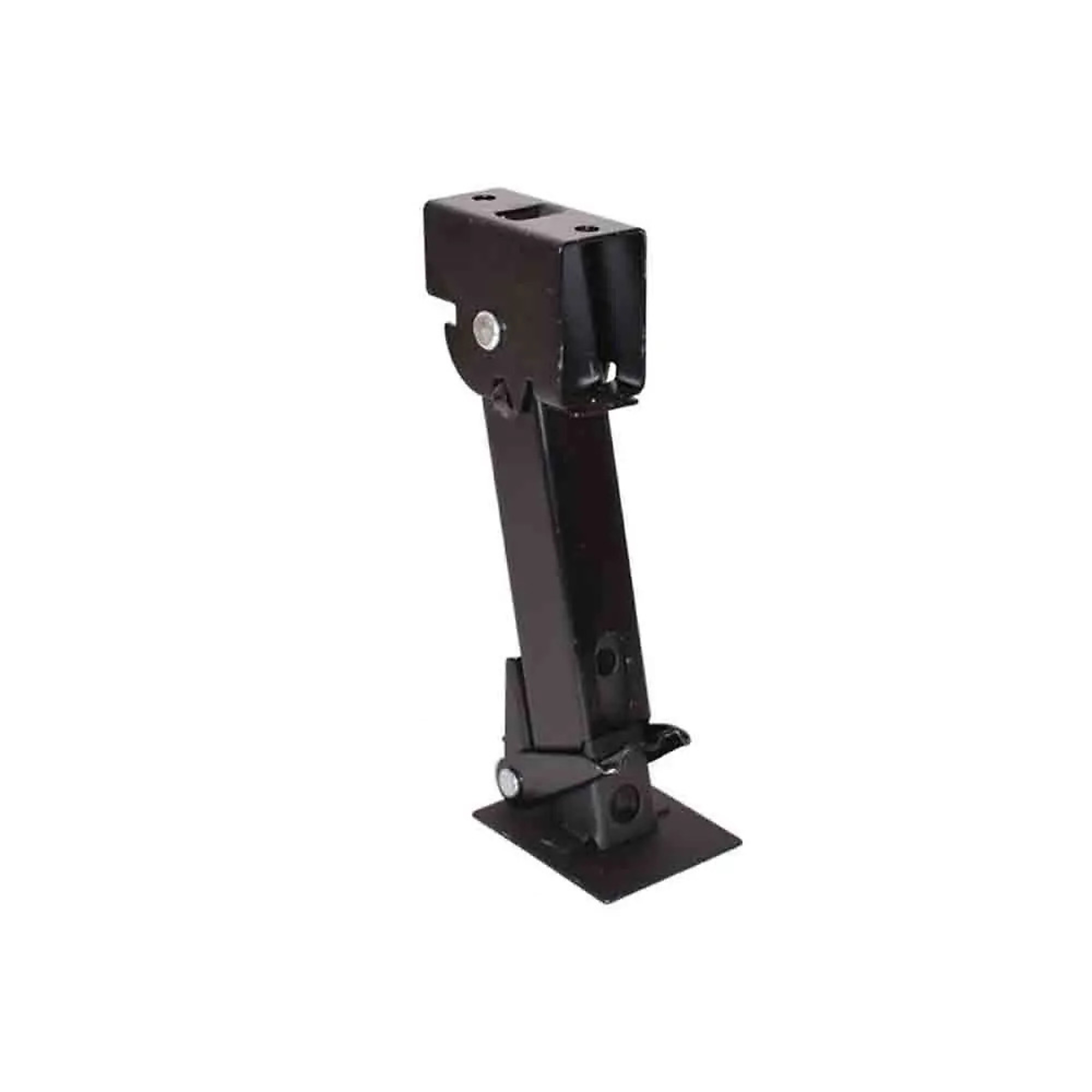

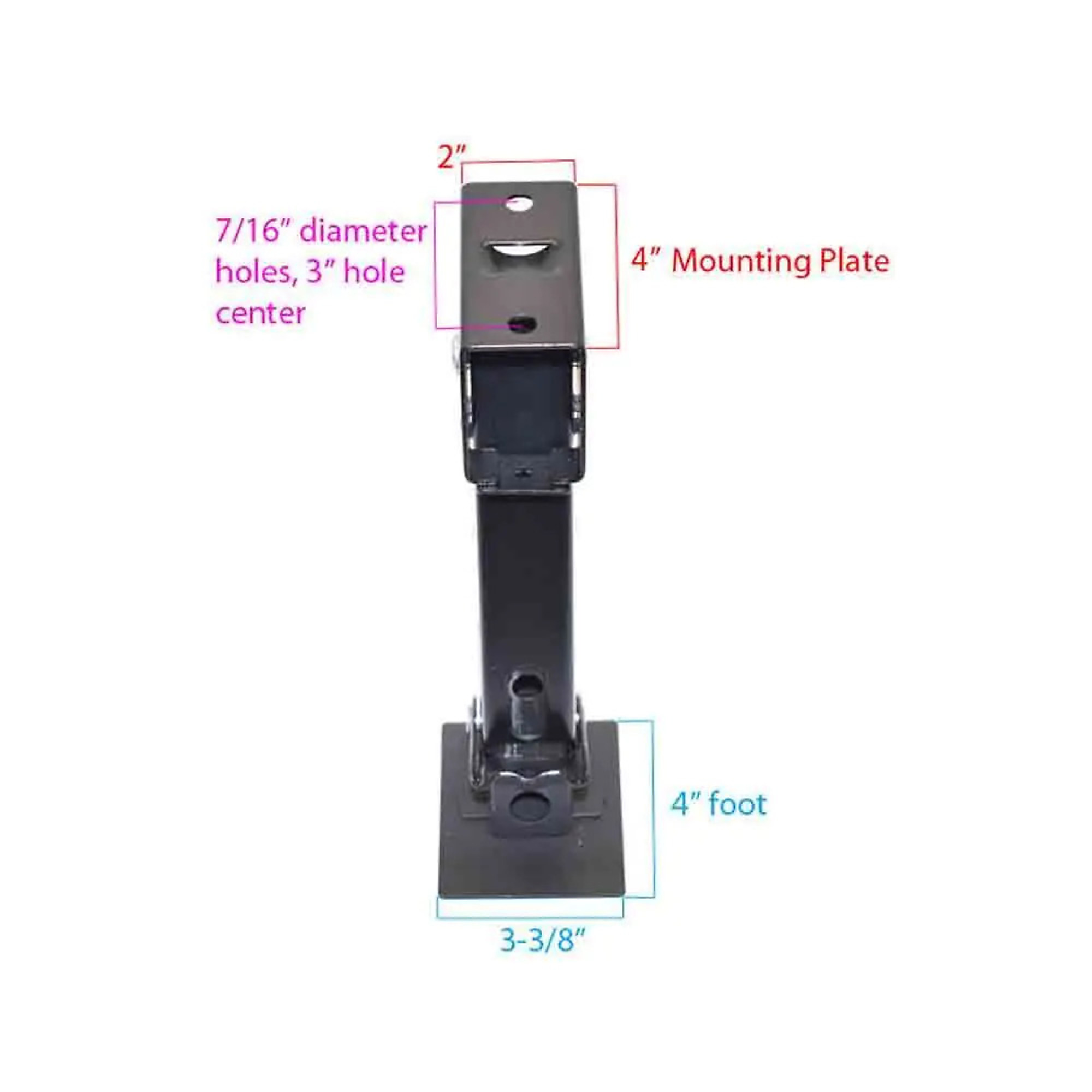

Rectangular steel tubing gives a support leg with high strength and minimal weight. The leg extends a full 6in. and is infinitely adjustable. A four inch square steel foot pad completes the rugged unit. Stores up and out of the way when not in use. Adjustable from 11-1/2in. up to 17-3/4in. of vertical height. 650 lbs lift capacity/1,000 lbs support capacity. Handle measures 7/16in. diameter x 12in. length.

What's Included

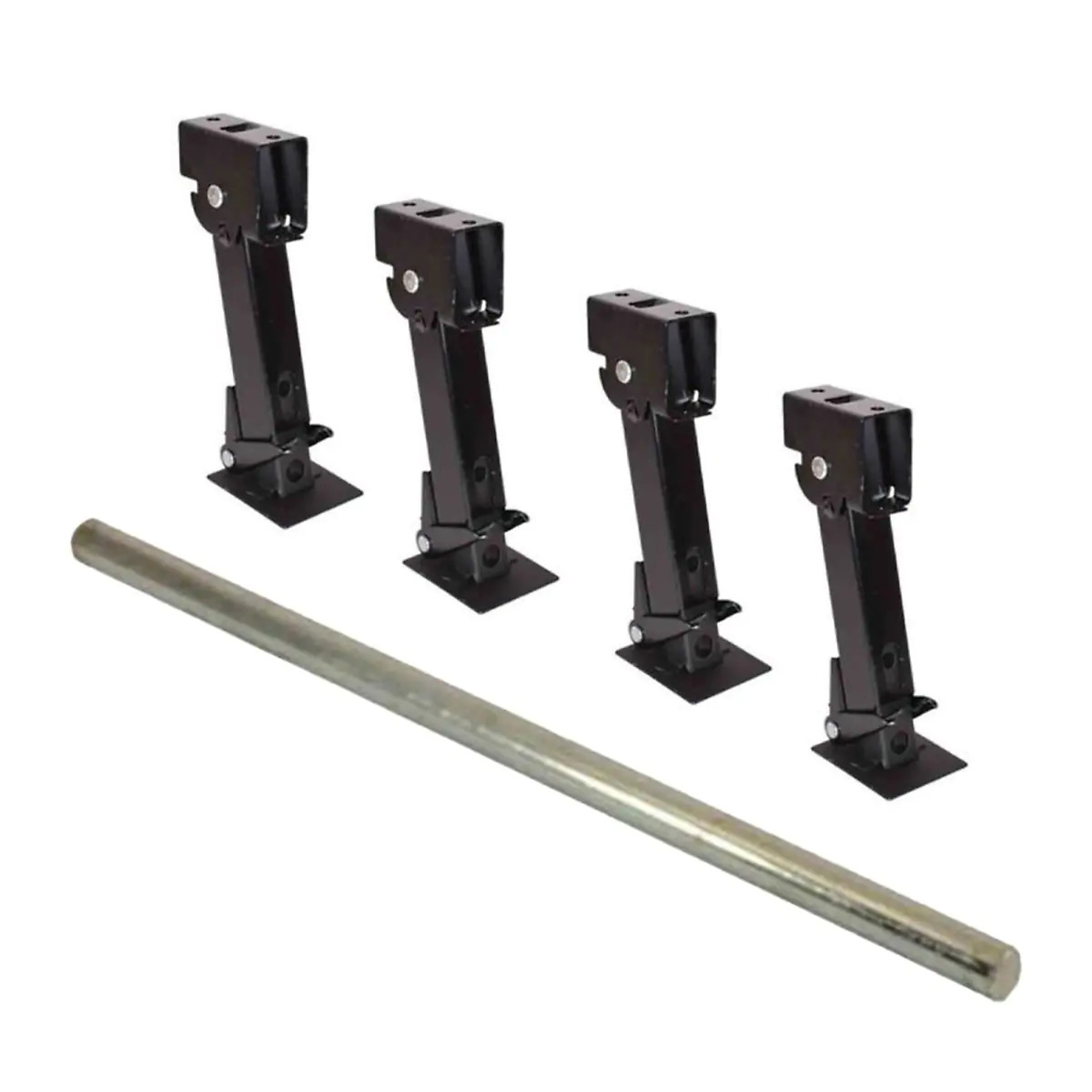

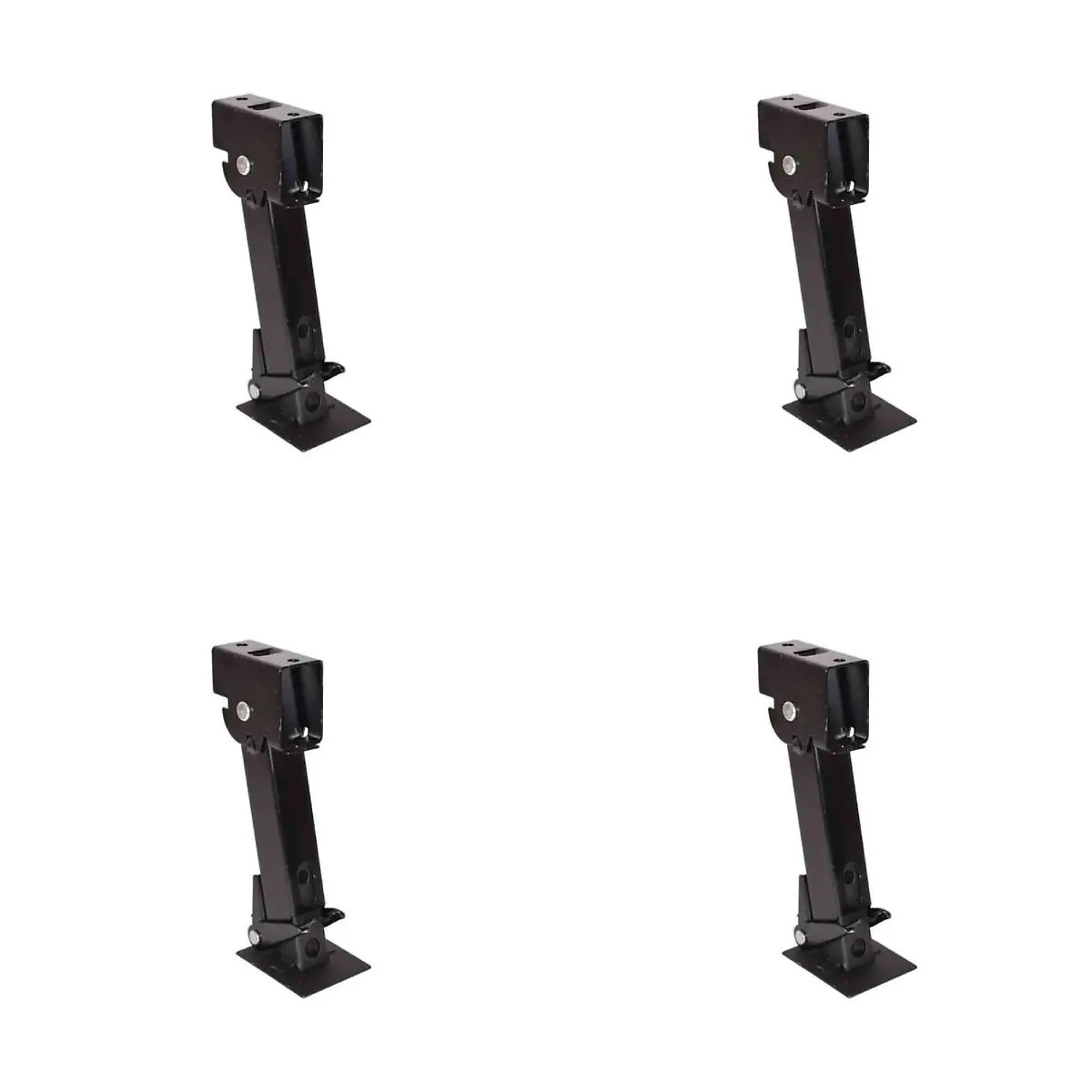

    (4) Stabalizer Jacks, no Handle

Features + Benefits

  • Lift capacity 650 lbs / Support Capacity 1,000 lbs
  • 17-3/4 inches fully extended
  • Locks in the up or down position
  • Bolt on mounting - hardware not included
  • Handle and Hardware not Included.

Key Specs

AttributeSpecification

item#

7021120

Brand

Pacific Trailer

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

16.0 LB

Lift Capacity

650 Tons

Max. Lift Height

17.75 in
AttributeSpecification

Min. Lift Height

11.5 in

Power Source

Manual

Handle Included

Yes

Case Included

No

Product Weight

16.0000 lb

Dimensions L x W x H (in.)

15.0 x 5.0 x 12.0 in

Warranty

Manufacturer's Warranty

12 months parts/12months labor
