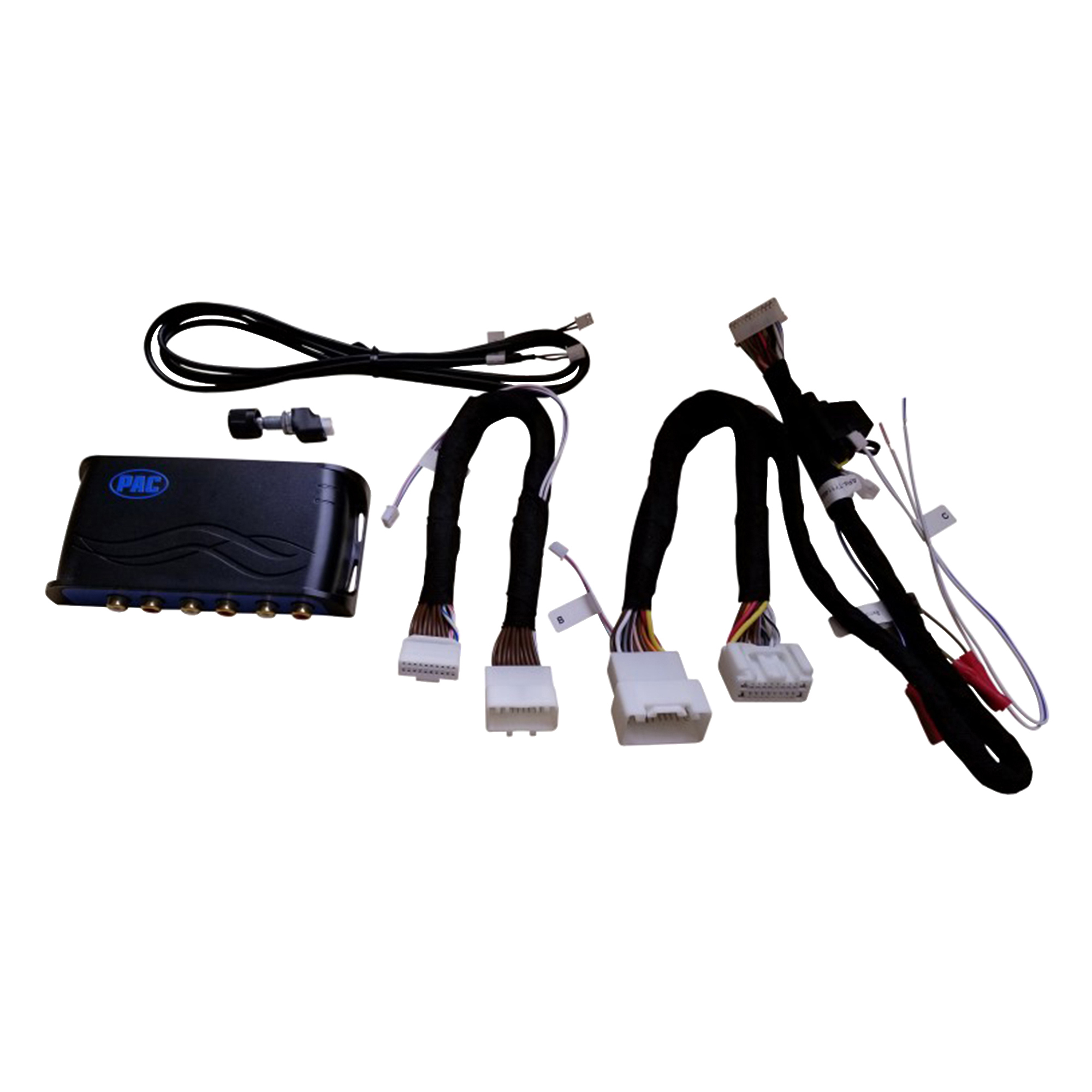

PAC® AmpPRO4 Amp Integration Interface for Select 2001-2015 Toyota® & Lexus® Vehicles with JBL® Amplified Systems/Factory Center Channel, AP4-TY11

Item# 7207160
New
PAC® AmpPRO4 Amp Integration Interface for Select 2001-2015 Toyota® & Lexus® Vehicles with JBL® Amplified Systems/Factory Center Channel, AP4-TY11

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

PAC® AmpPRO4 Amp Integration Interface for Select 2001-2015 Toyota® & Lexus® Vehicles with JBL® Amplified Systems/Factory Center Channel, AP4-TY11

Click or Tap image to Zoom

$419.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
  • Compatible with the following Lexus® vehicles with factory center channel: 2011-2013 CT 200H (without navigation), 2002-2003 ES 300, 2013-2014 ES 300H (without navigation), 2004-2006 ES 330, 2007-2014 ES 350 (without navigation), 2009-2013 GX 460 (without navigation), 200-2009 GX 470, 2010-2012 HS 250H (without navigation), 2006-2012 IS 250 (without navigation) and IS 350 (without navigation), 2010-2012 IS F (without navigation), 2001-2006 LS 430, 2004-2006 RX 330, 2007-2015 RX 350 (without navigation), 2006-2008 RX400H, and 2010-2015 RX 450H (without navigation)
  • Compatible with the following Toyota® vehicles with factory JBL® amp: 2003-2013 4Runner, 2005-2012 Avalon, 2013-2014 Avalon (8113), 2007-2011 Camry, 2012-2014 Camry (8113), 2005-2011 Corolla, 2011-2014 FJ Cruiser, 2008-2013 Highlander, 2008 Land Cruiser, 2004-2011 Prius, 2012-2015 Prius (8113), 2004-2013 RAV4, 2014 RAV4 (8113), 2005-2012 Sequoia, 2013-2014 Sequoia (8113), 2004-2024 Sienna, 2005-2013 Tacoma, 2005-2013 Tundra, 2009-2012 Venza, 2013-2014 Venza (8113)
  • Variable volume, fade, balance, bass, mid, and treble audio settings
  • Front, rear, sub preamp outputs (5 volts RMS)

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Today's modern vehicle audio systems are becoming increasingly more sophisticated and complex. PAC® Audio engineered this AmpPRO4in.terface to improve your vehicle's audio performance while keeping the original radio’s fit and finish. The AP4-TY11 simplifies the installation of upgraded amplifiers in select Toyota® and Lexus® vehicles with JBL® amplified systems. This amplifier integration interface also allows you to retain important factory features. Toyota® vehicles must be equipped with a JBL® system. Between 2012-2015, Toyota® used 2 different styles of connectors. In order for the AP4-TY11 to be compatible, the radio must have the 20-pin BHA8113 style connector. Vehicles equipped with the 10-/6-pin BHA1761 style connector are not compatible. The only way to know what connector the radio has is to physically remove it from the dash and look at it. Lexus® vehicles must be equipped with a center channel and a subwoofer. And vehicles with telematics (ie: SOS, Enform, etc.) will require some additional wiring. See manual for details.

What's Included

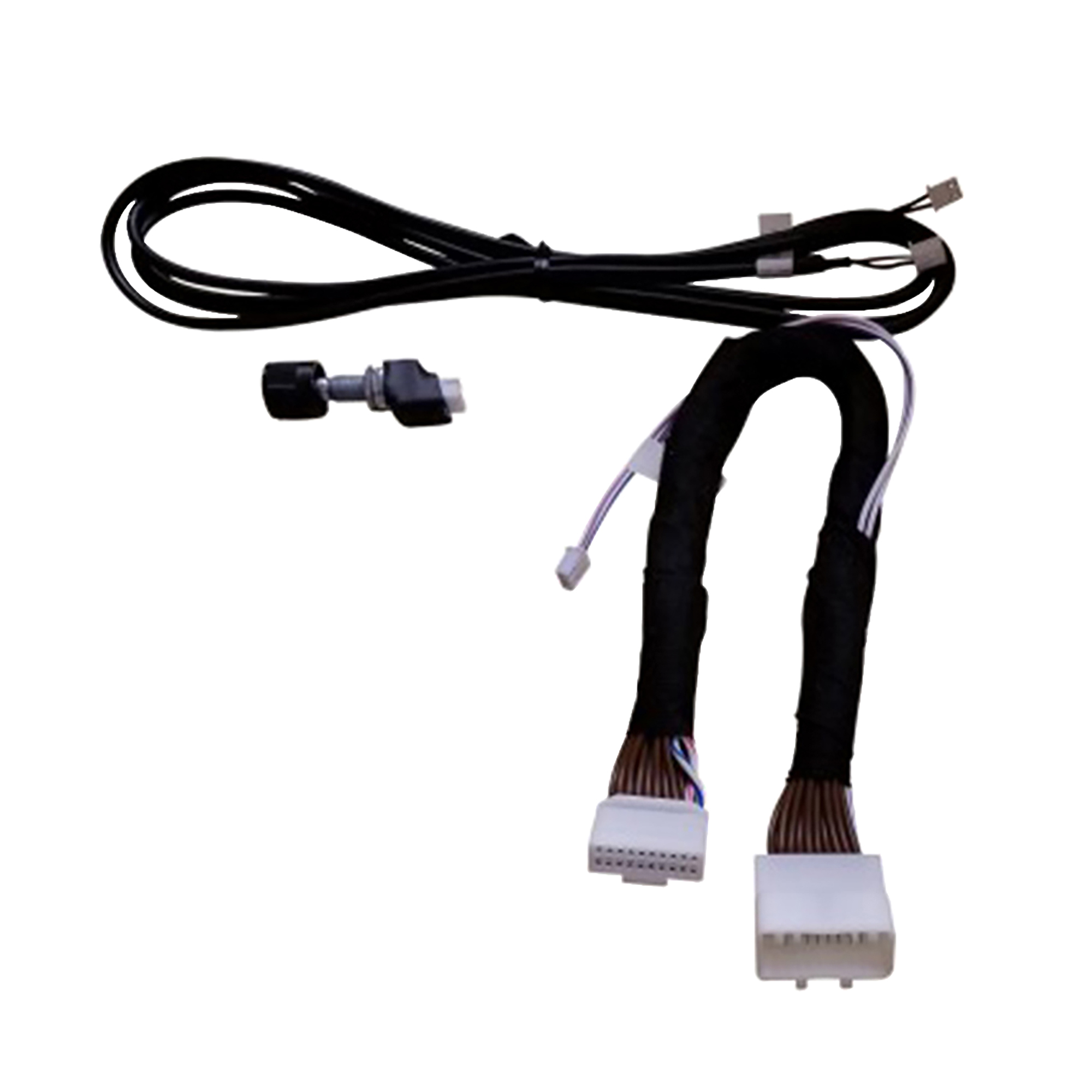

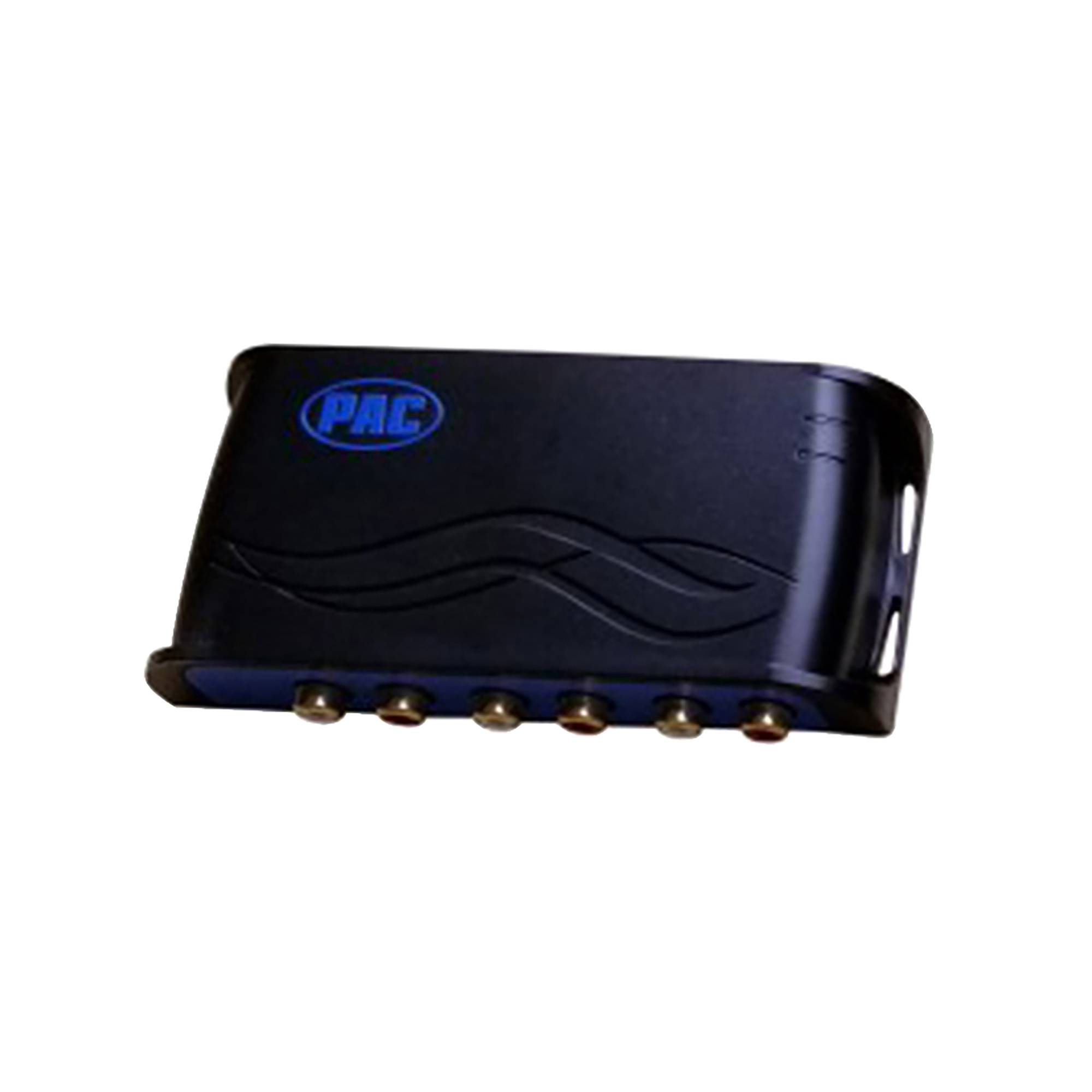

    (1) Amp integration interface (1) Sublevel controller

Features + Benefits

  • Upgrade the entire sound system or just part of it thanks to the retention of the original amplifier
  • Compatible with the following Lexus® vehicles with factory center channel: 2011-2013 CT 200H (without navigation), 2002-2003 ES 300, 2013-2014 ES 300H (without navigation), 2004-2006 ES 330, 2007-2014 ES 350 (without navigation), 2009-2013 GX 460 (without navigation), 200-2009 GX 470, 2010-2012 HS 250H (without navigation), 2006-2012 IS 250 (without navigation) and IS 350 (without navigation), 2010-2012 IS F (without navigation), 2001-2006 LS 430, 2004-2006 RX 330, 2007-2015 RX 350 (without navigation), 2006-2008 RX400H, and 2010-2015 RX 450H (without navigation)
  • Compatible with the following Toyota® vehicles with factory JBL® amp: 2003-2013 4Runner, 2005-2012 Avalon, 2013-2014 Avalon (8113), 2007-2011 Camry, 2012-2014 Camry (8113), 2005-2011 Corolla, 2011-2014 FJ Cruiser, 2008-2013 Highlander, 2008 Land Cruiser, 2004-2011 Prius, 2012-2015 Prius (8113), 2004-2013 RAV4, 2014 RAV4 (8113), 2005-2012 Sequoia, 2013-2014 Sequoia (8113), 2004-2024 Sienna, 2005-2013 Tacoma, 2005-2013 Tundra, 2009-2012 Venza, 2013-2014 Venza (8113)
  • Variable volume, fade, balance, bass, mid, and treble audio settings
  • Front, rear, sub preamp outputs (5 volts RMS)
  • Customized OE bass, mid and treble center frequency selection
  • Retains Bluetooth® audio, navigation prompts, all warning chimes, and telematic audio (if equipped)
  • Plug-and-play installation
  • Includes sublevel controller and user manual
  • Optional TOSLINK® optical output (APA-TOS1) and optional LPH Speaker Harness Extension (LPHEXT17) sold separately

Key Specs

AttributeSpecification

item#

7207160

Brand

PAC

Manufacturer's Warranty

1 year limited warranty

Ship Weight

0.95 LB
AttributeSpecification

Product Type

Other

Product Weight

0.5000 lb

Dimensions L x W x H (in.)

0.75 x 6.0 x 3.0 in
