OZ Lifting Products Tele-Pro Davit Crane with DC Winch, 500-Lb. Capacity, 58 1/4in. Height, Model# OZTP500DAV-DCW

Item# 105425
OZ Lifting Products Tele-Pro Davit Crane with DC Winch, 500-Lb. Capacity, 58 1/4in. Height, Model# OZTP500DAV-DCW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Tele-Pro Davit Crane with DC Winch, 500-Lb. Capacity, 58 1/4in. Height, Model# OZTP500DAV-DCW

Click or Tap image to Zoom

$2779.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

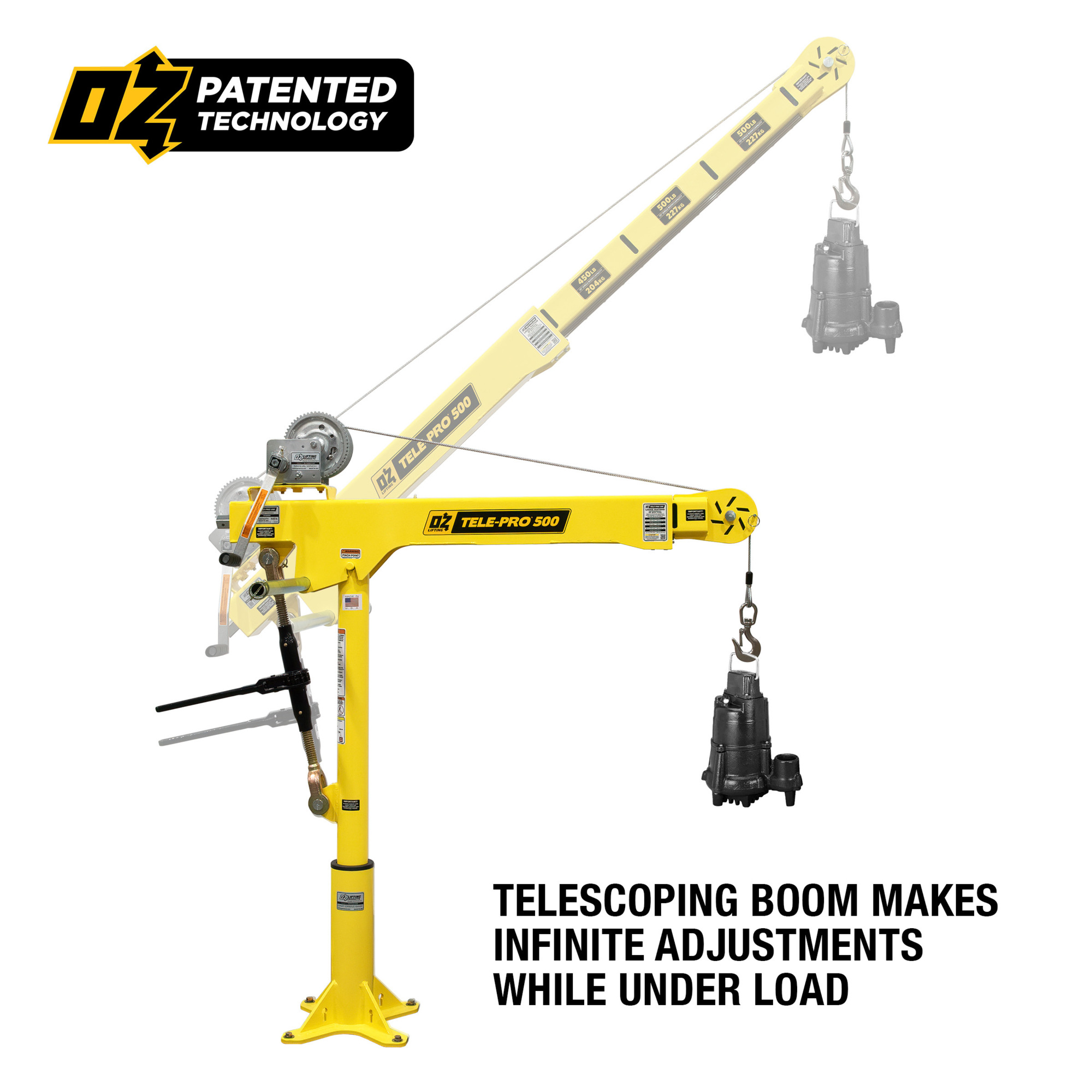

  • Telescoping boom adjustment while under load
  • Ratchet screw jack adjusts boom under load
  • 360° rotation of crane on sleeve bearing

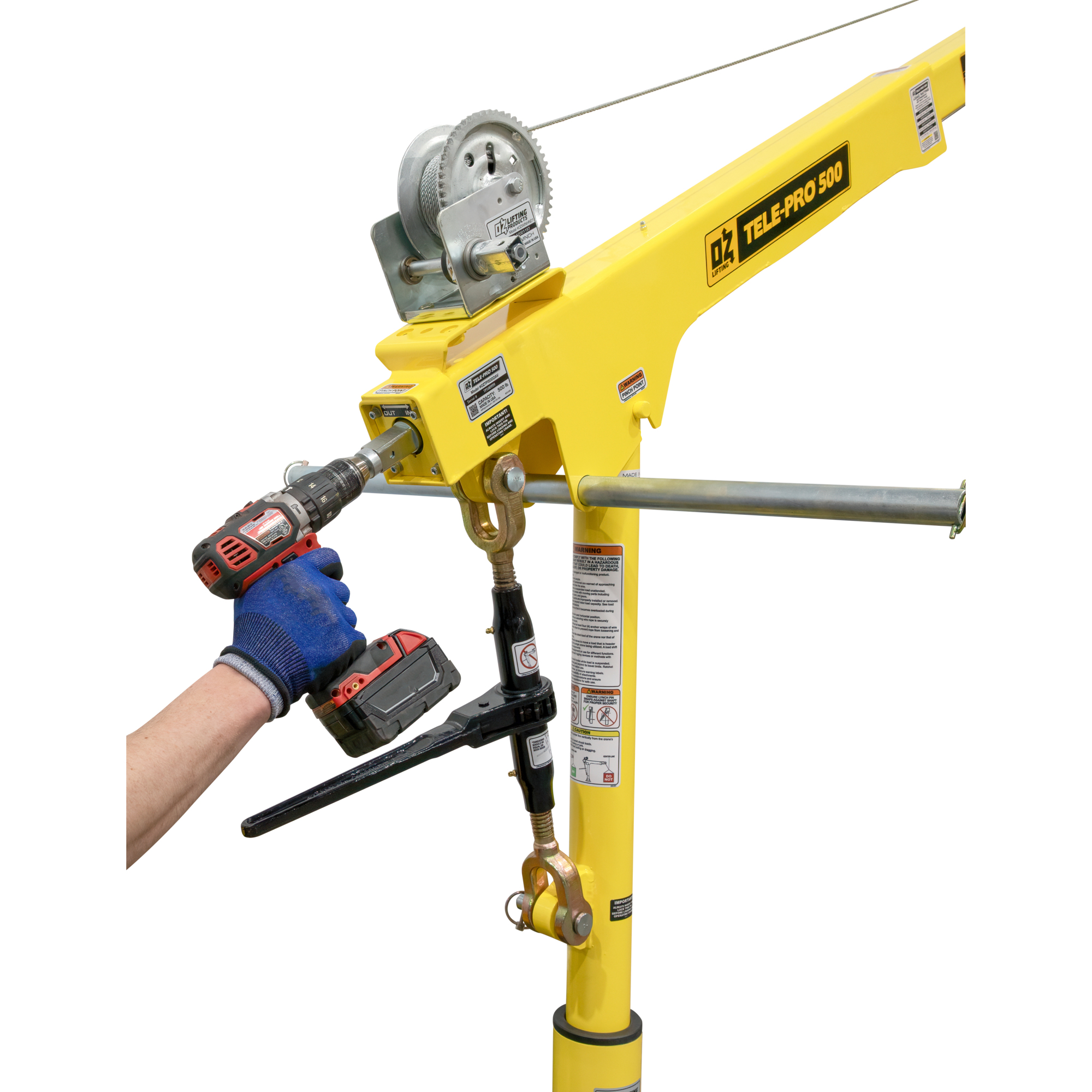

  • Quick connect winch handle with power drill adapter included
  • Smart Latch technology at boom/mast connection

See full description

Complete Your Solution

  • OZ Lifting Products Tele-Pro Davit Crane with DC Winch, 500-Lb. Capacity, 58 1/4in. Height, Model# OZTP500DAV-DCW
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • OZ Lifting Products Socket Base for OZ Tele-Pro Series Davit Cranes, Model# OZSOC2-TP
Price for all four:

$3069.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Tele-Pro Davit Crane with DC Winch provides an industry first telescoping boom adjustment while under load. This patented feature provides the user with ultimate control of the davit crane. The supplied ratchet screw jack allows the user to adjust the boom from horizontal to 45° also while under load. 360° rotation of the crane allows even more benefits. Smart latch technology at the boom/mast means the Tele-Pro davit cranes require no tools to assemble and the zinc-plated finish provides added corrosion protection. Individually tested and certified at 125%. (Cable assembly and bases not included.)

What's Included

    (1) Davit crane with DC winch

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Telescoping boom adjustment while under load
  • Ratchet screw jack adjusts boom under load
  • 360° rotation of crane on sleeve bearing
  • Quick connect winch handle with power drill adapter included
  • Smart Latch technology at boom/mast connection
  • Corrosion resistant zinc-plated finish
  • Headache Ball (OZHB10) available and sold separately
  • Carrying case (OZRB1) available and sold separately
  • Mounting Bases available and sold separately, Socket Base, model# OZPED2-TP (Item# 105207, sold separately), Pedestal Base, model# OZSOC2-TP (Item# 105200, sold separately) and Wall Mount Base, model# OZWALL2-TP (Item# 105429)
  • Wire rope assemblies available: Item#s 105165 and 105213 (sold separately)

Key Specs

AttributeSpecification

item#

105425

Brand

OZ Lifting Products

Manufacturer's Warranty

2 year limited warranty

Ship Weight

198.0 LB

Max. Capacity

500 lb

Min. Lift

12 in

Max. Lift

1,080 in

Min. Boom Length

24 in
AttributeSpecification

Max. Boom Length

66 in

Manual or Electric

Electric

Column Diameter

2.88 in

Material

Carbon Steel

Volts

12

Motor Phase

Single-phase

Product Weight

135 lb
