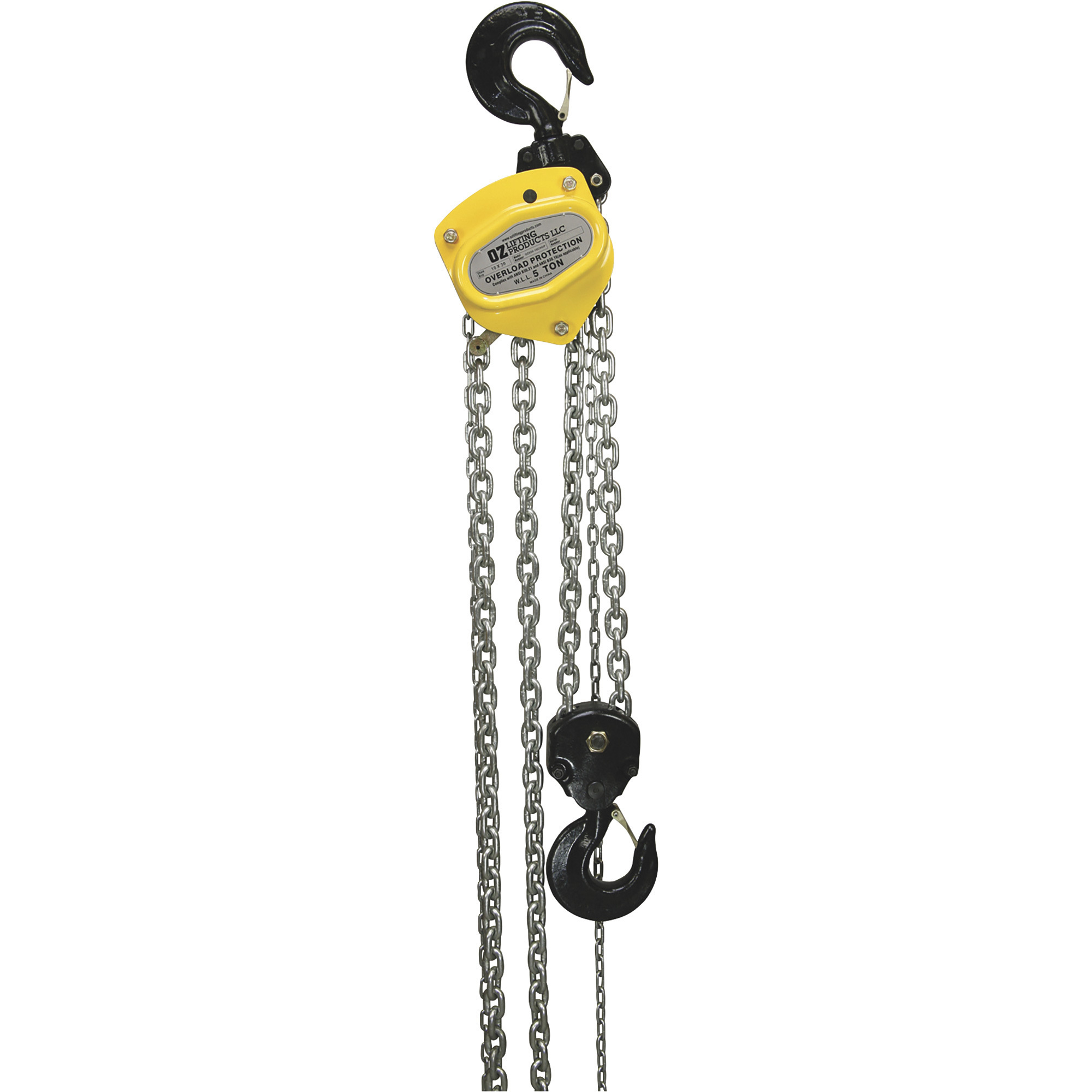

OZ Lifting Products Premium Manual Chain Hoist, 5-Ton Capacity, 30ft. Lift, Model# OZ050-30CHOP

Item# 105462
OZ Lifting Products Premium Manual Chain Hoist, 5-Ton Capacity, 30ft. Lift, Model# OZ050-30CHOP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products Premium Manual Chain Hoist, 5-Ton Capacity, 30ft. Lift, Model# OZ050-30CHOP

Click or Tap image to Zoom

$929.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Standard Overload Protection set at approximately 150% of the rated load
  • Durable all-steel construction with a long-lasting powder coat finish
  • Versatile for both lifting and pulling
  • Double-reduction gearing for minimal lifting effort
  • Unique hand wheel design allows smooth chain operation from multiple angles

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • OZ Lifting Products Premium Manual Chain Hoist, 5-Ton Capacity, 30ft. Lift, Model# OZ050-30CHOP
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811

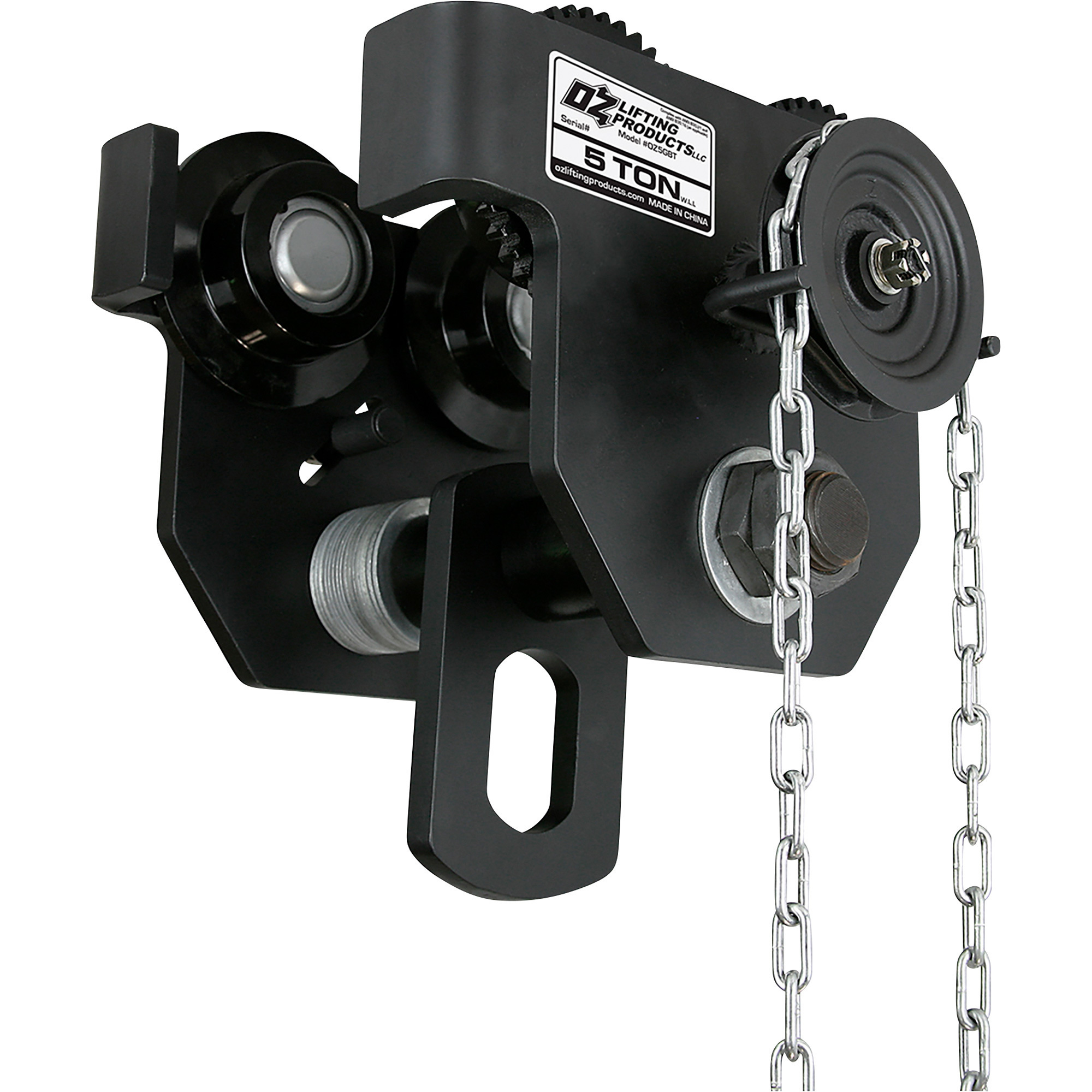

  • OZ Lifting Products Gear Beam Trolley, 5-Ton Capacity, 3.46-7.99 Flange Width, Model# OZ30GBT
  • OZ Lifting Products Manual Plain Trolley, 5-Ton Capacity, 4.49-12in. Flange Width, Model# OZ5PBT
Price for all four:

$2333.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The OZ Lifting Products Premium Manual Chain Hoist features standard overload protection. This device, set at approximately 150% of the rated load, prevents the hoist from being severely overloaded and causing damage to the hoist or the operator. The double reduction gearing provides easy operation with minimal lifting effort. The all-steel construction with a long lasting powder-coat finish ensures durable protection while providing a long and dependable service life in harsh environments. An enclosed and protected Weston-Style brake system features a twin pawl design for safety and reliability. Each unit is inspected and tested in the USA. A test certificate is included with each hoist and provides complete traceability. This hoist meets CE, ANSI B30.16 and AS1418.2 safety standards and features 100% load tested zinc plated chain.

What's Included

    (1) Manual chain hoist

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Standard Overload Protection set at approximately 150% of the rated load
  • Durable all-steel construction with a long-lasting powder coat finish
  • Versatile for both lifting and pulling
  • Double-reduction gearing for minimal lifting effort
  • Unique hand wheel design allows smooth chain operation from multiple angles
  • Enclosed Weston-style brake system with twin pawls for reliable control
  • Fully enclosed gearing protects against contamination and debris
  • Sealed roller bearing for smooth, maintenance-free operation
  • Forged alloy steel hooks swivel 360° for easy attachment and positioning
  • Thrust bearing on lower hook prevents chain twisting and allows easy load rotation
  • Heavy-duty cast steel safety latches with bolt-and-lock nut connection
  • Grade 80 zinc-plated load chain with a durable, non-oily finish
  • Stainless steel ID tag with a unique serial number and test certificate for traceable performance
  • Quick disassembly allows for easy maintenance; see our YouTube video for details
  • Includes a free spare set of latches

Key Specs

AttributeSpecification

item#

105462

Brand

OZ Lifting Products

Manufacturer's Warranty

5 year limited warranty

Ship Weight

161.0 LB

Capacity

10,000 lb

Lift Height

30 ft
AttributeSpecification

Brake Type

Weston

Chain Bag Included

No

Required Head Room

27.09 in

Lift Chain Diameter

10 mm

Thermal Overload Protection

No

Product Weight

102 lb

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

5 year limited warranty
