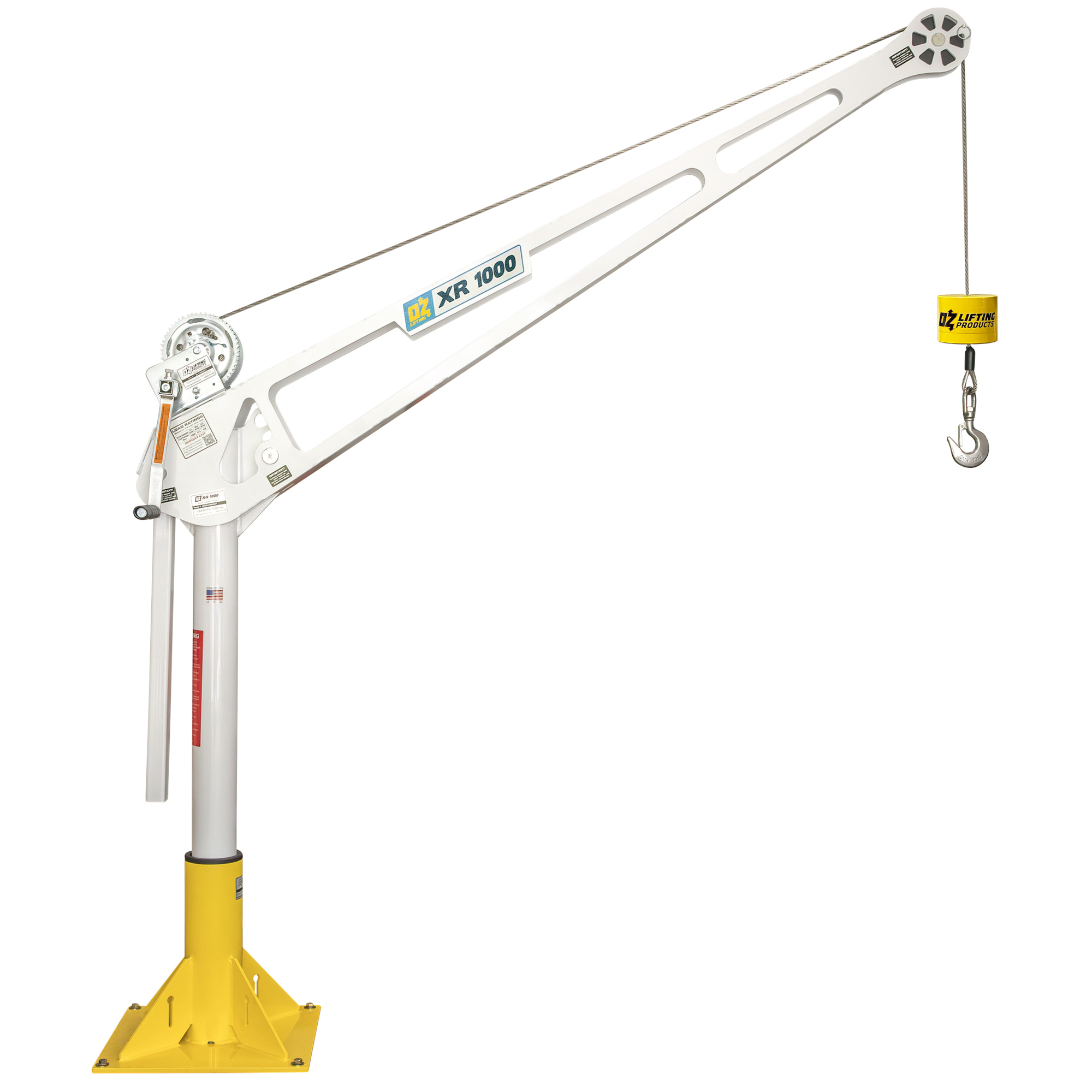

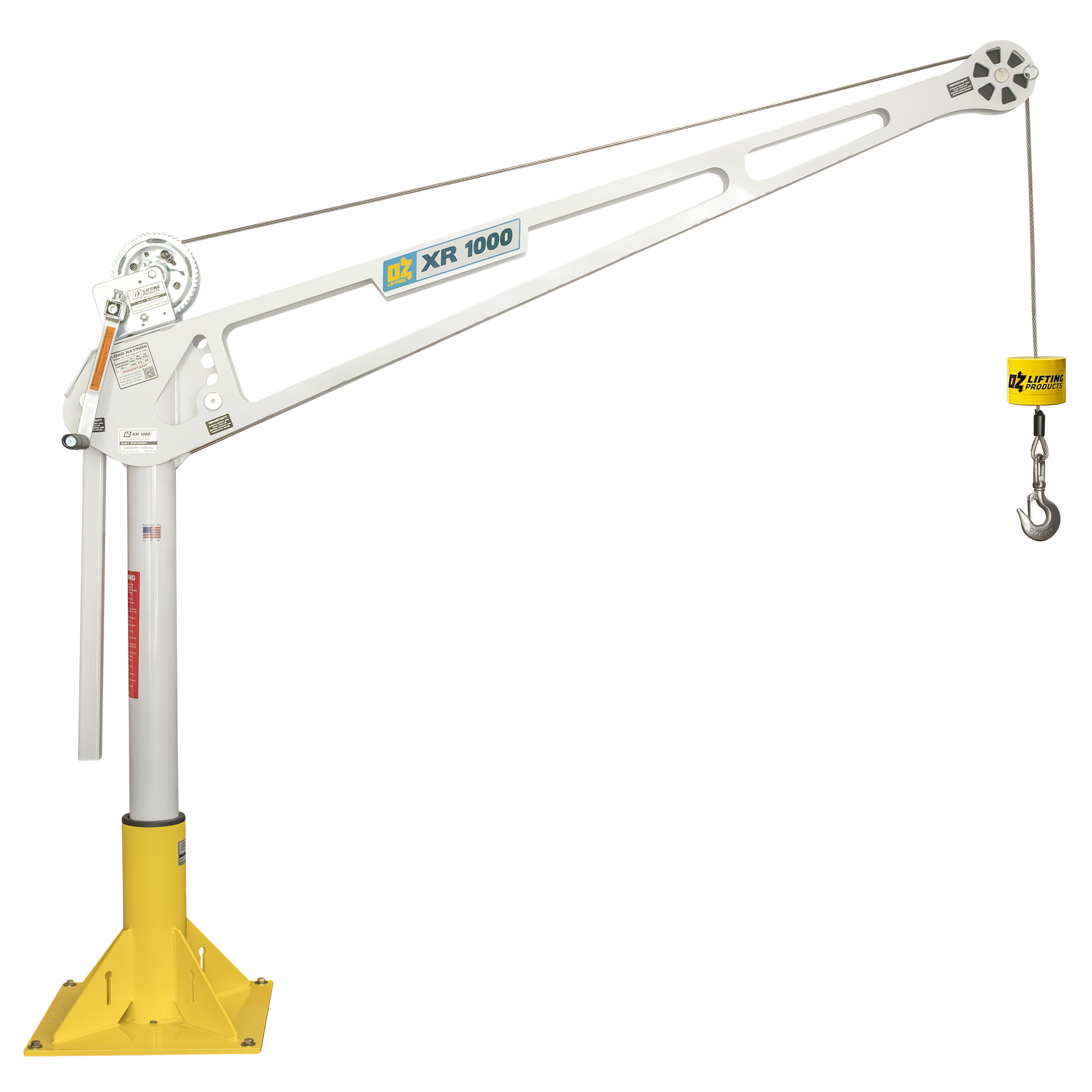

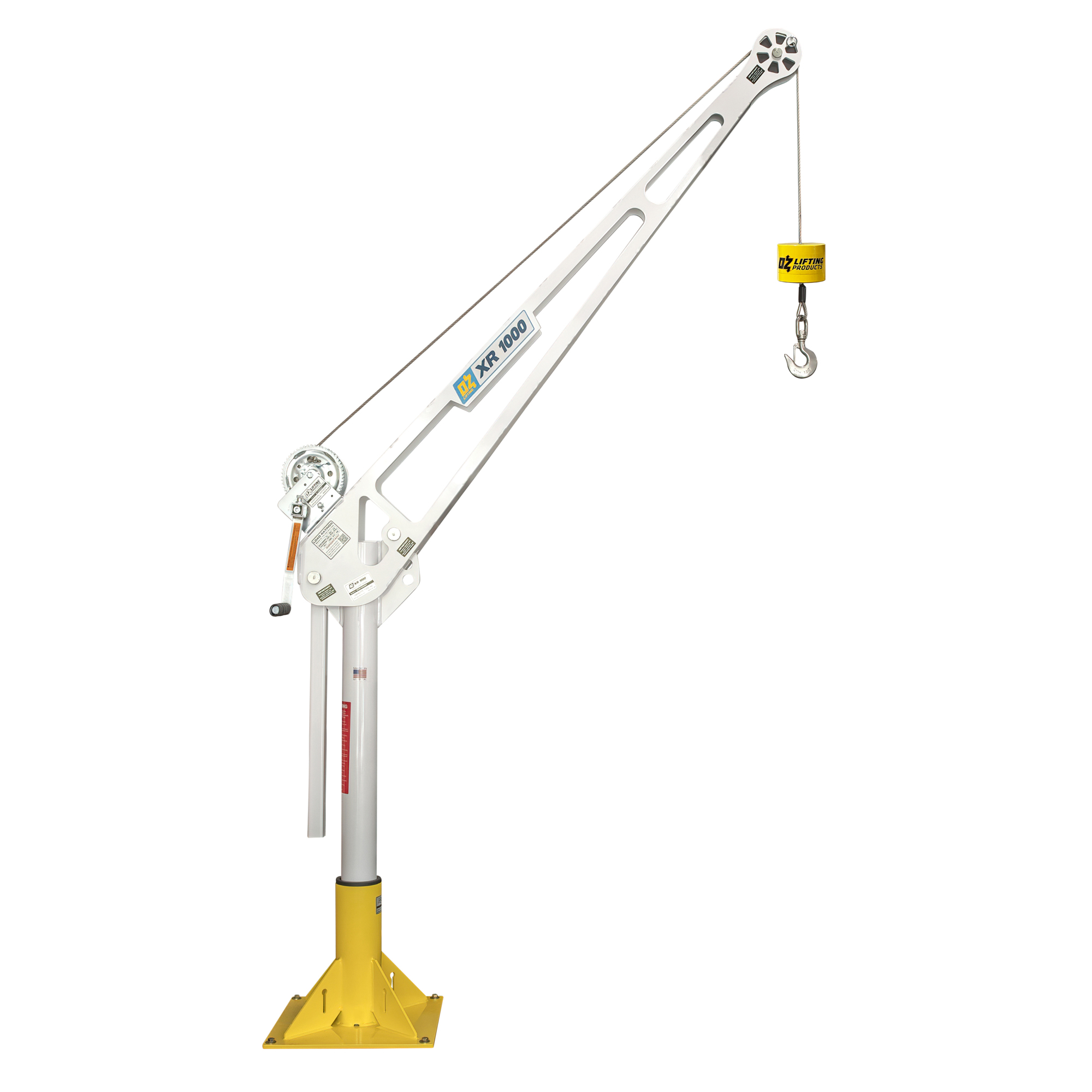

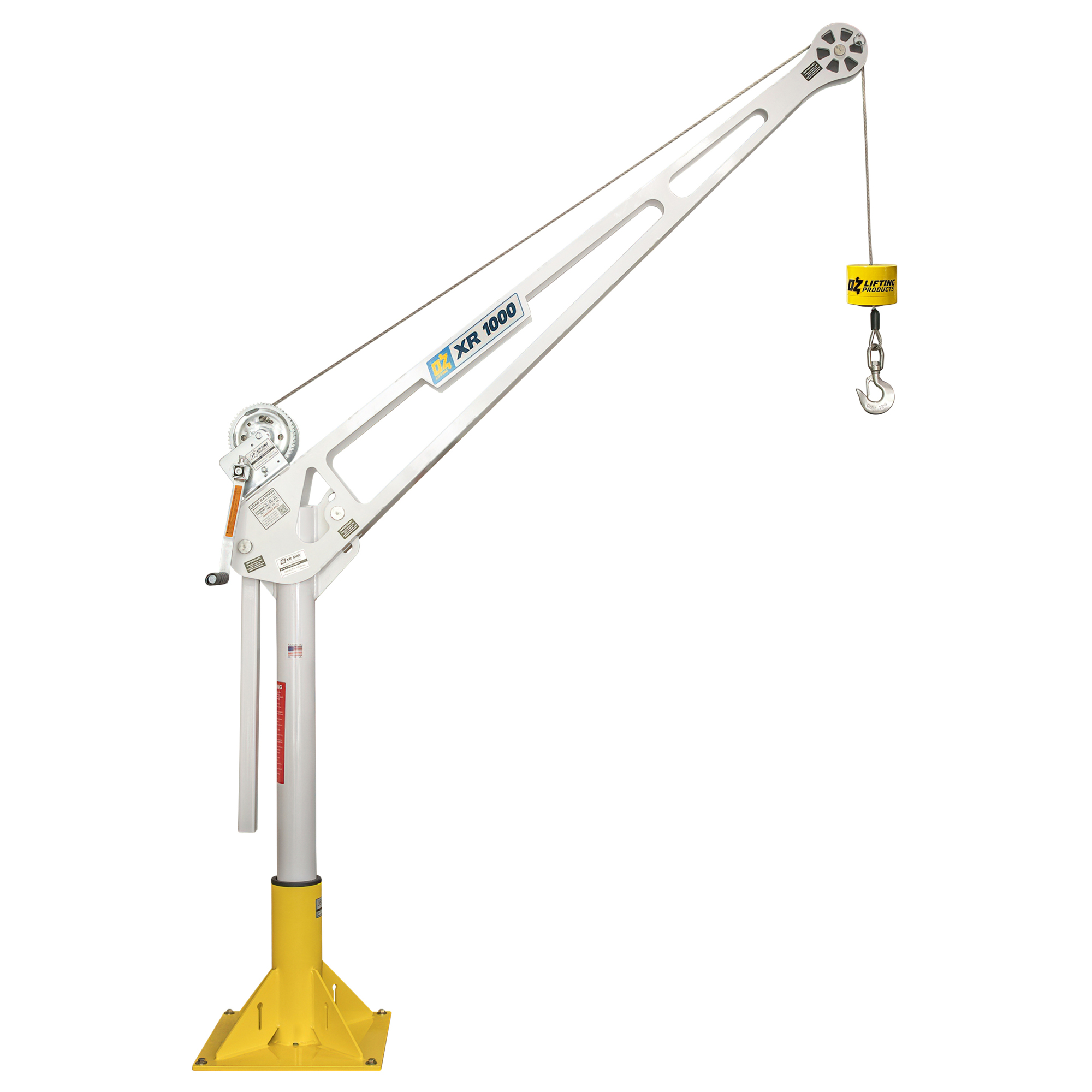

OZ Lifting Products, 1000 lbs. Extended Reach Davit Crane with Winch, Max. Capacity 1000 lb, Max. Lift 55 ft, Model# OZXR1000DAV

Item# 6474063
OZ Lifting Products, 1000 lbs. Extended Reach Davit Crane with Winch, Max. Capacity 1000 lb, Max. Lift 55 ft, Model# OZXR1000DAV

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OZ Lifting Products, 1000 lbs. Extended Reach Davit Crane with Winch, Max. Capacity 1000 lb, Max. Lift 55 ft, Model# OZXR1000DAV

Click or Tap image to Zoom

$2099.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • 1000 lb. capacity rating
  • Extended reach, maximum 62-inch reach and 87-inch hook height
  • Maintains maximum weight capacity in all positions
  • Durable steel construction
  • Corrosion-resistant powder coat finish

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The XR Series Davit Crane offers a 1000 lb capacity with a manual carbon steel brake winch and drill drive adapter. This model combines increased lifting power with the reliability of a manual winch, perfect for heavy-duty applications requiring both strength and maneuverability. This powerful crane offers an impressive 62in. reach and maintains full capacity at any angle. With adjustable boom heights and 360-degree rotation, you'll have unparalleled access and flexibility for your lifting tasks. Built tough and easy to operate, the XR Series is the ultimate solution for extended-reach applications.

What's Included

    (1) Davit Crane and Winch

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • 1000 lb. capacity rating
  • Extended reach, maximum 62-inch reach and 87-inch hook height
  • Maintains maximum weight capacity in all positions
  • Durable steel construction
  • Corrosion-resistant powder coat finish
  • 8 boom height adjustments
  • 360-degree rotation
  • No tools required for assembly and installation
  • Manual DIN-rated CE winch with integrated Weston brake (Includes quick connect winch handle with drill drive adapter)
  • AC & DC winch options available
  • Pedestal, wall mount, socket, and wheel bases sold separately
  • Individually tested and certified at 125%
  • Made in USA

Key Specs

AttributeSpecification

item#

6474063

Brand

OZ Lifting Products

Manufacturer's Warranty

2 year limited warranty

Ship Weight

175.0 LB

Max. Capacity

1,000 lb

Min. Lift

12 in

Max. Lift

660 in

Min. Boom Length

41.66 in
AttributeSpecification

Max. Boom Length

62.03 in

Manual or Electric

Manual

Column Diameter

3.5 in

Height from Base to Top

55.73 in

Material

Carbon Steel

Product Weight

117.0000 lb

Dimensions L x W x H (in.)

75.0 x 21.0 x 10.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
