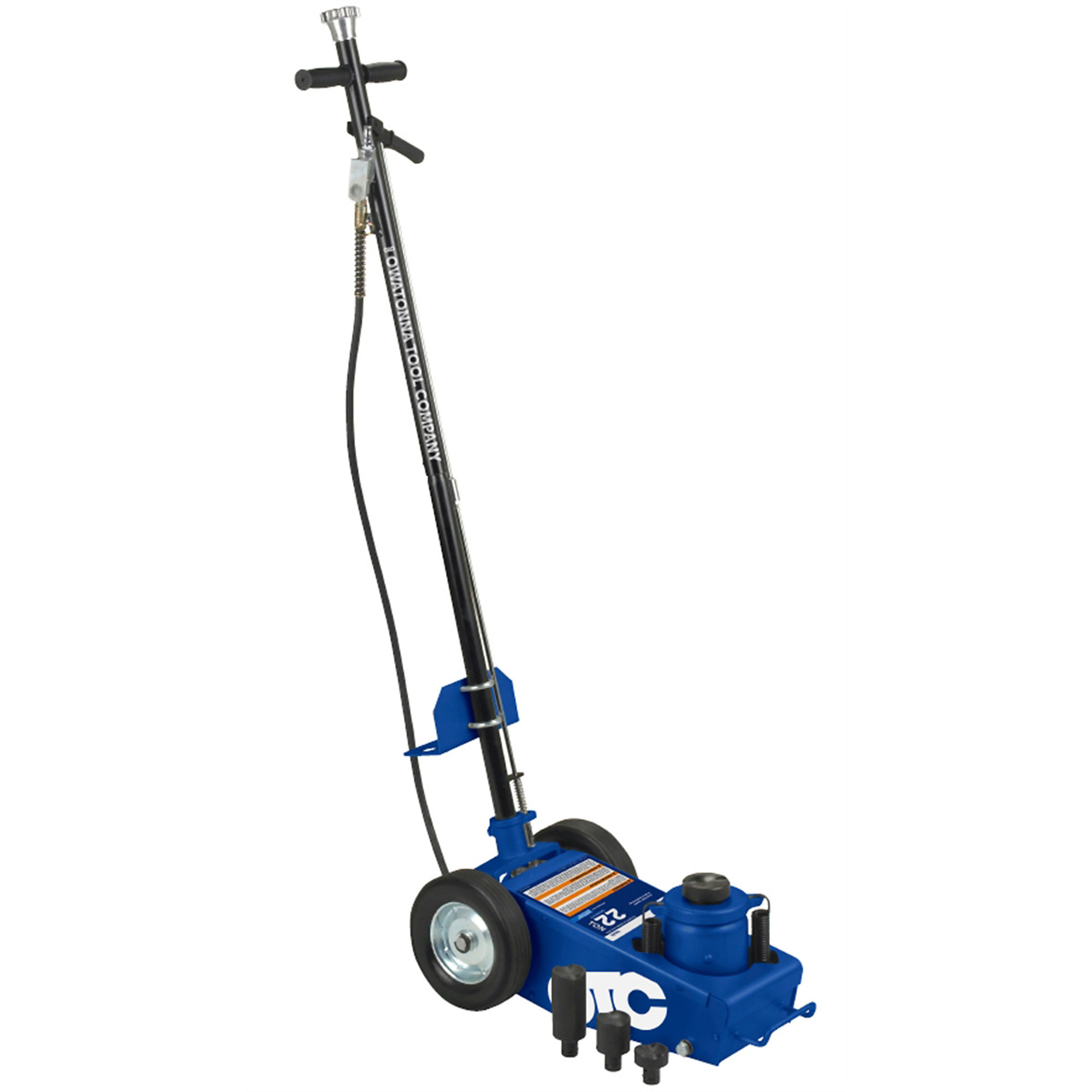

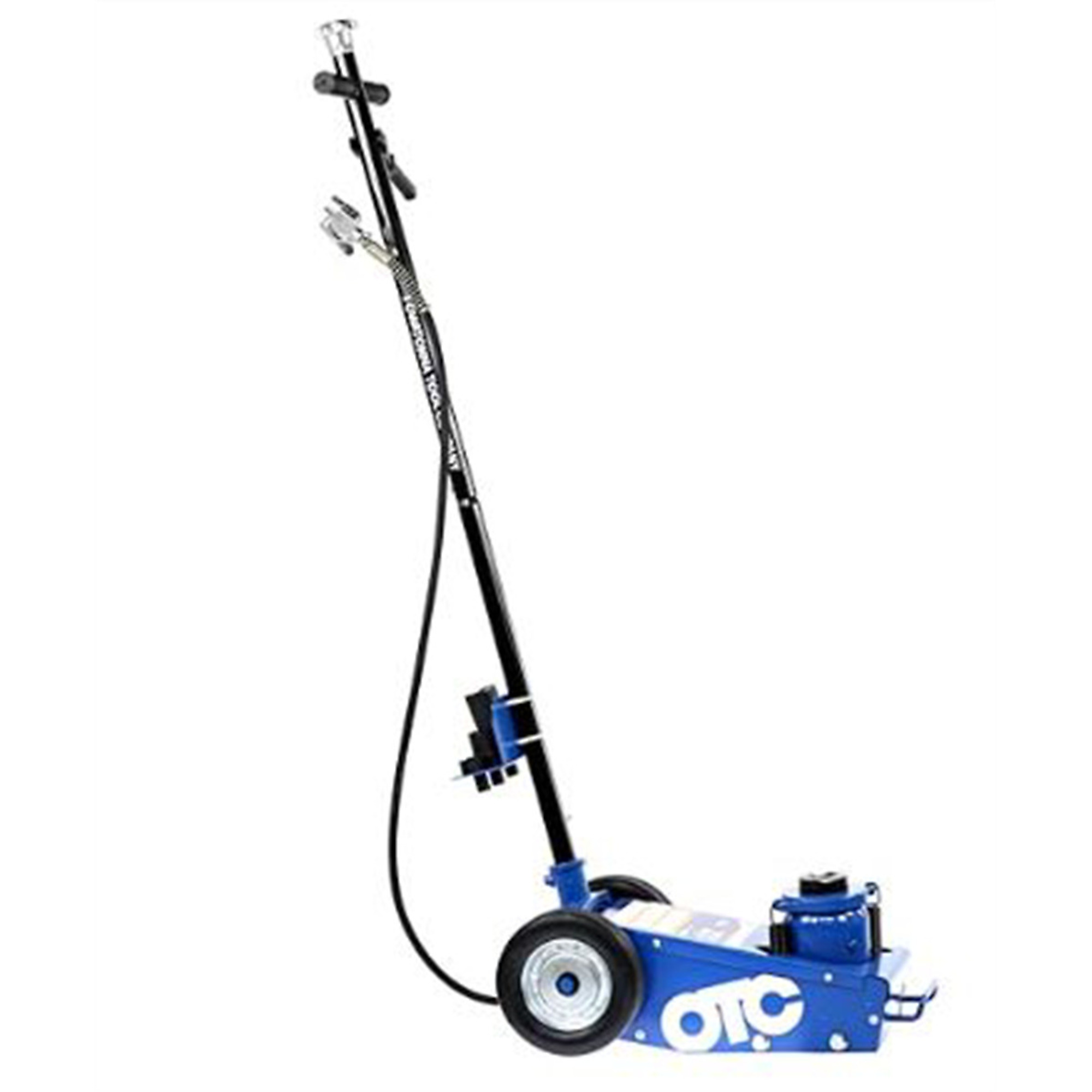

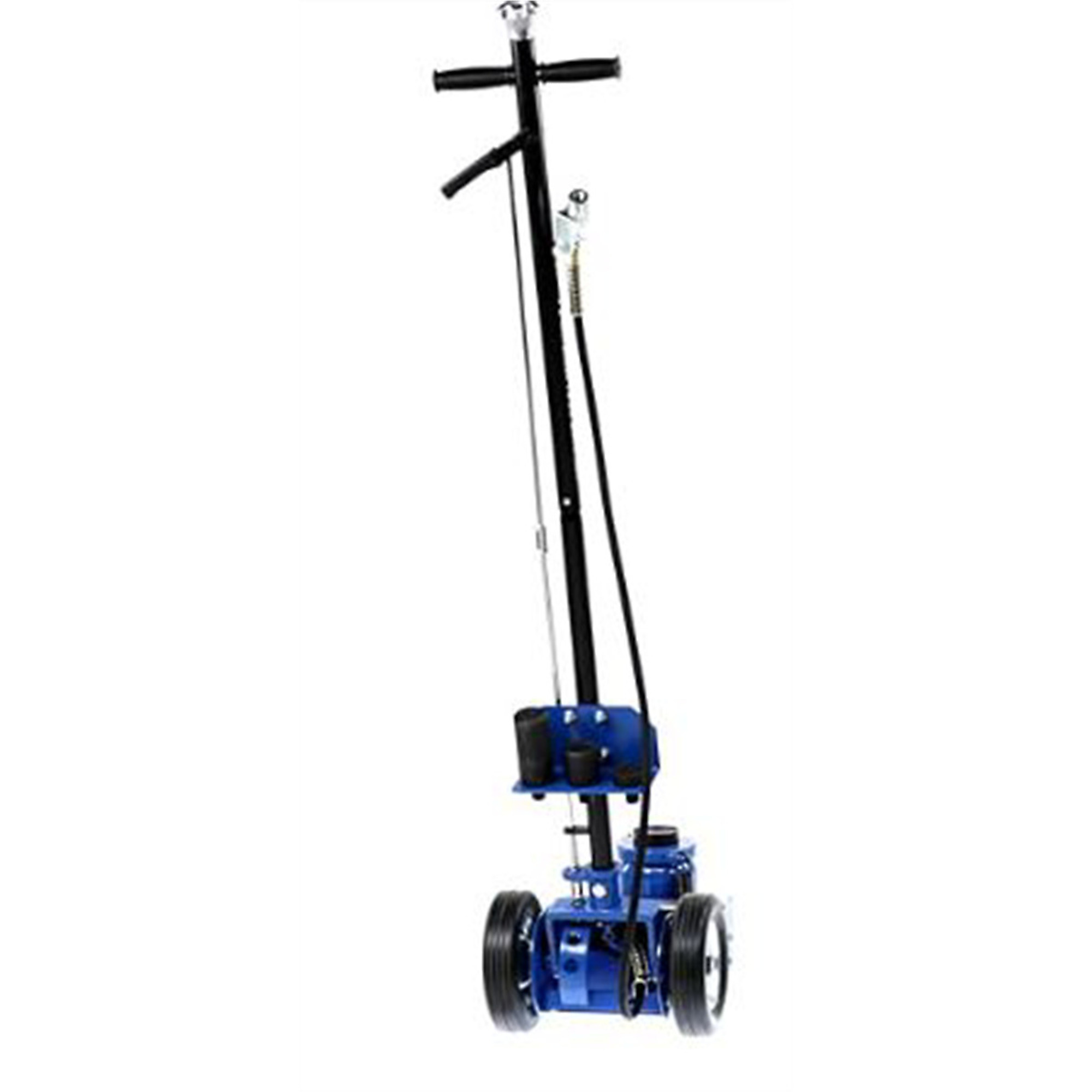

OTC UA22 22 Ton Under Axle Jack

Item# 7231590
New
OTC UA22 22 Ton Under Axle Jack

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OTC UA22 22 Ton Under Axle Jack

Click or Tap image to Zoom

$1529.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Quickly removes heavy-duty cylinder liners
  • Similar to Porta-Tool OE tool number : PT-6400-C
  • Cylinder bore diameter: 3-7/8" to 6-1/4"
  • Liner wall thickness: 0.273" min
  • Sleeve depth: Up to 15"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Meets All 5 ASME PASE-2019 Safety Standards for Service Jacks;INCLUDES: ;22 Ton Under Axle Service Jack;49-1/2in. T Handle with position control rod and lever;3 Attachments for adjusting height application;OTC Owners Manual for service jacks with training (operating) instruction;SUPERSEDES P/N'S: OTC1788B;FEATURES: ;Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more;Welded hydraulic pump and cylinder construction provides increased strength and leak prevention;Chrome plated ram for additional rust resistance;Wiper seals protect hydraulic system from contaminants;3 Position handle makes it easy to position under vehicles with low overhangs;Wide rugged base adds stability and strength;Large rear wheels provide easy positioning and portability;Dependable double spring return lowers piston ram quickly with no load;Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction;PRODUCT SPECS: ;Capacity | 22-ton;Air Pressure | 90 - 145 PSI;Lifting range | 8.27in. to 20-2/3” using longest saddle;Reach | 69.87in.;Saddle | 3in. dia., round with center notch. Includes 3 saddle lengths: 3/4in.; 1-15/16in.; 3-7/8in.;Max height using 3/4” saddle | 17-3/4”;Max height using 1-15/16” saddle | 18-15/16”;Max height using 3-7/8” saddle | 20-2/3”;Frame height | 8.27in.;Handle length | 47.24in. T handle with lowering lever and air-chuck hook;Footprint | 22.63in. x 11.73in.;Wheels | 2 fixed; 7.88in. rubberized steel;Lifetime Warranty

What's Included

    (1) Item

Features + Benefits

  • Quickly removes heavy-duty cylinder liners
  • Similar to Porta-Tool OE tool number : PT-6400-C
  • Cylinder bore diameter: 3-7/8" to 6-1/4"
  • Liner wall thickness: 0.273" min
  • Sleeve depth: Up to 15"

Key Specs

AttributeSpecification

item#

7231590

Brand

OTC

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

105.0 LB

Lift Capacity

22 Tons

Max. Lift Height

20 in
AttributeSpecification

Power Source

Air/Manual

Low Profile

No

Product Type

Jack

Min. Lift Height

9 in

Product Weight

105.0000 lb

Dimensions L x W x H (in.)

29.75 x 15.75 x 12.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
