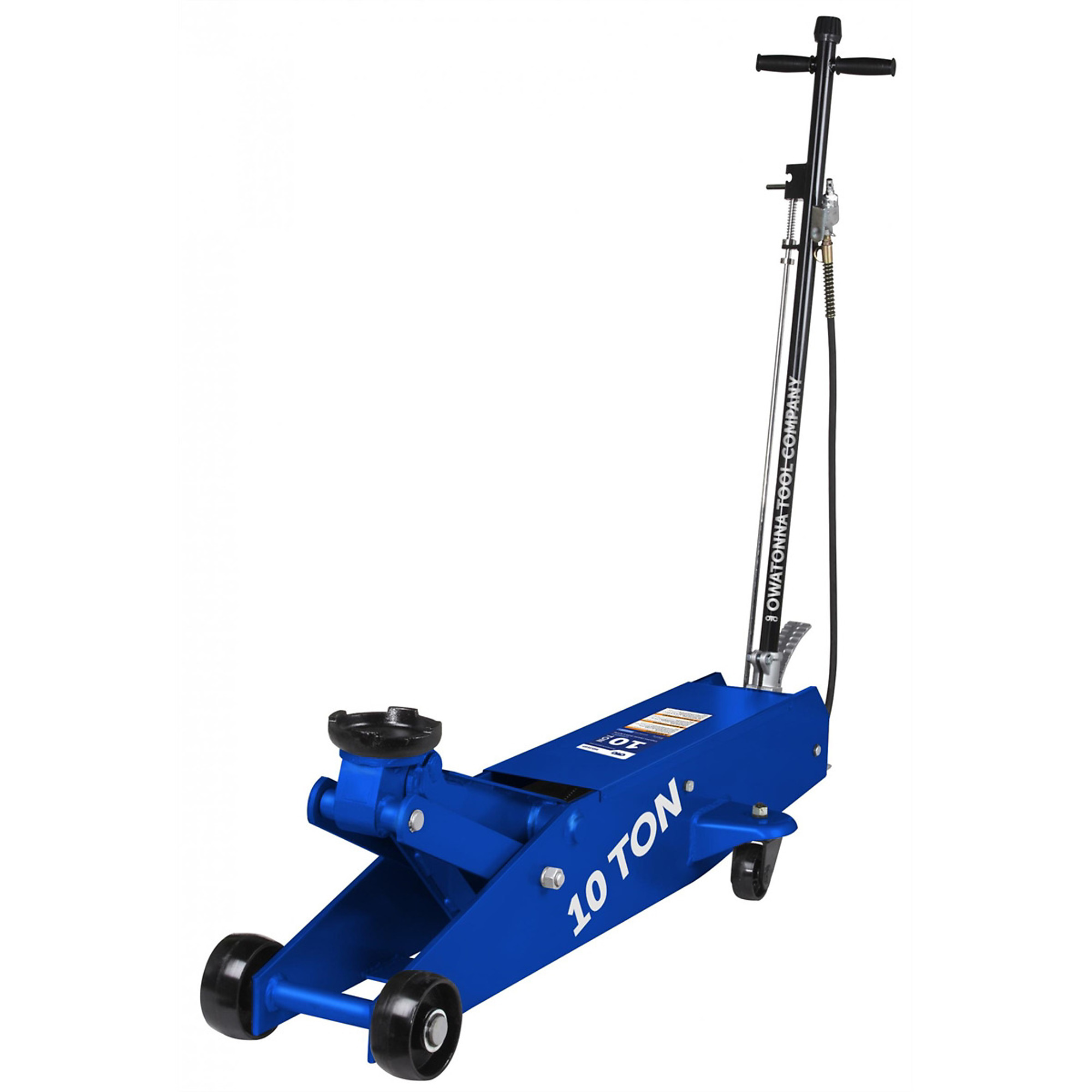

OTC Air/Hydraulic Service Jack — 10-Ton, Model# OTCHDJ10P

Item# 7227030
OTC Air/Hydraulic Service Jack — 10-Ton, Model# OTCHDJ10P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OTC Air/Hydraulic Service Jack — 10-Ton, Model# OTCHDJ10P

Click or Tap image to Zoom

$2799.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Meets all 5 ASME PASE-2019 safety standards for service jacks
  • 10-ton capacity
  • Air pressure: 80‐120 PSI
  • Lifting range: 6-3/8" to 22"
  • Reach: 106.2"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

OTCHDJ10P is a 10-ton capacity service jack that brings the versatility of air-assist operation to your shop?s lifting tasks. OTCHDJ10P has rugged steel frame members. Spring-loaded handle may be locked in three positions, from horizontal to vertical. The OTCHDJ10P from OTC is the ideal size for heavy duty lifting jobs such as vocational vehicles, highway maintenance, delivery and service fleets, bucket trucks, school buses and community transit vehicles. OTCHDJ10P is easy to maneuver. A foot pedal quickly positions the saddle to the lift point. Connects to shop air supply for effortless lifting of heavy loads. Cycle tested design for a long life of professional duty.Ideal size for vocational vehicles, bucket trucks, school buses and larger vehicles.

What's Included

    (1) Item

Features + Benefits

  • Meets all 5 ASME PASE-2019 safety standards for service jacks
  • 10-ton capacity
  • Air pressure: 80‐120 PSI
  • Lifting range: 6-3/8" to 22"
  • Reach: 106.2"
  • Saddle: 6" dia., round
  • Frame height: 9.8"
  • Handle length: 45.4" 3-position with lock and release controls
  • Floor space: 18.9" x 60.8"
  • Casters: 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)
  • Heavy duty hydraulic service for garages, equipment dealers, commercial service and more.
  • Welded hydraulic pump and cylinder construction provides increased strength and leak protection
  • Chrome plated ram for additional rust resistance
  • Wiper seals protect hydraulic system from contaminants
  • Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuvering
  • Overload and bypass safety valves prevent use beyond rated capacity ad over extension of the ram
  • Handle can be locked in three positions from horizontal to vertical and has independent release knob
  • Uses shop air supply for lifting assistance
  • OTC Owners Manual for service jacks with training (operating) instructions

Key Specs

AttributeSpecification

item#

7227030

Brand

OTC

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

328.0 LB

Lift Capacity

5 Tons

Max. Lift Height

22 in
AttributeSpecification

Power Source

Air

Low Profile

No

Product Type

Service Jack

Min. Lift Height

6 in

Product Weight

328.0000 lb

Dimensions L x W x H (in.)

67.0 x 21.0 x 15.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

Lifetime Limited Warranty
