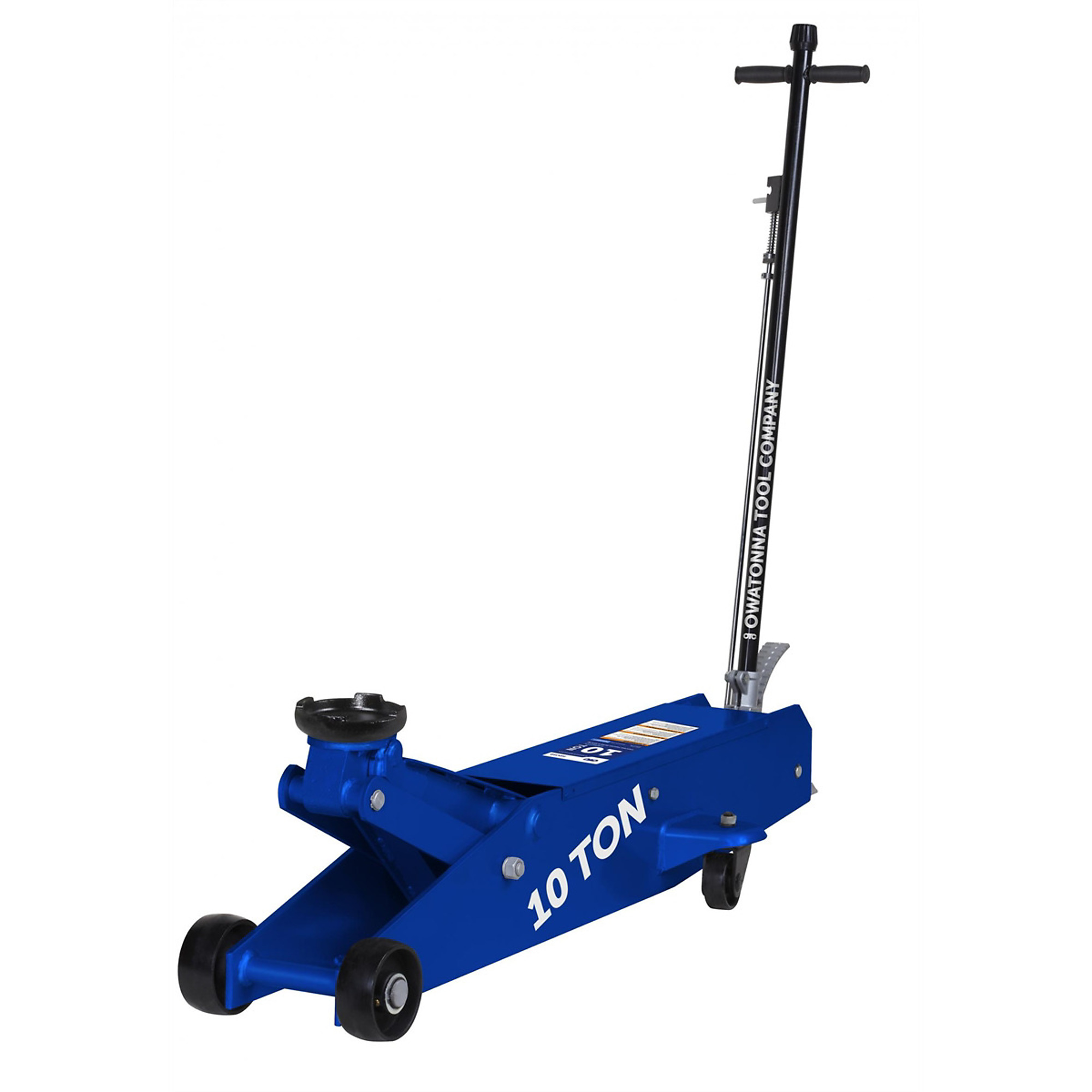

OTC HDJ10 10 Ton Service Jack

Item# 7227267
OTC HDJ10 10 Ton Service Jack

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OTC HDJ10 10 Ton Service Jack

Click or Tap image to Zoom

$2229.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Air-powered hydraulic lift system
  • 10-Ton load capacity at 200 PSI air pressure
  • Angle-adjustable 40" removable handle and 8' air hose
  • Minimum height (unpinned): 18-3/4"
  • Maximum height (extension pinned): 50-1/2"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

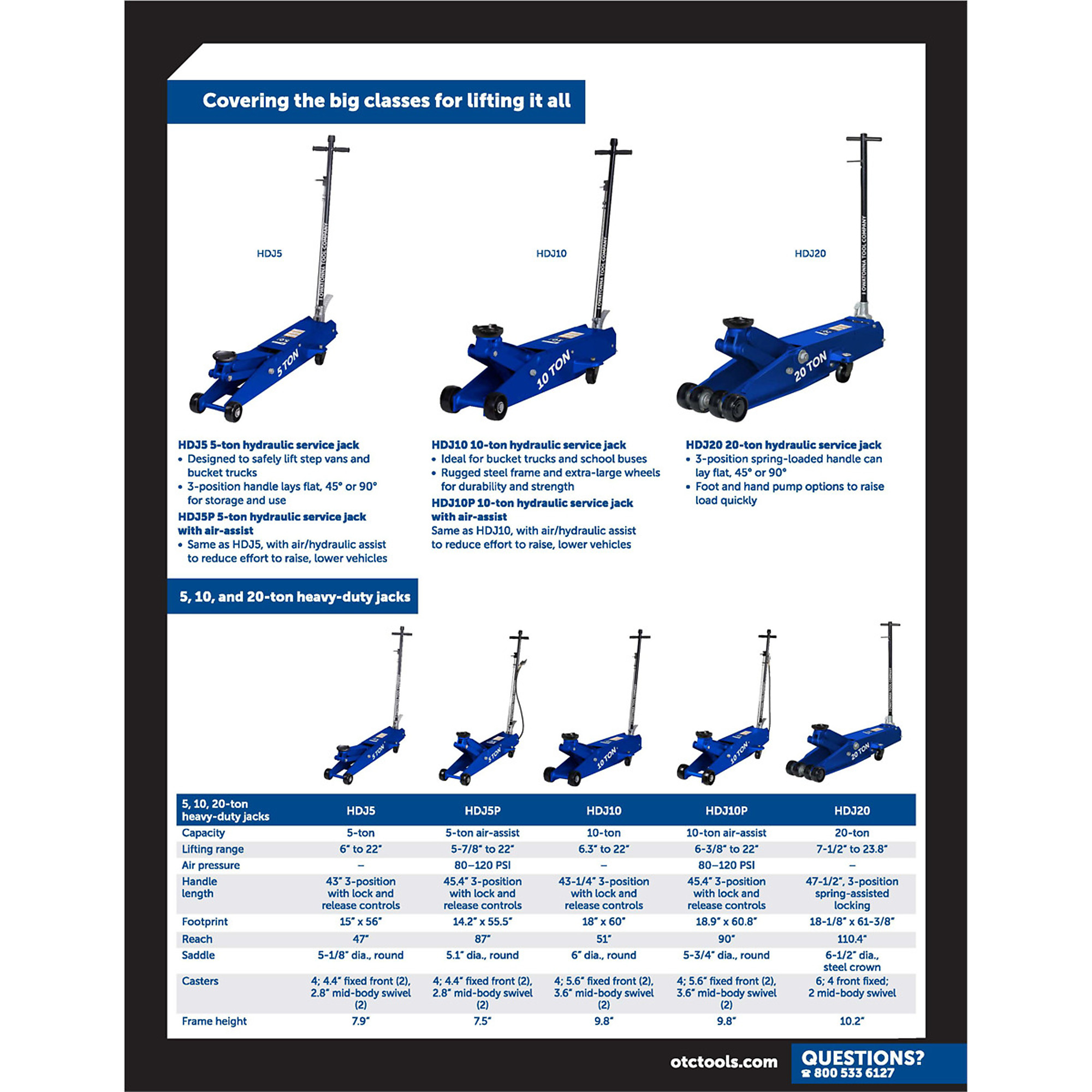

Meets all 5 ASME PASE-2019 safety standards for service jacks;Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more;Welded hydraulic pump and cylinder construction provides increased strength and leak prevention;Chrome plated ram for additional rust resistance;Wiper seals protect hydraulic system from contaminants;Convenient foot pedal for no load lifts;Front wheels with roller bearings and ball bearing mounted rear caster wheels provide stability and easy maneuverability;Overload and bypass safety valves prevent use beyong jacks rated capacity and over extension of the ram;Handle can be locked into one of three positions from vertical to horizontal and has independent release knob.;OTC Owner's Manual for service jacks with training (operating) instructions;10-ton capacity;Lifting range: 6.3in. to 22in.;Reach: 51in.;Saddle: 6in. dia., round;Frame height: 9.8in.;Handle length: 43.25in. 3-position with lock and release controls;Floor space: 18in. x 60in.;Casters: 4; 5.6in. fixed front (2), 3.6in. mid-body swivel (2) ;Not Included Related Product: OTCS012 12-Ton Jack Stands;Not Included Related Product: OTCHDJ10P 10 Ton Air / Hydraulic Service Jack;Not Included Related Product: OTCHDJ5 5 Ton Service Jack;Not Included Related Product: OTCHDJ5P 5 Ton Air / Hydraulic Service Jack;Not Included Related Product: OTCS06 6 Ton Jack Stands;LIfetime Warranty

What's Included

    (1) Item

Features + Benefits

  • Air-powered hydraulic lift system
  • 10-Ton load capacity at 200 PSI air pressure
  • Angle-adjustable 40" removable handle and 8' air hose
  • Minimum height (unpinned): 18-3/4"
  • Maximum height (extension pinned): 50-1/2"

Key Specs

AttributeSpecification

item#

7227267

Brand

OTC

Manufacturer's Warranty

Lifetime Limited Warranty

Ship Weight

345.0 LB

Lift Capacity

10 Tons

Max. Lift Height

22 in
AttributeSpecification

Power Source

Air

Low Profile

No

Product Type

Service Jack

Min. Lift Height

6.3 in

Product Weight

345.0000 lb

Dimensions L x W x H (in.)

68.0 x 22.0 x 16.0 in
