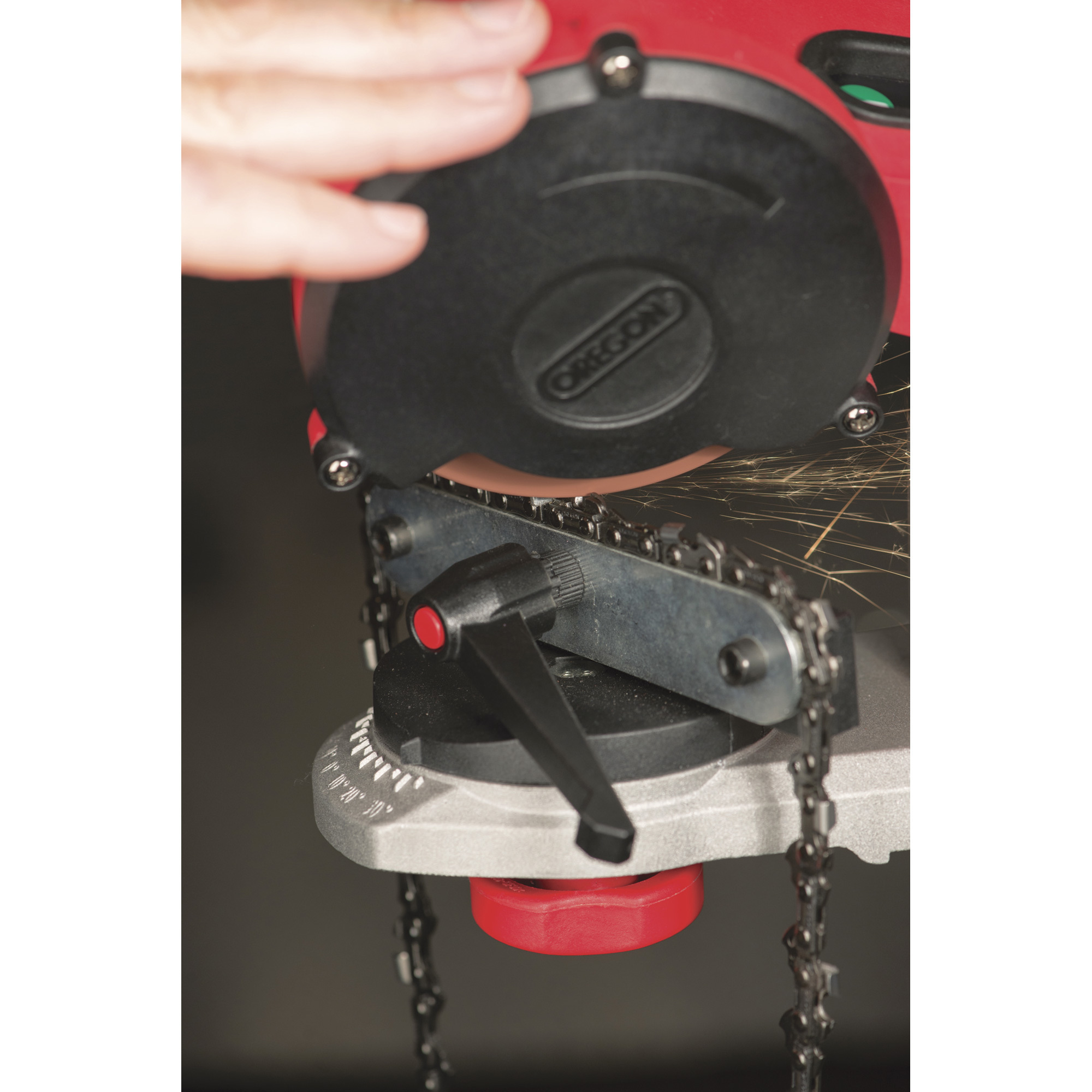

Oregon Mini Bench-Mount Chain Sharpener, Model# 310-120

Item# 48268
"Oregon Mini Bench-Mount Chain Sharpener, Model# 310-120"
Top Seller
Oregon Mini Bench-Mount Chain Sharpener, Model# 310-120

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Oregon Mini Bench-Mount Chain Sharpener, Model# 310-120

Click or Tap image to Zoom

$97.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Sharpens 1/4in., 3/8in. low-profile, 0.325in. and full-profile 3/8in. pitch chain
  • Fixed motor angle for consistent sharpening
  • 6 Amps

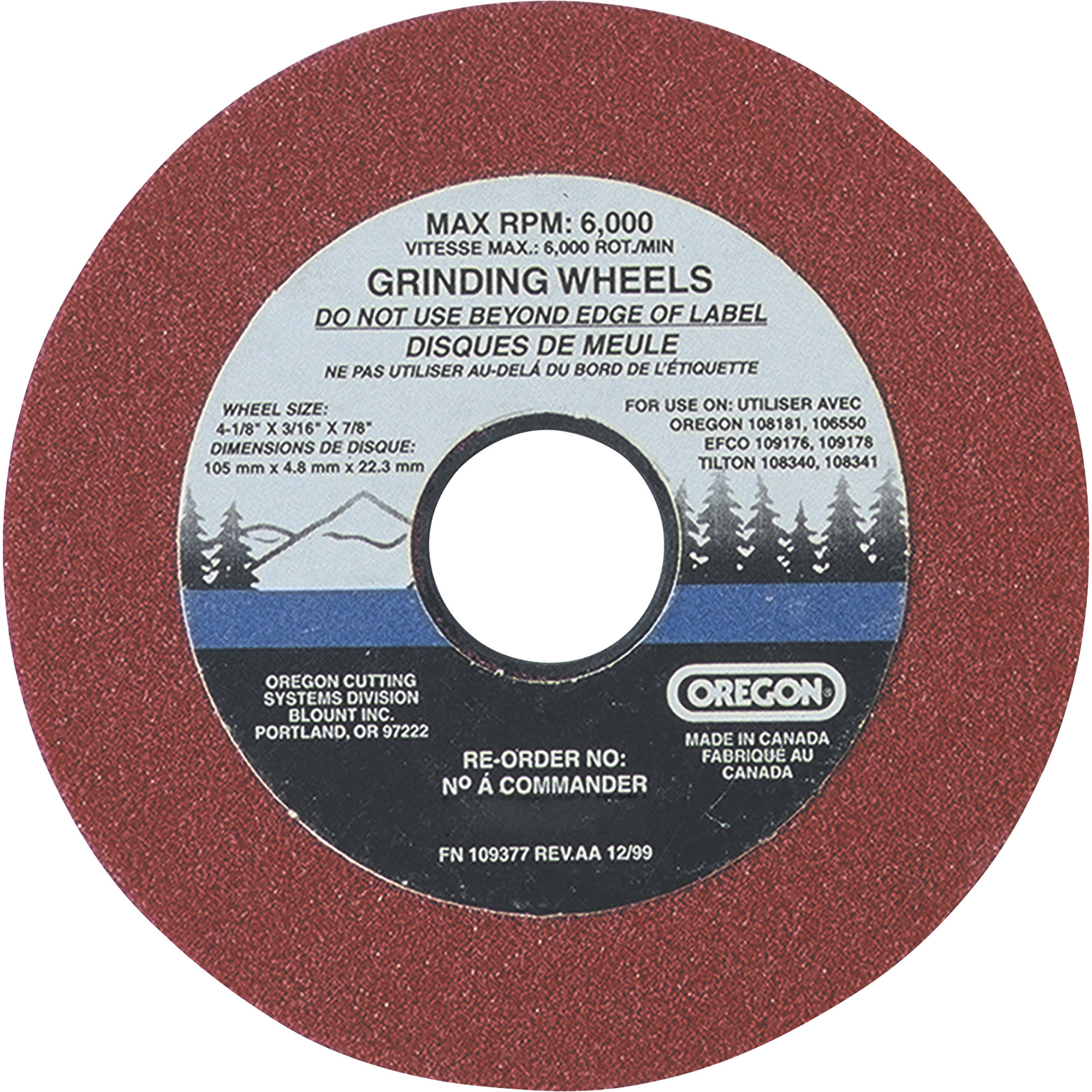

  • Includes two 4 1/8in. wheels; 1/8in. and 3/16in.
  • One-way motor operation for greater operator safety

See full description

Complete Your Solution

  • Oregon Mini Bench-Mount Chain Sharpener, Model# 310-120
  • Oregon Chain Sharpener Grinding Wheel, 3/16in. Thickness, For .325in.-Pitch (20, 21, 22, 95 Series Chains Only), 3/8in.-Pitch (All Except 90, 91 Series Chains) & .404in.-Pitch Chain

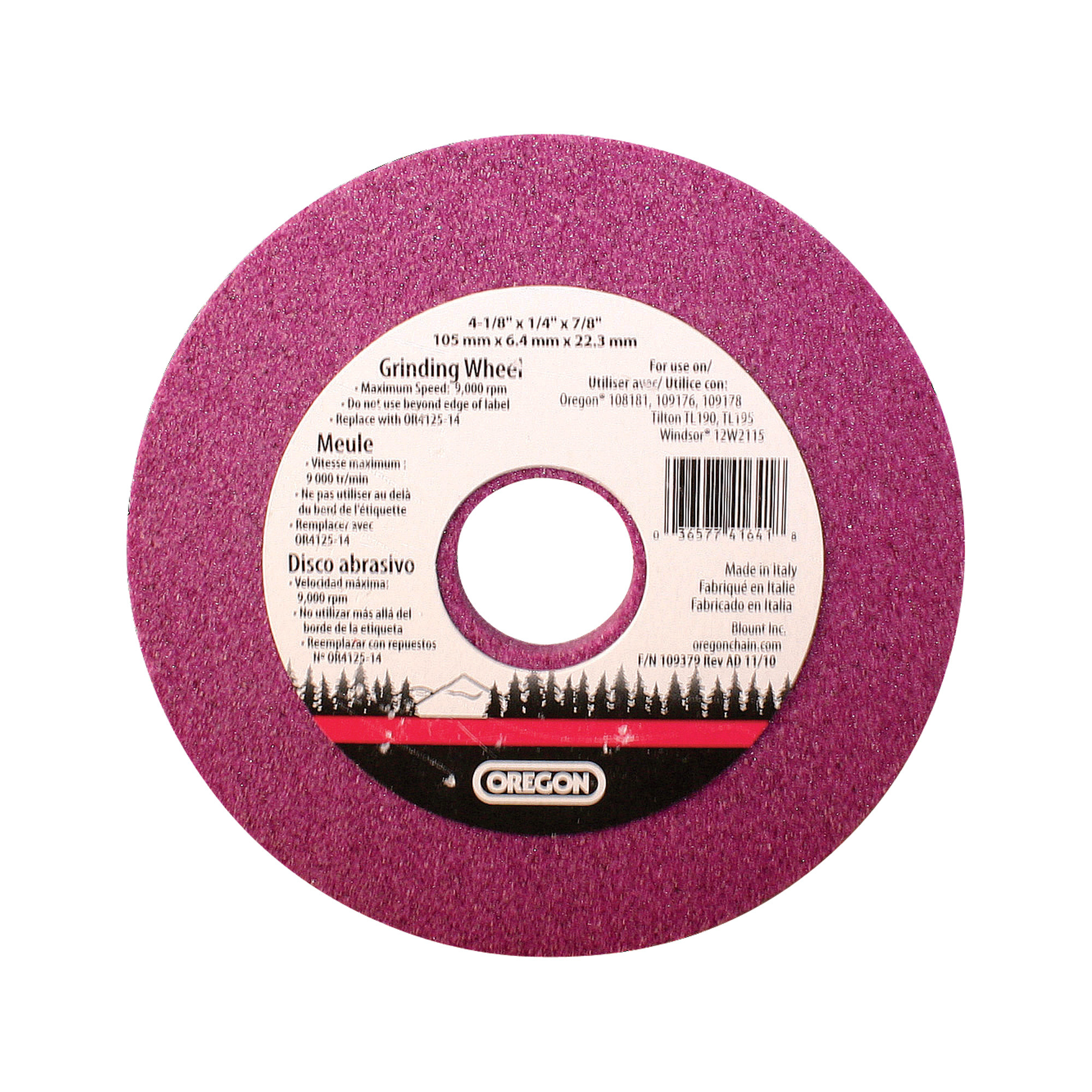

  • Oregon Chain Sharpener Grinding Wheel, 1/4in. Thickness, For 1/2in.-Pitch Chains, Model# OR4125-14A

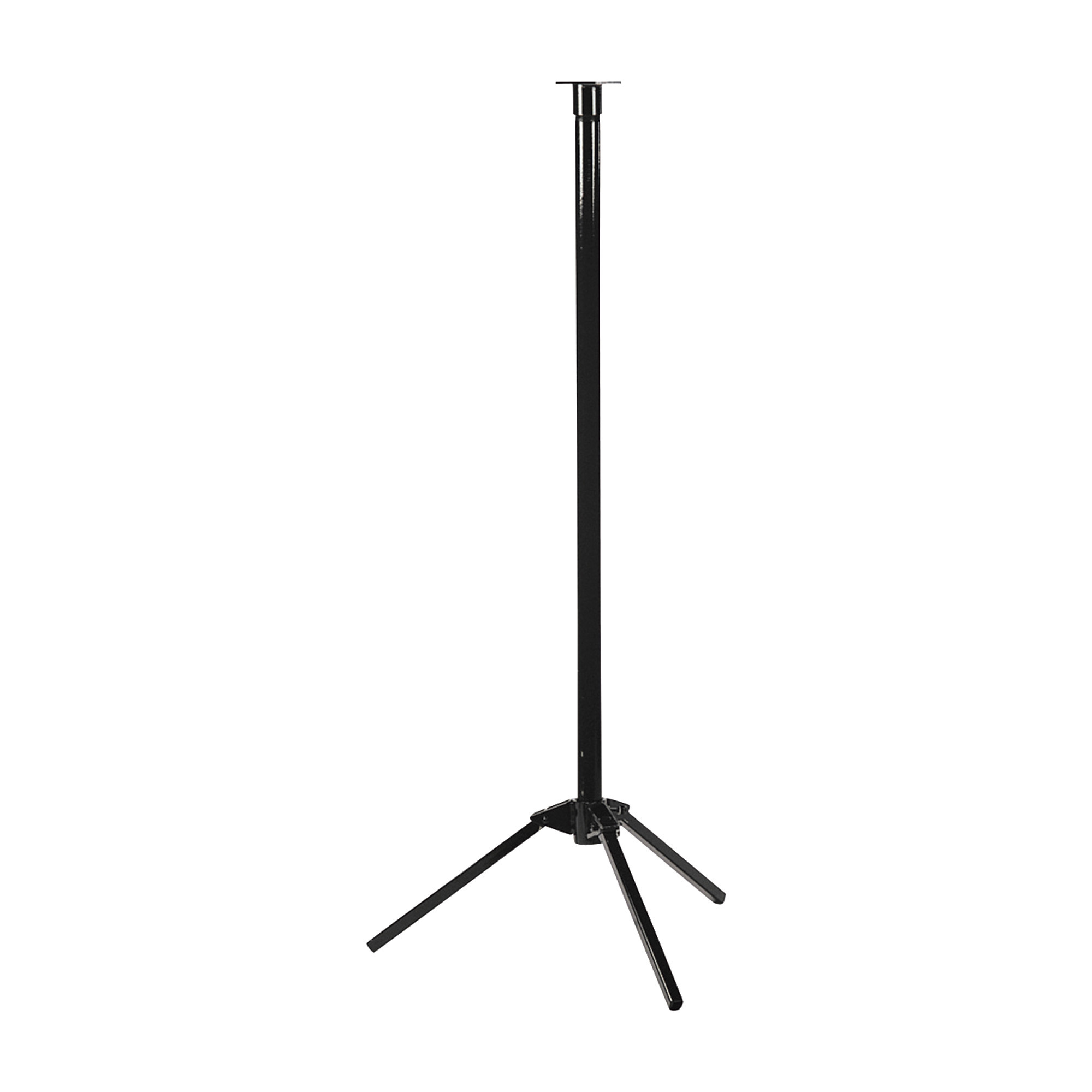

  • Oregon Heavy-Duty Tripod Grinder Stand, Model# 554532
Price for all four:

$222.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Oregon Mini Bench-Mount Chain Sharpener is a compact alternative to full-size bench sharpeners that delivers precision results in a very small space.

What's Included

    (1) Chain sharpener (2) Grinding wheels

Downloads

Product Manual

Features + Benefits

  • Sharpens 1/4in., 3/8in. low-profile, 0.325in. and full-profile 3/8in. pitch chain
  • Fixed motor angle for consistent sharpening
  • 6 Amps
  • Includes two 4 1/8in. wheels; 1/8in. and 3/16in.
  • One-way motor operation for greater operator safety
  • Safety shield helps prevent injury

Key Specs

AttributeSpecification

item#

48268

Brand

Oregon

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

6.2 LB

Product Type

Sharpener/Grinder

Max. RPM

5,000

Chain Pitch

Combination

Volts

120
AttributeSpecification

Watts

85 W

Bore Diameter

7/8 in

Motor

60 Hz

Wheel Diameter

4-1/8 in

Arbor Size

7/8 in

Bolt Hole Shape

Round

Wheel Included

Yes

Assembly Required

Yes

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. How does one determine angle & grind heel size?

    1. There is a chart in the owner's manual with settings for Oregon brand chains. You can visit the websites of other chain manufacturers for their recommended settings.

      The head tilt angle on this grinder is fixed, and there is no 'down angle' adjustment, so the user only has to select the correct grinding wheel, and the top plate angle (chain vise rotation). Pretty simple to set up.

      Helpful?

    2. Before you start to sharpen you will need to know the type of chain you have and the relative adjustment angles. You will find this information in your owners manual for the chain saw or on the chain pack. The chain identification code is usually written on the drive link. The manual that comes with this chain grinder will have a chart to tell you the angle and size wheel to use from your chain information.

      Helpful?

  2. Will this sharpener work with any other brand chain besides Oregon brand?

    1 answer

    1. This sharpener can be used to sharpen other brand chainsaw chains.

      Helpful?

  3. I would like to know the overall dimensions such as height and overall width for this sharpener. I need to know how much head room I need to install it on a mobile work bench I am designing for my son's business.

    1 answer

    1. The height of the grinder when the head is at its highest point is 12-1/2". The width of the grinder at its widest point on the base is 4-7/8" and the widest part of the grinder head is 5-1/16".

      Helpful?

  4. Where can I get parts for a #310-120 Sharpener

    1 answer

    1. Replacement parts for this grinder would be available through the manufacturer.

      Helpful?

  5. can i sharpen carbide tip chains with the wheel provided?

    1 answer

    1. The chain sharpener grinding wheels included cannot be used for grinding carbide tip chains. A 3/16" wheel for grinding carbide tip chains is available. It would be part number 4X316X78DIAMOND. This would be available through the manufacturer.

      Helpful?
