Optima Scale Weigh Bar System with Two 60in.L x 5in.W Bars-- 10,000-Lb. Capacity, 1-Lb. Display Increments, Model# OP-919-60-10K

Name: Optima Scale Weigh Bar System with Two Bars
Brand: OptimaScale
SKU: 92380

Item# 68339

"Optima Scale Weigh Bar System with Two 60in.L x 5in.W Bars-- 10,000-Lb. Capacity, 1-Lb. Display Increments, Model# OP-919-60-10K"

Click or Tap image to Zoom

$1149.99

Choose Options for complete product description, reviews and purchasing.

Capacity

DIMENSIONS

Quantity

Save to List

Shipping:
Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:
Not available - online only

Portable and easy to move out of the way when not in use
Ideal for use under a manual chute
Weigh beam scales can be spread 8ft. apart to handle long or unusual-shaped loads
Designed for general use, including at farms and zoos to weight animals of all sizes
Built-in animal-hold feature makes livestock weighing easy

See full description

Product Summary

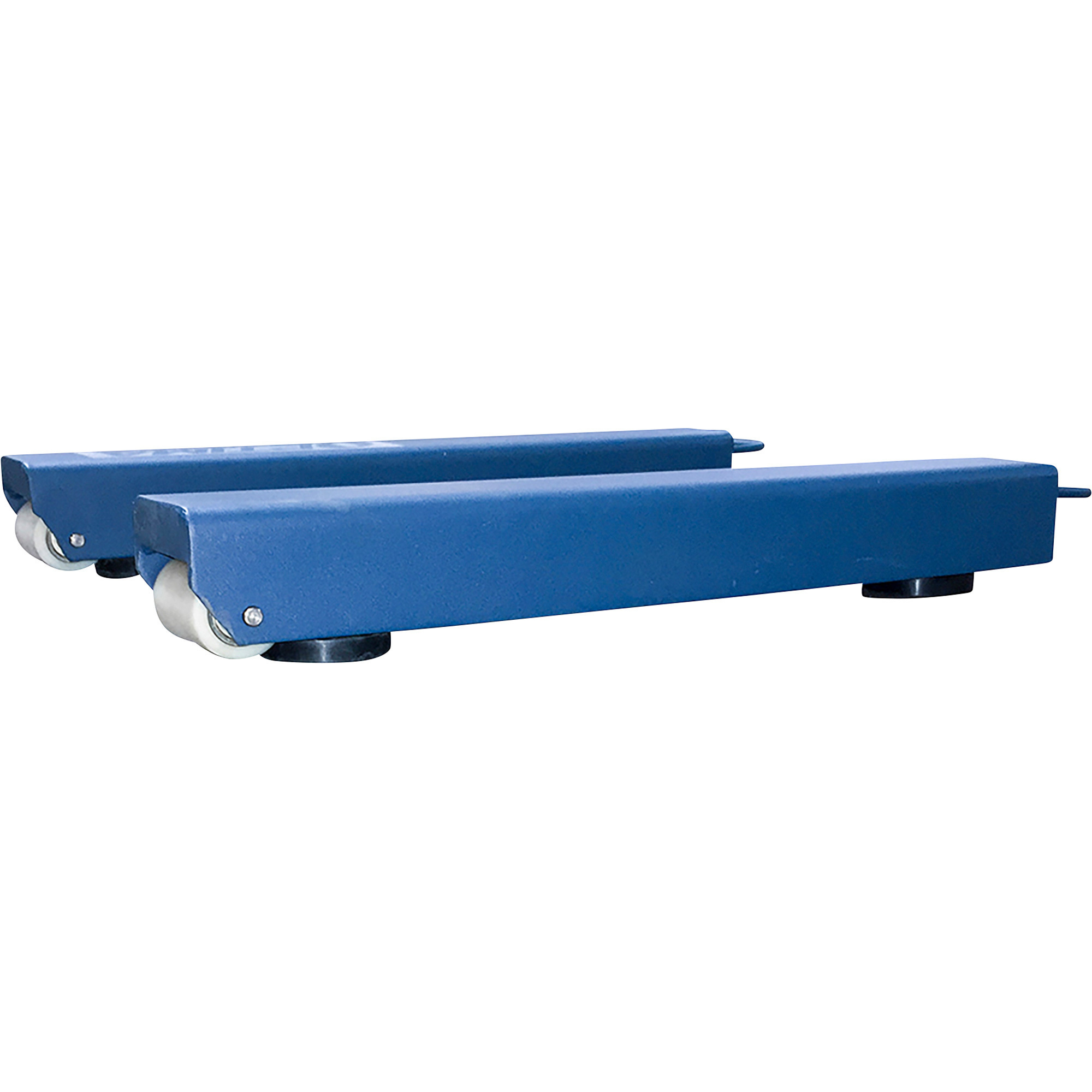

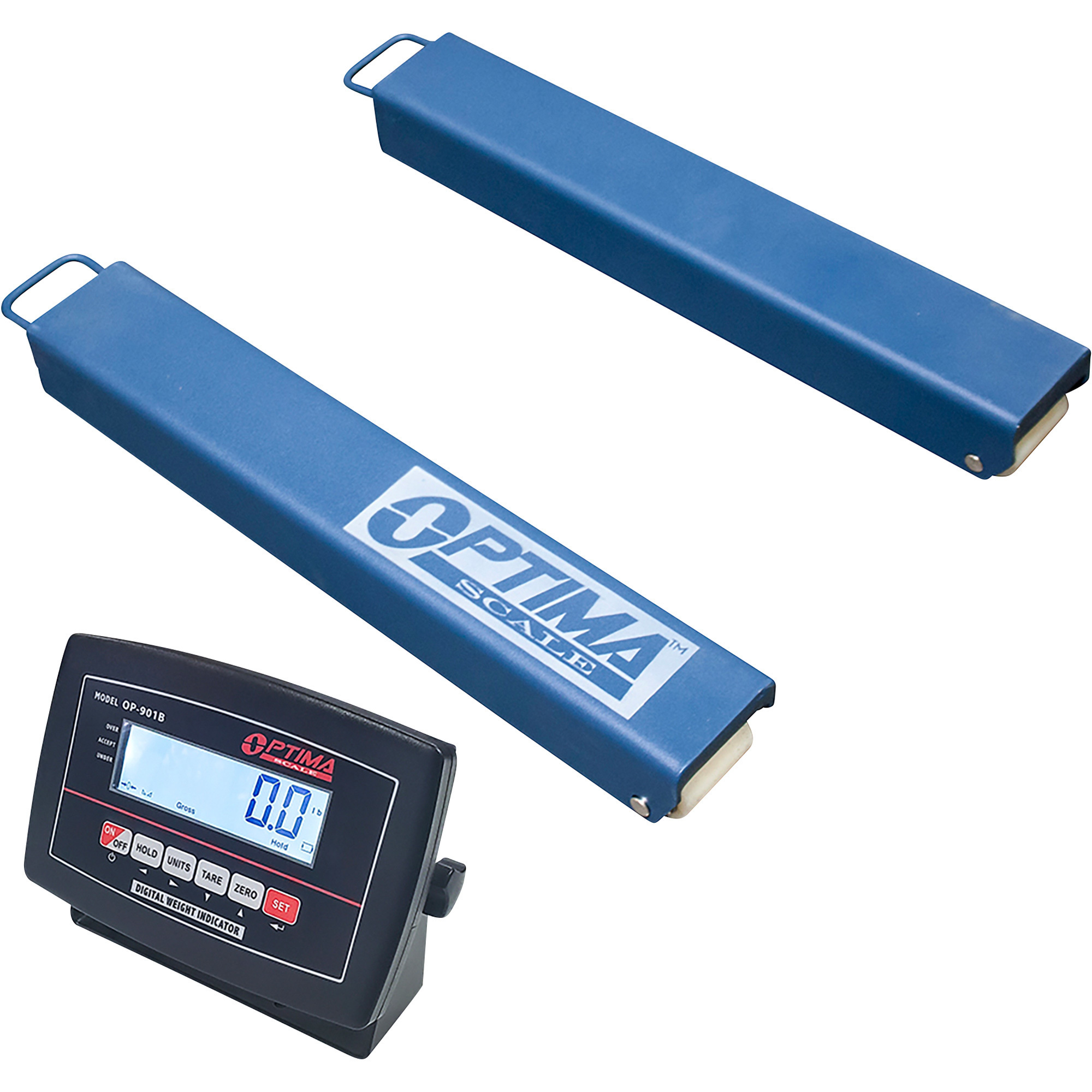

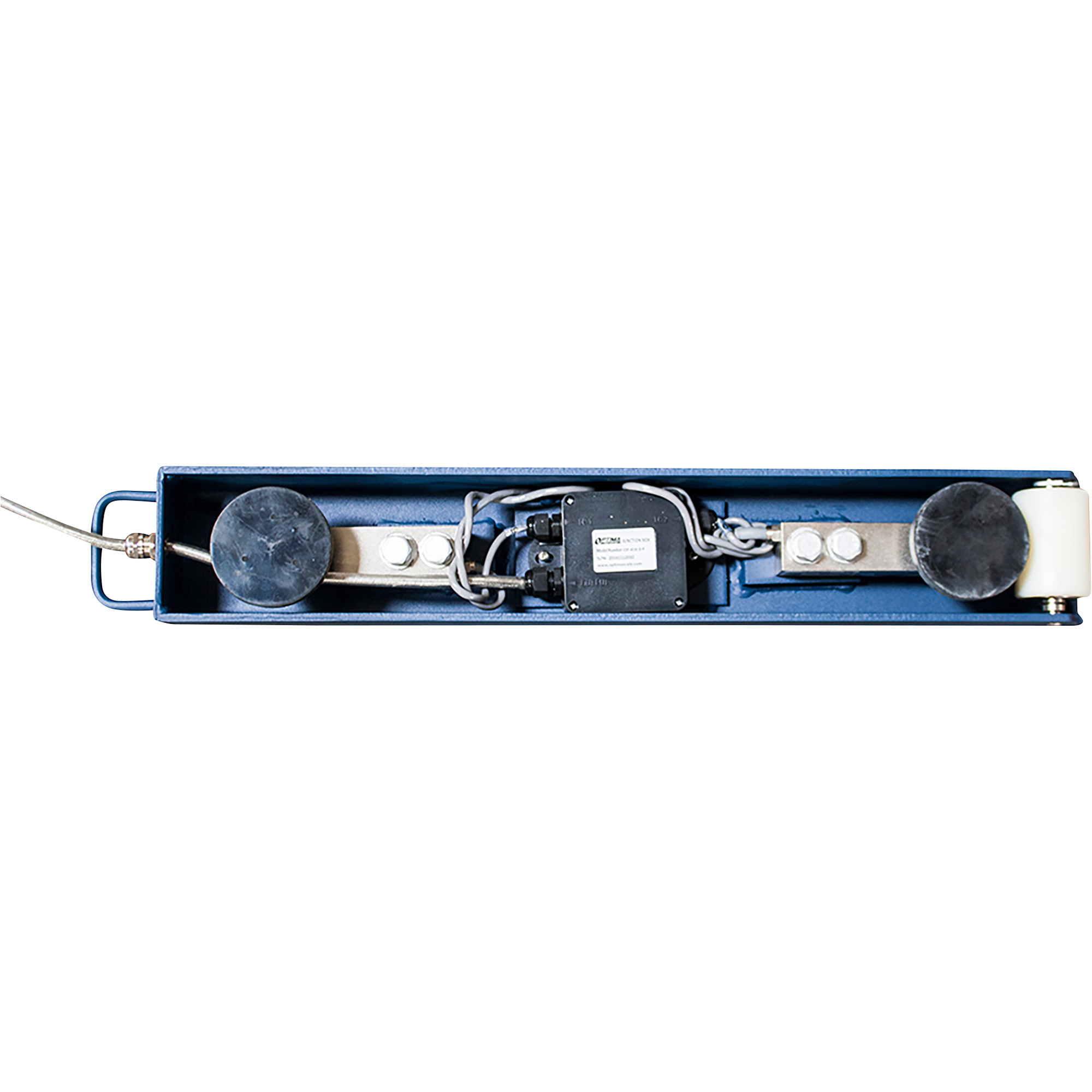

This Optima Scale Weigh Bar System with two 60in.L x 5in.W Bars is portable and easy to move out of the way when not in use. Ideal for use under a manual chute, this system features weigh beam scales that can be spread 8ft. apart to handle long or unusual-shaped loads. Designed for general use, including at farms and zoos to weight animals of all sizes, thanks to the animal weighing indicator. The built-in animal-hold feature makes livestock weighing easier, and extra-large adjustable stainless steel level feet provide stability. This unit delivers an accurate reading no matter how lively an animal is. By simply mounting a platform, crate or chute on top, this unit becomes an effective animal weighing scale. Heavy-duty mild steel construction with a powder-coat finish features all-enclosed tubular weigh bars, each 60in.L x 5in.W x 4in.H. 4 NTEP certified alloy steel load cells are nickel-plated for corrosion resistance. Bright LCD indicator is 0.9in.H, backlit and includes an lb./kg. conversion. It is easy to read, even in direct sunlight. Load cells include internal wiring. This weigh system is 100% protected for all-weather permanent installation. Includes 4 leveling feet.

What's Included

(1) Weigh bar system with 2 weigh bars, and indicator and 4 leveling feet

Key Specs

Attribute	Specification
item#	68339
Brand	OptimaScale
Manufacturer's Warranty	1 year limited warranty
Ship Weight	195.0 LB
Capacity	10,000 lb
Capacity	10,000 lb
Platform Length	60 in
Platform Length	60 in
Platform Width	5 in
Platform Width	5 in
Display Type	LCD
Display Type	LCD

Attribute	Specification
Measures	kg, lb, oz
Measures	kg, lb, oz
Power Source	110V
Power Source	110V
Battery Included	Yes
Battery Included	Yes
Battery Type	Rechargeable
Dimensions L x W x H (in.)	60 x 5 x 4
Product Weight	195.0000 lb
Dimensions L x W x H (in.)	60.0 x 5.0 x 4.0 in
Product Weight	195 lb

Reviews

Questions & Answers

: 1 Review This action will navigate to reviews.

Questions

5 years ago

On this weigh bar system, will it with stand being mounted under my Priefert Squeeze chute which is anchored to concrete? Also, the recharger is it on each weigh bar?

1 answer
1. ProductExpert12

  5 years ago

  This system has a 10,000 lbs. weight capacity. There are mounting holes in the feet of the weigh bars and on top of the beams for a platform to be mounted to. The battery power is provided through the indicator readout, not the individual weigh bars.

  Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
