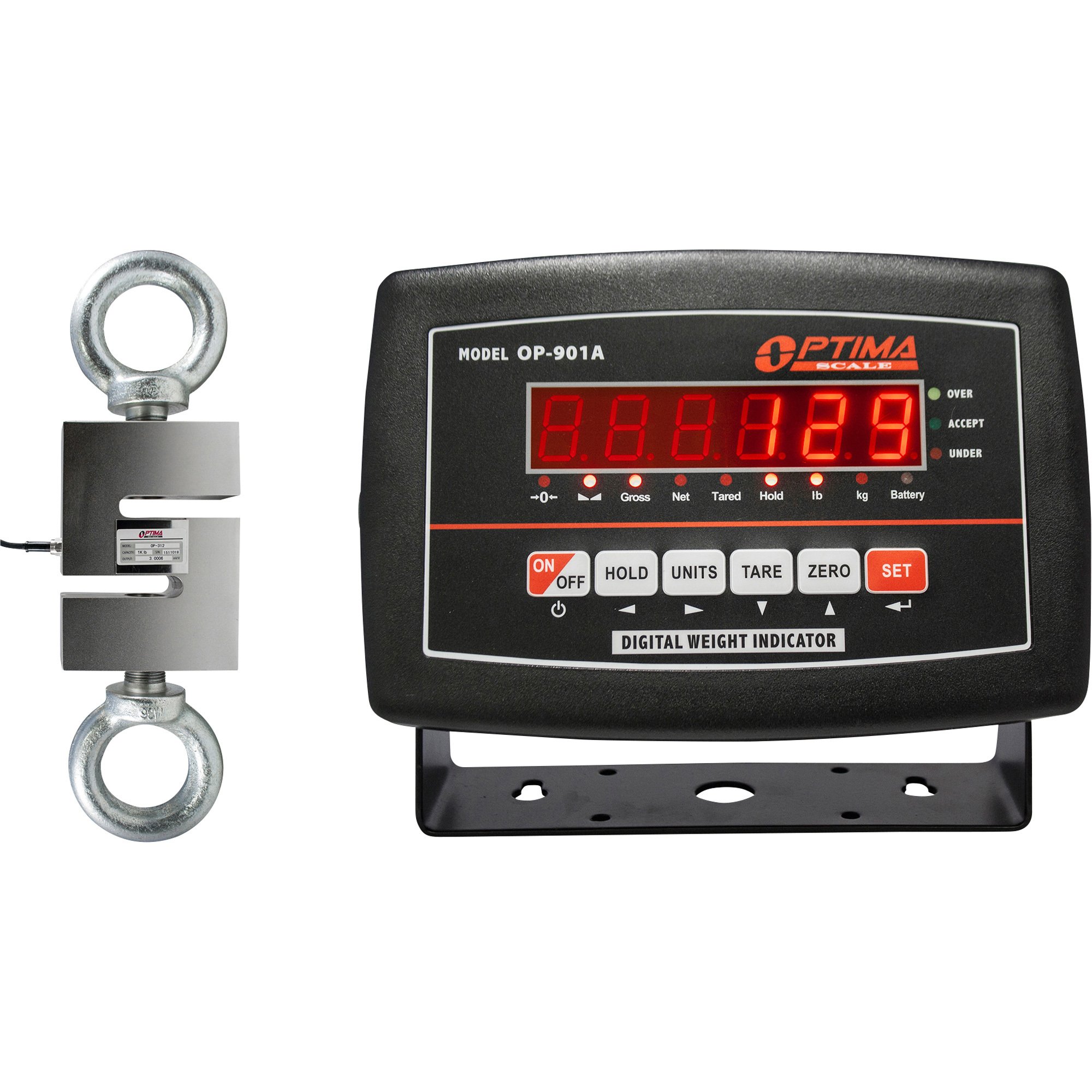

Optima Scale Tension/Compression Crane Scale

Item# 92382
Optima Scale Tension/Compression Crane Scale
Optima Scale Tension/Compression Crane Scale

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Optima Scale Tension/Compression Crane Scale

Click or Tap image to Zoom

From

$399.99

Choose Options for complete product description, reviews and purchasing.

Capacity

  • An economical solution to various weighing applications and testing purposes
  • Unsurpassed high resolution in both tension and compression applications
  • Measurement accuracy of better than 0.01% full scale
  • Up to 10 times better than standard crane scales
  • Pre-calibrated with certified test weights per NIST's requirements

See full description

  • Description

  • Reviews

  • Q & A

  • Warranty

Product Summary

This Optima Scale Tension/Compression Scale is an economical solution to various weighing applications and testing purposes. It features unsurpassed high resolution in both tension and compression applications. With a measurement accuracy of better than 0.01% full scale, it is up to 10 times better than standard crane scales. Pre-calibrated with certified test weights per NIST's requirements, this scale is 0.1-lb. bi-directional for both tension and compression and safe up to 150% overload. The super bright display allows you to read weight at a distance. The load cell is nickel-plated and IP67 corrosion-resistant with a 20ft. cable from load cell to indicator. This scale features auto-zero tracking, net/gross display mode, peak hold, average hold, adjustable motion detection, full-range push-button zero, full-range push-button tare, ABS sealed indicator enclosure and a rechargeable battery.

Features + Benefits

  • An economical solution to various weighing applications and testing purposes
  • Unsurpassed high resolution in both tension and compression applications
  • Measurement accuracy of better than 0.01% full scale
  • Up to 10 times better than standard crane scales
  • Pre-calibrated with certified test weights per NIST's requirements
  • 0.1-lb. bi-directional for both tension and compression
  • Safe up to 150% overload
  • Super bright display allows you to read weight at a distance
  • Load cell is nickel-plated IP67 corrosion-resistant with a 20ft. cable from load cell to indicator
  • Auto-zero tracking
  • Net/gross display mode
  • Peak hold
  • Average hold
  • Adjustable motion detection
  • Full-range push-button zero
  • Full-range push-button tare
  • ABS sealed indicator enclosure
  • Rechargeable battery

Features + Benefits

  • An economical solution to various weighing applications and testing purposes
  • Unsurpassed high resolution in both tension and compression applications
  • Measurement accuracy of better than 0.01% full scale
  • Up to 10 times better than standard crane scales
  • Pre-calibrated with certified test weights per NIST's requirements
  • 0.1-lb. bi-directional for both tension and compression
  • Safe up to 150% overload
  • Super bright display allows you to read weight at a distance
  • Load cell is nickel-plated IP67 corrosion-resistant with a 20ft. cable from load cell to indicator
  • Auto-zero tracking
  • Net/gross display mode
  • Peak hold
  • Average hold
  • Adjustable motion detection
  • Full-range push-button zero
  • Full-range push-button tare
  • ABS sealed indicator enclosure
  • Rechargeable battery

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. What is the thread count and diameter of the eyebolts

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 10,000-Lb. Capacity, 1-Lb. Display Increments, Model# OP-926-10K"

    1. The eye bolt (model OP-431-3/4) measures 3/4"-16 UNF-2B.

      Helpful?

  2. Do these have an IP rating for outdoor use ?

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 20,000-Lb. Capacity, 2-Lb. Display Increments, Model# OP-926-20K"

    1. This hanging scale has an IP67 rating.

      Helpful?

  3. Does this unit have an IP67 port so it can get wet if needed?

    1 answer

    1. This model includes a scale with an IP67-rated cable. However, this cable connects to the indicator via a quick disconnect, which is IP65 rated. Therefore, the complete assembled unit is not IP67.

      Helpful?

  4. Is there a resetable max readout? Testing rope breaking strength.

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 20,000-Lb. Capacity, 2-Lb. Display Increments, Model# OP-926-20K"

    1. You are able to change it to a resettable maximum readout.

      Helpful?

  5. Does this scale hold the max load or does it just hold the load at the value displayed when the Hold button is pressed?

    1 answer

    1. The readout can be set for manual hold, meaning the user presses the hold button to hold onto a weight. It also has a peak hold function which holds the heaviest weight placed on the scale.

      Helpful?

  6. How can this be a 240 volt battery as it states in the lit?

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 10,000-Lb. Capacity, 1-Lb. Display Increments, Model# OP-926-10K"

    1. The scale will plug into a standard two prong wall outlet. The power supply can be from 100-240 volt 50/60 Hz 1.0 amp AC power. The scale is not hardwired.

      Helpful?

  7. Does this product come shipped with the NIST Test Certification included?

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 20,000-Lb. Capacity, 2-Lb. Display Increments, Model# OP-926-20K"

    1. The scale would not ship with NIST test certification included.

      Helpful?

  8. Does this electronic indicator really use 240 V AC supply current?

    1 answer
    Originally posted on "Optima Scale Tension/Compression Crane Scale, 20,000-Lb. Capacity, 2-Lb. Display Increments, Model# OP-926-20K"

    1. The scale would plug into a standard 110/120 volt wall outlet.

      Helpful?

  9. Does this scale output to a DB9 connection, bluetooth, or other direct to computer type coneection

    1 answer

    1. The scale does have a DB9 pin connection. It will have a continuous sending mode for the PC. The indicator continuously sends data to the RS232 port. The scale can be connected to a remote display and printer sold separately through the manufacturer.

      Helpful?

  10. What is the minimum force the sensor can measure? Will it be accurate from around 0.01 lbs-0.1 lbs?

    1 answer

    1. The scale will measure in pounds or kilograms. It would have an accuracy rating of 0.01%.

      Helpful?
