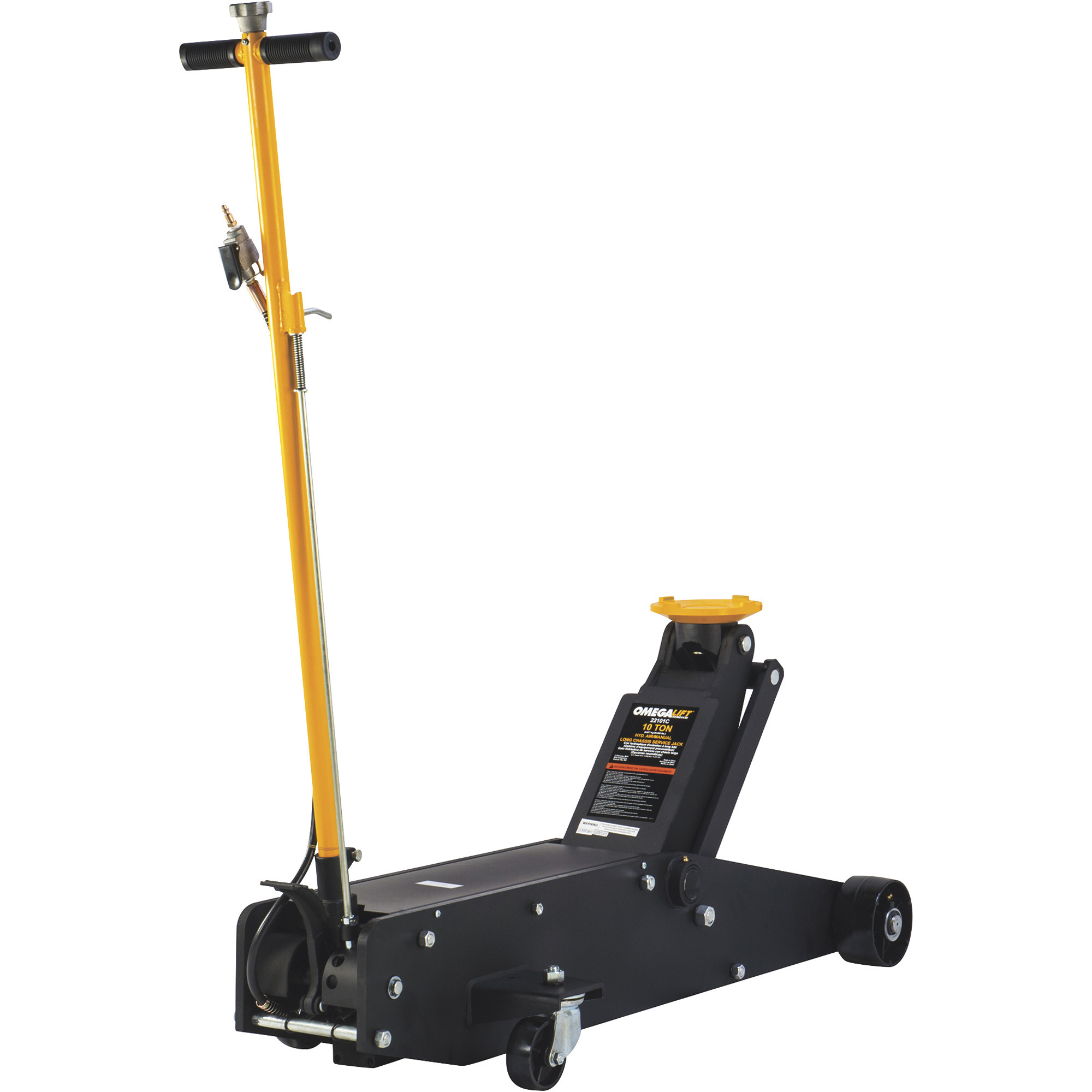

Omega 10-Ton Hybrid Air/Manual Long Chassis Service Jack, Model# 22101C

Item# 112337
Omega 10-Ton Hybrid Air/Manual Long Chassis Service Jack, Model# 22101C

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Omega 10-Ton Hybrid Air/Manual Long Chassis Service Jack, Model# 22101C

Click or Tap image to Zoom

$2129.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Handle actuated release valve for metered control when lowering loads
  • Heavy-gauge steel frame helps prevent distortion and twisting
  • Lift range of 6 3/4in.-27 1/4in.
  • High-speed patented Air Turbo Motor that raises loads with max efficiency
  • Wide stance and low center of gravity for optimum stability under stress

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Omega 10-Ton Hybrid Air/Manual Long Chassis Service Jack features a handle with an actuated release valve to provide metered control at any desired lowering speed. The heavy-gauge steel frame helps prevent distortion and twisting. The high-speed patented Air Turbo Motor is equipped to raise the load to the desired height quickly, effortlessly and safely. This jack's wide stance and low center of gravity provide optimum stability under load stress. Lift range of 6 3/4in.-27 1/4in.

What's Included

    (1) Service jack

Features + Benefits

  • Handle actuated release valve for metered control when lowering loads
  • Heavy-gauge steel frame helps prevent distortion and twisting
  • Lift range of 6 3/4in.-27 1/4in.
  • High-speed patented Air Turbo Motor that raises loads with max efficiency
  • Wide stance and low center of gravity for optimum stability under stress

Key Specs

AttributeSpecification

item#

112337

Brand

Omega

Manufacturer's Warranty

1 year limited warranty

Ship Weight

432.55 LB

Lift Capacity

10 Tons

Max. Lift Height

27.25 in
AttributeSpecification

Low Profile

Yes

Product Type

Service Jack

Min. Lift Height

6.75 in

Product Weight

433.0000 lb

Dimensions L x W x H (in.)

54.75 x 20.0 x 10.0 in

Reviews

Questions & Answers

Questions

  1. 1. What is the overall reach of this jack? 2. What is the overall length of this jack? 3. What is the saddle diameter? 4. How big are the front and rear casters? 5. How long is the handle? I need this info for the type of equipment I work on. Thanks

    1 answer

    1. The lift height is from 7" up to 27". The overall length is 59", the saddle diameter is 7 1/4". The handle is 42 1/8" long. The front wheels are 5 7/8" diameter and 3" wide. The rear swivel wheels are 3 7/8" diameter and 1 1/2" wide.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
