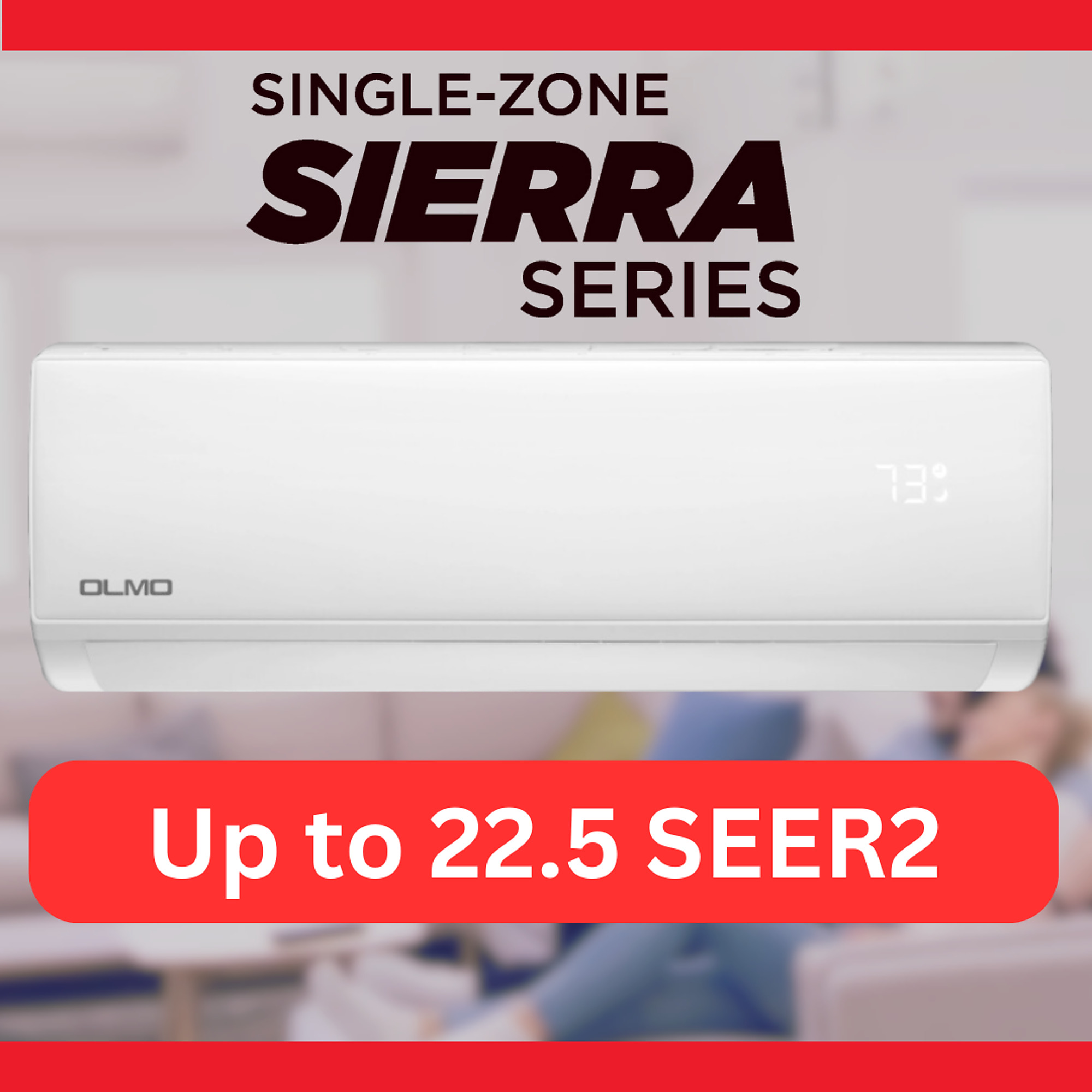

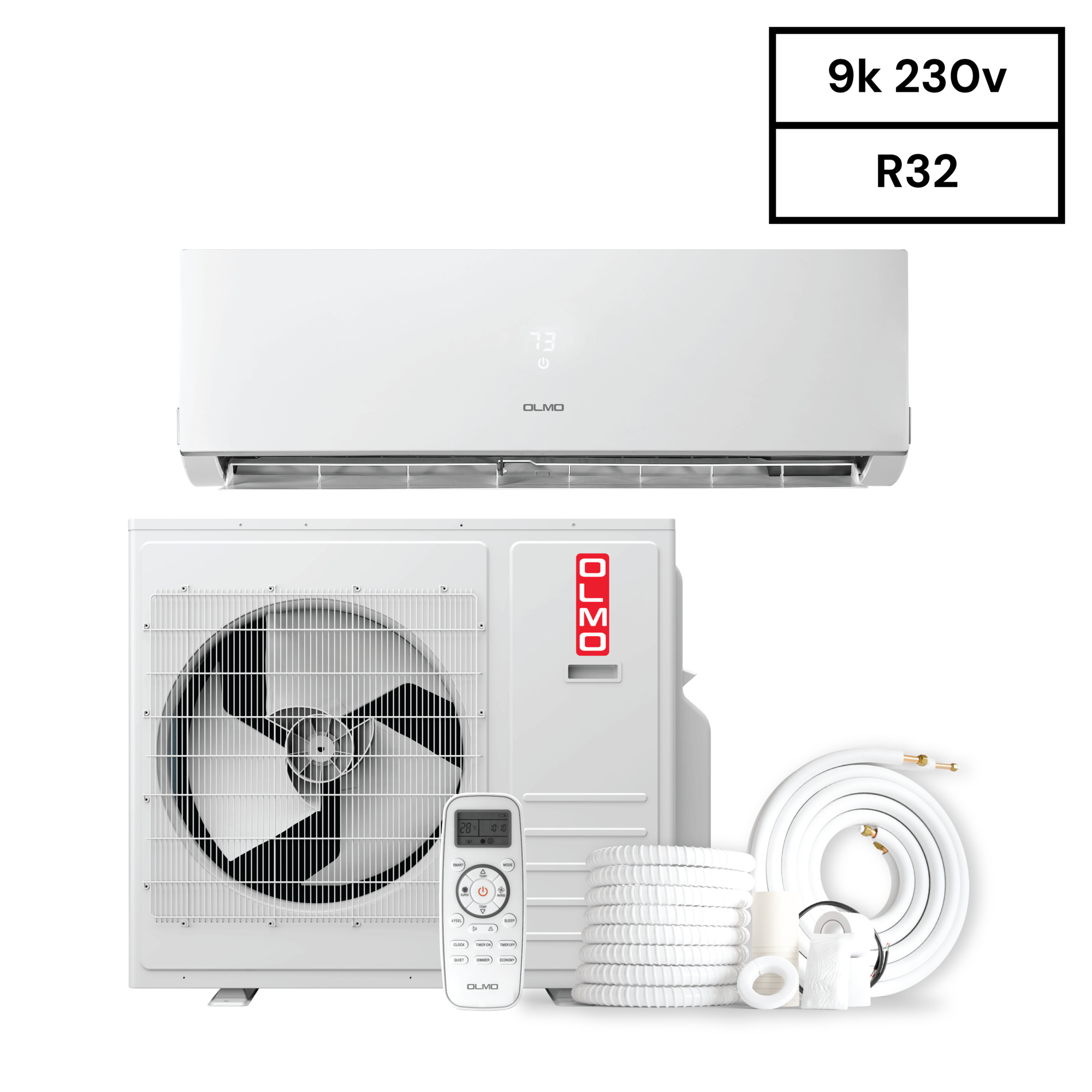

OLMO Sierra R32 Mini Split — 9,000 BTU, 230V, Single Zone, High-Wall Heat Pump and AC, 22.5 SEER, Wi-Fi Enabled, 16ft. Install Kit, Model# OS-09SRW-230VI + OS-SR09-230VO

Item# 6836327
OLMO Sierra R32 Mini Split — 9,000 BTU, 230V, Single Zone, High-Wall Heat Pump and AC, 22.5 SEER, Wi-Fi Enabled, 16ft. Install Kit, Model# OS-09SRW-230VI + OS-SR09-230VO

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OLMO Sierra R32 Mini Split — 9,000 BTU, 230V, Single Zone, High-Wall Heat Pump and AC, 22.5 SEER, Wi-Fi Enabled, 16ft. Install Kit, Model# OS-09SRW-230VI + OS-SR09-230VO

Click or Tap image to Zoom

$784.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti Mildew Mode LED Display
  • Does this system heat in winter? In addition, Yes. In fact, it is rated for heating down to about ?4°F (see operating range). Therefore, it suits most mild-to-cold climates.
  • Includes 13FT Installation Kit
  • 5 year compressor limited warranty 2 year parts limited warranty (must be installed by a licensed HVAC technician)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

OLMO Sierra Series R32 Mini Split – 9,000 BTU 230 V Single Zone (0.75 Ton) High Wall Air Conditioner and Heat Pump | Ductless Inverter System | 22.5 SEER Single Head | Wi-Fi Enabled | 16ft. Installation Kit Included Model: OS-09SRW-230VI + OS-SR09-230VO The OLMO Sierra Series R32 Mini Split is a premium ductless air conditioning and heat pump system built for exceptional year-round comfort in residential or light commercial spaces. Using advanced R32 refrigerant technology, this unit delivers superior energy efficiency and a lower environmental impact. Available from 9,000 BTU to 36,000 BTU, the Sierra Series adapts easily to bedrooms, living areas, offices, studios, and more. At its core is inverter technology that continually adjusts compressor speed to meet your exact temperature needs, eliminating energy-wasting start/stop cycles. This results in lower utility bills, smoother temperature control, and quieter operation. Whether cooling during the hottest days or heating in freezing weather, the high-efficiency heat pump ensures dependable performance with minimal noise. Key advantages include: High Efficiency: Up to 22.5 SEER cooling and 8.5 HSPF heating for cost-effective operation. Quiet Comfort: Indoor noise levels as low as 35 dB create a peaceful environment. Durability: Anti-corrosive GoldFin™ coating on the outdoor condenser protects against rust and harsh elements. Smart Control: Built-in Wi-Fi enables remote scheduling and adjustments from your mobile device. Complete Package: Includes a pre-flared 16ft. copper installation kit, communication wiring, drainage extension, and accessories for straightforward setup. Extra features such as auto swing, multiple fan speeds, comfortable sleep mode, intelligent defrost and pre-heating, and an LED display with self-diagnosis give you maximum convenience and easy troubleshooting. The hydrophilic condenser enhances heating efficiency, while auto restart, timer, and fan delay functions provide hands-off reliability. For peace of mind, every Sierra Series unit carries a 5-year limited compressor warranty and 2-year limited parts warranty when installed by a licensed HVAC professional. Proper installation and warranty registration within 60 days are required to maintain coverage. What’s Included: Indoor wall-mount unit, outdoor 230 V unit, 16ft. pre-flared copper line set with data communication wires and PVC drainage attachment, wireless remote control, installation and user manuals, and manufacturer warrant

What's Included

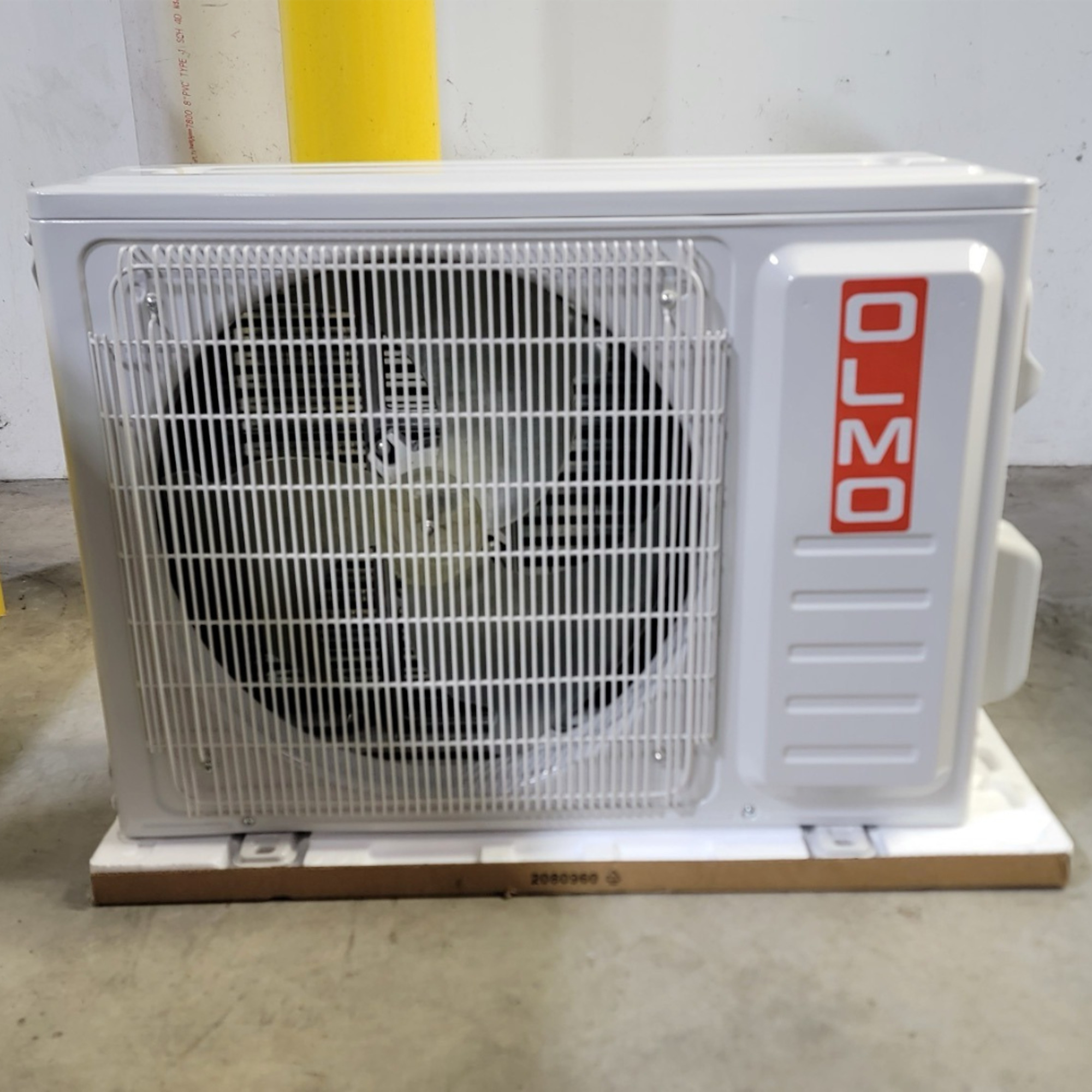

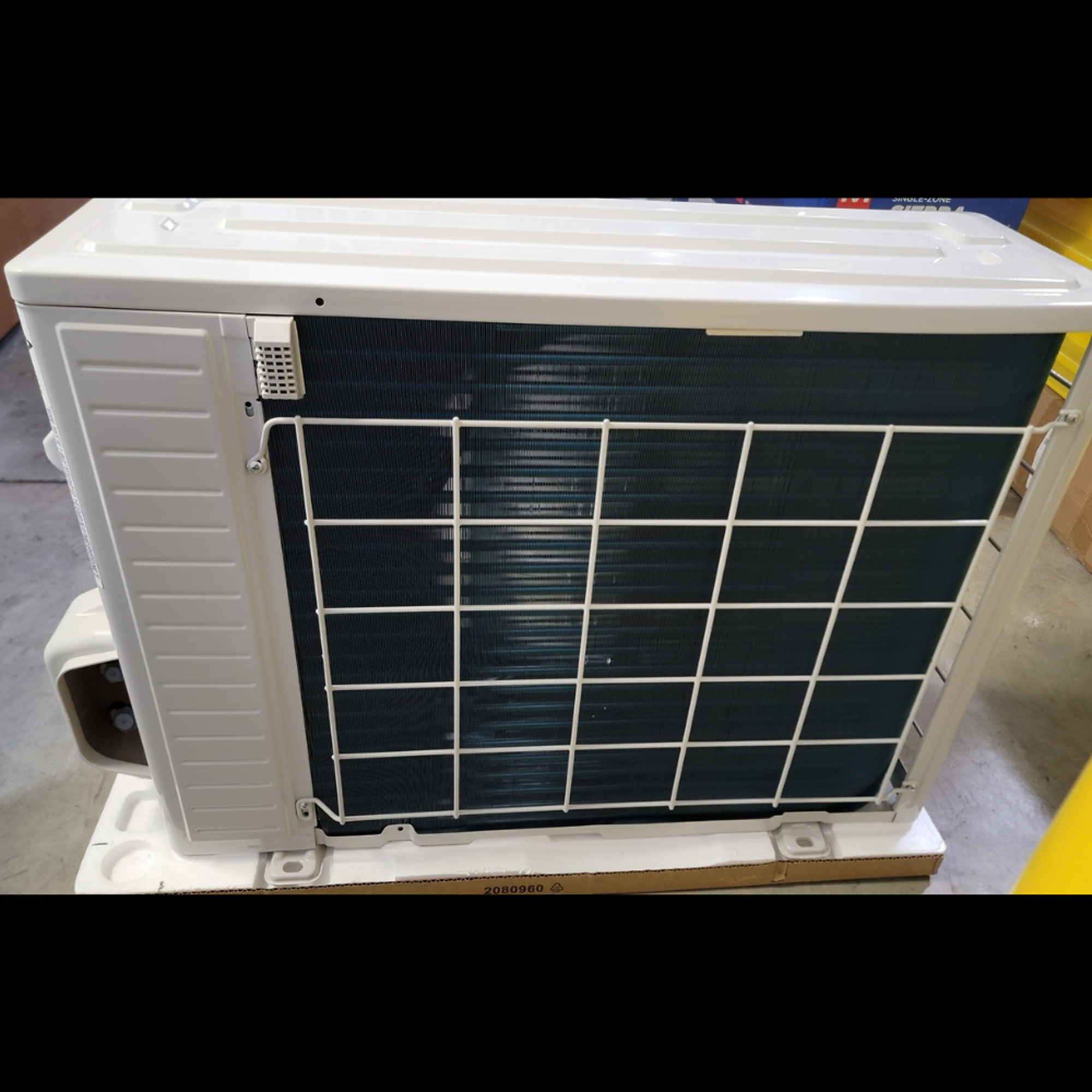

    (3) Included in Your Order: Olmo Sierra Single Zone Ductless Mini Split System (Mini Split Inverter with Heat Pump) Outdoor Unit: Condenser with corresponding BTU(1pc) Indoor Unit: Evaporator with corresponding BTU (1pc with remote) Wi-Fi Adapter Include

Features + Benefits

  • Key Features: Remote Control Included Smart App: Connect from anywhere Comfortable Sleep Mode Super Mode Eco Mode Multiple Fan Speeds Timer Sleep Mode Louver Auto Swing Anti Mildew Mode LED Display
  • Does this system heat in winter? In addition, Yes. In fact, it is rated for heating down to about ?4°F (see operating range). Therefore, it suits most mild-to-cold climates.
  • Includes 13FT Installation Kit
  • 5 year compressor limited warranty 2 year parts limited warranty (must be installed by a licensed HVAC technician)

Key Specs

AttributeSpecification

item#

6836327

Brand

OLMO

Manufacturer's Warranty

5 year limited warranty

Ship Weight

89.1 LB

BTU Cooling

9,000

Volts

208/230

Cooling Capacity

9,000 ft²

Amps

15
AttributeSpecification

Product Type

Air Conditioner

Mini Split

Yes

Speeds (qty.)

5

CFM

488

Temperature Range

>=62/<=86

Product Weight

21.0000 lb

Dimensions L x W x H (in.)

10.0 x 33.0 x 8.0 in

Reviews

Questions & Answers

Questions

  1. Does it come with everything needed to install? If not please list the shut of valve needed

    1 answer

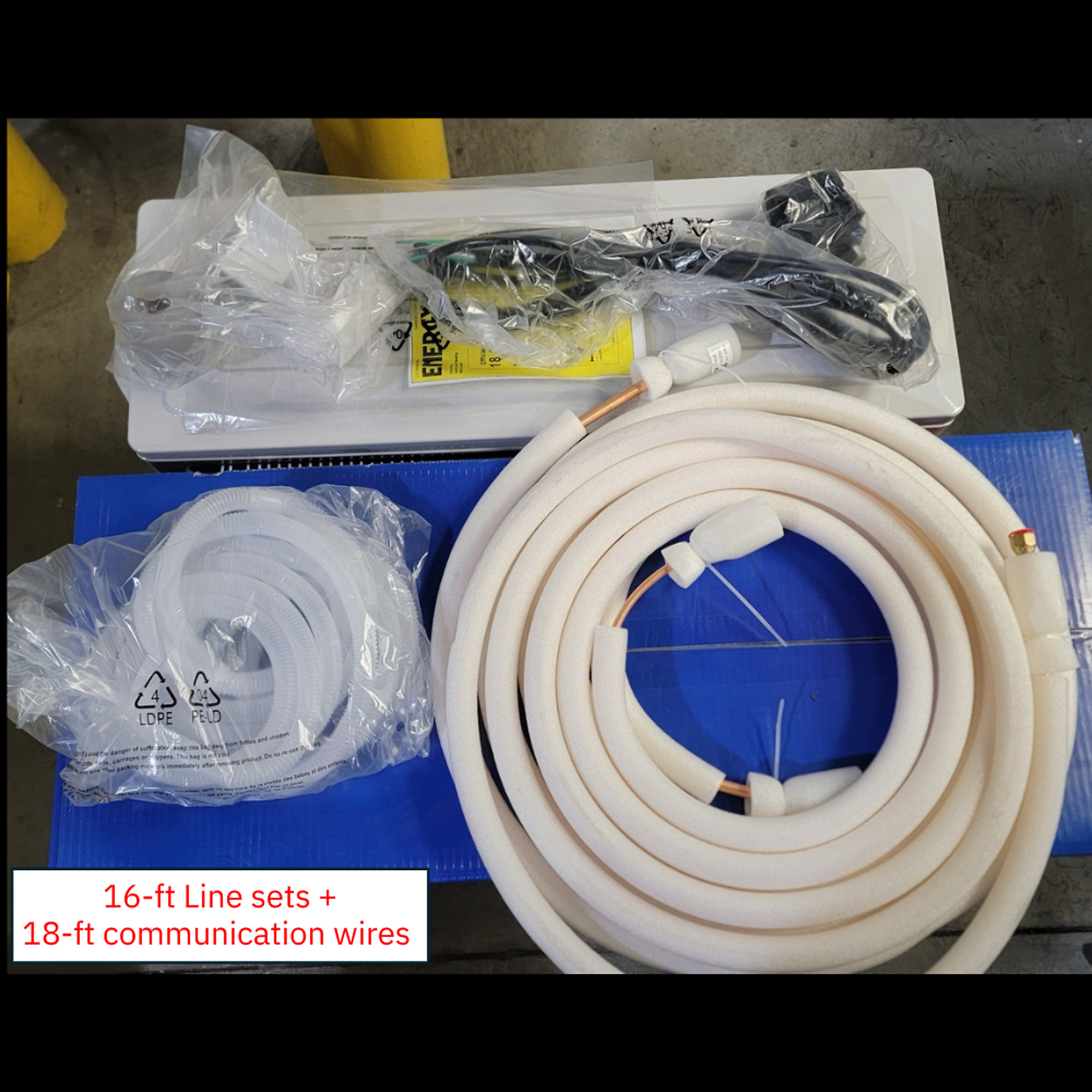

    1. It will include the 16ft pre-flared copper line set, the communication wire and the basic mounting plate and drain hose extension. You would still need to purchase separately the electrical disconnect box and whip, the mounting base/bracket, the line set cover and power supply wire. It is recommended for professional installation.

      Helpful?

Warranty

Manufacturer's Warranty

5 year limited warranty
