Lubeworks Oil Transfer Drum Pump — Double Action, 8.5 GPM, 1:1 Pressure Ratio, Model# TRI-GUL002

Item# 6700024
Lubeworks Oil Transfer Drum Pump — Double Action, 8.5 GPM, 1:1 Pressure Ratio, Model# TRI-GUL002

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lubeworks Oil Transfer Drum Pump — Double Action, 8.5 GPM, 1:1 Pressure Ratio, Model# TRI-GUL002

Click or Tap image to Zoom

$349.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

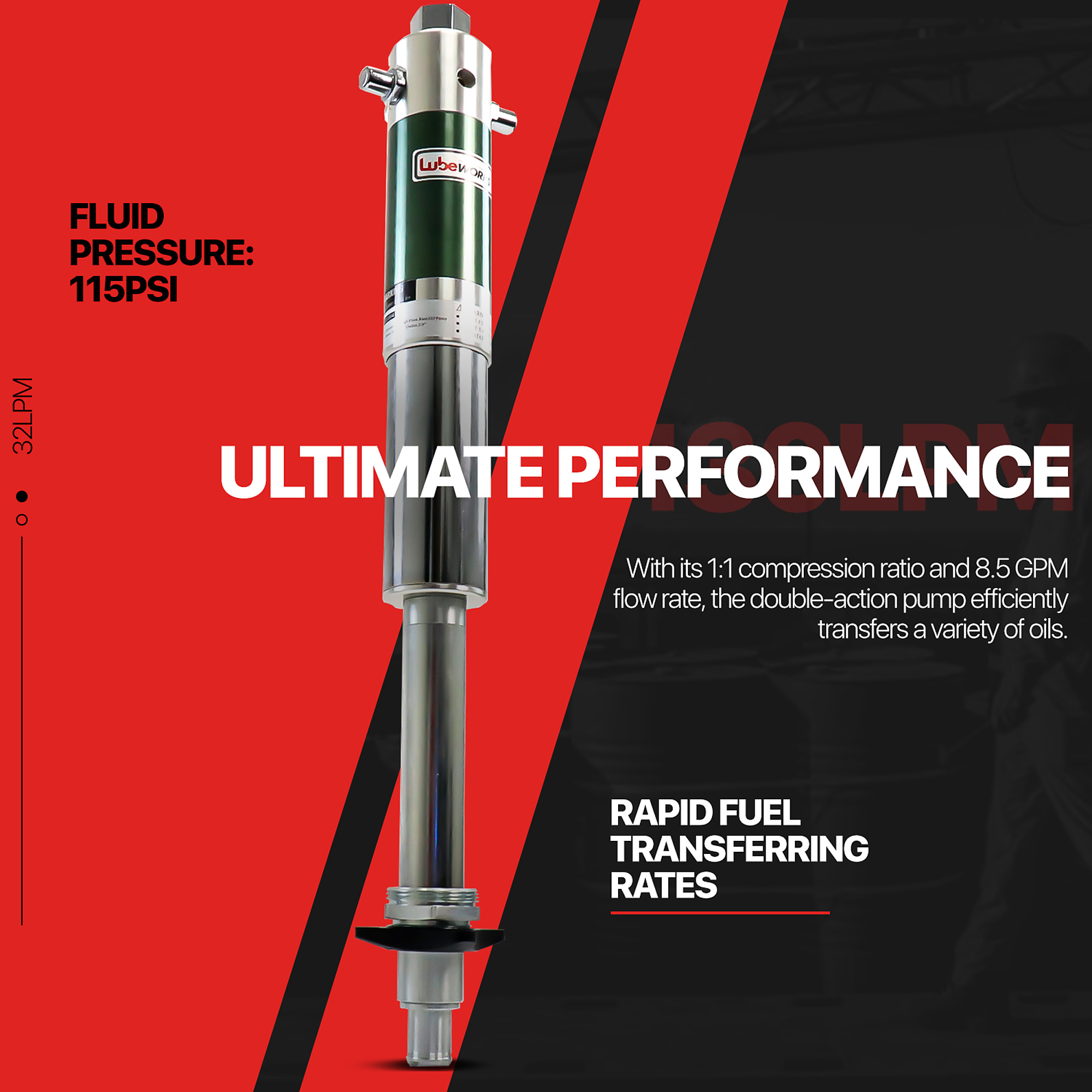

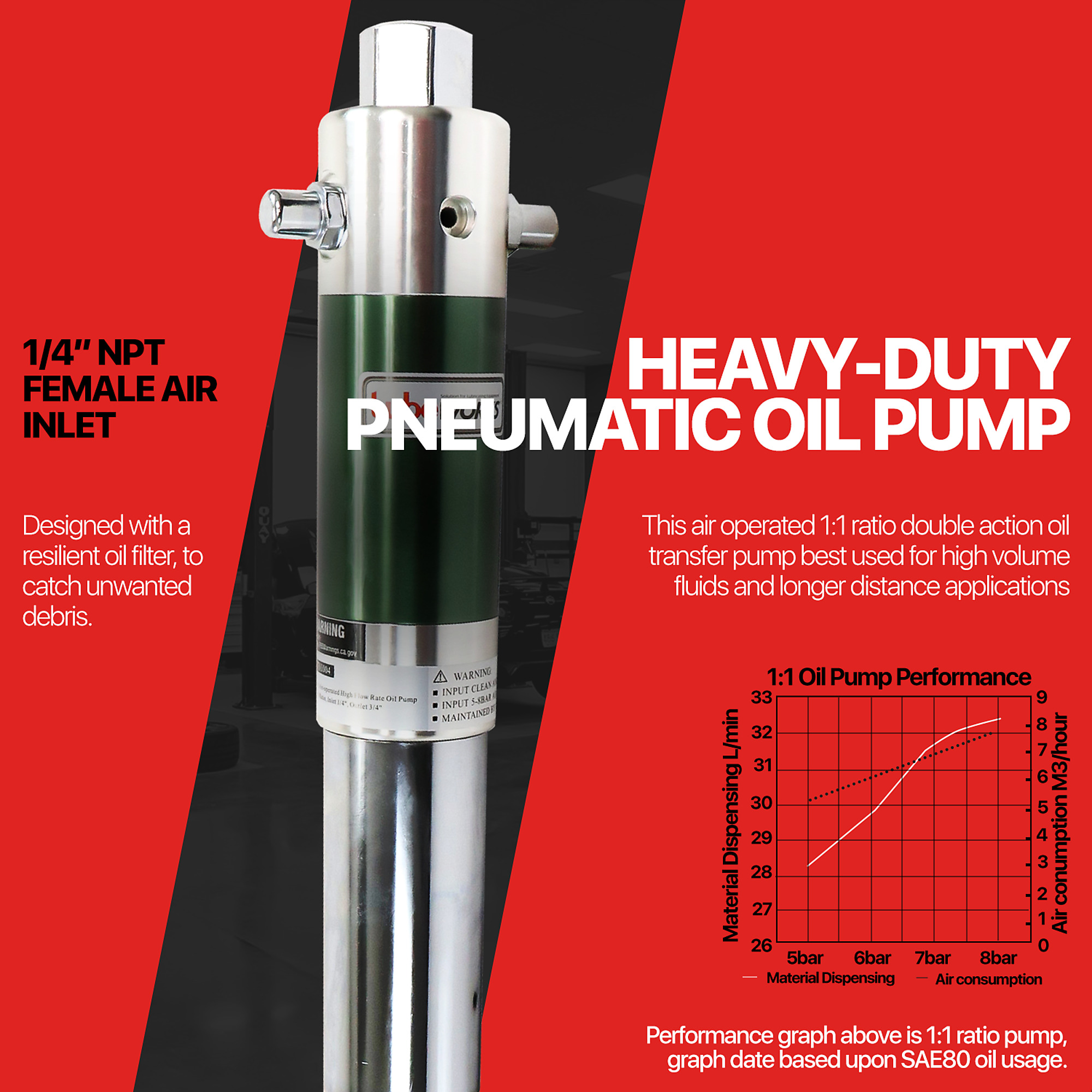

  • SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 8.5GPM / 32LPM; A Max Pressure Ratio of 1:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Diameter of 63mm 2.5" inch; An Air Consumption (per minute) @ 8BAR / 130L @ 115PSI / 4.7CFM; An Air Inlet Connection of 1/4" and Oil Outlet Connection of 3/4" Male; A Long Pump Life of 960k Liters / 253k+ Gallons

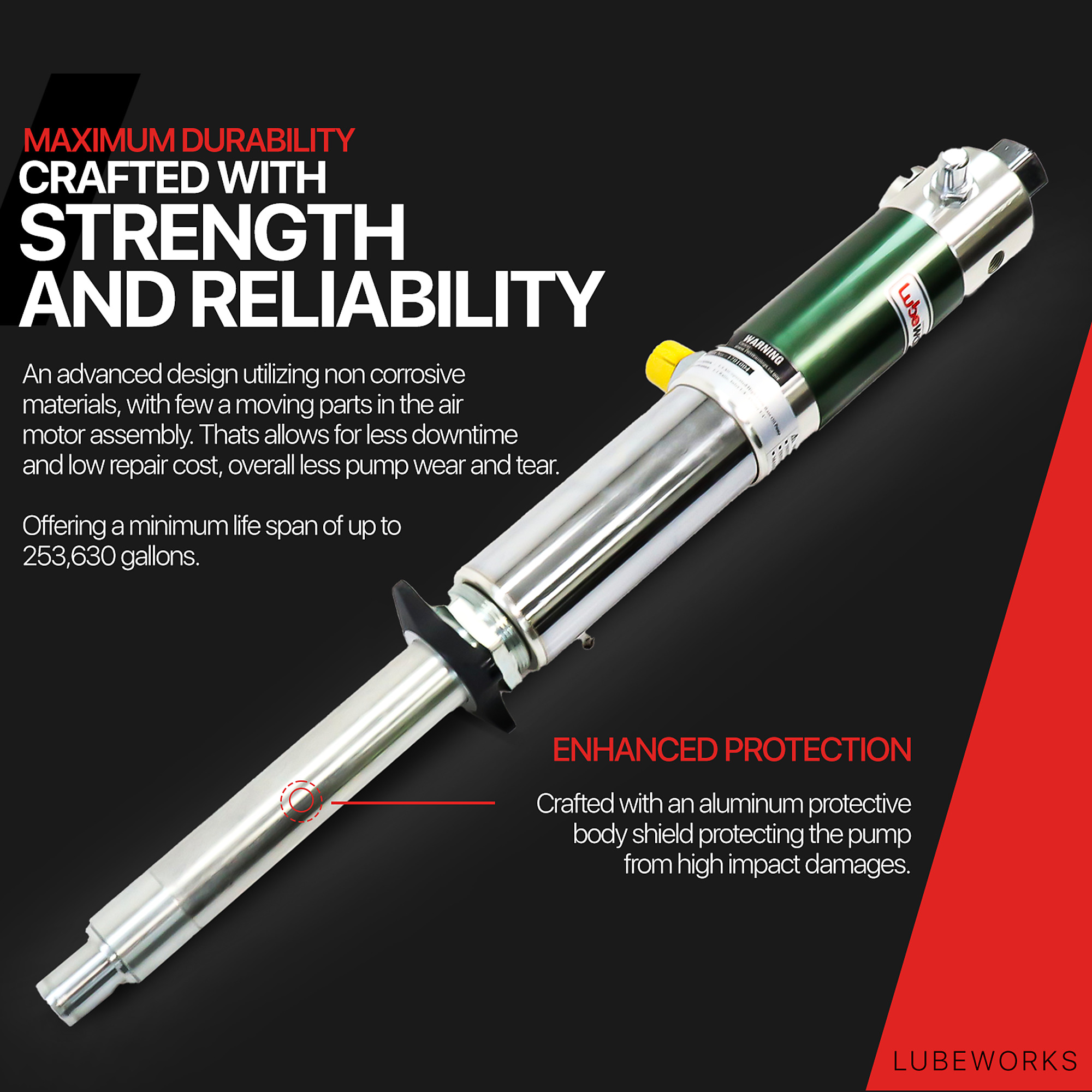

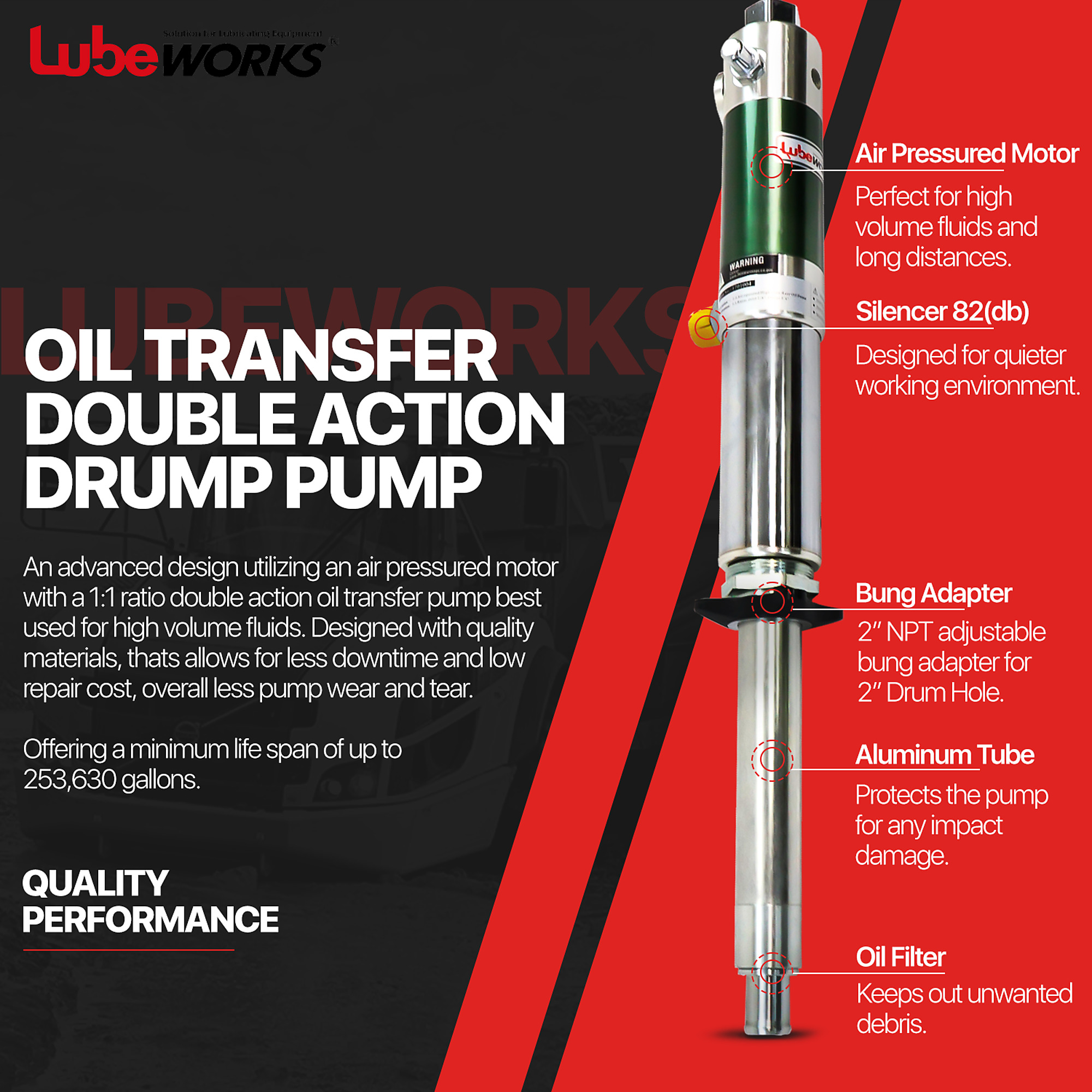

  • EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates; This Smart design uses fewer parts for less pump wear/tear, making it is easy to use/maintain This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE80 grade oil
  • PROPER USE & SAFETY - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing pump and always wear protective glasses/goggles or gear when operating equipment

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Oil Transfer Drum Pump Double Action 1:1 Fast High Flow Rate 8.5GPM / 32LPM for SAE130 Oils/Fluids, TRI-GUL002. SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 8.5GPM / 32LPM; A Max Pressure Ratio of 1:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Diameter of 63mm 2.5in. inch; An Air Consumption (per minute) 8BAR / 130L 115PSI / 4.7CFM; An Air Inlet Connection of 1/4in. and Oil Outlet Connection of 3/4in. Male; A Long Pump Life of 960k Liters / 253k+ Gallons. EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates; This Smart design uses fewer parts for less pump wear/tear, making it is easy to use/maintain This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE80 grade oil. PROPER USE SAFETY - All our pumps come with a 2in. inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing pump and always wear protective glasses/goggles or gear when operating equipment.

What's Included

    (1) Oil Transfer Pump

Features + Benefits

  • SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 8.5GPM / 32LPM; A Max Pressure Ratio of 1:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Diameter of 63mm 2.5" inch; An Air Consumption (per minute) @ 8BAR / 130L @ 115PSI / 4.7CFM; An Air Inlet Connection of 1/4" and Oil Outlet Connection of 3/4" Male; A Long Pump Life of 960k Liters / 253k+ Gallons
  • EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates; This Smart design uses fewer parts for less pump wear/tear, making it is easy to use/maintain This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE80 grade oil
  • PROPER USE & SAFETY - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing pump and always wear protective glasses/goggles or gear when operating equipment

Key Specs

AttributeSpecification

item#

6700024

Brand

Lubeworks

Manufacturer's Warranty

1 year limited warranty

Ship Weight

14.58 LB

Flow Rate

8.5 GPM

Max. PSI

115

Material

Aluminum
AttributeSpecification

Max. Total Head

0 ft

Max. Suction Lift

0 ft

Inlet Port

0.25 in

Outlet Port

0.75 in

Self-Priming

Yes

Product Weight

11.0000 lb

Dimensions L x W x H (in.)

5.1 x 5.1 x 31.9 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
