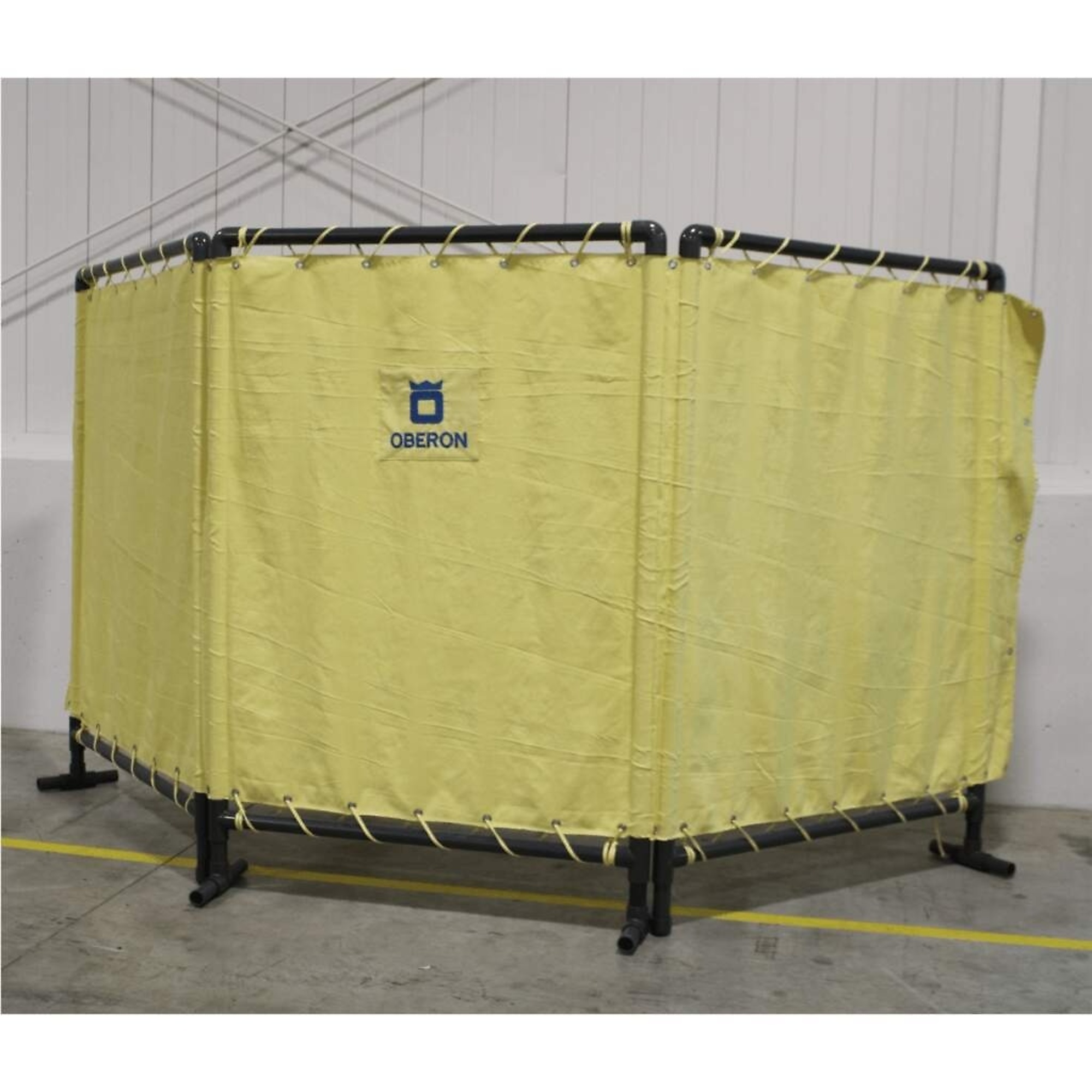

OBERON™ - Curtain Cube - Arc Flash - ARC™ Series 40 KA (BTP 517) - Size: 4.5? x 6.5? - Model # ARCBKT-40KA-CUBE

Item# 7226512
New
OBERON™ - Curtain Cube - Arc Flash - ARC™ Series 40 KA (BTP 517) - Size: 4.5? x 6.5? - Model # ARCBKT-40KA-CUBE

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

OBERON™ - Curtain Cube - Arc Flash - ARC™ Series 40 KA (BTP 517) - Size: 4.5? x 6.5? - Model # ARCBKT-40KA-CUBE

Click or Tap image to Zoom

$8279.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Portable cube is made from a durable Aramid fabric that is tested and designed to divert energy away from the worker while performing every day electrical tasks. It can also serve as an additional barrier to safeguard workers that are in close proximity to electrical equipment.
  • The cube can be moved from site to site and can be deployed on multiple configurations.
  • The 4.5? x 6.5? cube framework is made from a durable Schedule 80 PVC frame and is comprised of 3 Aramid panels measuring 4’x5?. the panels are further reinforced by the use of Kevlar® rope for added strength and stability.
  • Anchoring is recommended for holding the structure in place to contain or divert arc energy.
  • Meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40 kA (BTP 517). Made in the USA. Some Assembly Required

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Why Oberon? The original innovator of Arc Flash products, Oberon is dedicated to engineering, testing standards, and being American made. We can’t stop and won’t stop providing for our customer’s safety.
  • Curtain Rating: 40kA (BTP 517)
  • Color: Yellow
  • Export CoO #1: US
  • Export ECCN: EAR99
  • Export USMCA Compliant: Yes
  • Export Net Code: No
  • Export Preference Code: B
  • Export Producer: Yes
  • Export UNSPSC: 46191604
  • NFPA 70E
  • CSA Z462
  • CAN/ULC S801
  • ASTM F2676
  • ASTM F3272
  • Designed to protect workers in a variety of work environments such as underground vaults, confined spaces, and anyplace electrical equipment is located.
  • Diverts energy away from workers.
  • Anchoring is recommended for holding the structure in place to contain or divert arc energy.
  • Meets ASTM F2676.
  • 40kA(BTP 517)
  • Panel dimensions are 4’x5ft.
  • Our framework dimensions are 4.5’ x 6.5’
  • DOES NOT Provide insulation from shock.

    • What's Included

      (1) OBERON™ - Curtain Cube - Arc Flash - ARC™ Series 40 KA (BTP 517) - Size: 4.5? x 6.5?

    Features + Benefits

    • Portable cube is made from a durable Aramid fabric that is tested and designed to divert energy away from the worker while performing every day electrical tasks. It can also serve as an additional barrier to safeguard workers that are in close proximity to electrical equipment.
    • The cube can be moved from site to site and can be deployed on multiple configurations.
    • The 4.5? x 6.5? cube framework is made from a durable Schedule 80 PVC frame and is comprised of 3 Aramid panels measuring 4’x5?. the panels are further reinforced by the use of Kevlar® rope for added strength and stability.
    • Anchoring is recommended for holding the structure in place to contain or divert arc energy.
    • Meets ASTM F2676 and ASTM F3272 test standards and is rated for a maximum arc current of 40 kA (BTP 517). Made in the USA. Some Assembly Required

    Key Specs

    AttributeSpecification

    item#

    		7226512

    Brand

    		OBERON

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		180.0 LB

    Material Thickness

    		200 mils

    Material

    		Aramid and Alloy Steel Core with Reinforced Polymer
    AttributeSpecification

    Frame Material

    		PVC

    Color

    		Yellow

    Adjustable

    		Yes

    Product Type

    		Curtains

    Product Weight

    		180.0000 lb

    Dimensions L x W x H (in.)

    		78.0 x 20.0 x 20.0 in

    Reviews

    Questions & Answers

    Questions

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
