The hoist is rated with a line of pull of 1000 pounds for vertical or horizontal lifting.
Discount Details
- The promo code 290262 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $250 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax, & shipping.
- Promo code not valid on prior purchases or on Honda & Stihl products, and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited time offer. Subject to change without notice.
Novawinch, Utility 12V DC Powered Hoist, Capacity (Line Pull) 1000 lb, Volts 12 Max. Amps 75 Model# 701001068802

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- 1000 lb.rated line pull hoist for verticle and horizontal lifting
- IP67 rated for added protection against extreme weather and use. Fully sealed design.
- Fast line speed of 14.7 fpm at no load and 4.5 fpm at full load
- 60 feet of high-quality 3/16" wire rope
- 10 feet of wired remote with IP68 rating
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included

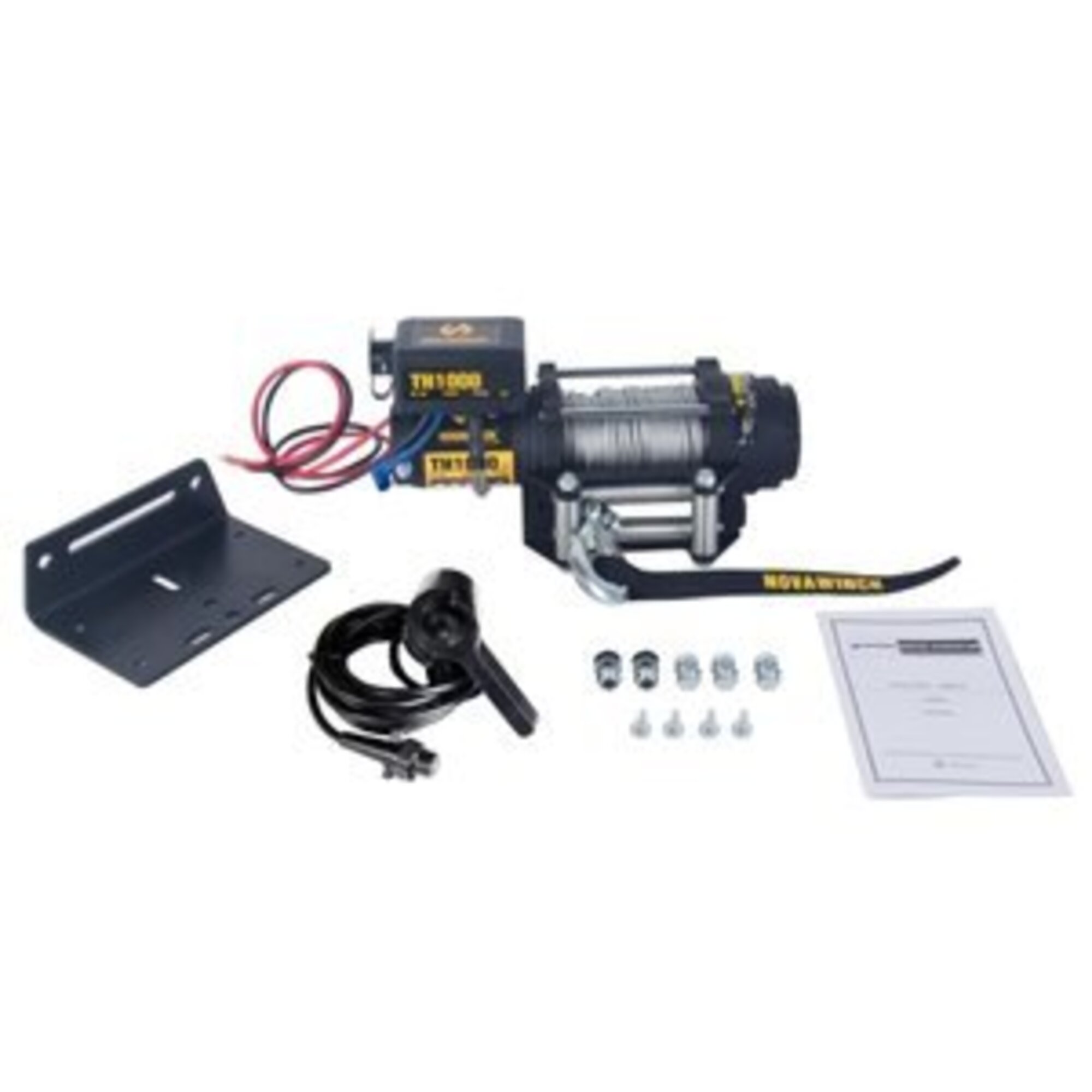

- (1) TH 1000 lb. 12V Hoist with wire rope
Features + Benefits
- 1000 lb.rated line pull hoist for verticle and horizontal lifting
- IP67 rated for added protection against extreme weather and use. Fully sealed design.
- Fast line speed of 14.7 fpm at no load and 4.5 fpm at full load
- 60 feet of high-quality 3/16" wire rope
- 10 feet of wired remote with IP68 rating
- Automatic Load Holding Brake
- Heavy Duty Roller Fairlead
- High Torque 12V DC, 1.3 HP permanent magnet Motor, Chosen for large copper windings for faster cooling
- Standard mounting harware included
- Works with Novawinch Duo Wirreless remote
Key Specs
| Attribute | Specification |
|---|---|
item# | 5297421 |
Brand | Novawinch |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 21.6 LB |
Horsepower | 1.3 HP |
Capacity (Line Pull) | 1,000 lb |
Volts | 12 |
Max. Amps | 75 |
Application | Other |
Gear Type | Planetary |
Line Speed | 4.5 ft./min. |
Gear Ratio | 140:01:00 |
Rope Length | 60 ft |
| Attribute | Specification |
|---|---|
Rope Diameter | 3/16 in |
Rope Material | Galvanized Steel |
Brake Type | Automatic |
Remote | Yes |
Remote Cord Length | 12.7 ft |
Automatic Load Holding | Yes |
Freespooling | No |
Fairlead Type | Roller |
Underwater Use | No |
Mounting Hardware Included | Yes |

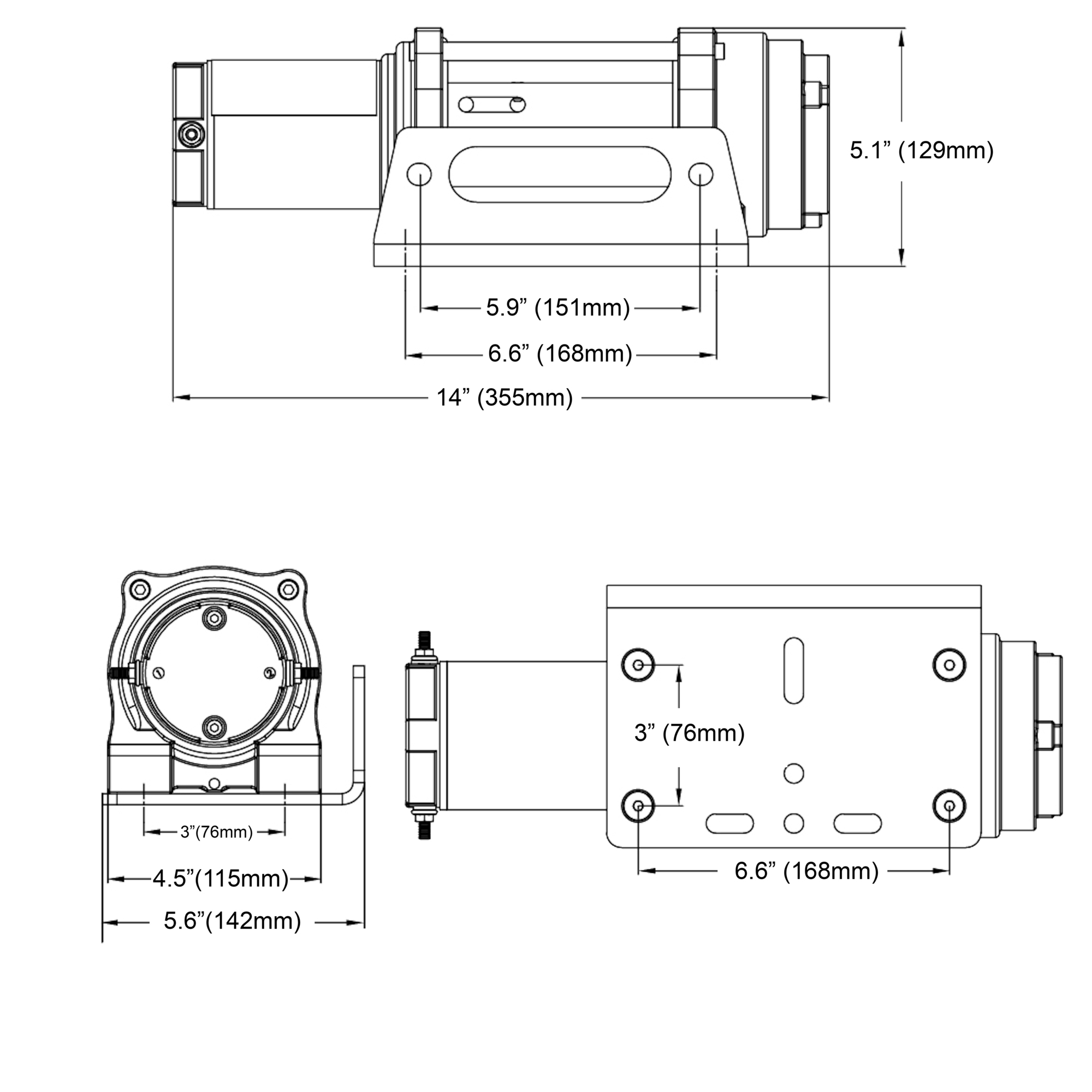

Dimensions L x W x H (in.) | 14.0 x 5.1 x 5.6 in |
Product Weight | 19.4000 lb |
