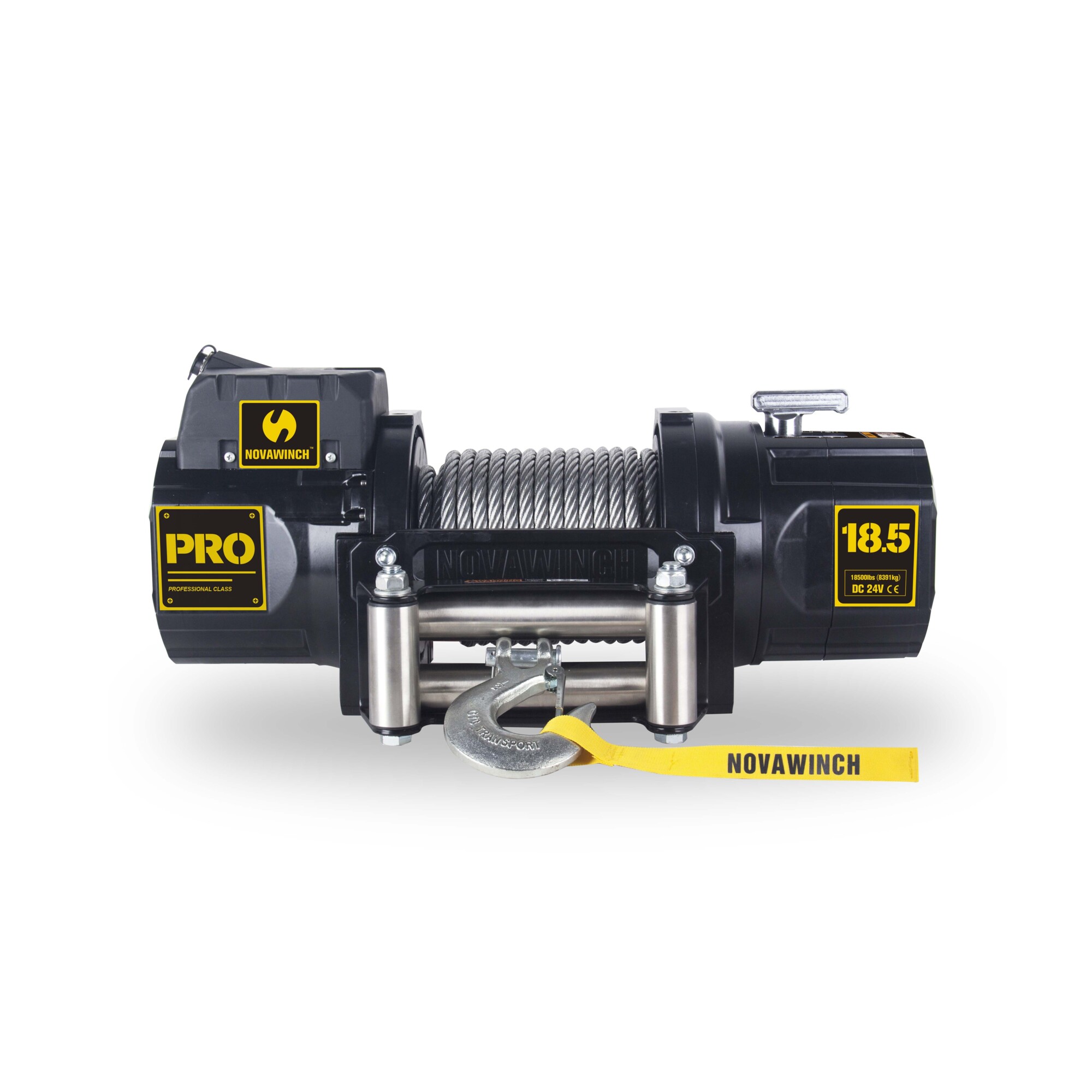

Novawinch, PRO Series Trailer/Recovery 12V DC Winch, Capacity (Line Pull) 18500 lb, Volts 12 Max. Amps 190 Model# 701001068868

Item# 5297413
4 of 13 reviewers received a sample product or took part in a promotion
Novawinch, PRO Series Trailer/Recovery 12V DC Winch, Capacity (Line Pull) 18500 lb, Volts 12 Max. Amps 190 Model# 701001068868

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Novawinch, PRO Series Trailer/Recovery 12V DC Winch, Capacity (Line Pull) 18500 lb, Volts 12 Max. Amps 190 Model# 701001068868

Click or Tap image to Zoom

$1489.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 18500 lb. pulling capacity for vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 18.7 fpm at no load and 3.9 fpm at full load
  • 82 feet of high-quality 1/2" synthetic rope
  • 12.7 feet of wired remote with IP68 rating

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

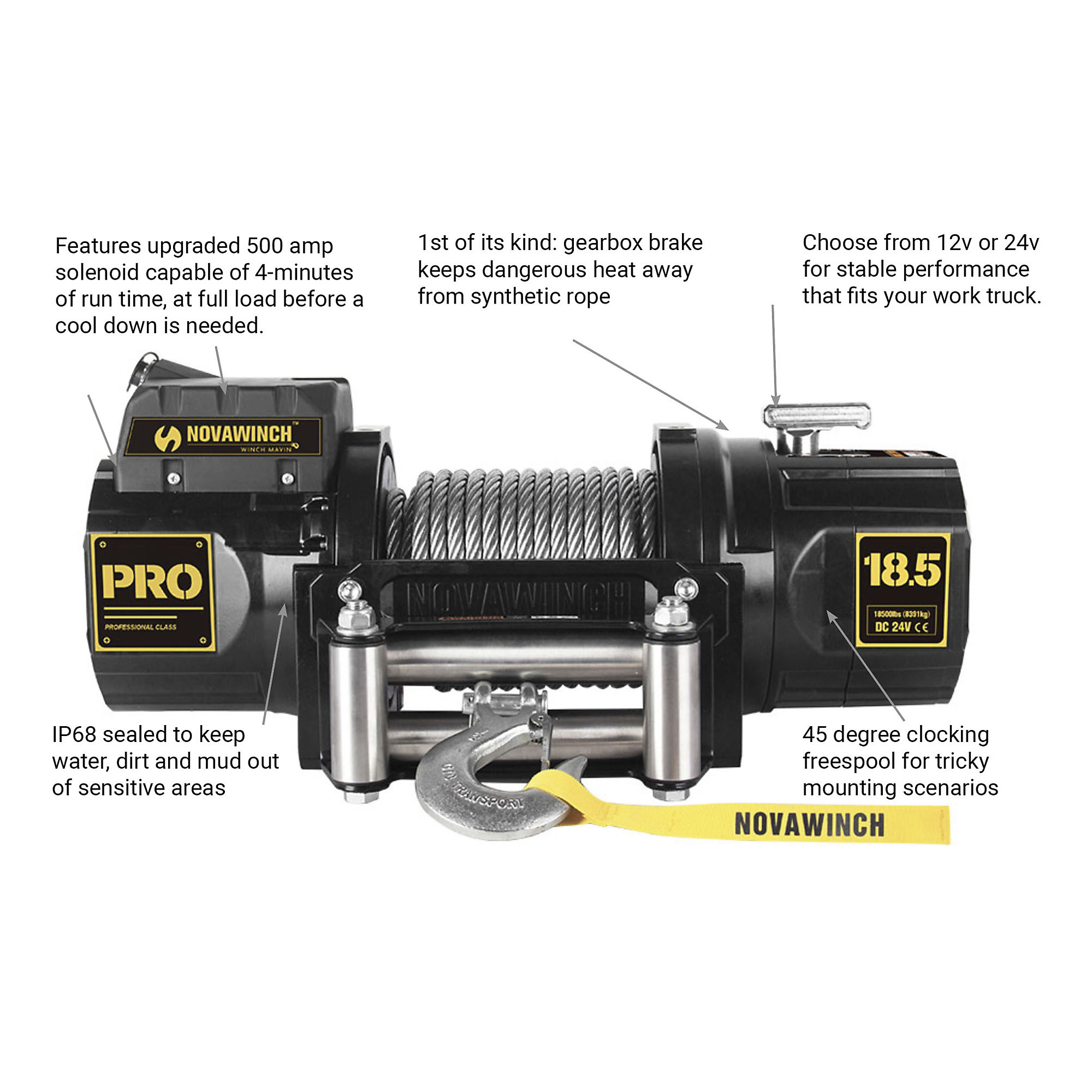

Novawinch PRO 18500 lb. synthetic rope winch. Meet the next generation in heavy-duty winching. The Pro Series advances what you can expect from an electric winch. From longer run time (up to 4 minutes at FULL load!) to lower amps, this is a serious winch for serious work. Meets SAE J706 standard. Five things to know about this winch: 1. It's Professional Grade. Our heavy-duty contactor keeps electric operations in excess of military requirements. 2. Overbuilt Drum: large diameter drum extends the life of rope/cable. 3. IP67 rated keeps elements out and winch running. 4. Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope. 5. Made to last with stainless steel hardware.

What's Included

    (1) PRO 18500 lb. 12V winch with synthetic rope

Features + Benefits

  • 18500 lb. pulling capacity for vehicle recovery, trailer use, plus other horizontal pulling.
  • IP68 rated for added protection against extreme weather and use.  Fully sealed design.
  • Fast line speed of 18.7 fpm at no load and 3.9 fpm at full load
  • 82 feet of high-quality 1/2" synthetic rope
  • 12.7 feet of wired remote with IP68 rating
  • Automatic Load Holding Disc Brake
  • Heavy Duty Aluminum Hawse
  • High Torque 12V DC, 6 HP Series Wound Motor, Chosen for large copper windings for faster cooling
  • Standard mounting harware included

Key Specs

AttributeSpecification

item#

5297413

Brand

Novawinch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

196.2 LB

Horsepower

4.2 HP

Capacity (Line Pull)

18,500 lb

Volts

12

Max. Amps

190

Application

Multiple

Gear Type

Planetary

Line Speed

3.9 ft./min.

Gear Ratio

505:01:00

Rope Length

82 ft
AttributeSpecification

Rope Diameter

1/2 in

Rope Material

Synthetic Fiber

Brake Type

Disc

Remote

Yes

Remote Cord Length

12 ft

Automatic Load Holding

Yes

Freespooling

Yes

Fairlead Type

Hawse

Underwater Use

No

Mounting Hardware Included

Yes

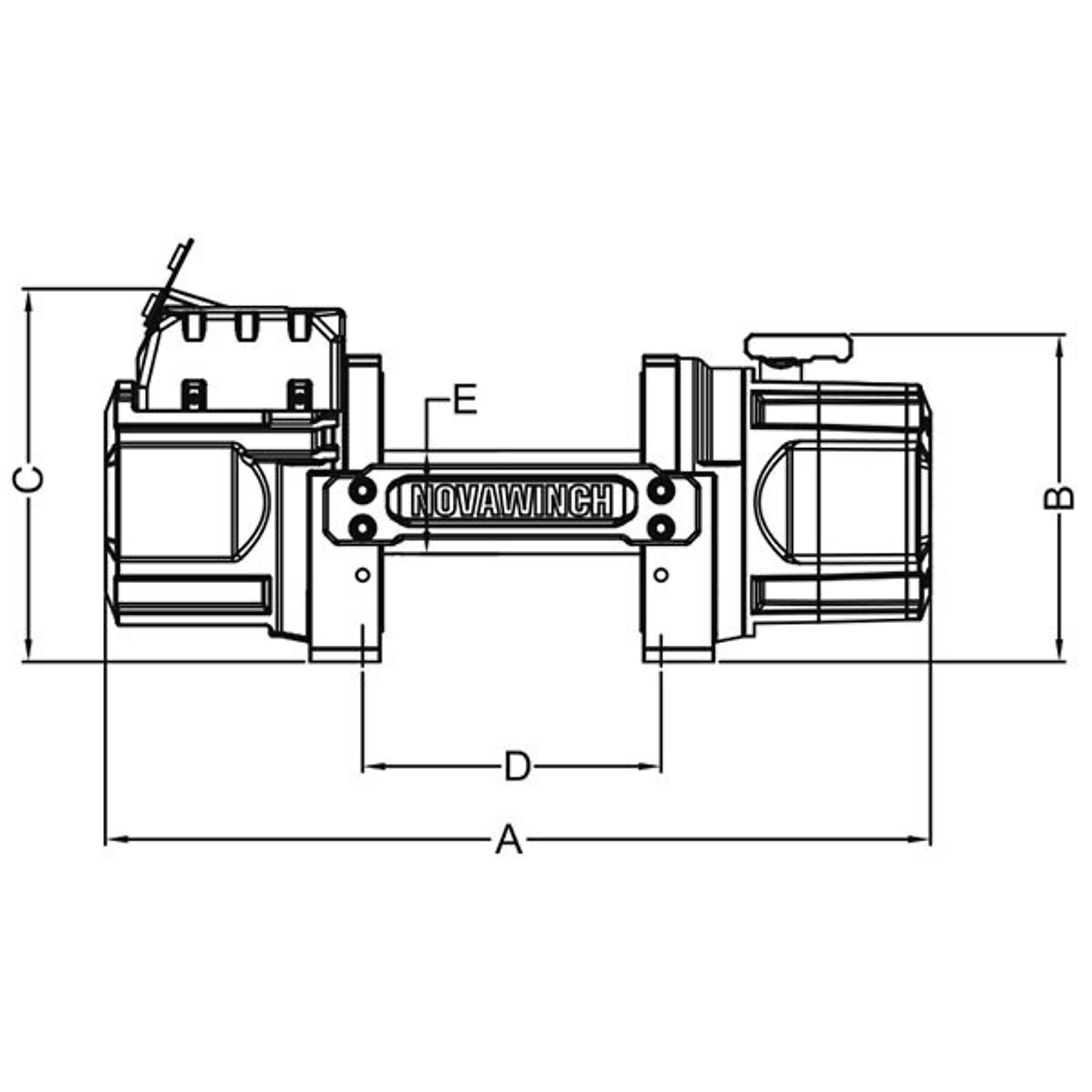

Dimensions L x W x H (in.)

27.76 x 10.5 x 12.5 in

Product Weight

163.1000 lb

Reviews

Questions & Answers

13 Reviews This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
