The thread size for the rod that fits in the clevis is 1-1/4"-12 UNF.

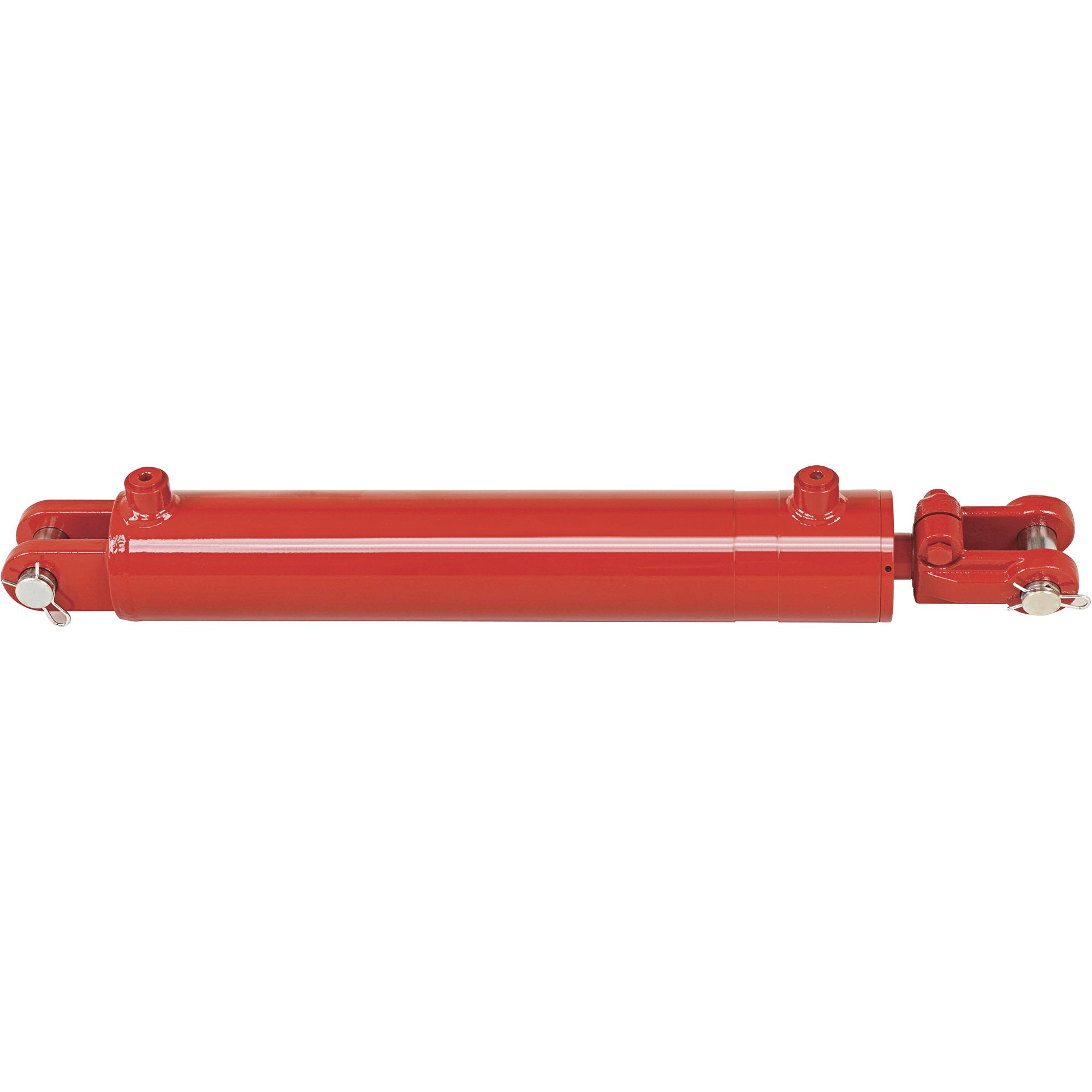

Nortrac Welded Hydraulic Cylinder — 3000 PSI, 3in. Bore, 8in. Stroke
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Heavy-duty 3,000 PSI model is designed to withstand shock loads of up to 6,000 PSI
- Double-acting application
- Polyurethane U-cup double lip seal
- Durable ductile cast iron components for long life
- C1045 high-strength steel piston rod is chrome plated to resist wear and corrosion
See full description
See All Welded Tee Cylinders
See All NorTrac Welded Tee Cylinders
Currently Viewing This Product
Specifications
Specifications
Nortrac Welded Hydraulic Cylinder — 3000 PSI, 3in. Bore, 8in. Stroke
Prince Welded Tee Hydraulic Cylinder, 2,500 PSI, 4in. Bore, 36in. Stroke, 2in. Shaft, Model# PMC-5636
Prince Welded Tee Hydraulic Cylinder, 2,500 PSI, 3in. Bore, 36in. Stroke, 1 1/2in. Shaft, Model# PMC-8336
Prince Welded Tee Hydraulic Cylinder, 2,500 PSI, 3in. Bore, 20in. Stroke, 1 1/2in. Shaft, Model# PMC-8320
Max. PSI
Same
3,000
2,500
2,500
2,500
Bore Diameter
Same
3 in
4 in
3 in
3 in
Stroke Length
Same
8 in
36 in
36 in
20 in
Shaft Diameter
Same
1.25 in
2 in
1.5 in
1.5 in
Closed Pin Center
Same
20.25 in
45 in
44 in
28 in
Product Weight
Same
27 lb
-
-
-
