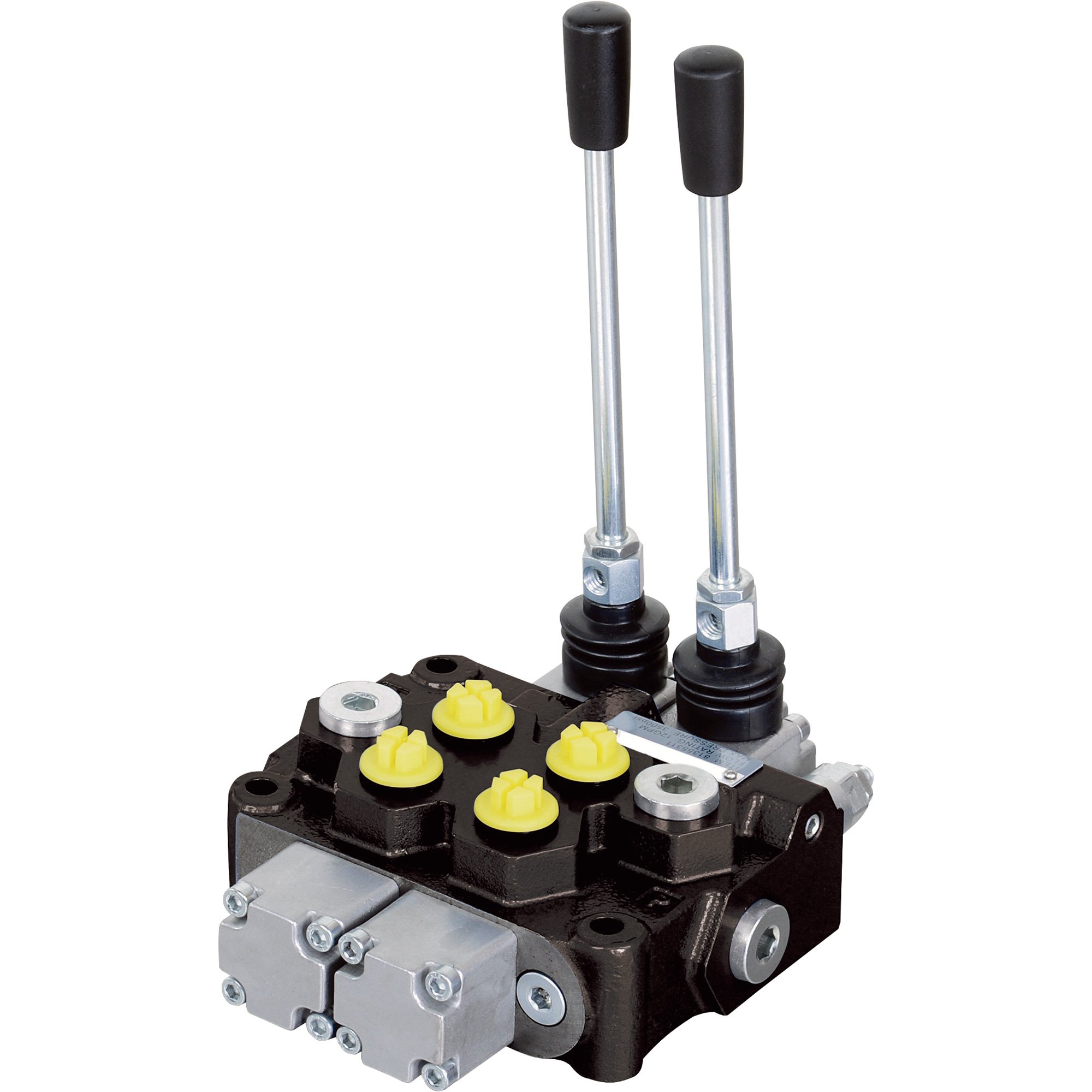

NorTrac Monoblock Hydraulic Control Valve — 12 GPM, 2 Spool

Item# 45463
NorTrac Monoblock Hydraulic Control Valve — 12 GPM, 2 Spool
NorTrac Monoblock Hydraulic Control Valve — 12 GPM, 2 Spool

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Monoblock Hydraulic Control Valve — 12 GPM, 2 Spool

Click or Tap image to Zoom

  • Small and compact enough to fit anywhere it is needed
  • Rated for 12 GPM and 3,000 PSI
  • 500–3,000 PSI adjustable main relief, factory set to 2,100 PSI
  • Precision ground and hard chrome-plated spools assure a long life
  • SAE 8 O-ring ports help eliminate blockage

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorTrac® Monoblock Hydraulic Control Valve is small and compact enough to fit anywhere it is needed. Rated for 12 GPM and 3,000 PSI. 500–3,000 PSI adjustable main relief, factory set to 2,100 PSI. Precision ground and hard chrome-plated spools assure a long life. The SAE 8 O-ring ports help eliminate blockage. High-tensile strength cast iron monoblock construction. 1,100 PSI max. return line pressure. One load check per valve. Vertical or horizontal handle mount. Capable of closed center or Power Beyond.

What's Included

  •  (1) Control valve

Downloads

Product Manual

Features + Benefits

  • Small and compact enough to fit anywhere it is needed
  • Rated for 12 GPM and 3,000 PSI
  • 500–3,000 PSI adjustable main relief, factory set to 2,100 PSI
  • Precision ground and hard chrome-plated spools assure a long life
  • SAE 8 O-ring ports help eliminate blockage
  • High-tensile strength cast iron monoblock construction
  • 1,100 PSI max. return line pressure
  • One load check per valve
  • Vertical or horizontal handle mount
  • Capable of closed center or Power Beyond

Key Specs

AttributeSpecification

item#

45463

Brand

NorTrac

Manufacturer's Warranty

1 year Limited Warranty

Ship Weight

10.2 LB

GPM

12
AttributeSpecification

Working Port

#8 SAE in

Max. PSI

3,000

Spool (qty.)

2

Inlet Port

#8 SAE in

Outlet Port

#8 SAE in

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 16 Questions
Sort by:

  1. NEED HELP

    WILL THIS VALVE WORK TO RAISE AND LOWER A FRONT END LOADER? ALSO I NEED TO CURL THE BUCKET. I AM USING NORTHERN TOOL PART #10567 8 GALLON PER MINUTE GEAR PUMP. THE LOADER IS ON A SMALL GARDEN TRACTOR SO IT IS NOT VERY BIG OR HEAVY.

    1. I have used it for that very purpose.

      Helpful?

    2. This valve will work for a front end loader.

      Helpful?

    3. If you don't need a float position this valve should do nicely. There is also an 8 GPM valve available at Northern, Prince Hydraulic Control Valve — 8 GPM, 2-Spool, Model# MB21BB5C1

      Helpful?

  2. What is SAE #8 ? I need a valve to control a motor and a cylinder on a dump trailer. Any suggestions?

    1. SAE #8 is a common hydraulic fitting. It is called -8 or "dash 8", which means the hose size is 8/16 or 1/2 inch, and the same fitting is called SAE straight ORB (O-Ring Boss), and has 3/4"-16 threads.

      Helpful?

    2. The SAE #8 is the size fittings from hydraulic hoses that this unit would accept. This item is fully capable of controlling both your motor and a hydraulic cylinder.

      Helpful?

  3. Can this valve operate a double acting cylinder?

    1. Yes. That's what it is designed for.

      Helpful?

    2. This valve is a 4 way 3 position tandem center valve and will power a double acting cylinder in both directions.

      Helpful?

  4. are the valves spring centered?

    1 answer

    1. The valves on this control valve are spring centered in both directions.

      Helpful?

  5. What is needed to set up for closed center?

    1 answer

    1. Please see our item #49388 for the conversion plug that works with this control valve.

      Helpful?

  6. can this valve handle a one way cylinder

    1 answer

    1. This control valve is for use with double-acting cylinders.

      Helpful?

  7. What is the measurement between the handles? My tractor has openings in the fender for additional hydraulic valves. I'm looking for a valve that will fit in those openings preferably without modifications.

    1 answer

    1. This measures 7/8" wide between the top grips and 1-1/8" wide in the center between the handles.

      Helpful?

  8. Is there a float function?

    1 answer

    1. The unit does not have a float function.

      Helpful?

  9. Can the handle be set 180 degrees?

    I need the handles to extend away from the ports not 90 degrees, but the opposite of what is shown.

    Is that possible?

    1 answer

    1. The handles can be mounted either vertically or horizontally, but they cannot be mounted in a 180 degree position.

      Helpful?

  10. Can this valve be used on systems that are less than 12 GPM?

    1 answer

    1. This control valve can be used on systems that are rated less than 12 GPM. The standard factory setting is 2,100 PSI at 8 GPM.

      Helpful?
