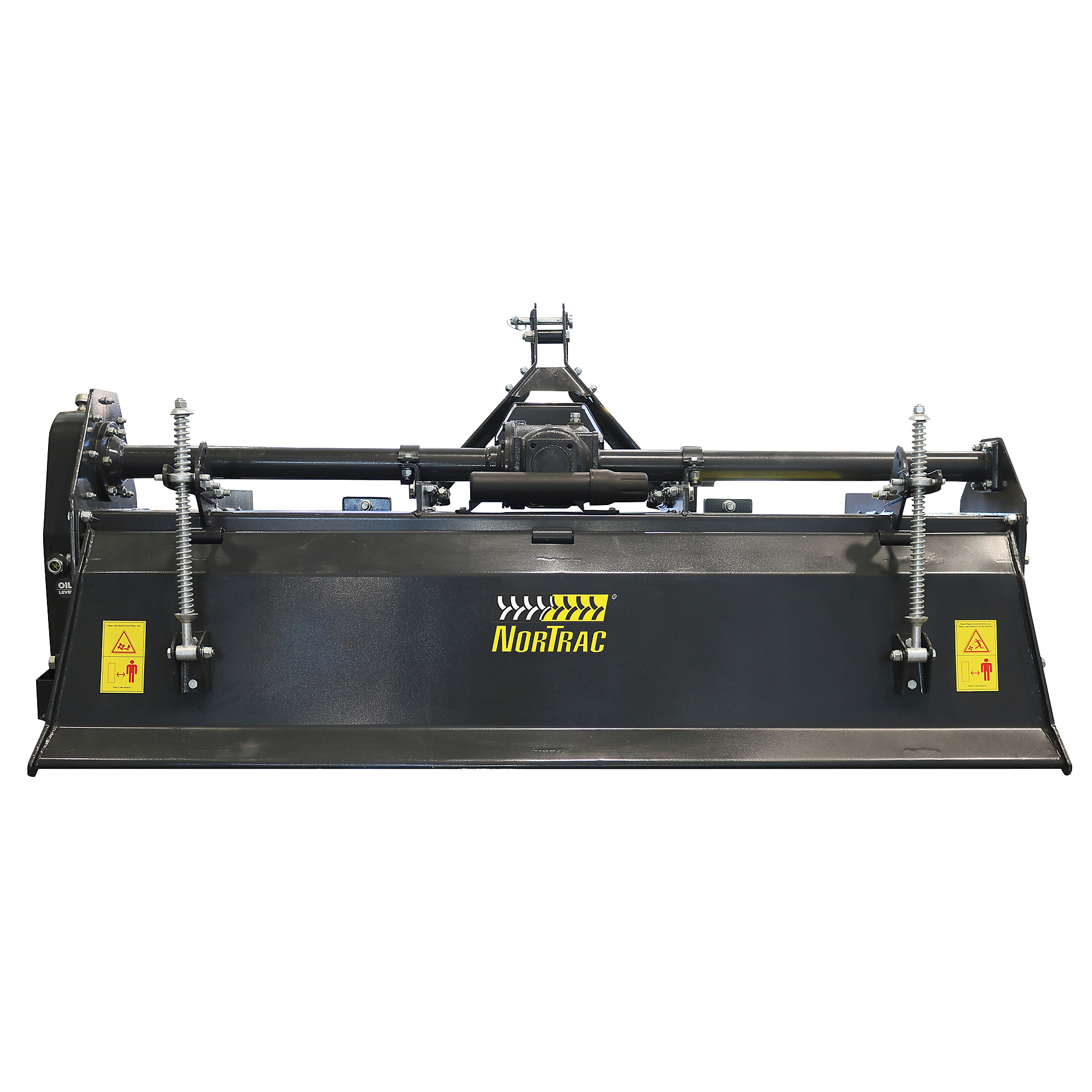

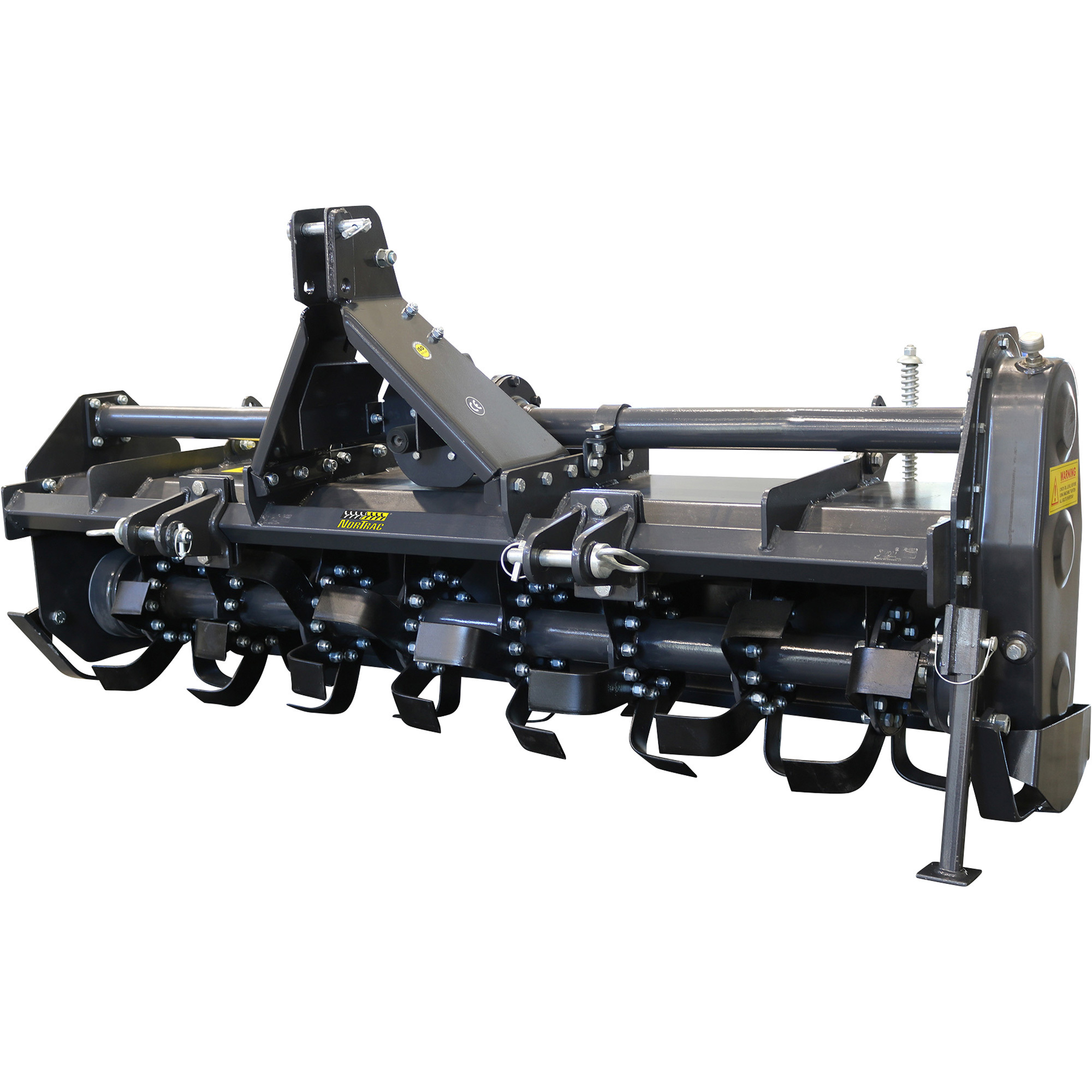

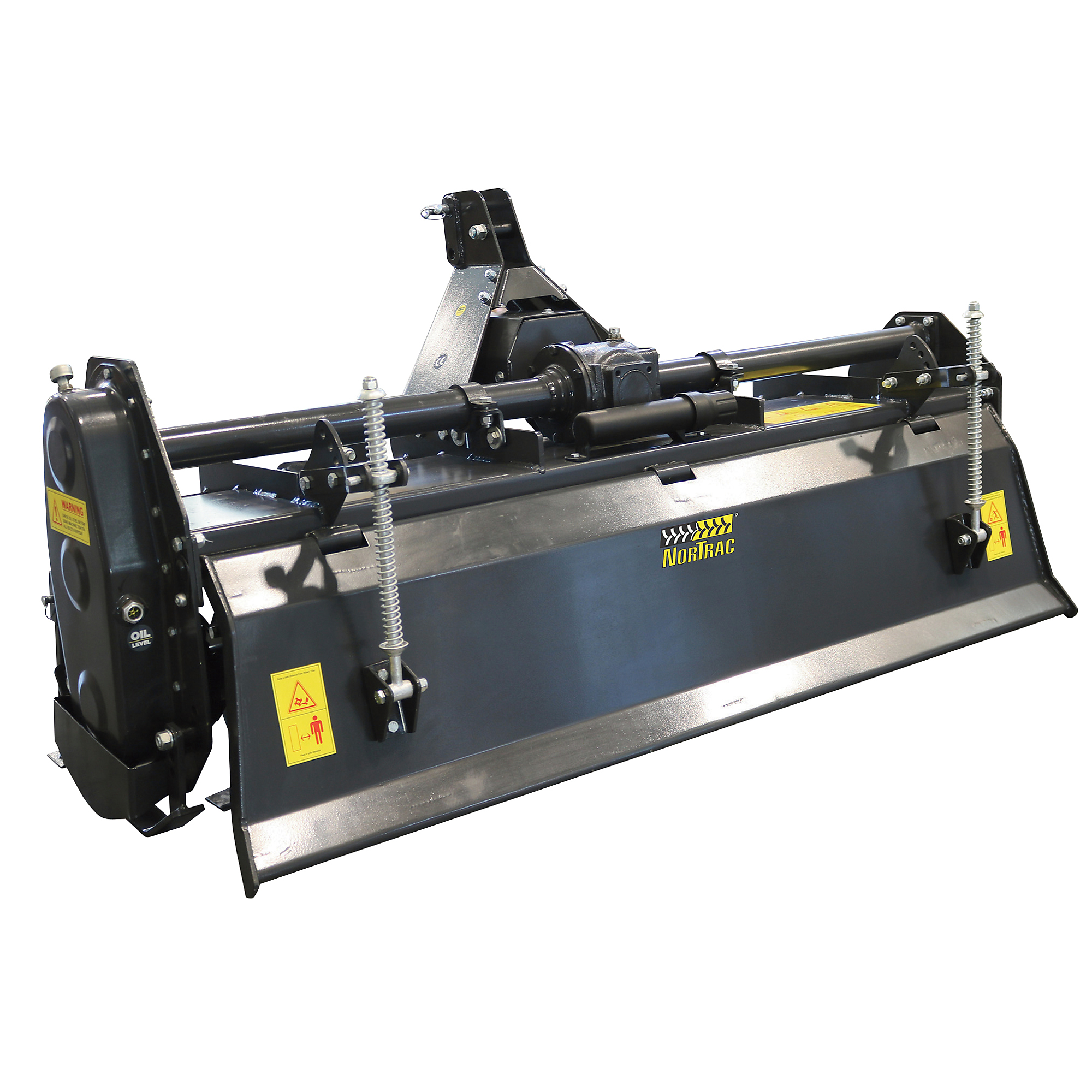

NorTrac Gear-Driven Rotary Tiller, 60in. Tilling Width

Item# 114190
NorTrac Gear-Driven Rotary Tiller, 60in. Tilling Width

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Gear-Driven Rotary Tiller, 60in. Tilling Width

Click or Tap image to Zoom

$2790.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Attaches to Category 1 compact tractors
  • 60in. tilling width
  • 35–40 HP rating
  • 8 rotor flanges with 6 blades each for thorough tilling
  • PTO with slip clutch protection

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorTrac Gear-Driven Rotary Tiller is suitable for use with Category 1 compact tractors and is ideal for small jobs around the home or farm. This sturdy tiller features 8 rotor flanges with 6 blades each for a total of 48 blades to ensure quick and thorough tilling and upgraded PTO options, including slip clutch protection and adjustable skid shoes to allow various working depths.

What's Included

    (1) NorTrac 60in. Gear-Driven Rotary Tiller

Downloads

Product Manual

Features + Benefits

  • Attaches to Category 1 compact tractors
  • 60in. tilling width
  • 35–40 HP rating
  • 8 rotor flanges with 6 blades each for thorough tilling
  • PTO with slip clutch protection
  • Tillage depth of 4in.–5in.
  • Adjustable skid shoes
  • Parking stand to protect unit while not in use
  • Weighs 617 lbs.

Key Specs

AttributeSpecification

item#

114190

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

677.0 LB

Product Type

Tiller

Category

Category 1

Working Width

60 in
AttributeSpecification

Max. Depth

5 in

Blades (qty.)

48

Hitch Type

3-Point

Min. Horsepower

35

Max. Horsepower

40

Product Weight

617.0000 lb

Dimensions L x W x H (in.)

73.0 x 28.5 x 31.5 in

Reviews

Questions & Answers

Questions

1–6 of 6 Questions
Sort by:

  1. Is this tiller made in the U S?

    1 answer

    1. This rotary tiller is manufactured to our specifications in India.

      Helpful?

  2. I shopped around, some said they were shipped dry(no oil) I purchased this one, and wondering if it is filled with oil.

    1 answer

    1. This rotary tiller comes pre-filled with oil.

      Helpful?

  3. What type of oil is recommended for both gear boxes.

    1 answer

    1. It is advisable to use SAE 140 EP grade oil or equivalent for the gear box unit and side transmission.

      Helpful?

  4. How many tines per disk. What's the min. Hp.

    1 answer

    1. This rotary tiller has 6 blades per rotary flange. It is designed to be used with a Category 1 compact tractor rated for 35-40 HP.

      Helpful?

  5. Where is the PTO drive shaft? It's not shown.

    1 answer

    1. It is not shown in the images, but the PTO shaft is included with this tiller.

      Helpful?

  6. What kind of warranty on 60 inch rotary tiller

    1 answer

    1. This rotary tiller includes a 1 year limited manufacturer's warranty.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
