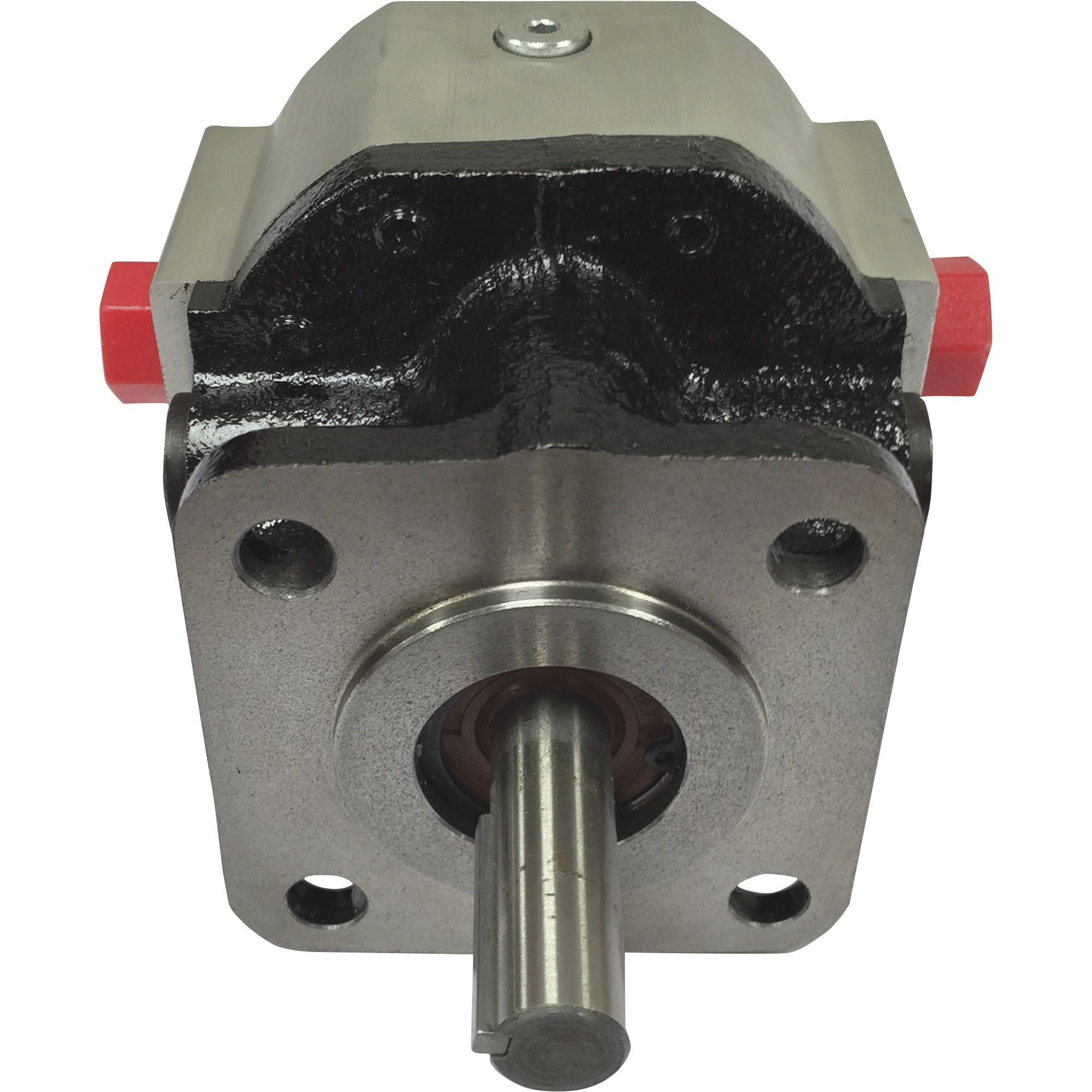

NorTrac Birotational Hydraulic Pump/Motor, 2.1 GPM, 1/2in. Shaft, CBS6 Quiet Dual-Direction Operation with Check Valves

Item# 47347
"NorTrac Birotational Hydraulic Pump/Motor, 2.1 GPM, 1/2in. Shaft, CBS6 Quiet Dual-Direction Operation with Check Valves"
On Sale
NorTrac Birotational Hydraulic Pump/Motor, 2.1 GPM, 1/2in. Shaft, CBS6 Quiet Dual-Direction Operation with Check Valves

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Birotational Hydraulic Pump/Motor, 2.1 GPM, 1/2in. Shaft, CBS6 Quiet Dual-Direction Operation with Check Valves

Click or Tap image to Zoom

  • 2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This single-stage NorTrac Birotational Hydraulic Pump/Motor has a low-noise CBS6 bidirectional gear pump/motor allowing for either clockwise or counterclockwise operation. 2 check valves ensure safe, smooth operation in either direction. The light overall weight is ideal for all applications.

What's Included

    (1) Birotational pump (1) Front cover (1) Rear cover

Downloads

Product Manual

Features + Benefits

  • 2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density
  • 4-bolt flange with 1.78in. dia. pilot
  • Inlet and outlet side ports with SAE O-ring 3/4-16UNF

Key Specs

AttributeSpecification

item#

47347

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.93 LB

Max. PSI

4,000

Max. Flow Rate

2.1 GPM
AttributeSpecification

Shaft Diameter

0.5 in

Shaft Type

Keyed

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What size/type are the inlet/ outlet fittings that are needed needed

    1 answer

    1. Both ports are SAE O-Ring Boss (ORB) fittings, size 3/4-16 UNF.

      Helpful?

  2. Mounting flange dimensions of the 4 bolt holes?

    1 answer

    1. The bolt spacing is 2" x 2" on center. The holes have a 5/16" diameter.

      Helpful?

  3. What is RPM?

    1 answer

    1. This pump/motor delivers 3,600 RPM.

      Helpful?

  4. Is this a ball bearing supported shaft pump? Is it okay to turn this pump with pulleys and a belt? Thanks

    1 answer

    1. The pump does not have ball bearing support. This can be belt driven as long as a pillow block for support is installed.

      Helpful?

  5. can this be used as a hydraulic motor to power a chainsaw

    1 answer

    1. The hydraulic motor is not designed to be used to power a chainsaw. It is not able to withstand a side load on the shaft.

      Helpful?

  6. Can this pump/motor rotate in either direction while in service without any modification or adjustments?

    I am interested in an application where oil is pumped in one direction and then pumped in the opposite direction by reversing the shaft rotation with a reversible electric motor.

    1 answer

    1. This NorTrac pump/motor can be rotate in either direction while in service without any modifications.

      Helpful?

  7. what torque at 300 rpm?

    1 answer

    1. The formula to determine the torque output on this pump/motor is: displacement (in cubic-inches/shaft revolutions) x pressure(psi)/ divided by 6.28. This pump/motor's displacement is .132 cubic-inches per revolution. A pressure gauge will need to be installed on the hydraulic line to measure the pressure in PSI. Take the measured pressure in PSI x .132 then divide by 6.28 = Torque output in units of inch-pounds or in-lbs.

      For example, continuous torque for this pump/motor at 3000 psi torque would be:
      T (torque) = .132 (displacement) x 3000 (psi)/ 6.28= 63.06 inch-lbs of Torque with a max continuous pressure rating of 3000 PSI.

      For example, max intermittent torque output at a max pressure of 4000 PSI would calculate like this:
      T= .132 x 4000/ 6.28 =84 inch-lbs of Torque and then intermittent would be about 10% duty cycle so 6 minutes on and 54 minutes off.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
