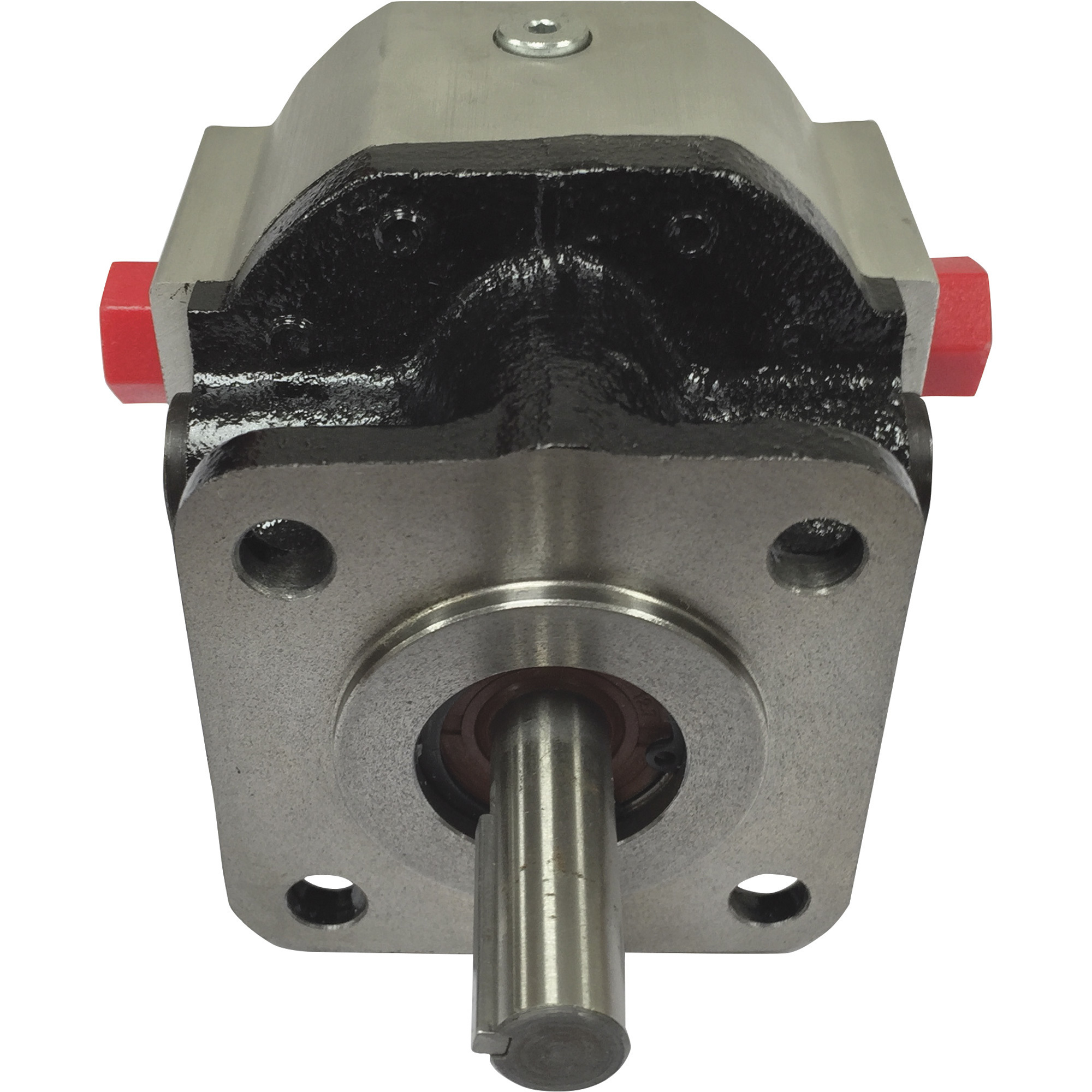

NorTrac Birotational Hydraulic Pump/Motor, 9 GPM, 1/2in. Shaft, Low-Noise CBS6 with Check Valves

Item# 47352
"NorTrac Birotational Hydraulic Pump/Motor, 9 GPM, 1/2in. Shaft, Low-Noise CBS6 with Check Valves"
On Sale
NorTrac Birotational Hydraulic Pump/Motor, 9 GPM, 1/2in. Shaft, Low-Noise CBS6 with Check Valves

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Birotational Hydraulic Pump/Motor, 9 GPM, 1/2in. Shaft, Low-Noise CBS6 with Check Valves

Click or Tap image to Zoom

  • 2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This single-stage NorTrac Birotational Hydraulic Pump/Motor has a low-noise CBS6 bidirectional gear pump/motor allowing for either clockwise or counterclockwise operation. 2 check valves ensure safe, smooth operation in either direction. The light overall weight is ideal for all applications.

What's Included

    (1) Birotational hydraulic pump (1) Front cover (1) Rear cover

Downloads

Product Manual

Features + Benefits

  • 2-piece cast iron construction for long life
  • CBS6 pump features 90% volumetric efficiency and 88% mechanical efficiency
  • 1/2in. dia. extended shaft delivers 3,600 rotations per minute
  • Excellent cycle times
  • High power density
  • 4-bolt flange with 1.78in. dia. pilot
  • Inlet and outlet side ports with SAE O-ring 7/8-14UNF

Key Specs

AttributeSpecification

item#

47352

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.04 LB

Max. PSI

1,000

Max. Flow Rate

9 GPM
AttributeSpecification

Shaft Diameter

0.5 in

Shaft Type

Keyed

Pump Type

Gear

Stage

Single-Stage

Material

Cast Iron

Thread Type

Other

Reviews

Questions & Answers

23 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What's the dimensions of this motor (length, width & height).

    1 answer

    1. The overall dimensions are as follows: 5.18"L x 3.64"W x 3.33"H.

      Helpful?

  2. Can I run a belt pulley on this pump?

    1 answer

    1. This can be used with a pulley only if a bearing pillow block is installed to support the shaft.

      Helpful?

  3. What is the largest mountable gas engine that can be mounted to this?

    1 answer

    1. This pump or motor is rated for 1200 PSI continuous or 2000 PSI intermittent pressure. If it is 1200 PSI, the largest engine should be around a 6.5 HP. If it is 2000 PSI with a 10% duty cycle at 2000 PSI, the maximum engine size is approximately 10.5 HP. 10% duty cycle is 1 min at 2000 PSI and 9 minutes at 2-300 PSI in no working mode.

      Helpful?
