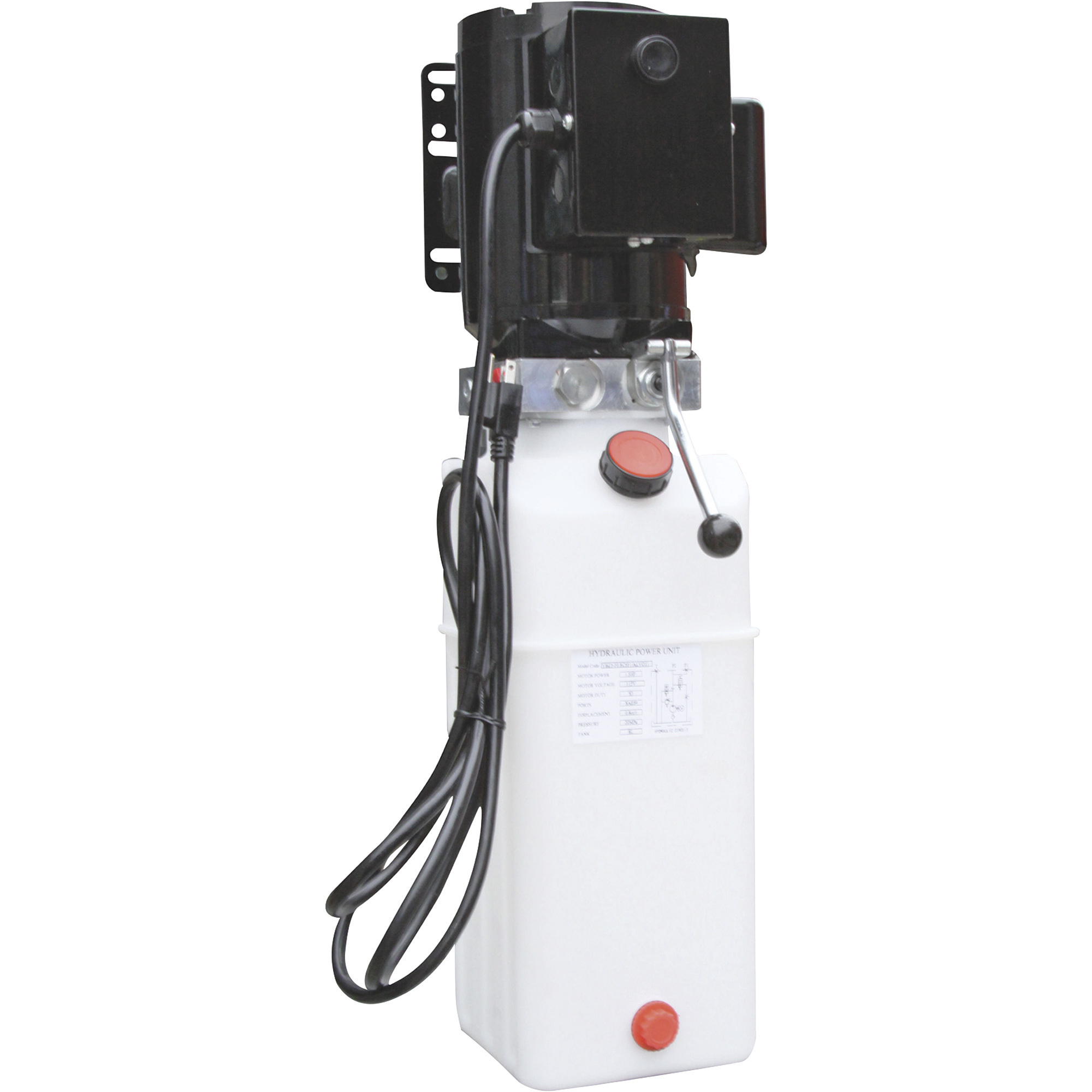

NorTrac Auto Hoist Power Unit, 115V AC

Item# 53598
NorTrac Auto Hoist Power Unit, 115V AC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorTrac Auto Hoist Power Unit, 115V AC

Click or Tap image to Zoom

$549.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not available - online only
  • Power up/gravity down function—lowering movement is controlled by a manual release valve
  • Adjustable needle valve controls speed of the descent
  • Pressure-balanced pump for consistent, dependable performance
  • Large 2.5-gal. reservoir capacity
  • 3,450 max. RPM

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorTrac Auto Hoist Power Unit is a single-phase, 115V AC power unit that is interchangeable with all 115V, 2- and 4-post car lift power units. The high-torque electric motor delivers 1.5 continuous HP and 3.5 peak/intermittent HP and can also be used on compatible hydraulic lifts and scissor lifts. Delivers a fast lifting speed with low amp draw.

What's Included

    (1) Auto hoist power unit

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Power up/gravity down function—lowering movement is controlled by a manual release valve
  • Adjustable needle valve controls speed of the descent
  • Pressure-balanced pump for consistent, dependable performance
  • Large 2.5-gal. reservoir capacity
  • 3,450 max. RPM
  • 2,900 max. PSI

Key Specs

AttributeSpecification

item#

53598

Brand

NorTrac

Manufacturer's Warranty

1 year limited warranty

Ship Weight

49.4 LB

Max. Flow Rate

1 GPM

Max. PSI

2,900

Max. RPM

3,450
AttributeSpecification

Power Source

Corded

Port Inlet Size

3/8 in

Port Outlet Size

9/16 in

Thread Type

SAE

Reservoir Capacity

2.5 Gal

Volts

115

Action

Single Acting

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. What is the duty cycle of this motor?

    1 answer

    1. This power unit is rated for an S3 duty cycle and must be operated intermittently: 1 minute on followed by 9 minutes off.

      Helpful?

  2. How many amps does this unit draw?

    1 answer

    1. This power unit draws 12 amps at full load.

      Helpful?

  3. Does this unit include a pressure gauge?

    1 answer

    1. This power unit is not equipped with a pressure gauge.

      Helpful?

  4. can this pump be wired for 220V

    1 answer

    1. The power unit is designed to plug into a standard three prong 115 volt outlet. Modifications to the power unit will void the manufacturer warranty.

      Helpful?

  5. Can i order repair parts for these power units?

    1 answer

    1. The white plastic tank, part #MSYBZSLYX10LN, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. At this time, other parts are not available.

      Helpful?

  6. where do you hook up. the hydraulic line and what size is it. I bought this and there are NO instructions!

    1 answer

    1. When looking at the control valve side of the unit (when mounted vertically), the T port is located on the left side. It is 3/8" NPT. The P2 port is above the T port and is 9-16"-18UNF. The P1 port is located on the opposite side and is also 9-16"-18UNF. For the full schematic drawing of this, please see the Line Drawing PDF on this item's specifications page.

      Helpful?

  7. which fluid (such as ATF? tractor hydraulic fluid?) is needed for this power unit?

    1 answer

    1. The recommended hydraulic oil for this power unit is N46. Tractor hydraulic fluid can be used as long as the viscosity is between 15 and 46 cSt (centistokes).

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
