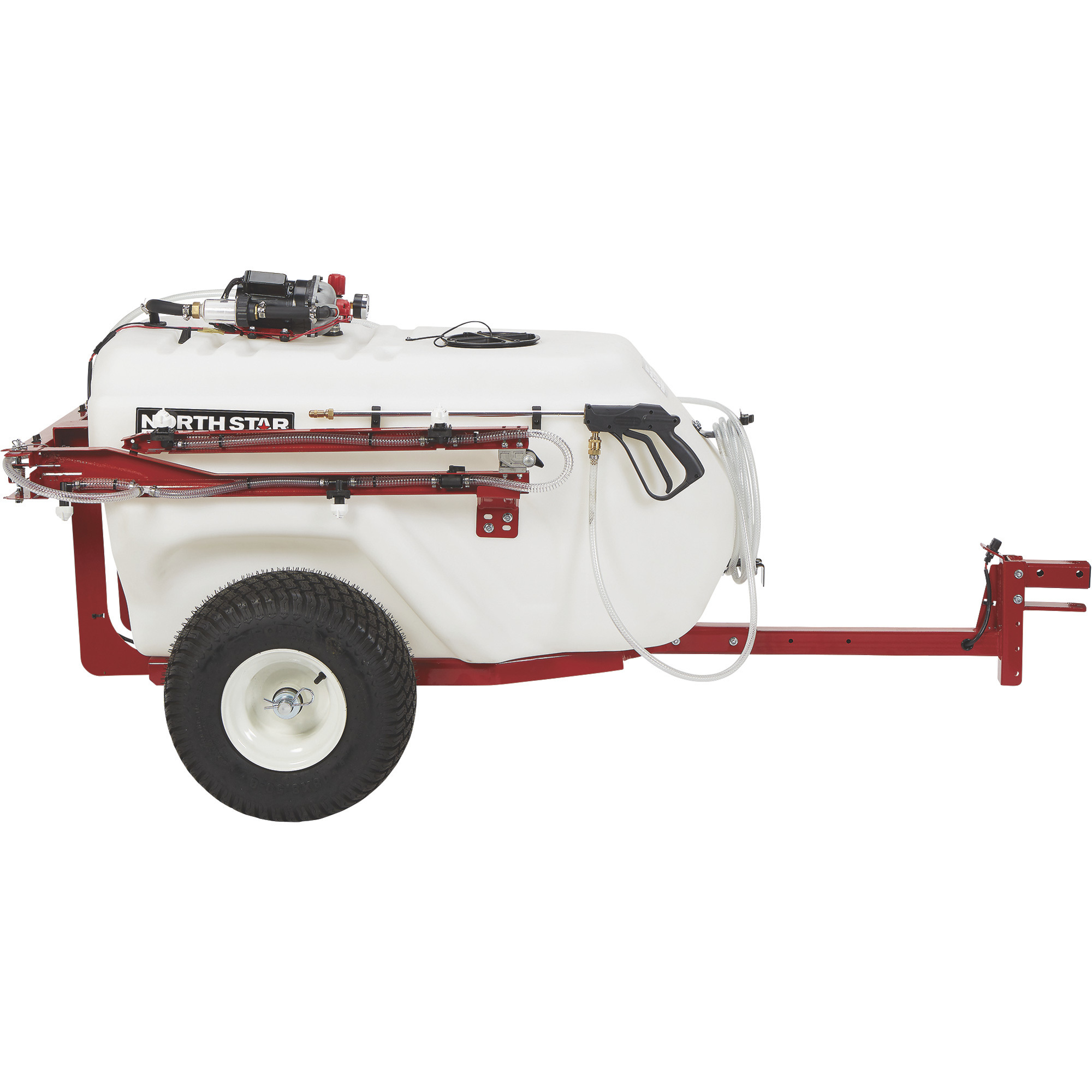

NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 101 Gallons, 7 GPM, 12V DC

Item# 282592
NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 101 Gallons, 7 GPM, 12V DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 101 Gallons, 7 GPM, 12V DC

Click or Tap image to Zoom

  • 101-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
  • Delivers up to 7 GPM open flow and 60 PSI max. for quick spraying times
  • 15ft. broadcast pattern
  • Provides the power you need to reach a vertical spray height up to 24ft. max. and a horizontal spray distance of up to 36ft. max.
  • NorthStar NSQ Series pump is built with a Santoprene diaphragm and patented DXS-3 Viton valves for performance, chemical compatibility and durability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The 12V NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer has a high-flow NorthStar NSQ Series pump that lets you put down chemicals fast and easily. The boom has built-in valves that offer flow control to the left, right and center sections for precision spraying in perimeter, narrow strip, or full broadcast applications. A regulator with pressure gauge allows you to finely tune spray pressure. Includes deluxe trigger spray gun, 9 nozzles, 13ft. boom and 21ft. hose.

What's Included

    (1) 101-gallon sprayer (1) Deluxe trigger spray gun (9) Nozzles (1) Boom (1) Hose

Downloads

Product Manual
Play Item Video

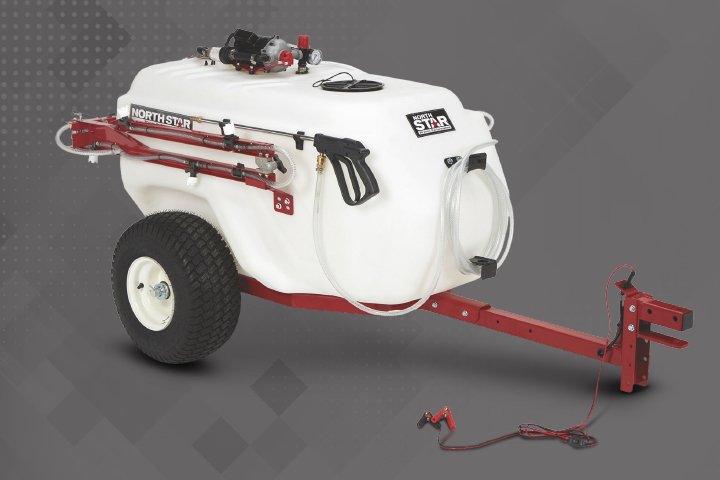

COMPREHENSIVE CONTROL

Built-in REGULATOR with pressure gauge allows FINE-TUNING OF SPRAY PRESSURE, enhancing application accuracy and reducing waste

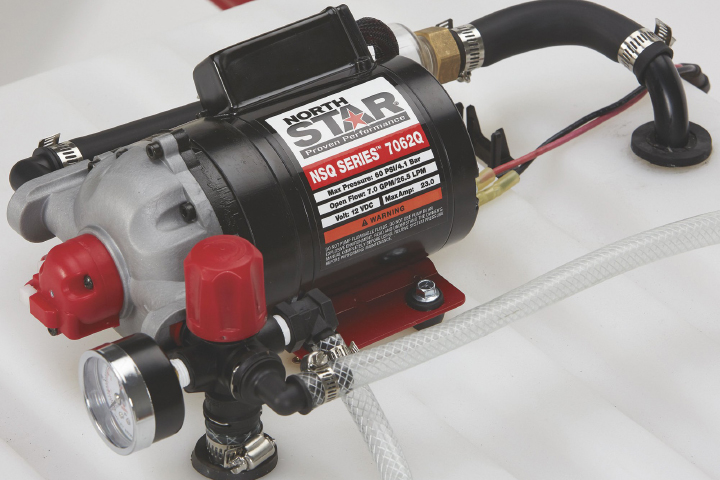

CONSERVE POWER

The pump’s AUTOMATIC SHUTOFF CONSERVES battery power by operating only when needed, backed by an OVERSIZED ELECTRIC MOTOR RATED for 100% CONTINUOUS DUTY

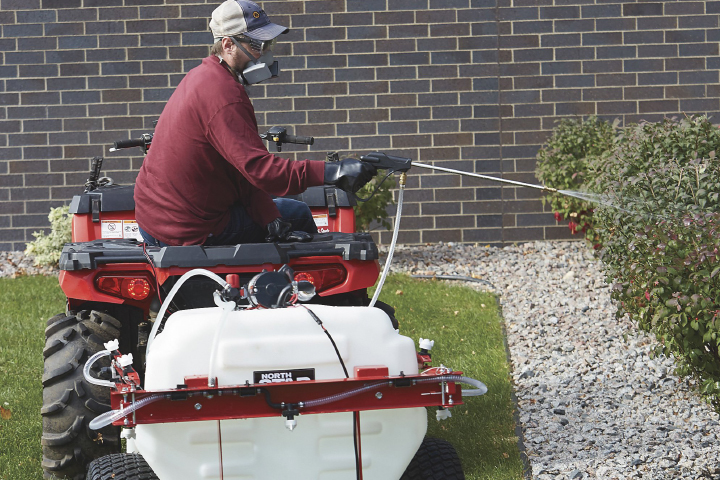

CONVENIENT FEATURES

Includes a DELUXE TRIGGER SPRAY GUN with an ADJUSTABLE BRASS NOZZLE, 21 FOOT HOSE and easy-fill 7-1/2 INCH TANK LID for hassle-free operation

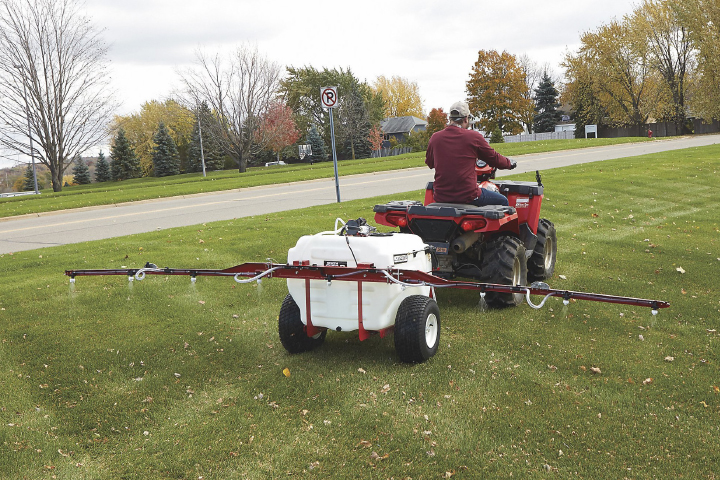

STURDY & SECURE

Durable STEEL BOOM with BUILT-IN VALVES and an ADJUSTABLE HEIGHT TOW BAR hitch fits a wide range of vehicles, ensuring a stable and secure connection

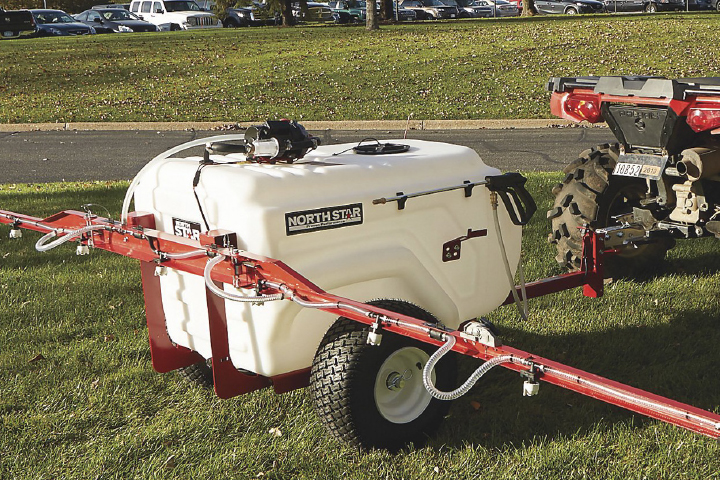

USER-FRIENDLY DESIGN

Features like HOSE WRAP, SPRAY GUN STORAGE, BOTTOM-TANK DRAIN and BUILT-IN SUMP for complete fluid draining make maintenance simple and efficient

Features + Benefits

  • 101-gallon capacity polymer tank with extra-thick walls is chemical and UV resistant
  • Delivers up to 7 GPM open flow and 60 PSI max. for quick spraying times
  • 15ft. broadcast pattern
  • Provides the power you need to reach a vertical spray height up to 24ft. max. and a horizontal spray distance of up to 36ft. max.
  • NorthStar NSQ Series pump is built with a Santoprene diaphragm and patented DXS-3 Viton valves for performance, chemical compatibility and durability
  • Pump automatically turns off when no flow is required to conserve battery power
  • Oversized electric motor is rated for 100% continuous duty to eliminate downtime
  • Steel boom has built-in valves with left, right or center flow control
  • Built-in regulator with pressure gauge allows you to finely tune spray pressure
  • Steel cart with 18in. pneumatic tires makes easy work of towing over rough terrain
  • Spring-loaded breakaway boom arms deflect when struck and fold against the sides of the tank for compact storage
  • Deluxe trigger spray gun has adjustable stream to cone brass nozzle and 21ft. hose
  • Adjustable-height tow bar hitch fits a wide range of tow vehicles (ball coupler not included)
  • Large 7-1/2in. dia. tank lid for easy filling
  • Hose wrap on the front of the sprayer and 2 spray gun storage locations keep things tidy when not in use
  • Bottom-mount tank drain makes rinsing the tank quick and easy
  • Sump is built into the bottom of the tank for complete fluid draining
  • 8ft.L wire harness with battery clamps for easy battery connections/disconnections
  • Bypass flow returns to tank to keep chemicals mixed well
  • 12V DC power

Key Specs

AttributeSpecification

item#

282592

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

301.0 LB

Tank Size

101 Gal

Flow

7 GPM

Pressure

60 PSI

Spray Height

24 ft

Broadcast Width

15 ft
AttributeSpecification

Horizontal Spray Distance

36 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Spot, Broadcast

Tow Behind Cart Included

Yes

Pump Type

Northstar NSQ Series

Hose Length

252 in

Product Weight

lb

Dimensions L x W x H (in.)

80.0 x 42.0 x 38.0 in

Reviews

Questions & Answers

15 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. How can I get a replacement tank?

    1 answer

    1. The part number for the replacement tank will be 797629. We no longer carry parts through Northern Tool. To order, please contact our sister company Jacks Small Engine at the link provided. https://jackssmallengines.com/

      Helpful?

  2. I need to pick up the 101 gallon from the store, what are the box dimensions?

    1 answer

    1. The package dimensions are 51.5" long x 46" wide x 32" high.

      Helpful?

  3. I have a side by side with a ball hitch, can this hitch be changed to accommodate that?

    1 answer

    1. A ball coupler can be added to this tow behind sprayer. Please view item #605663 for a compatible trailer coupler.

      Helpful?

  4. Are there any heavy duty springs upgrade for the boom arms the stock ones are weak. Causing operator to constantly straighten them back out.

    1 answer

    1. Currently, we would not offer any upgrade to the springs for the boom arms.

      Helpful?

  5. Is there a agitator feature for mixing?

    1 answer

    1. The pressure regulator on this sprayer can be used as an agitator. Complete details about this can be found in the product manual, located on the product webpage, on page 44.

      Helpful?

  6. What size is the hose running along the arms?

    1 answer

    1. The hose that runs along the arms is 3/8".

      Helpful?

  7. Can I use roundup and paraquat with this pump (tank).?

    1 answer

    1. This sprayer is Roundup and Paraquat ready.

      Helpful?

  8. I have a zero turn mower and an electric golf cart. Could I use either of those to pull it ?

    1 answer

    1. This could be towed by a zero-turn mower or golf cart as long as the hitch can still be level and the speed does not exceed 10 MPH for towing. Also keep in mind that the zero-turn mower will not be able to make sharp turns when towing.

      Helpful?

  9. is this pump capable of spraying general fungicides?

    1 answer

    1. The pump on this sprayer can be used with fungicides.

      Helpful?

  10. Are there measuring lines on the tank so I can mix the chemicals correctly

    1 answer

    1. There are lines located on the tank for measuring and mixing.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Repair Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
