NorthStar Air Compressor with Quiet Armor, 7.5 HP, 80-Gal. Capacity, 26 CFM

Item# 5899625
"NorthStar Air Compressor with Quiet Armor, 7.5 HP, 80-Gal. Capacity, 26 CFM"
On Sale
NorthStar Air Compressor with Quiet Armor, 7.5 HP, 80-Gal. Capacity, 26 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Air Compressor with Quiet Armor, 7.5 HP, 80-Gal. Capacity, 26 CFM

Click or Tap image to Zoom

$3299.99
Reg $3399.99Save $100.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Out of stock at Fredericksburg VA

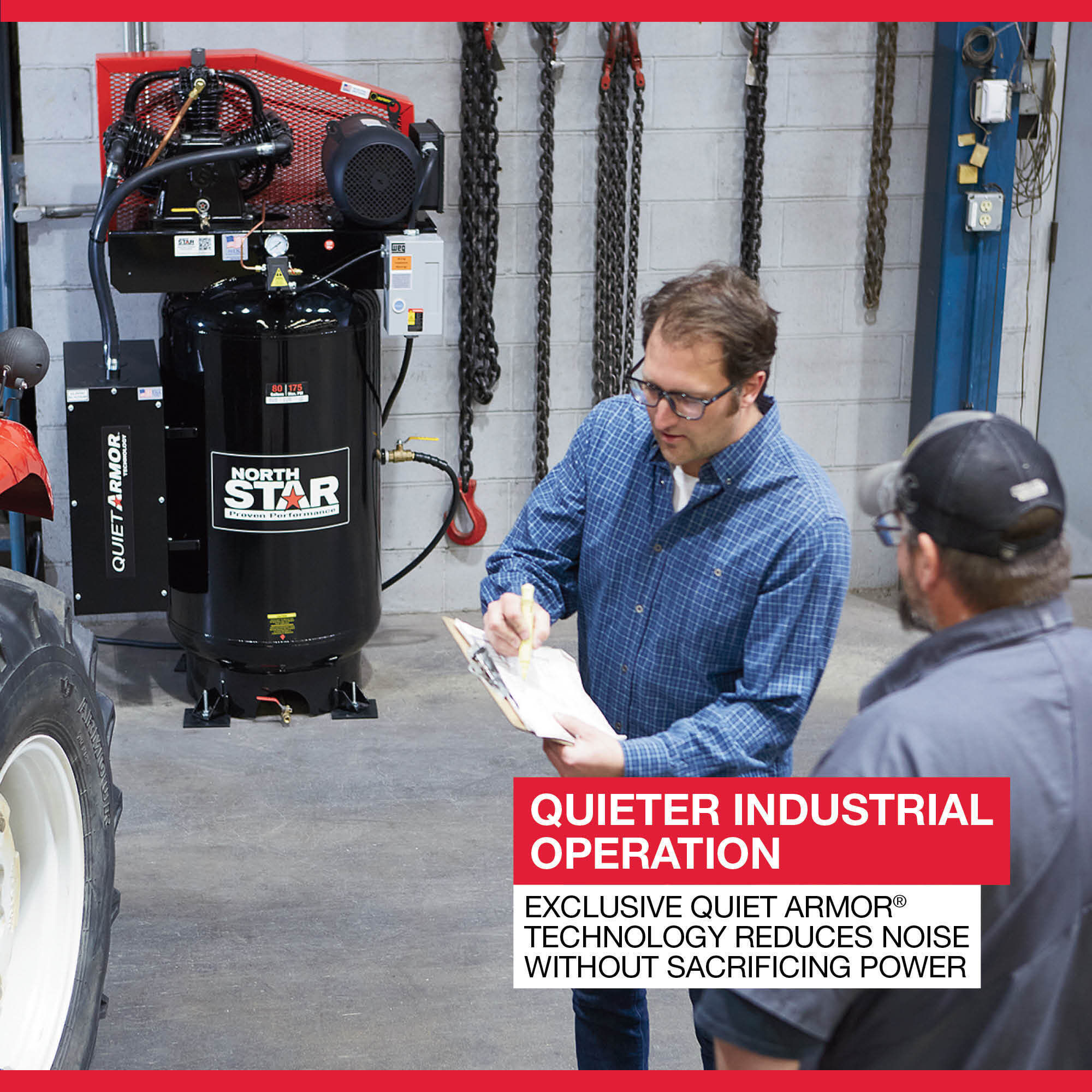

  • Exclusive Quiet Armor Technology produces less noise than leading commercial-grade compressors

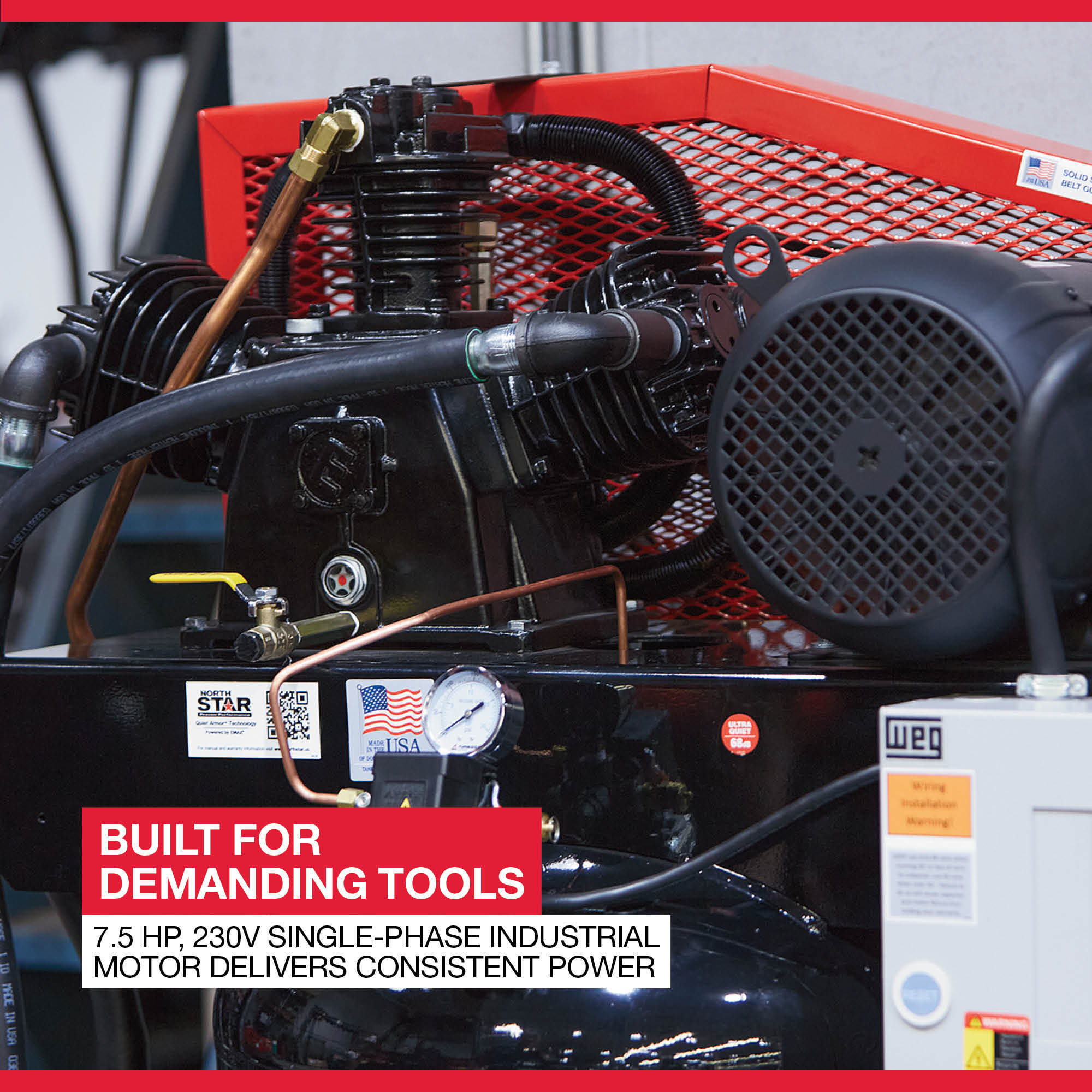

  • 7.5 HP, 230V single-phase industrial motor

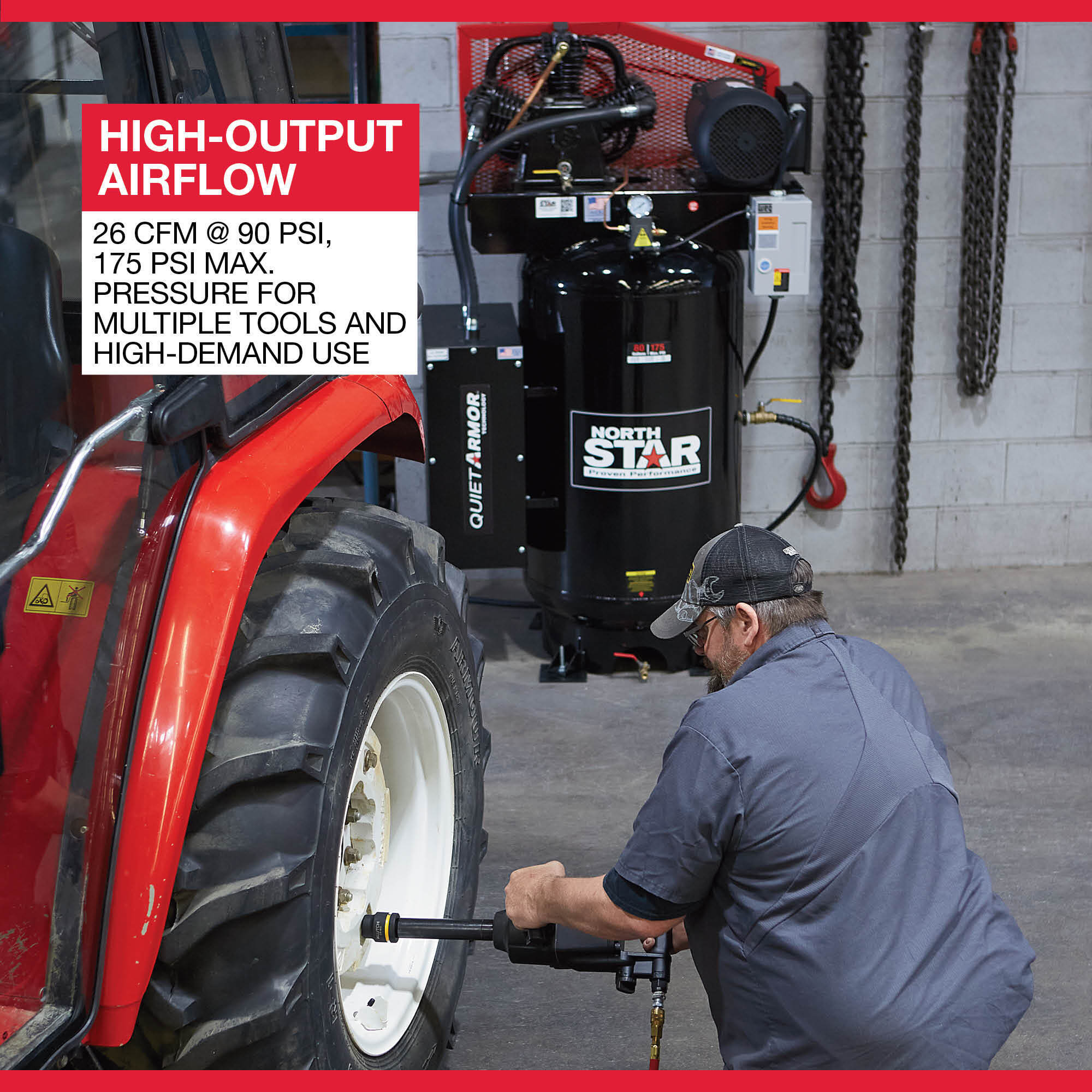

  • Performs at 26 CFM @ 90 PSI with 175 PSI max. pressure for optimum tool performance
  • 2-stage low 600 RPM, 4-cylinder belt drive pump for maximum performance
  •  5-stage filtration system for extended compressor life and reduced contamination in airlines

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Air Compressor with Quiet Armor, 7.5 HP, 80-Gal. Capacity, 26 CFM
  • NorthStar Maintenance Kit for Quiet Armor Compressors
  • NorthStar Quiet Armor Electronic Dual Timer Auto Tank Drain

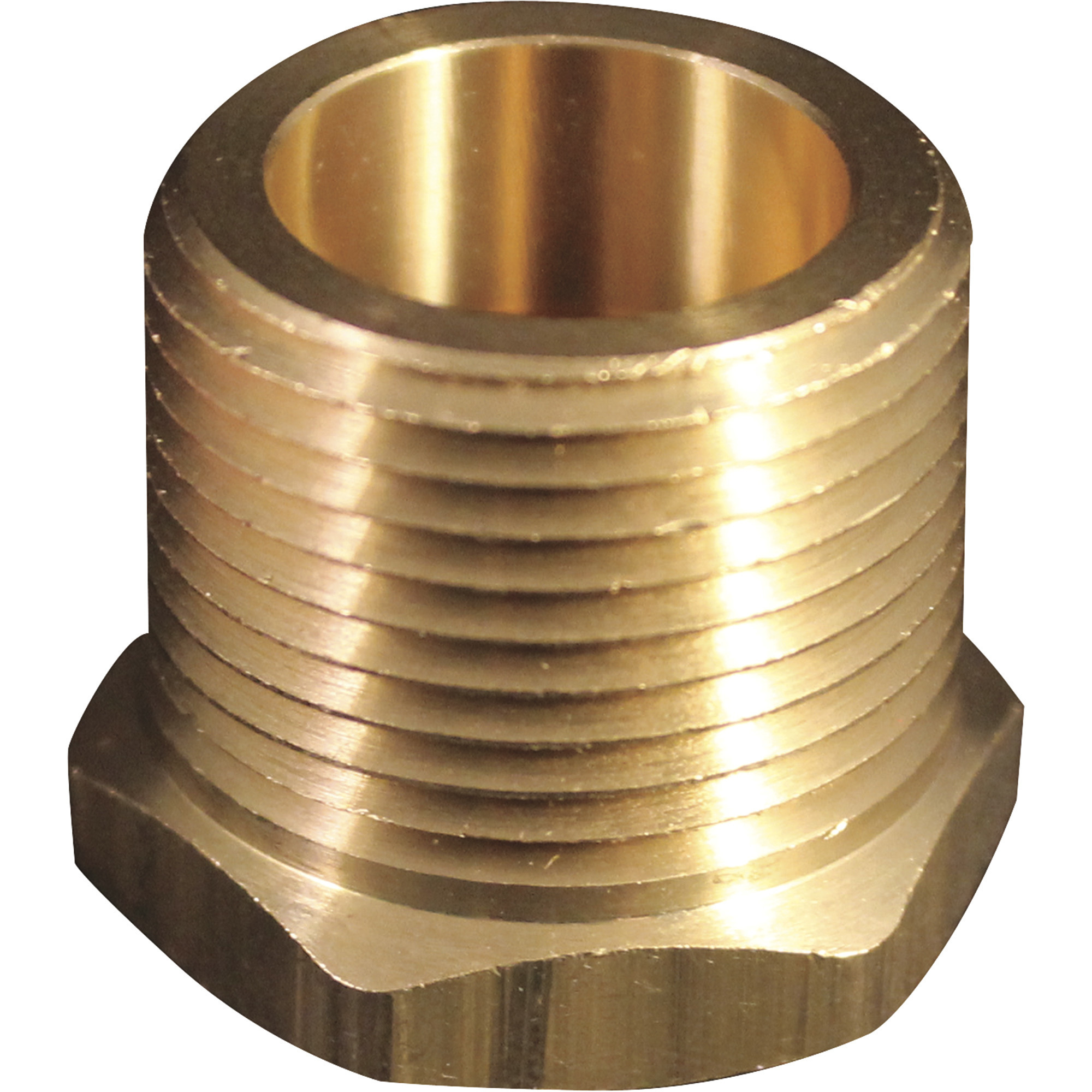

  • Milton 3/4in. MNPT x 1/2in. FNPT Reducer Bushing Hose Fitting, Model# S-652-8
Price for all four:

$3600.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Air Compressor with Quiet Armor offers 7.5 HP, 80-gallon capacity, 26 CFM @ 90 PSI and 175 max. PSI. This 2-stage single-phase vertical air compressor runs on an industrial 1,740 RPM 4-pole electric motor with a 1.1 service factor and is designed for up to 50,000 hours of use with proper maintenance. It features patented Quiet Armor with 5-stage air intake noise reduction technology that produces LESS NOISE than leading commercial-grade compressors. (Compressor noise levels measured outdoors from 20ft. away. This reduces impact that building type, compressor placement or surroundings have on noise level and allows compressors to be more equally compared. Installed results may vary.) This unit also features a solid cast iron 2-stage, 770 RPM, 3-cylinder splash lube pump with removable disc valves and solid steel rods for maximum performance and durability. The ASME 80-gallon tank is powder coated. Includes a ball valve tank drain. This compressor does not include an electrical cord; it requires hard wiring by a certified electrician.

What's Included

    (1) NorthStar Air Compressor with Quiet Armor

Downloads

Product Manual
Safety Data Sheet
Play Item Video

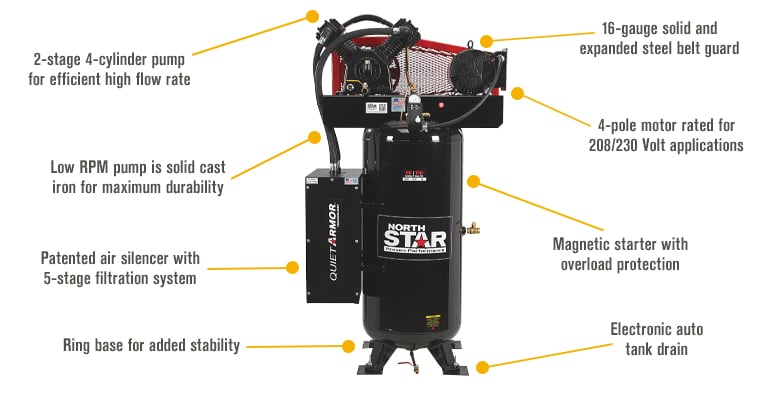

Features + Benefits

  • Exclusive Quiet Armor Technology produces less noise than leading commercial-grade compressors
  • 7.5 HP, 230V single-phase industrial motor
  • Performs at 26 CFM @ 90 PSI with 175 PSI max. pressure for optimum tool performance
  • 2-stage low 600 RPM, 4-cylinder belt drive pump for maximum performance
  •  5-stage filtration system for extended compressor life and reduced contamination in airlines
  • 4-pole motor has low 1,740 RPM and 1.1 service factor
  • Cast iron pump for maximum durability designed for up to 50,000 hours of use
  • Removable industrial components include disc valves and solid steel rods
  • ASME-certified tank with ring base for added stability
  • Includes anti-vibration pads for under feet to reduce vibration and improve sound insulation
  • Other features include magnetic starter pressure gauge, oil level sight glass and ball valve tank drain

Key Specs

AttributeSpecification

item#

5899625

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

725.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

26

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

33.8

Duty Cycle

60 %

Fuel Capacity

0 Gal

Motor RPM

1,740

Working Pressure

145 PSI
AttributeSpecification

Pump Life

50,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

27.3

CFM at Max. PSI

22

Noise Level

68 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

6 min

Air Dryer

None

Drain Type

Manual

Product Weight

743.0000 lb

Dimensions L x W x H (in.)

38.0 x 72.0 x 42.0 in

Reviews

Questions & Answers

36 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Recommended breaker size

    1 answer

    1. This air compressor requires a 50 amp breaker.

      Helpful?

  2. Where to order parts

    1 answer

    1. Parts for this air compressor can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability. For assistance with obtaining part numbers, please contact our Sales Department at 1.800.221.0516.

      Helpful?

  3. 33.8 amps, is that start amps or run amps

    1 answer

    1. 33.8 amps is the compressor’s running amperage.

      Helpful?

  4. Wanting to see if there is a 208 V version of this compressor

    1 answer

    1. At this time, a 208V version of this compressor is not available.

      Helpful?

  5. Where is the pump manufactured at?

    1 answer

    1. The pump of this air compressor is manufactured in Singapore.

      Helpful?

  6. What type of warranty does North Star offer?

    1 answer

    1. This air compressor has a 4 year limited warranty for consumer use. Please see complete details on page 2 of the Product Manual located below the Product Summary on the web page.

      Helpful?

  7. If you use 6 gauge wire. Do you need 6/2 or 6/3, and do you need a ground?

    1 answer

    1. It is best to consult an electrician for wiring and installation needs. The wire size requirements can vary depending on the length. This unit must be properly grounded.

      Helpful?

  8. Does it have to be installed indoors or can it be installed outside?

    1 answer

    1. The unit can be stored outside under the following guidelines: It must be in a covered area out of extreme weather with no ability for moisture to get to the unit. It is also highly recommended that the unit is out of direct sunlight as it can fade and/or damage the coating on the unit. Direct sunlight may also interfere with safety decals on the unit.

      Helpful?

  9. What are the specs decibel wise when running?

    1 answer

    1. The rated noise level of this air compressor is 68 dB.

      Helpful?

  10. Does it use splash lubrication or pressured lubrication?

    1 answer

    1. This air compressor is splash lubricated.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Air Compressor Tank Drains

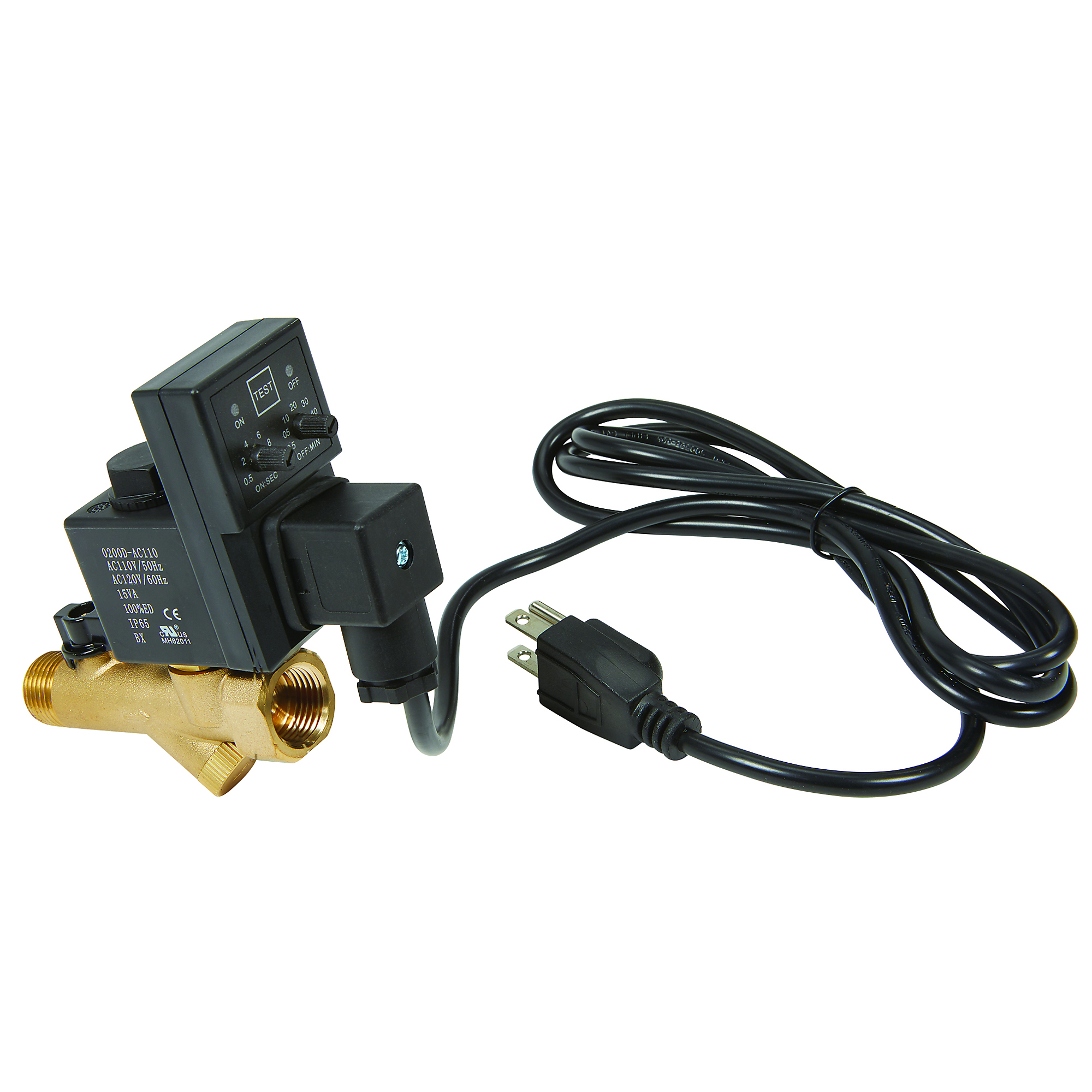

NorthStar Quiet Armor Electronic Dual Timer Auto Tank Drain
