NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 2.2 GPM

Item# 2682272
"NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 2.2 GPM"
Top Seller
NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 2.2 GPM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 2.2 GPM

Click or Tap image to Zoom

$119.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life

See full description

Complete Your Solution

  • NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 2.2 GPM
  • Apache Reinforced Clear Vinyl Tubing, 3/8in. x 25ft., Model# 15010978
Price for all two:

$149.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This high-end NorthStar® NSQ Series® 12V on-demand sprayer diaphragm pump upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer Diaphragm Pump (1) 3/8in. hose barb fitting (1) 1/2in. hose barb fitting (1) 1/2in. male NPT fitting

Downloads

Product Manual
Play Item Video

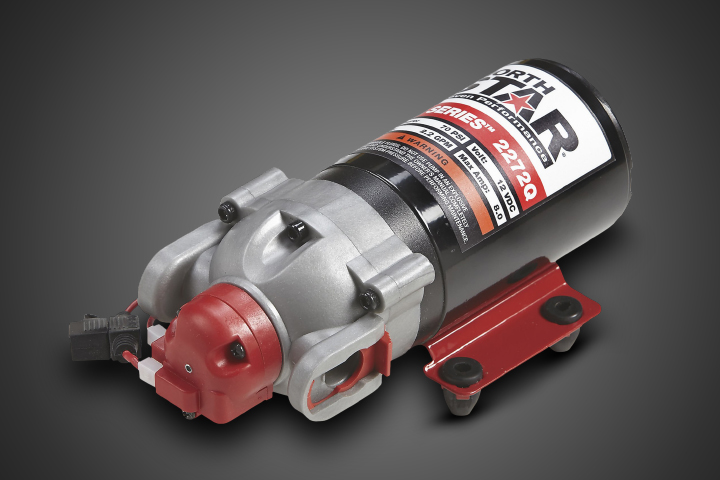

SUPERIOR ENGINEERING

The NORTHSTAR 2.2 GPM PUMP revolutionizes spraying with its on-demand operation, offering relentless performance backed by a continuous-duty rating. IDEAL FOR ANY AGRICULTURAL APPLICATION

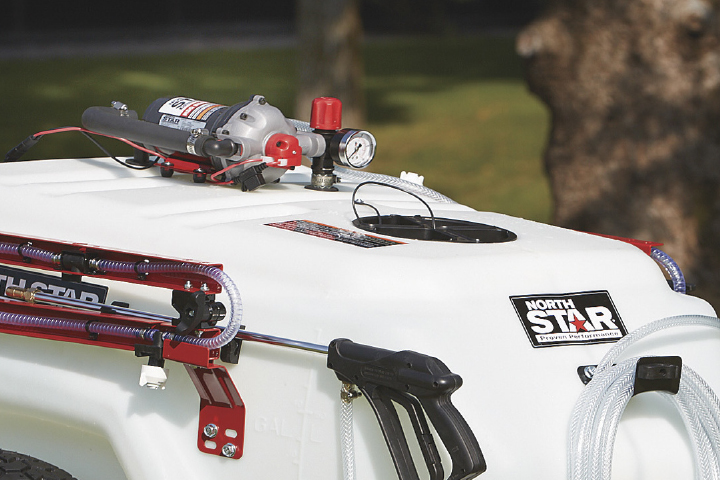

SAFETY AND COMPATIBILITY

Tested and approved for use with Roundup® herbicides, this pump ensures safe and effective application, providing peace of mind in its OPERATIONAL INTEGRITY and CHEMICAL COMPATIBILITY

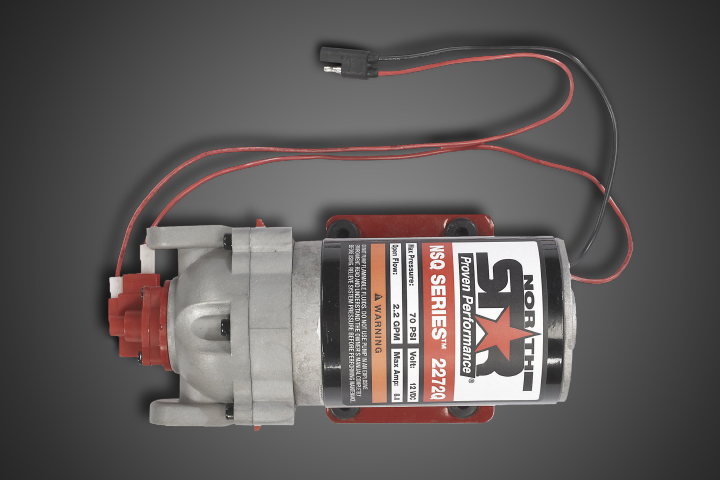

DURABILITY AND PERFORMANCE

Crafted from chemical-resistant materials like Viton® and featuring a Santoprene™ diaphragm, the pump promises EXCEPTIONAL DURABILITY and EFFICIENT PRIMING for a longer lifespan

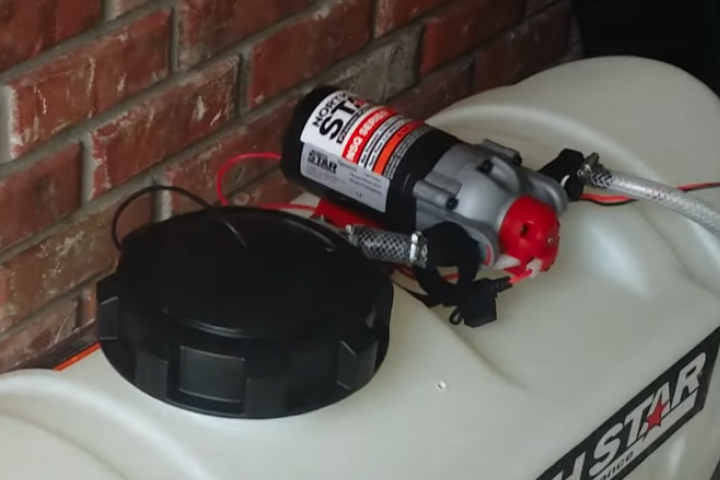

SMART TECHNOLOGY

Equipped with an INTELLIGENT PRESSURE SWITCH, this pump minimizes wear on components, extending the life of both the switch and the motor by moderating operation cycles

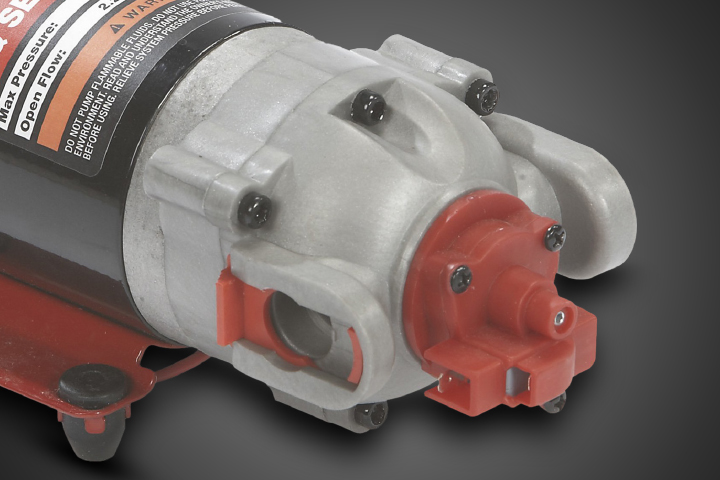

EASE OF USE

Designed for convenience with 3/4 INCH QUICK-CONNECT PORTS, making hose changes swift and simple. Its compatibility with various sprayers adds to its versatility

Features + Benefits

  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Innovative smooth valve design for faster priming and longer life
  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • All components in fluid path have been tested and approved for Roundup use
  • 3/4in. quick-connect ports for easy changes
  • Self-priming up to 10 feet above liquid level
  • Fits all NorthStar sprayers and most other brands (includes 3/8in. and 1/2in. hose barbs and 1/2in. male NPT fitting)
  • 12 Volts
  • Standard mounting pattern

Key Specs

AttributeSpecification

item#

2682272

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

5.28 LB

Max. PSI

70
AttributeSpecification

Max. Flow Rate

2.2 GPM

Volts

12

Amps

8

Inlet Port

3/4

Outlet Port

3/4

Reviews

Questions & Answers

112 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. Connections

    If the quick connect fittings are removed, does it have NPT fittings and if so, what size?

    1. The quick connect is built into the housing. No threads at all on these. Just slide your quick connect into the slot, latch the plastic latch and you are off and running.

      Helpful?

    2. This pump does not have NPT fittings if the quick-connect ports/clips are removed. Click the link below to view the version of this pump that has 3/8" NPT ports.

      Helpful?

  2. Does it come with any fittings?

    1. Yes, it comes with alternate fittings so it can be used with a system that is not "Quick Change".

      Helpful?

    2. This NorthStar pump includes one 3/8" hose barb fitting, one 1/2" hose barb fitting and one 1/2" male NPT fitting.

      Helpful?

  3. Is this pump waterproof?

    Is this pump waterproof? If something was to get it wet like rain or snow?

    1. Yes. It can be used outdoors in all weather. Just avoid freezing.

      Helpful?

    2. The NorthStar On-Demand Pump is weatherproof but is not intended to be left out in the elements.

      Helpful?

  4. How high can the pump suck fluid

    1 answer

    1. This pump is self-priming up to 10 feet above the liquid level.

      Helpful?

  5. Will this replace model 5560

    1 answer

    1. This is a 2.2 GPM pump. Model 5560 is a 5.5 GPM pump and was replaced by item 2685561.

      Helpful?

  6. Will this pump replace a 26810011E (2272Q) NSQ series

    1 answer

    1. This is the appropriate replacement pump for sprayer model 26810011.

      Helpful?

  7. I dont need the motor, just the pump assy. is the pump only available?

    1 answer

    1. The pump head assembly is no longer available as a separate part.

      Helpful?

  8. what is the horizantal and verticle spray distance of this pump 9ft What is the horizantal & verticle spray distance of this pump?

    1 answer

    1. The spray height and distance will depend on the sprayer set up. The NorthStar sprayers that this pump is used on have a spray height of 19 ft. and a horizontal spray distance of 30 ft.

      Helpful?

  9. Does the nsq series 2272q pump air into the tank and force the liquid out or does it suck the fluid out?

    1 answer

    1. The pump will use suction to draw the fluid from the tank. It does not pressurize the tank to force the liquid out of the tank.

      Helpful?

  10. What is name of the accessory cord that goes from the unit to the battery and what is it's sku number?

    1 answer

    1. The remote sprayer switch is item number 94992. This will connect the pump to the power source.
