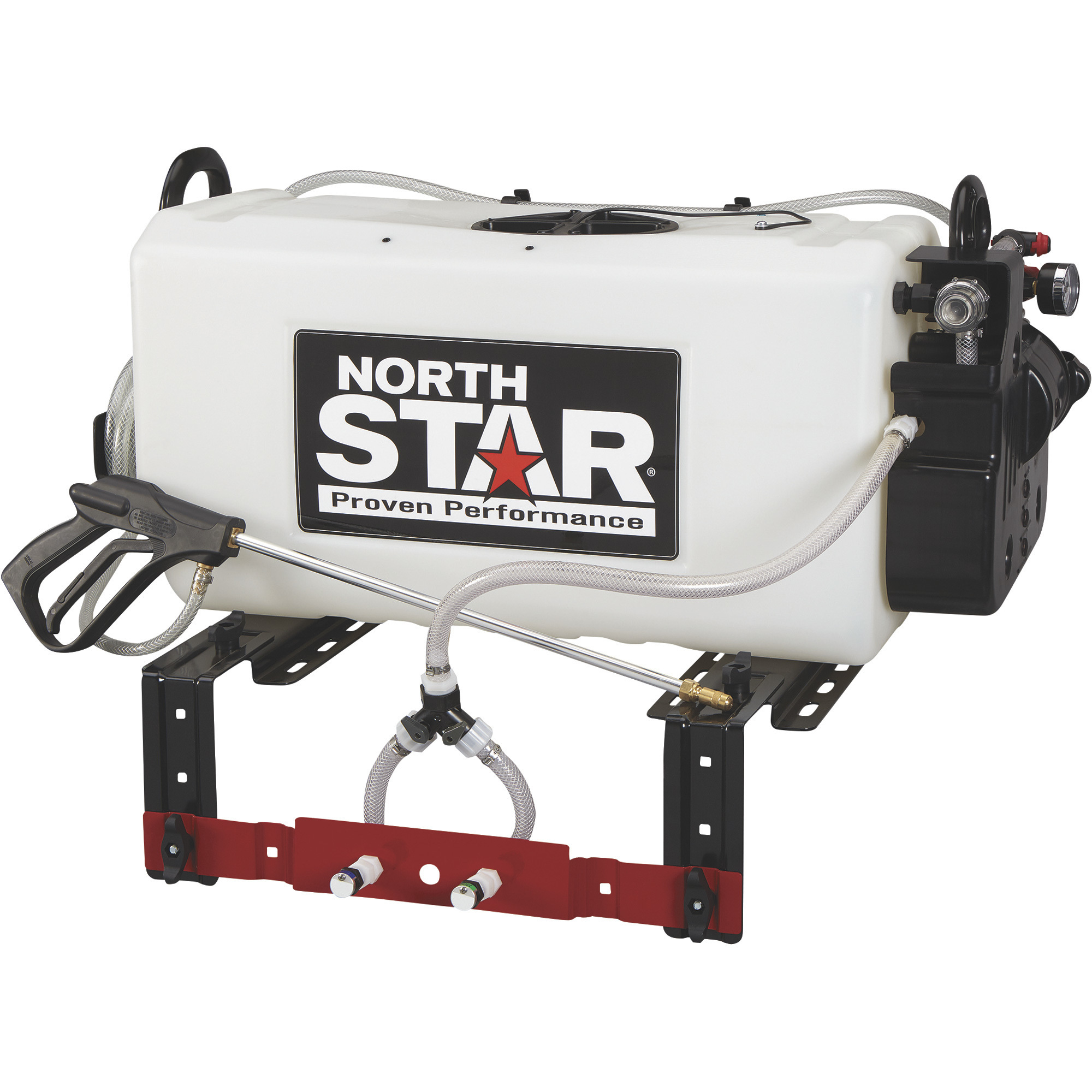

NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gal. Capacity, 5.5 GPM, 12 Volt DC, Scratch and Dent Model

Item# 7231186
NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gal. Capacity, 5.5 GPM, 12 Volt DC, Scratch and Dent Model

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, 26-Gal. Capacity, 5.5 GPM, 12 Volt DC, Scratch and Dent Model

Click or Tap image to Zoom

$374.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

  • Scratch + Dent Model: May have minor cosmetic blemishes; includes a 30-day limited warranty
  • High-Flow Boomless Broadcast and Spot Spraying Capability: Supports wide-area boomless spraying and targeted spot treatment for lawns, fields, fence lines and acreage applications
  • 26-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger outdoor spraying tasks
  • 5.5 GPM, 60 PSI, 12V Diaphragm Pump: Delivers high-flow spraying performance for increased application speed and wider coverage capability
  • Demand-Style Pump Operation: Pump automatically cycles on and off as needed to maintain spraying pressure and reduce unnecessary pump operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer is designed for high-capacity chemical application across lawns, fields and large outdoor properties. Featuring both boomless broadcast and spot spraying capability, this sprayer delivers ultra-wide coverage while allowing precise treatment of targeted areas. The 26-gallon tank reduces refill frequency, while the 5.5 GPM, 60 PSI, 12V NSQ Series diaphragm pump with DXS-3 Viton valves and Santoprene diaphragm provides high-flow spraying performance for faster application and increased coverage efficiency. A 320in. spray width, adjustable pressure regulator with integrated gauge and built-in agitation system help support consistent application results. Designed for ATV mounting, this sprayer also includes a 25ft. gun hose, adjustable spray gun nozzle, remote switch operation and integrated hose storage for added convenience and versatility in the field.Scratch and Dent Model: May have minor cosmetic blemishes; includes a 30-day limited warranty.

What's Included

    (1) NorthStar High-Flow ATV Boomless Broadcast and Spot Sprayer, Scratch and Dent Model

Features + Benefits

  • Scratch + Dent Model: May have minor cosmetic blemishes; includes a 30-day limited warranty
  • High-Flow Boomless Broadcast and Spot Spraying Capability: Supports wide-area boomless spraying and targeted spot treatment for lawns, fields, fence lines and acreage applications
  • 26-Gallon Tank Capacity: Provides extended spray time with fewer refills for larger outdoor spraying tasks
  • 5.5 GPM, 60 PSI, 12V Diaphragm Pump: Delivers high-flow spraying performance for increased application speed and wider coverage capability
  • Demand-Style Pump Operation: Pump automatically cycles on and off as needed to maintain spraying pressure and reduce unnecessary pump operation
  • 320in. Broadcast Spray Width: Provides ultra-wide boomless coverage with 24in. overlap for more consistent chemical application
  • Independent Left and Right Broadcast Nozzle Control: Separate broadcast nozzle valves allow operators to spray from the left side, right side or both sides for greater application flexibility
  • Pressure Regulator with Integrated 0–100 PSI Gauge: Allows operators to adjust and monitor spraying pressure for more accurate application control
  • Built-In Agitation System: Helps maintain consistent chemical mixing for flowable, wettable powder and emulsified pesticides
  • Broadcast and Spot Spraying Simultaneously: Allows operators to use both the broadcast nozzle and spot spray gun at the same time for increased application flexibility
  • Adjustable Spray Gun Nozzle: Twist nozzle adjusts from straight stream to hollow cone spray pattern for targeted application control
  • 15ft. Gun Hose: Provides extended reach for spot spraying around trees, fence lines and hard-to-reach treatment areas
  • Remote Switch with Wire Harness: Allows convenient pump control directly from the ATV seat during operation
  • Integrated Fill Marks and Vented Fill Cap: Molded tank markings help simplify chemical mixing while the vented cap maintains proper airflow during operation
  • Integrated Hose Wrap and Gun Clips: Built-in storage helps keep spray hose and spray gun organized during transport and storage
  • Clear-Bowl Suction Strainer: Helps prevent debris from entering the pump system for more reliable operation and easier maintenance
  • ATV Mount Design: Mounts securely to ATVs for efficient mobility across fields, trails and uneven terrain

Key Specs

AttributeSpecification

item#

7231186

Brand

NorthStar

Manufacturer's Warranty

1 month limited warranty

Ship Weight

47.5 LB

Tank Size

26 Gal

Flow

5.5 GPM

Pressure

60 PSI

Boomless

Yes

Spray Height

22 ft
AttributeSpecification

Broadcast Width

40 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Deluxe

Tow Behind Cart Included

No

Pump Type

Northstar Quick-connect

Hose Length

180 in

Product Weight

42.8000 lb

Dimensions L x W x H (in.)

35.5 x 18.0 x 15.0 in

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. is there really no warranty?

    1 answer

    1. This scratch-and-dent model sprayer comes with a one-month limited warranty that covers manufacturing defects.

      Helpful?

  2. Will this sprayer work with simazine

    1 answer

    1. This sprayer is designed for use with pesticides. To ensure compatibility and proper performance, verify that the chemicals being used are compatible with the sprayer’s materials, including: Polyethylene, EPDM, Polypropylene, PVC, Stainless Steel, Polycarbonate, Viton, Santoprene, Polyacetal, Nylon, Brass, NBR, and Aluminum.

      Helpful?

  3. 126 gallon fill spray a acre

    1 answer

    1. This sprayer can provide coverage for one acre or more. The total coverage area depends on the operating pressure (PSI) and the speed of travel.

      Helpful?

Warranty

Manufacturer's Warranty

1 month limited warranty
