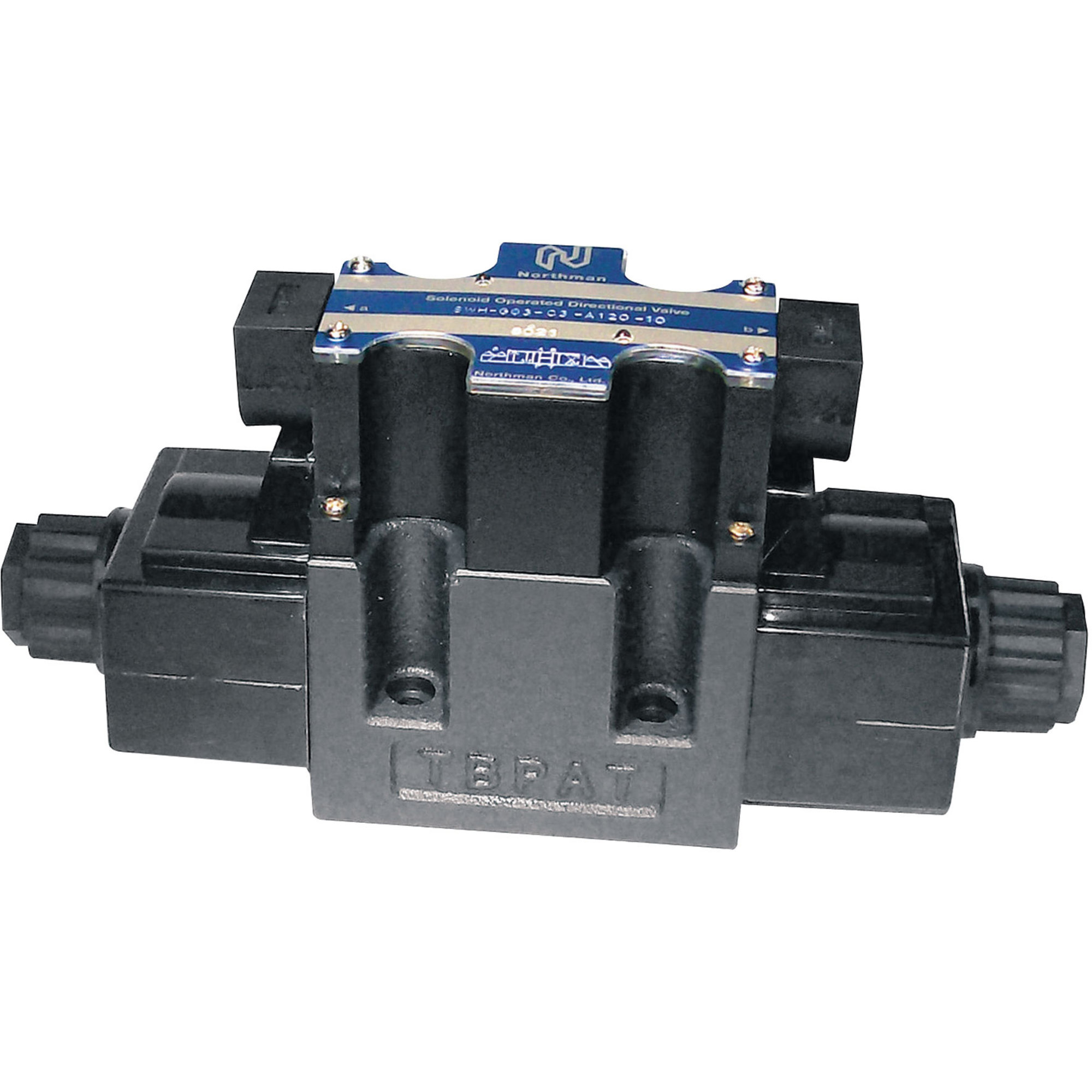

Northman Fluid Power Hydraulic Directional Control Valve – 26.4 GPM, 4,500 PSI, 3-Position, Double Solenoid, Float Center Spool, 120 Volt AC Solenoids, Model# SWH-G03-C4-A120-10

Item# 201504
Northman Fluid Power Hydraulic Directional Control Valve – 26.4 GPM, 4,500 PSI, 3-Position, Double Solenoid, Float Center Spool, 120 Volt AC Solenoids, Model# SWH-G03-C4-A120-10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Northman Fluid Power Hydraulic Directional Control Valve – 26.4 GPM, 4,500 PSI, 3-Position, Double Solenoid, Float Center Spool, 120 Volt AC Solenoids, Model# SWH-G03-C4-A120-10

Click or Tap image to Zoom

  • Hydraulic Directional Control Valve
  • Spring Centered
  • Float Center Spool Type
  • Molded Coil
  • Manual Override

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This industrial hydraulic directional control valve conforms to the National Fluid Power Association (NFPA) D05 mounting pattern for subplate or manifold mounting. As a four-way valve, it is commonly used to extend and retract a double-acting hydraulic cylinder or to control a rotary hydraulic motor. As a spring-centered valve, it will remain in its home position with A, B and T ports commonly connected until shifted electrically to one of two positions to either extend or retract a cylinder, returning to home when the power is removed. Its molded coils are moisture and dirt resistant. Indicating signal lights, manual override, bolt kit and electrical junction box are standard. The valve mounts on Northern Tool Subplate 203321 with 3/8in. NPT ports or 203331 with 1/2in. NPT ports.

What's Included

  • (1) Hydraulic Directional Control Valve

Features + Benefits

  • Hydraulic Directional Control Valve
  • Spring Centered
  • Float Center Spool Type
  • Molded Coil
  • Manual Override
  • Subplate or Manifold Mount, NFPA Size D05
  • Bolt Kit Included
  • Mounting Subplate Available Separately
  • Modular Pressure and Flow Control Valves Available Separately

Key Specs

AttributeSpecification

item#

201504

Brand

Northman Fluid Power

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

9.4 LB
AttributeSpecification

GPM

26.4

Max. PSI

4,500

Directional Control

4-way, 3-position

Indicator Light

Yes

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. What is the difference between closed, floating, and opened

    1 answer

    1. On hydraulic systems a closed center valve will not let fluid move through the valve when in the center position. On an open system the fluid passes through the valve and back to tank and keeps circulating. The float position will allow the cylinder to float with the contour of the terrain. For example: if you were to back drag with a loader on a tractor, the bucket will move up and down with the grade.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
