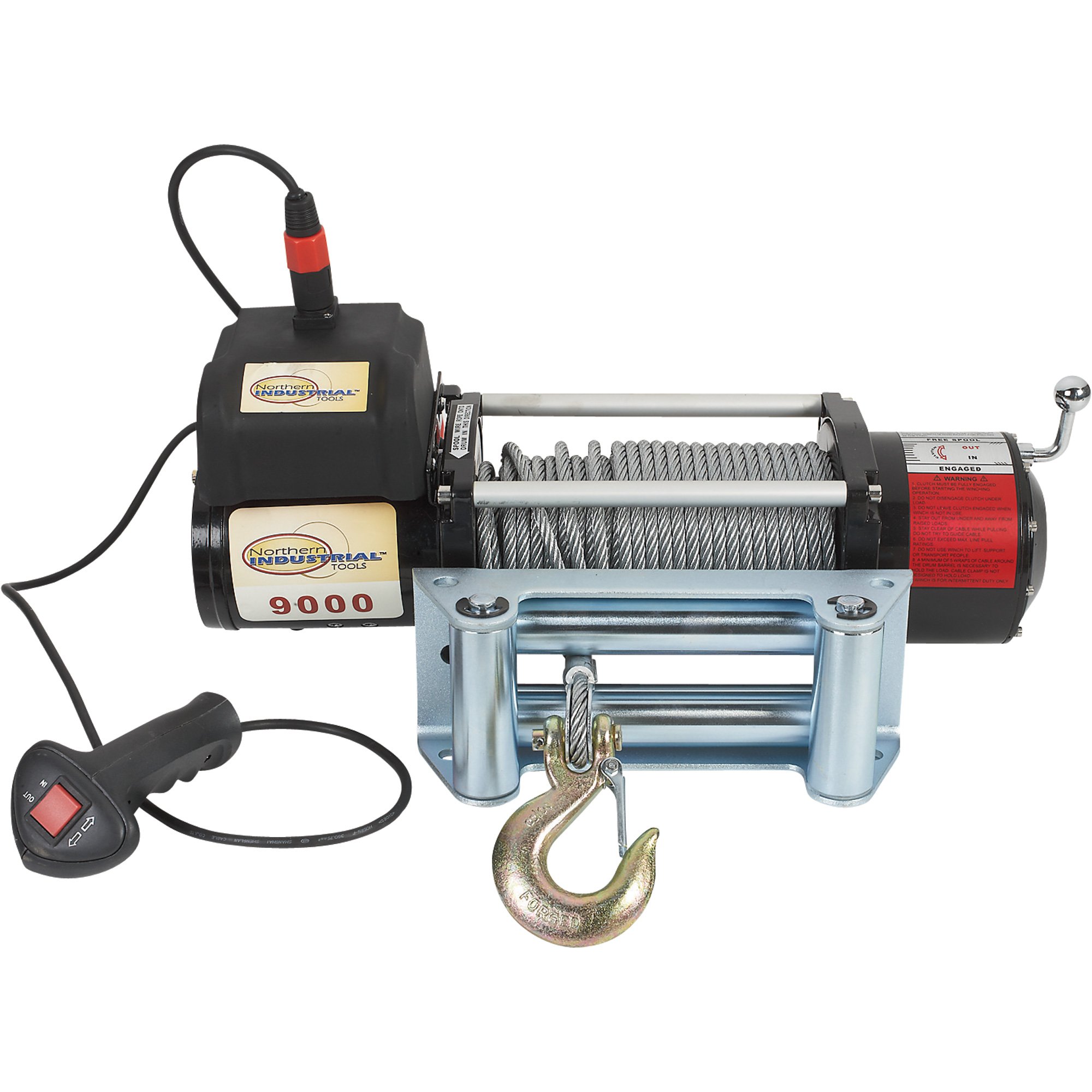

Northern Industrial Tools Truck Winch — 9000-Lb. Capacity, 12 Volt DC, Model# 400176

Item# 999363
FREE SHIPPING - Northern Industrial Tools Truck Winch - 9000-Lb. Capacity, 12 Volt DC, Model# 400176
Northern Industrial Tools Truck Winch — 9000-Lb. Capacity, 12 Volt DC, Model# 400176

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Northern Industrial Tools Truck Winch — 9000-Lb. Capacity, 12 Volt DC, Model# 400176

Click or Tap image to Zoom

  • Heavy-duty 9000-lb. pulling capacity (single line)
  • 6.6 HP 12V DC series wound motor for increased pulling power
  • 3-stage planetary geartrain
  • Easy-to-use 12-ft. remote control
  • Freespooling shift pin ring gear clutch

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This powerful 9000-lb. Truck Winch from Northern Industrial Tools is engineered for serious vehicle rescue and will pull your wheels out of trouble time after time. Its robust 6.6 HP motor will get you back on the trail in no time flat.

Downloads

Product Manual
Additional Product Info Additional Product Info2

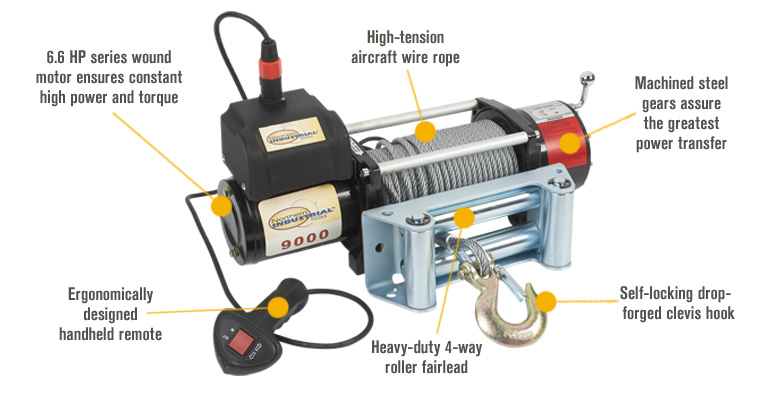

Features + Benefits

  • Heavy-duty 9000-lb. pulling capacity (single line)
  • 6.6 HP 12V DC series wound motor for increased pulling power
  • 3-stage planetary geartrain
  • Easy-to-use 12-ft. remote control
  • Freespooling shift pin ring gear clutch
  • Automatic mechanical in-drum brake
  • Durable integrated solenoid module for long service life
  • Includes 94 feet of 21/64in. dia. wire rope, roller fairlead and battery leads

Key Specs

AttributeSpecification

item#

999363

Brand

Northern Industrial Tools

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

95.0 LB

Horsepower

6.6 HP

Capacity (Line Pull)

9,000 lb

Gear Type

Planetary

Line Speed

7.5 ft./min.
AttributeSpecification

Gear Ratio

172.8:1

Rope Length

94 ft

Rope Diameter

21/64 in

Brake Type

Drum

Remote Cord Length

12 ft

Freespooling

Yes

Fairlead Type

Roller

Reviews

Questions & Answers

44 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Is the hitch mounting platform shown in the video included?

    1. No, but Northern Tool does have one available that should work.

      Helpful?

    2. No.

      Helpful?

    3. NO, PLATFORM IS A SEPARATE ITEM

      Helpful?

    4. The receiver winch mount shown in the video is not included, but can be purchased through Northern Tool. See link below for more information.

      Helpful?

  2. does this winch power in and out, pulling in both directions?

    1. This winch does power in and out but also has a clutch that can be released to be able to pull the line out by hand.

      Helpful?

    2. Yes, but when powered out there was only the guy pulling the cable for weight. We were on level ground and were only spooling out to hook up to our log.

      Helpful?

    3. Yes, this Northern Industrial winch has power in and power out.

      Helpful?

  3. will this wench have sufficient pull to lift a boat weighing 1100 pounds?

    The wench will fit on a davit (crane) with a roller pully on the end of the arm. I will be lifting a boat a distance of about 20' vertically. Also need spacing on the bolt holes for attaching.

    1. This winch is rated for up to 9000lbs maximum, and has lifted the front end of my 6600lb Dodge Ram off the ground without any trouble.

      1100lbs seems well within the lifting capacity, but I wouldn't use it in this capacity without putting a cable brake on your davit so that the winch isn't holding all of the weight alone.

      Helpful?

    2. Northern Tool does not recommend ever using a winch for lifting. All winches are designed for pulling, and hoists are designed for lifting. Hoists have different brakes designed for holding a vertical load. The only electric hoist we sell that could handle more 1000 lbs could lift this about 18 feet. See link below.

      Helpful?

  4. Are the motor and gearcase sealed; i.e. waterproof?

    1. This is not waterproof. It is rated for non-industrial use in marine environments. The motor and gearbox are enclosed, but we would not imply they are completely sealed.

      Helpful?

    2. They are not sealed with any kind of gasket, but the machining is pretty tight so it has a good seal on it. Speaking from experience, I had a buddy borrow mine and left it in the bed of his truck while it was parked downhill and it rained. When I came to pick it up the next day it was still completely under water. Pulled it part to see if there was anthing, and there was a little water in it but nothing bad, still works great and I have had mine over a year and have abused the heck out of it. Still as strong as the day i bought it.

      Helpful?

  5. ya they say there is power leads but how long are they cosidering this is going to the back of the vehicle

    1. The power leads are only long enough to go from your front bumper into you engine compartment to your battery. But this is an exellent winch for the money.

      Helpful?

    2. This truck winch comes with battery leads/cables that are 6 feet long.

      Helpful?

  6. remote

    Can I purchase an additional wired remote for this? If so, how much is it & how do I purchase it?

    1. You should be able to get this as a replacement part by calling the Northern Tool support hotline. I purchased a spare from them last year.

      Helpful?

    2. The remote part # is TMA999363C27. Please call our parts department @ 1-800-222-5381 for price and availability.

      Helpful?

  7. Is there a weatherproof cover available for this winch? I have mine mounted on a open trailer and would like to keep the elements off it> Let me know?

    1. I purchased a neoprene universal fit cover for mine and it has done a great job keeping the dust and mud off of my winch, not so much as a spec of rust on it yet.

      I included a link to a Northern Tool cover for a Ramsey or Patriot winch, but it looks like it should fit, if it doesn't, the Northern Tool return policy is very flexible.

      Helpful?

    2. We do not offer a weatherproof cover for this Northern Industrial Tools truck winch at this time.

      Helpful?

  8. Do you have a mounting package for a 2" receiver

    1. This product should work and even has a space to mount the fairlead rollers.

      Helpful?

    2. We have do have a mounting package for a 2 inch receiver, check out my product recommendations.

      Helpful?

  9. can i get a wireless controler for this winch like the 12,000 pound winch?

    1 answer

    1. At this time, we do not have a wireless controller for this Northern Industrial truck winch.

      Helpful?

  10. Country where manufactured?

    1 answer

    1. This Northern Industrial Tools truck winch is manufactured in China.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
