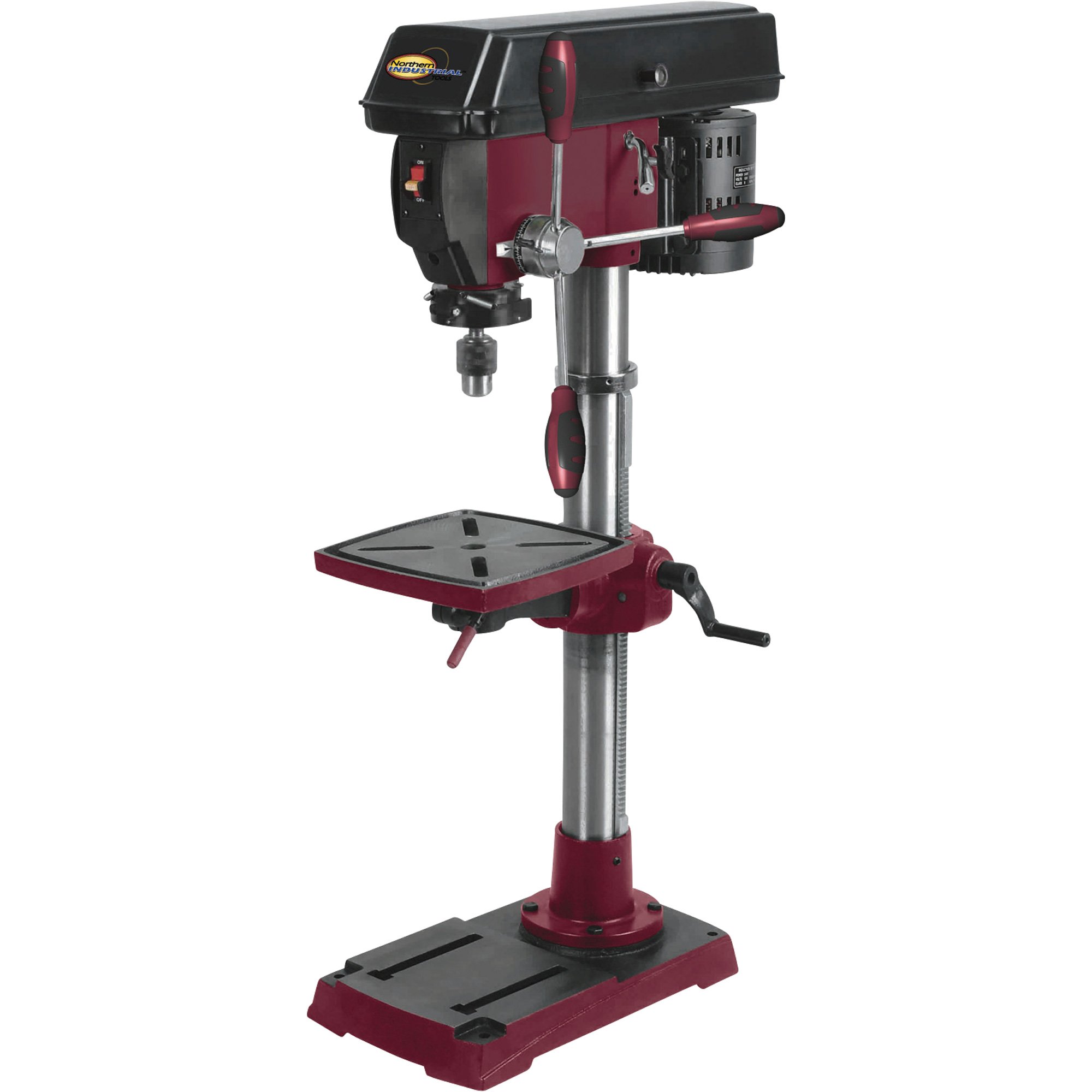

Northern Industrial Tools Benchtop Drill Press with Laser — 16-Speed, 3/4 HP

Item# 155302
Northern Industrial Tools Benchtop Drill Press with Laser - 16-Speed, 3/4 HP
Northern Industrial Tools Benchtop Drill Press with Laser — 16-Speed, 3/4 HP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Northern Industrial Tools Benchtop Drill Press with Laser — 16-Speed, 3/4 HP

Click or Tap image to Zoom

  • Rack and Pinion table height adjust
  • Depth lock
  • Spindle taper: MT-2
  • Screwdriver handle
  • 17 15/16in. x 10 5/8in. base

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Precision drilling and pinpoint accuracy in one powerful machine.

What's Included

  • (1) Drill press
  • (1) Chuck key
  • (1) Allen key
  • (1) Silica gel

Downloads

Product Manual

Features + Benefits

  • Rack and Pinion table height adjust
  • Depth lock
  • Spindle taper: MT-2
  • Screwdriver handle
  • 17 15/16in. x 10 5/8in. base

Key Specs

AttributeSpecification

item#

155302

Brand

Northern Industrial Tools

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

123.0 LB

Horsepower

0.75 HP

Volts

120

Max. Speed

3,670 rpm
AttributeSpecification

Speeds (qty.)

16

Vertical Stroke

3 11/64 in

Drilling Capacity

3/8 in

Chuck Size

5/8 in

Variable Speed

No

Swing

13 in

Dimensions L x W x H (in.)

13 x 22 x 41.75 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Where is this DP made?

    1. China

      Helpful?

    2. This Northern Industrial Bench Drill Press with Laser is made in China.

      Helpful?

  2. What is the maximum distance between the quill and table?

    1 answer

    1. This Northern Industrial Tools Benchtop Drill Press with Laser has a maximum distance between the chuck and the table of 395 MM or 15.55" when the table is in the lowest position.

      Helpful?

  3. What is the diameter of the column?

    1 answer

    1. On this drill press the column is 2 11/16" in diameter.

      Helpful?

  4. what is the amp rating of the 3/4 hp motor

    I would like to know what amp size the 3/4 hp motor on the Northern Industrial Bench Drill Press with Laser 16 speed drill press.
    ie: 4amp, 6amp ect....

    1 answer

    1. This drill press includes a motor that draws approximately 4.7 amps.

      Helpful?

  5. Is there a mortising attachment available for bench drill press item #155302, anywhere?

    1 answer

    1. Yes, our item # is 155702. Please see below.

      Helpful?

  6. spindle size

    does this drill have a morris taper spindle and what number

    1 answer

    1. The Northern Industrial Bench Drill Press with Laser has a 9/16" spindle that does have a Morse Taper , but does not list a number.

      Helpful?

  7. What is the spindle/quill size of the 16-speed, 3/4 HP drill press

    1 answer

    1. The drill spindle/quill size is 9/16".

      Helpful?

  8. what kind of light bulb fits this tool? I've tried regular base, candalbra base , and intermediate (appliance base).

    It seems to be just a hair smaller than the standard base, or maybe a different thread form.

    Thanks,

    Dick

    1 answer

    1. The replacement bulb for this is a medium base 60 watt light bulb.

      Helpful?
