Because it is a bench top model the manufacturer is unable to provide accuracy requirements.

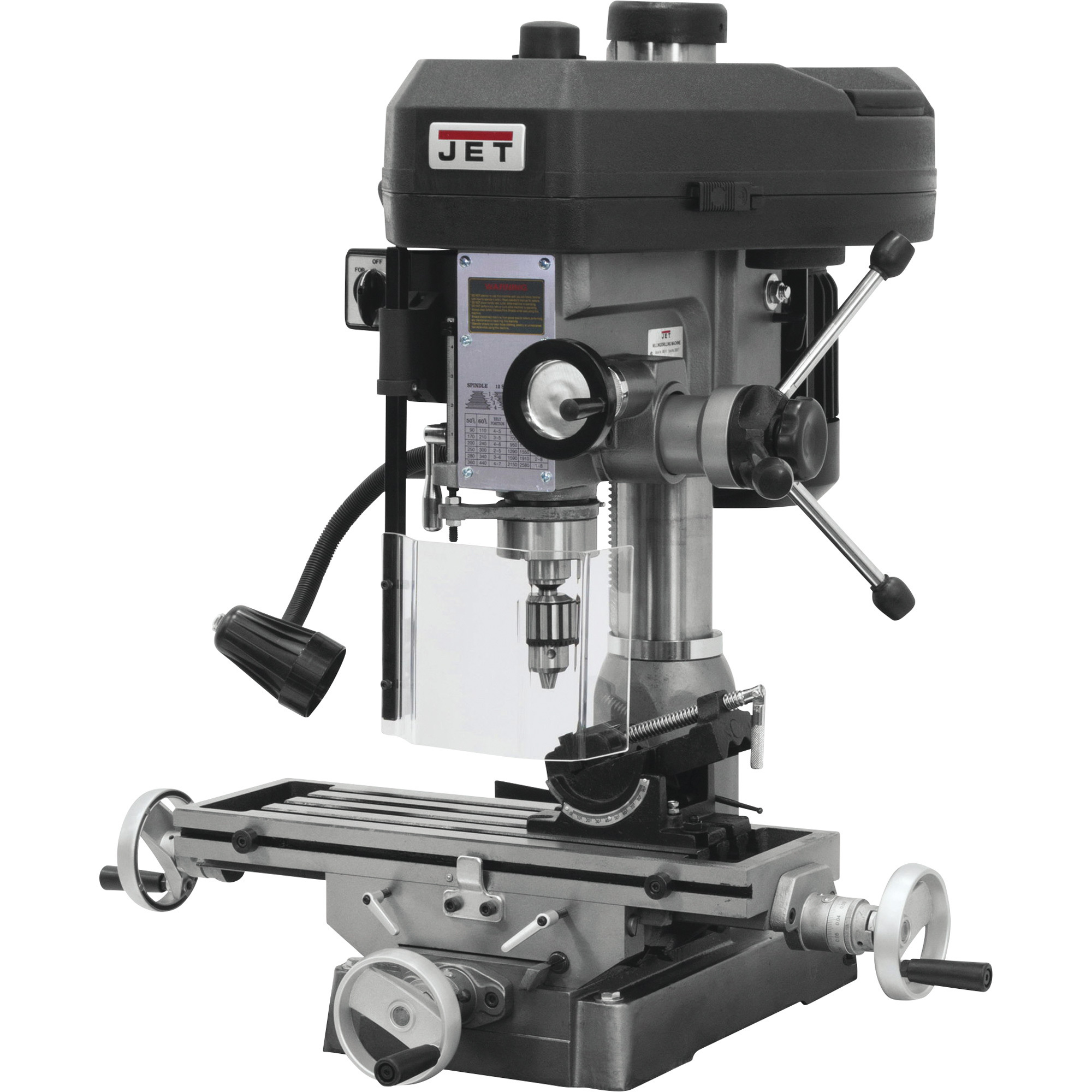

JET Milling/Drilling Machine, 15in., 1 HP, 115/230V, Model# JMD-15
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$3024.99
- UL listed motor
- Adjustable carbide facemill
- Drill press angle vise
Prop 65 Warning: See Details
See full description
Price for all four:
$4039.96
-
how acurate is controling the depth?
-
Helpful?
-
Thank you for your inquiry.
Because it is a bench top model we are unable to provide accuracy requirements for the Milling/Drilling Machine - 15in., Model# 350017.
Please accept our apologies.
Thank you!
Helpful?
-
-
What is the mandril stroke distance?
-
About 3".
Helpful?
-
The Mandrel stroke distance (spindle travel) on this JET machine is 3-1/2 inches.
Helpful?
-
-
There is no mention of Table size or it travel limits both critical when shoping for a mill
1 answer-
The working surface of the table is 7.5" x 23". The maximum table travel is 14". The spindle travel is 3.5". The swing is 14.5".
Helpful?
-
-
With a 110v machine how are you doing reverse spindle movement while running a tap in the spindle?
1 answer-
There is a switch on the side of the machine that has a Forward, Off and Reverse option. Once you get to the bottom of your drilled hole in Forward, turn the switch to Reverse. Then bring the bar back up.
Helpful?
-
-
What is the pitch of the feed screws; metric or imperial? What is actual thread pitch?
1 answer-
This would have metric feed screws. The manufacturer does not provide the information on the pitch. If replacement parts are needed, you would contact the manufacturer direct.
Helpful?
-
-
What is it wired for out of the box?
1 answer-
It is prewired for 115 Volt.
Helpful?
-
-
Is this made and manufactured in the USA?
1 answer-
The milling/drilling machine is manufactured in China.
Helpful?
-
-
Will this mill accept collets as well? If so, what collet designation.
1 answer-
The mill will accept R-8 collets. We do offer an R-8 chuck and collet set item number 70606.
Helpful?
-
-
is the width measurment from the end of the handles
i only have a 34" wide opening to bring the machine in the house. if there measurment is from the handle knobs i can remove them and and it will fit in. thanks
1 answer-
The distance from the end of one hand wheel knob to the end of the other is 36-1/2".
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Milling Machines + Drill Presses
See All JET Milling Machines + Drill Presses
Currently Viewing This Product
Specifications
Specifications
JET Milling/Drilling Machine, 15in., 1 HP, 115/230V, Model# JMD-15
JET Floor Drill Press, Variable Speed, 15in., 1 HP, 115/220V, Model# J-A5816
JET 2-Step Pulley Milling Machine, 9in. x 42in., 115/230 Volt, Single-Phase, Model# JTM-2
JET Variable Speed Milling Machine with X and Y-Axis Powerfeeds with Power Draw Bar-- 9in. x 49in., 230 Volt, 3-Phase, Model# JTM-4VS
Horsepower
Same
1 HP
1 HP
2 HP
3 HP
Volts
Same
115
115
115/230
230
Max. Speed
Same
2,580 rpm
5,000 rpm
2,720 rpm
4,200 rpm
360 Degree Head Swivel
Same
Yes
Yes
No
No
Speeds (qty.)
Same
12
-
8
-
Product Type
Same
Milling Machine/Drill Press
Drill Press
Milling Machine
Milling Machine
Drilling Capacity
Same
1 in
3/8 in
-
-
Chuck Size
Same
1/2 in
-
-
-
Light Included
Same
Yes
No
No
No
Stand Included
Same
No
No
Yes
Yes
Variable Speed
Same
No
Yes
No
Yes
Max. Spindle Distance
Same
15 in
24.5 in
17.5 in
17.5 in
Draw Bar
Same
Yes
No
Yes
Yes
Product Weight
Same
lb
lb
lb
lb
Dimensions L x W x H (in.)
Same
36.5 x 37.5 x 35.5 in
30.0 x 27.0 x 72.0 in
69.0 x 59.0 x 72.0 in
63.0 x 65.5 x 88.5 in
Vertical Stroke
Same
-
6 in
5 in
5 in
Swing
Same
-
15 in
19 in
19 in
