The specs state a capacity of a 24" log, 20' long and 1000#. To me, that's the total log weight. That puts the capacity ~500# on the arch and ~500# on the rear dolly.
By my math, a 1000# Ash log at 24" would be 18-19' long. I have an Ash log that is in the 400#+ range. I was able to move it with the arch lifting the entire log, but I wouldn't want to push it with anything much larger.

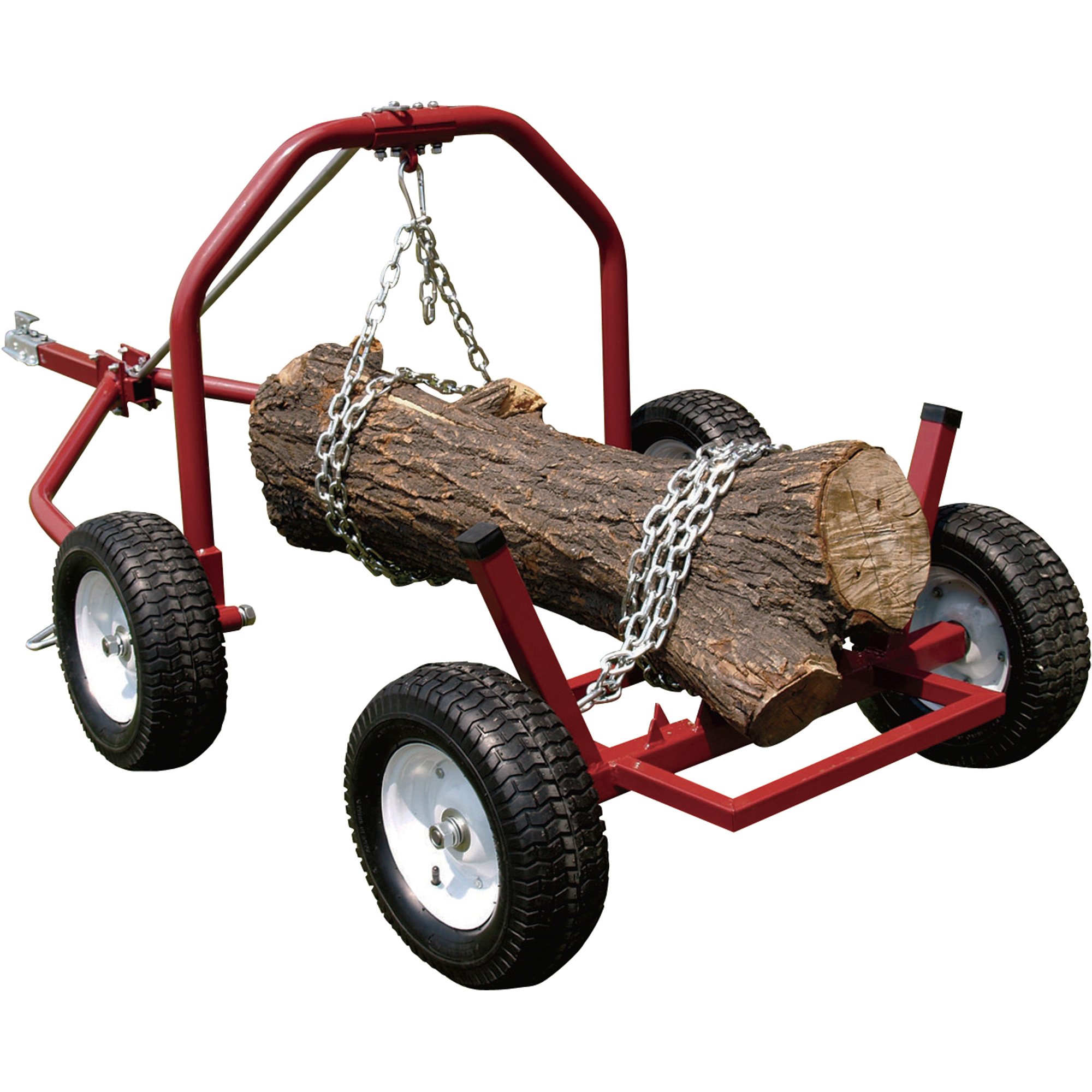

Northern Industrial Tools ATV Log Skid Arch and Holder

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
This item is no longer available.
- Slip the chain and steel probe under the log, then hook the chain; as ATV moves forward, chain rides up slide bar and hoists the log into arch
- Minimizes snagging and keeps logs mud-free during transport
- Includes four 16in. pneumatic tires and 1 7/8in. quick-lock trailer coupler
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) ATV log skid arch and holder
Downloads
Features + Benefits
- Slip the chain and steel probe under the log, then hook the chain; as ATV moves forward, chain rides up slide bar and hoists the log into arch
- Minimizes snagging and keeps logs mud-free during transport
- Includes four 16in. pneumatic tires and 1 7/8in. quick-lock trailer coupler
Key Specs
| Attribute | Specification |
|---|---|
item# | 119010 |
Brand | Northern Industrial Tools |
Manufacturer's Warranty | 12 months parts / 12 months labor |
Ship Weight | 200.0 LB |
| Attribute | Specification |
|---|---|
Product Type | Log Arches |
Material | Steel |
Log Diameter | 24 in |
Tire Size | 16 in |
Reviews
Questions & Answers
Questions
-
· 13 years ago
Weight Capacity?
The specs say this can move a 1000# log. Since this arch and holder are two separate pieces. Does the spec mean that both of these together can handle a 1000# log, or is each part rated for 1000# by itself?
Or: Is the front arch rated to support 1000#?
-
ColtsFanTake2· 10 years ago
Helpful?
-
CM85· 13 years ago
1000# total weight.
Helpful?
-
NITExpert12· 13 years ago
The Northern Industrial ATV Log Skid Arch and Holder has a total weight capacity of 1,000 lbs.for both sections combined.
Helpful?
-
-
· 15 years ago
do you know what the inside clearance between the wheels is?
-
toolie4444· 15 years ago
I don't know, but the manual recommends a maximum log diameter of 24".
Helpful?
-
NITExpert· 15 years ago
The inside clearance between the wheels is 31 1/2".
Helpful?
-
