Norseman, XPA Explosion-Proof Panel Heater, 200W, 120V, 1O, Model# XPAL-200T4120-410G31

Item# 5091108
Norseman, XPA Explosion-Proof Panel Heater, 200W, 120V, 1O, Model# XPAL-200T4120-410G31

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Norseman, XPA Explosion-Proof Panel Heater, 200W, 120V, 1O, Model# XPAL-200T4120-410G31

Click or Tap image to Zoom

$1099.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • XPA Explosion-Proof Natural Convection Panel Heaters
  • Designed specifically for freeze protection of control enclosures and other confined areas characterized by poor natural circulation where potentially explosive substances may be present, such as control cabinets, small enclosures and more.

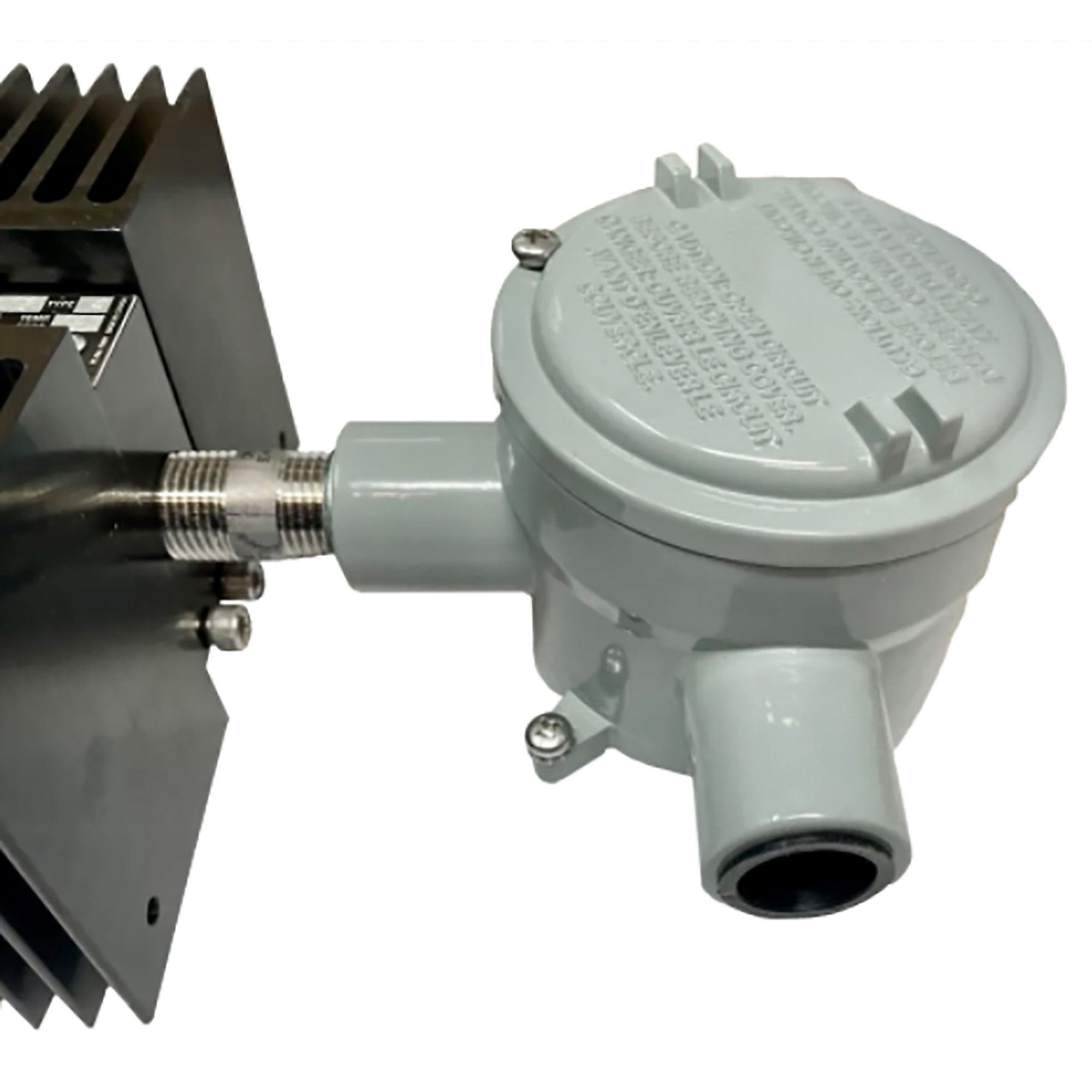

  • Comes factory-wired to an explosion-proof junction box or thermostat and includes a mounting bracket and hardware.
  • Models offered in 50 to 700 W and from 120 to 240V.
  • cCSAus certified for Class I, Division 1 & 2, Groups A, B, C, & D.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Norseman XPA Explosion-Proof Panel Heater is designed specifically for freeze protection of control enclosures in locations where explosive atmospheres exist, such as control cabinets. Typical applications include control cabinets, instrument enclosures and small storage rooms or cabinets for volatile products. Norseman is the most technologically advanced line of explosion-proof electric air heaters and heating accessories, including both forced air heaters and natural convection heaters, as well as unit heaters, panel heaters, and thermostats. Norseman offers innovative, low-maintenance solutions for a wide range of applications in a variety of industrial and commercial environments. Custom-engineered heaters or heating systems are available for specialized applications.

What's Included

    (1) Explosion-Proof Panel Heater c/w T'stat - 200W, 120V, 1Ø - Temp Code T4

Downloads

Additional Product Info Additional Product Info2

Features + Benefits

  • XPA Explosion-Proof Natural Convection Panel Heaters
  • Designed specifically for freeze protection of control enclosures and other confined areas characterized by poor natural circulation where potentially explosive substances may be present, such as control cabinets, small enclosures and more.
  • Comes factory-wired to an explosion-proof junction box or thermostat and includes a mounting bracket and hardware.
  • Models offered in 50 to 700 W and from 120 to 240V.
  • cCSAus certified for Class I, Division 1 & 2, Groups A, B, C, & D.
  • ATEX/IECEx/EAC Ex d IIC or IIB, T2 (215ºC), T3 or T4, Gb IP66.

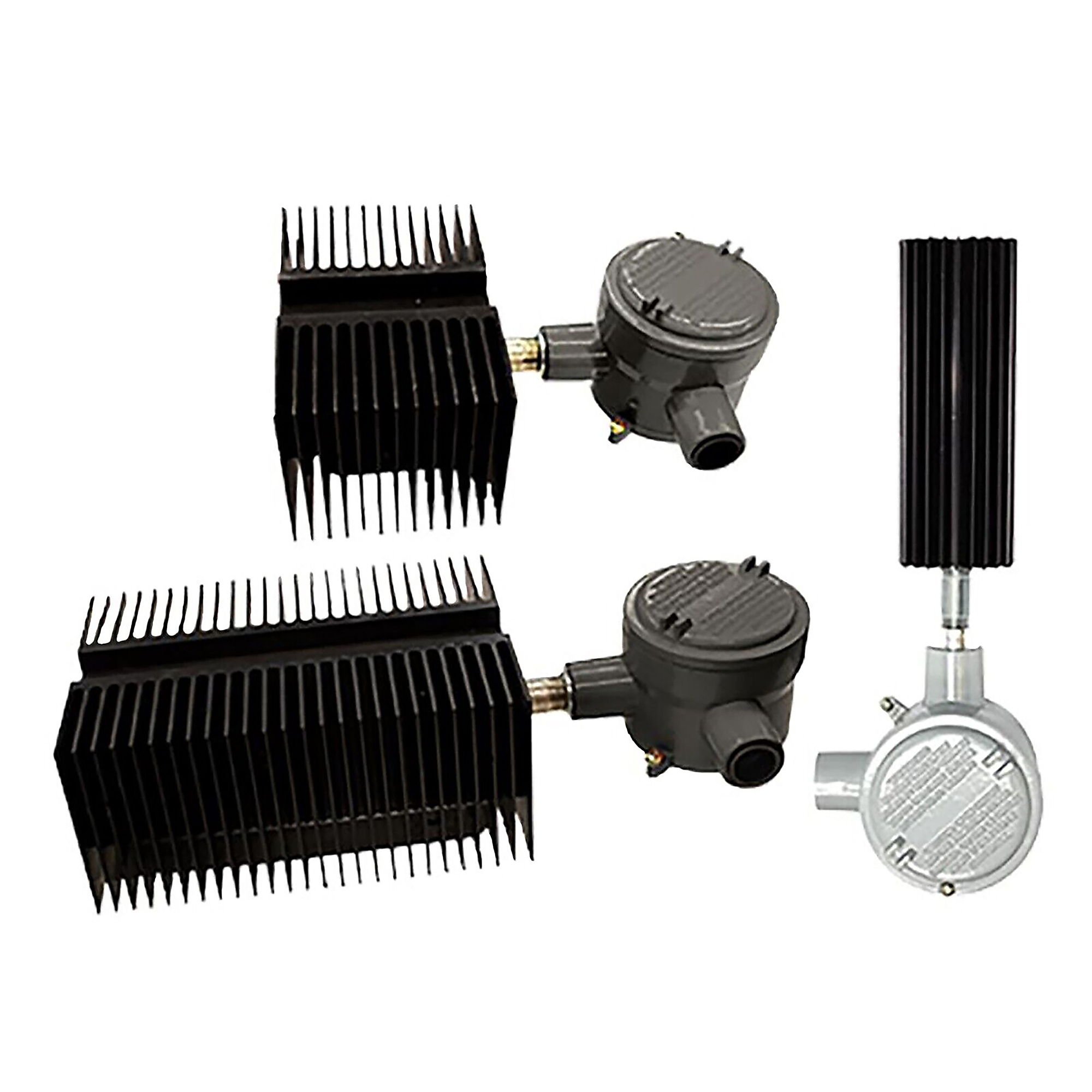

  • Available in three different size extrusions.
  • Custom engineered heaters or heating systems are available for specialized applications.

Key Specs

AttributeSpecification

item#

5091108

Brand

Norseman

Manufacturer's Warranty

1 year limited warranty

Ship Weight

8.0 LB

Heat Type

Convection

Heat Output

682 Btu/hour

Indoor Outdoor Use

Indoor
AttributeSpecification

Volts

120

Watts

200

Amps

1.7

Hardwired

Yes

Product Weight

6.0000 lb

Dimensions L x W x H (in.)

6.5 x 16.0 x 5.5 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
