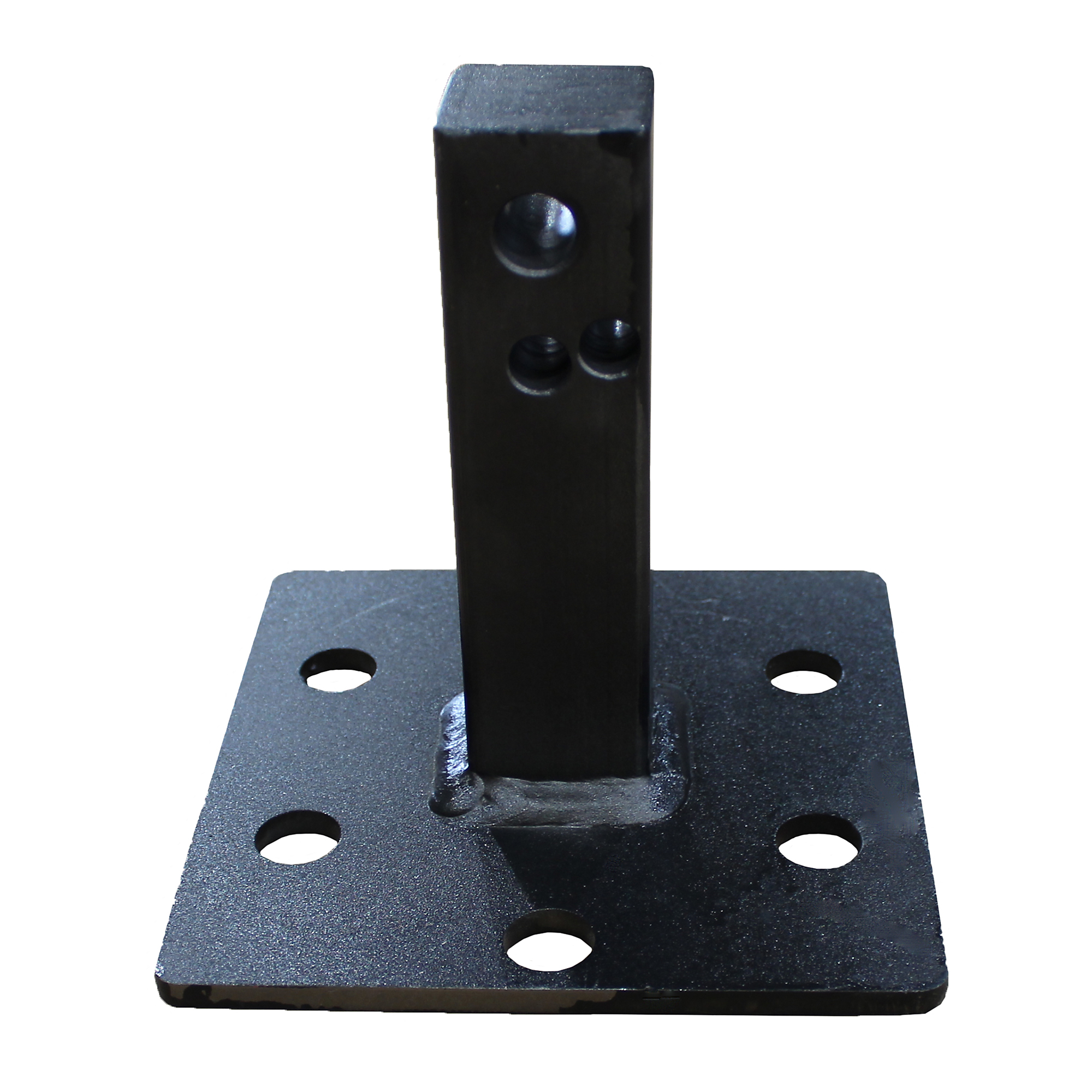

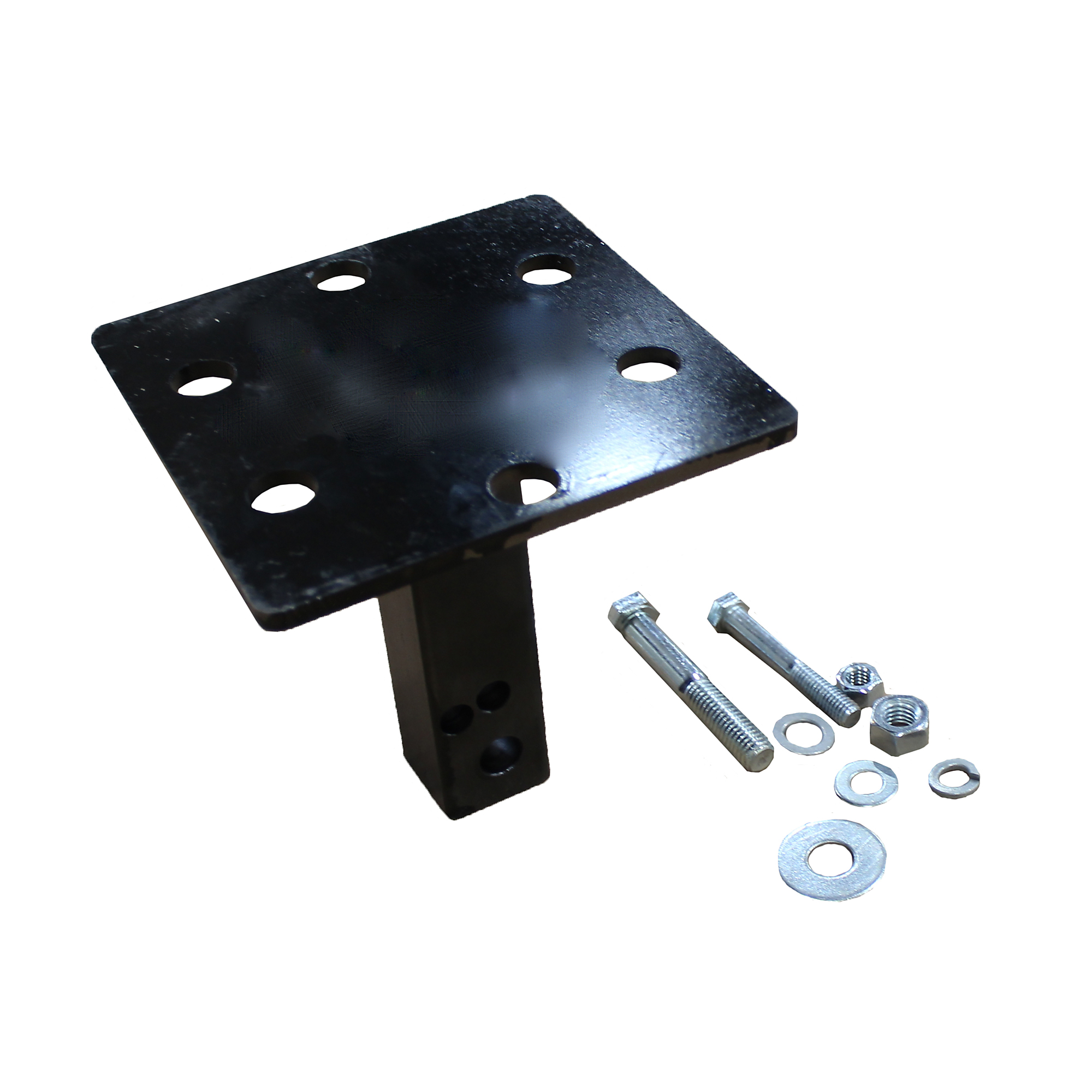

Norseman™ XGB Series Convection Heater Ceiling Mount Kit

Item# 7383374
New1 Included
Norseman™ XGB Series Convection Heater Ceiling Mount Kit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Norseman™ XGB Series Convection Heater Ceiling Mount Kit

Click or Tap image to Zoom

$94.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Norseman™ XGB Series Convection Heater Ceiling Mount Kit

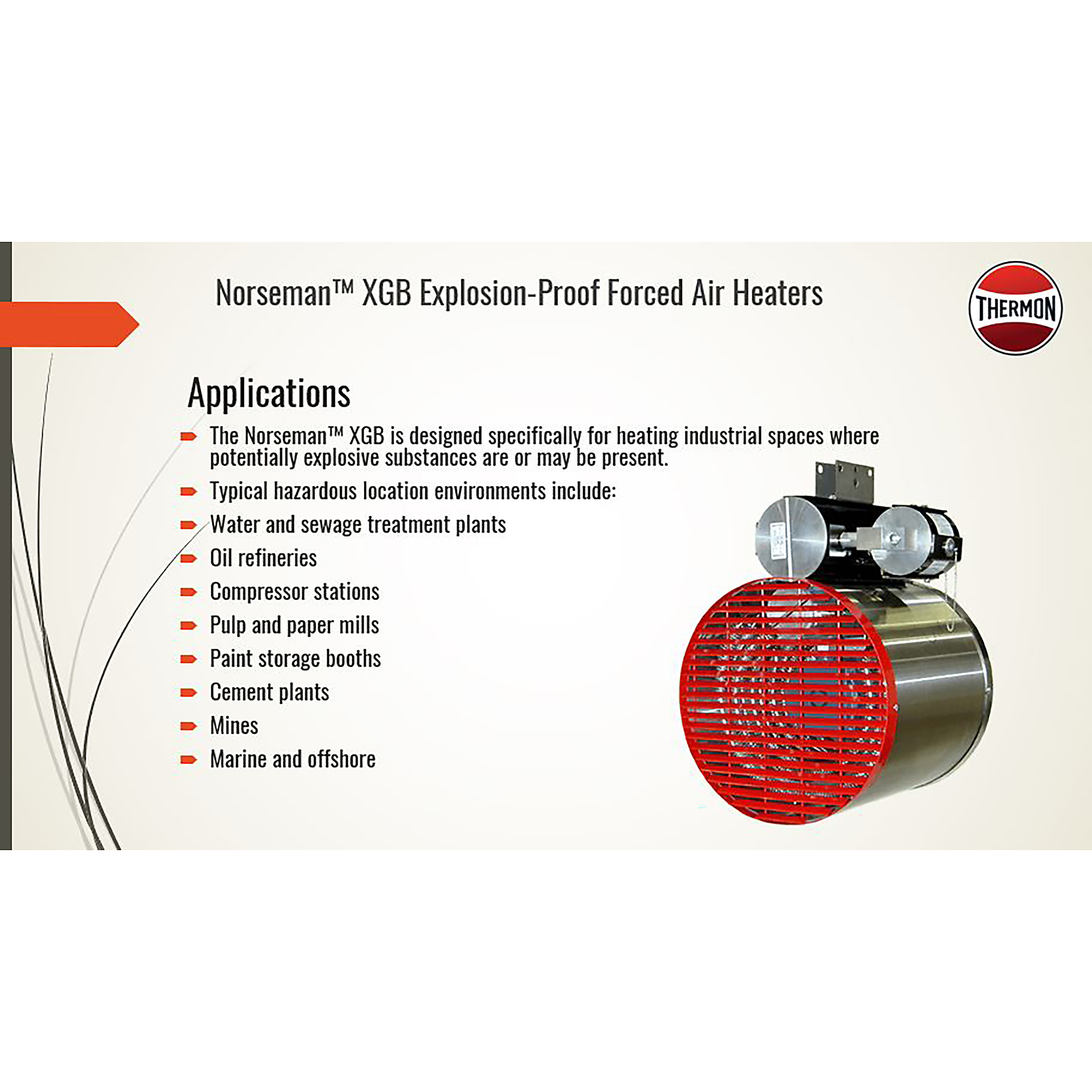

  • XGB Explosion-Proof Forced Air Heaters Designed for Hazardous Locations
  • Applications The Norseman™ XGB is designed specifically for heating industrial spaces where potentially explosive substances are or may be present. Typical hazardous location environments include:
  • Water and sewage treatment plants
  • Oil refineries

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Norseman™ XGB Series hazardous environment heater is designed to accommodate your requirements with flexibility and ease of maintenance, even under the most challenging conditions. Norseman™ XGB unit heaters are available in two sizes: small cabinet units with ratings of up to 10 kW and large cabinet units with ratings of up to 35 kW. The Norseman™ line provides innovative forced air or natural convection solutions to your hazardous area heating requirements, from panel heaters to unit heaters. The Norseman™ XGB is designed specifically for heating industrial spaces where potentially explosive substances are or may be present. Typical hazardous location environments include:
  • Water and sewage treatment plants
  • Oil refineries
  • Compressor stations
  • Pulp and paper mills
  • Paint storage booths
  • Cement plants
  • Mines
  • Marine and offshore Norseman™ XGB Heater Available Mounting Options: Ceiling mount kit, Wall mount kit, Post mount kit, Floor stand kit.

    • What's Included

      (1) Norseman™ XGB Series Convection Heater Ceiling Mount Kit

    Features + Benefits

    • Norseman™ XGB Series Convection Heater Ceiling Mount Kit
    • XGB Explosion-Proof Forced Air Heaters Designed for Hazardous Locations
    • Applications The Norseman™ XGB is designed specifically for heating industrial spaces where potentially explosive substances are or may be present. Typical hazardous location environments include:
    • Water and sewage treatment plants
    • Oil refineries
    • Compressor stations
    • Pulp and paper mills
    • Paint storage booths
    • Cement plants
    • Mines
    • Marine and offshore

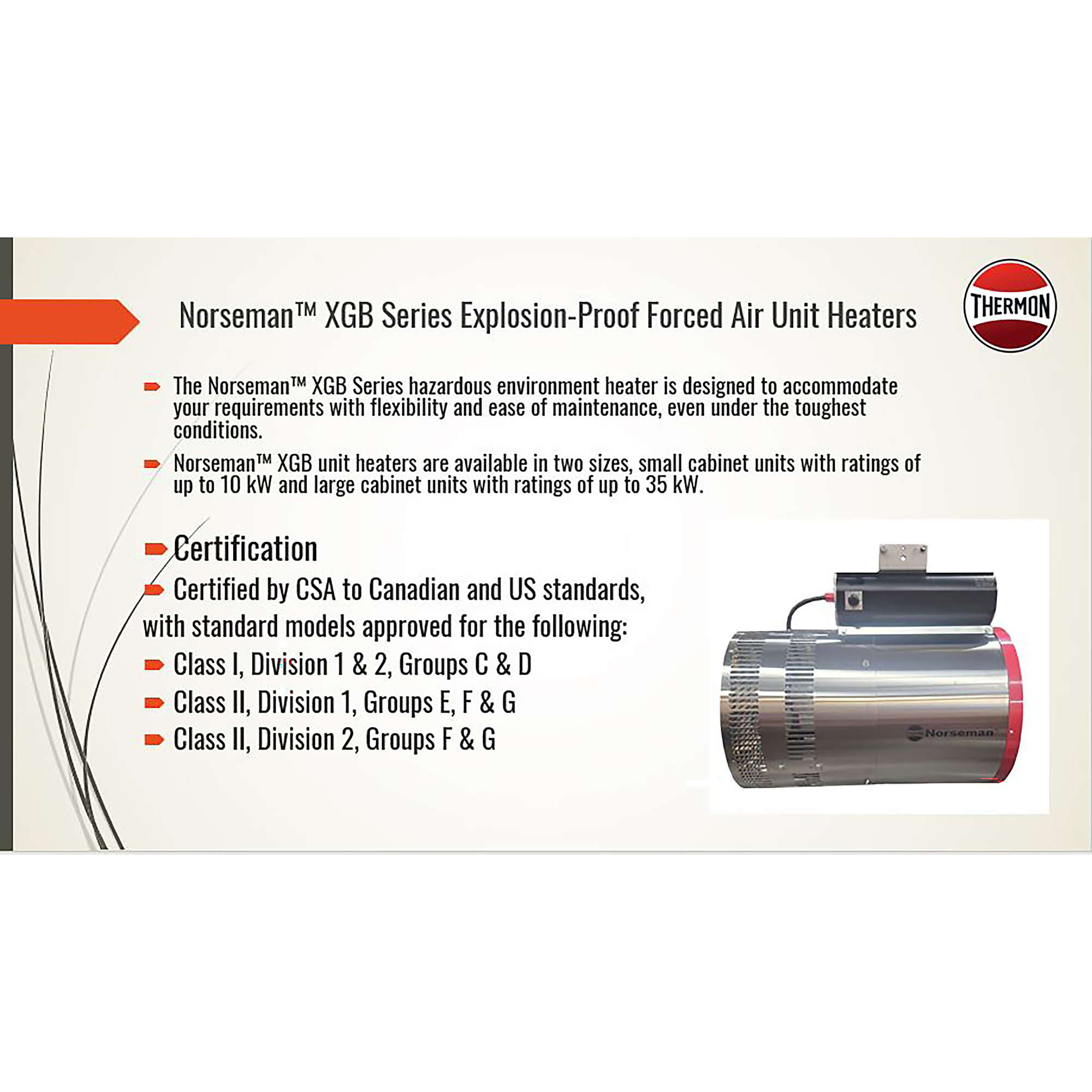

    • Certification Certified by CSA to Canadian and US standards, with standard models approved for the following:
    • Class I, Division 1 & 2, Groups C & D
    • Class II, Division 1, Groups E, F & G
    • Class II, Division 2, Groups F & G NOTE: Group B and 50 Hz constructions available on large cabinet construction only on special request. Class II and some atmospheric groups are not available in every kW rating.
    • Flow Adjustment In structures with high ceilings, other units may not have the range of motion needed to direct air flow to the floor. The XGB allows the unit to be tilted at a 30° angle below the horizontal. For lateral airflow, the entire louvre assembly can be rotated 90°.
    • No Conduit Seal Required A factory installed conduit seal provides the necessary isolation between the supply and control housings. In Division 2, Zone 2 applications, a field installed conduit seal may not be required.
    • Simplified Wiring To facilitate installation, the Norseman™ explosion-proof unit heaters feature Thermon Heating Systems’ patented x-Max® housing with slide out terminal block trolley for connection of the electrical supply.
    • 1/2 HP explosion-proof motor
    • Inlet wire guard
    • Extra heavy wall tubular steel finned heating elements with nickel plated finish
    • Patented x-Max® explosion-proof terminal housing
    • 120V control circuit includes: – Derated magnetic contactor – Dual automatic reset high limits – Transformer
    • Heavy duty 16-gauge stainless steel casing
    • Outlet louvre assembly
    • Swivel bracket
    • Factory installed conduit seal
    • Supply connection housing
    • Terminal block for supply wiring and thermostat connection
    • Mounting Accessories Ceiling mount kit; Wall mount kit; Post mount kit; Floor stand kit􀀁
    • Thermostats Thermon Heating Systems offers a wide variety of explosion-proof thermostats to suit most every need􀀁 Norseman™ unit heaters are available with optional built-in, externally adjustable, bulb-type thermostats􀀁 Thermostats for remote mounting can be provided upon request􀀁

    Key Specs

    AttributeSpecification

    item#

    		7383374

    Brand

    		Norseman

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		7.0 LB

    Included (qty.)

    		1

    Material

    		Steel
    AttributeSpecification

    Compatible With

    		Cata-Dyne Gas Catalytic Industrial/commercial Space Heaters

    Length

    		6 in

    Height

    		6 in

    Dimensions L x W x H (in.)

    		8.0 x 8.0 x 8.0 in

    Product Weight

    		7.0000 lb

    Reviews

    Questions & Answers

    Warranty

    Manufacturer's Warranty

    1 year limited warranty
