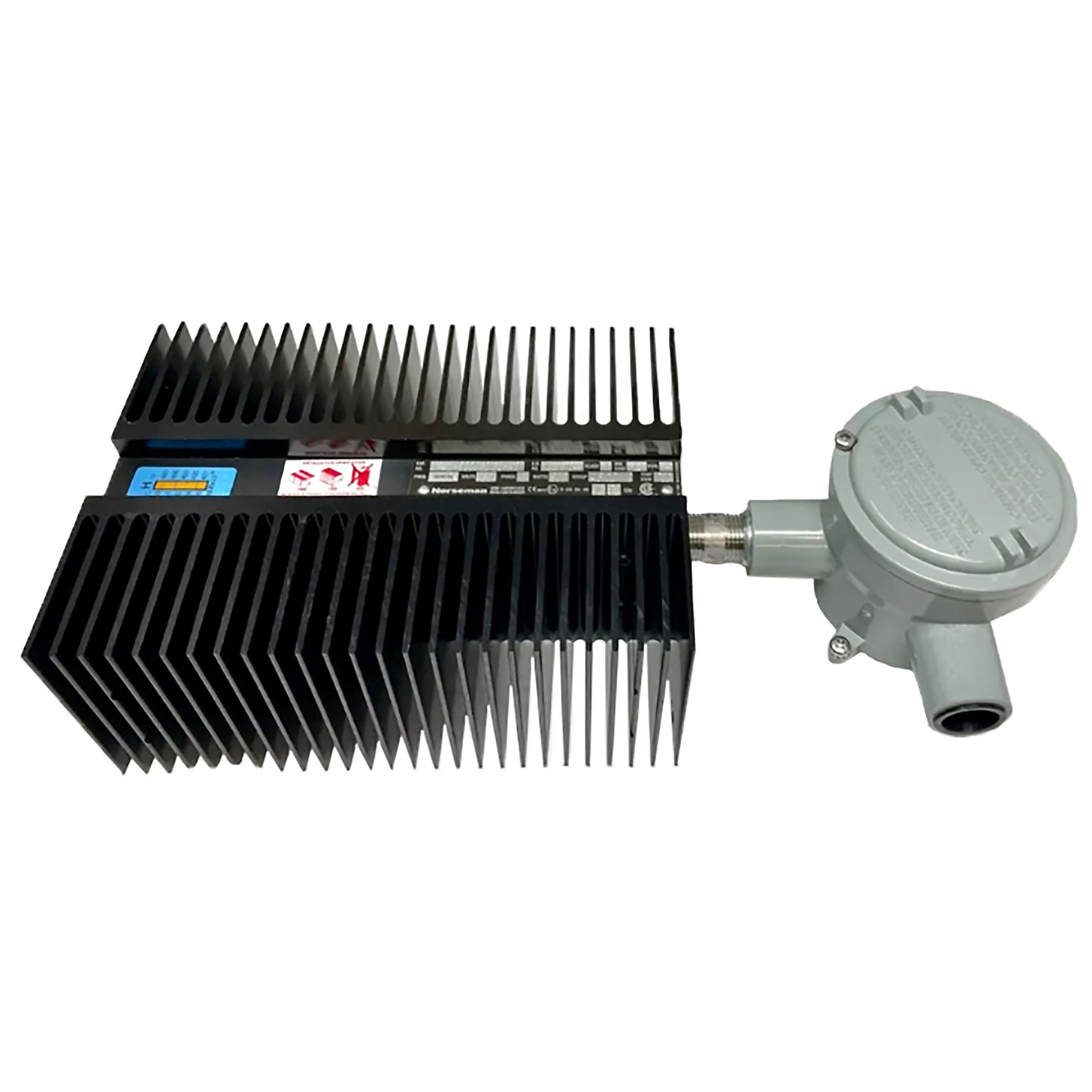

Norseman™ Explosion-Proof Panel Heater, 700W, 120V, 1Ø, Temp Code T2D, XJB-4 Junction Box

Item# 7397071
New
Norseman™ Explosion-Proof Panel Heater, 700W, 120V, 1Ø, Temp Code T2D, XJB-4 Junction Box

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Norseman™ Explosion-Proof Panel Heater, 700W, 120V, 1Ø, Temp Code T2D, XJB-4 Junction Box

Click or Tap image to Zoom

$1429.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • XPA Explosion-Proof Natural Convection Panel Heaters
  • Designed specifically for freeze protection of control enclosures and other confined areas characterized by poor natural circulation where potentially explosive substances may be present, such as control cabinets, small enclosures and more.
  • Comes factory-wired to an explosion-proof junction box or thermostat and includes a mounting bracket and hardware.
  • Models offered in 50 to 700 W and from 120 to 240V.
  • cCSAus certified for Class I, Division 1 & 2, Groups A, B, C, & D.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Norseman™ XPA Explosion-Proof Panel Heater is designed specifically for freeze protection of control enclosures in locations where explosive atmospheres exist, such as control cabinets. Typical applications include control cabinets, instrument enclosures and small storage rooms or cabinets for volatile products. Norseman™ is the most technologically advanced line of explosion-proof electric air heaters and heating accessories, including both forced air heaters and natural convection heaters, as well as unit heaters, panel heaters, and thermostats. Norseman™ offers innovative, low-maintenance solutions for a wide range of applications in a variety of industrial and commercial environments. Custom-engineered heaters or heating systems are available for specialized applications.

What's Included

    (1) Norseman™ Explosion-Proof Panel Heater, 700W, 120V, 1Ø, Temp Code T2D, XJB-4 Junction Box

Features + Benefits

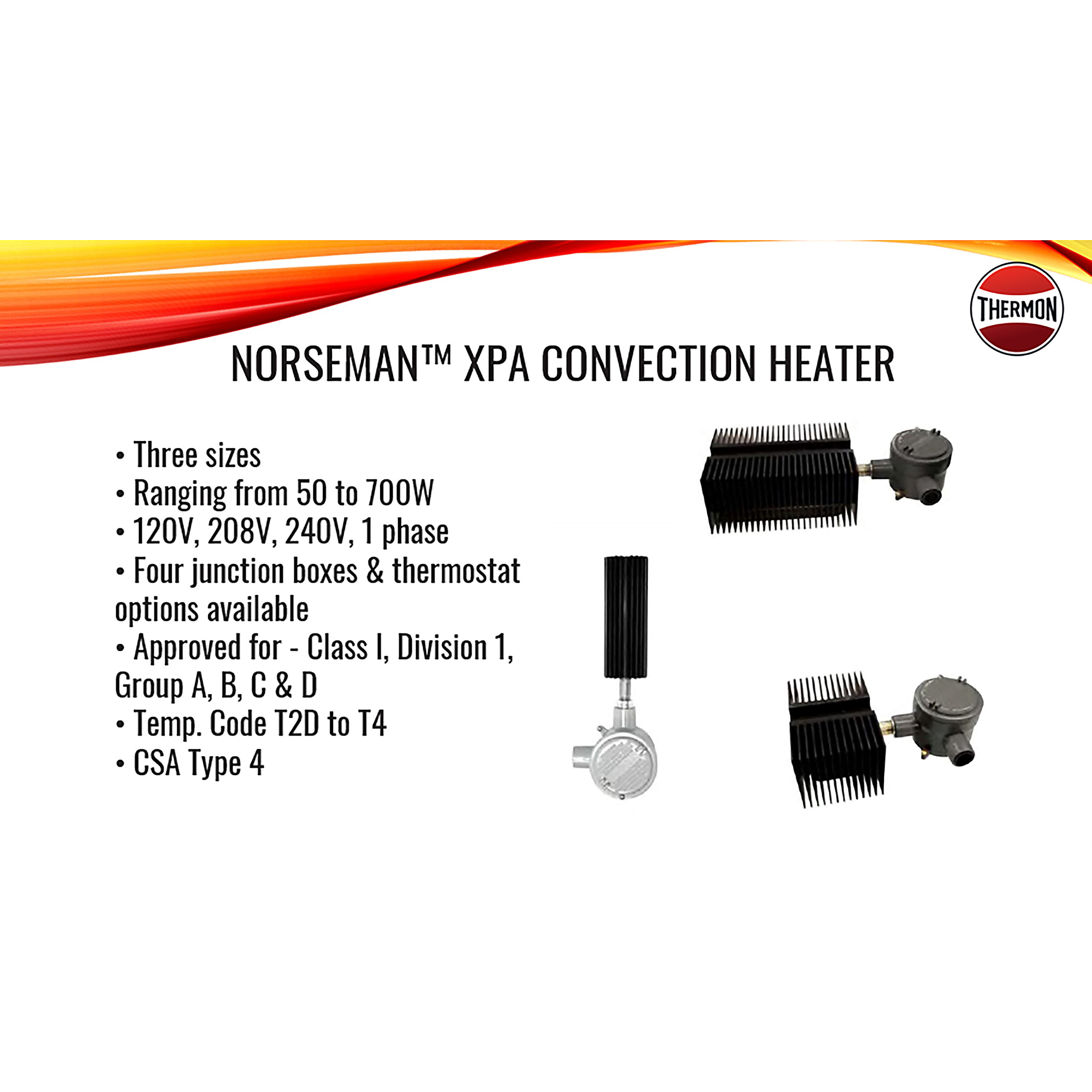

  • XPA Explosion-Proof Natural Convection Panel Heaters
  • Designed specifically for freeze protection of control enclosures and other confined areas characterized by poor natural circulation where potentially explosive substances may be present, such as control cabinets, small enclosures and more.

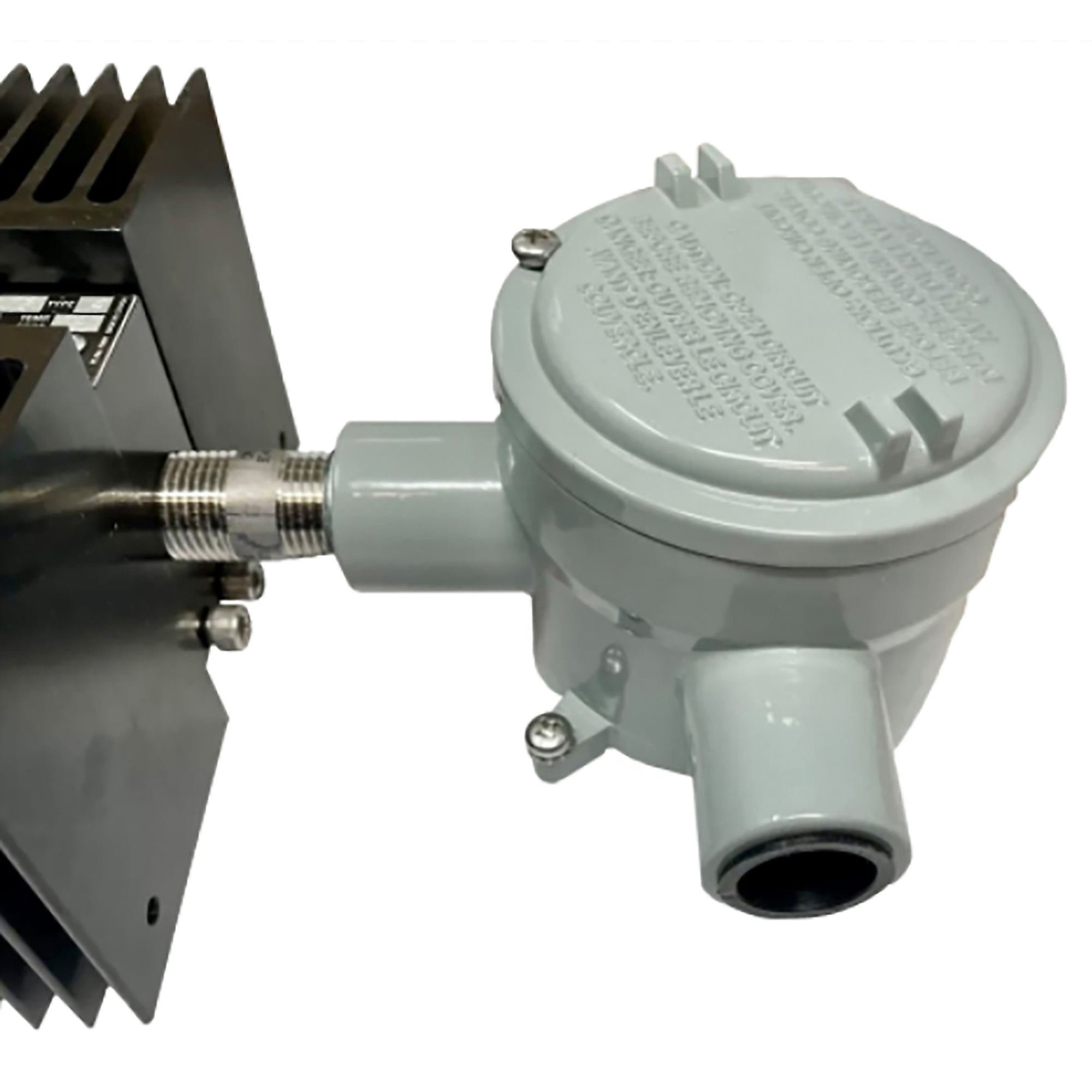

  • Comes factory-wired to an explosion-proof junction box or thermostat and includes a mounting bracket and hardware.
  • Models offered in 50 to 700 W and from 120 to 240V.
  • cCSAus certified for Class I, Division 1 & 2, Groups A, B, C, & D.
  • ATEX/IECEx/EAC Ex d IIC or IIB, T2 (215ºC), T3 or T4, Gb IP66.

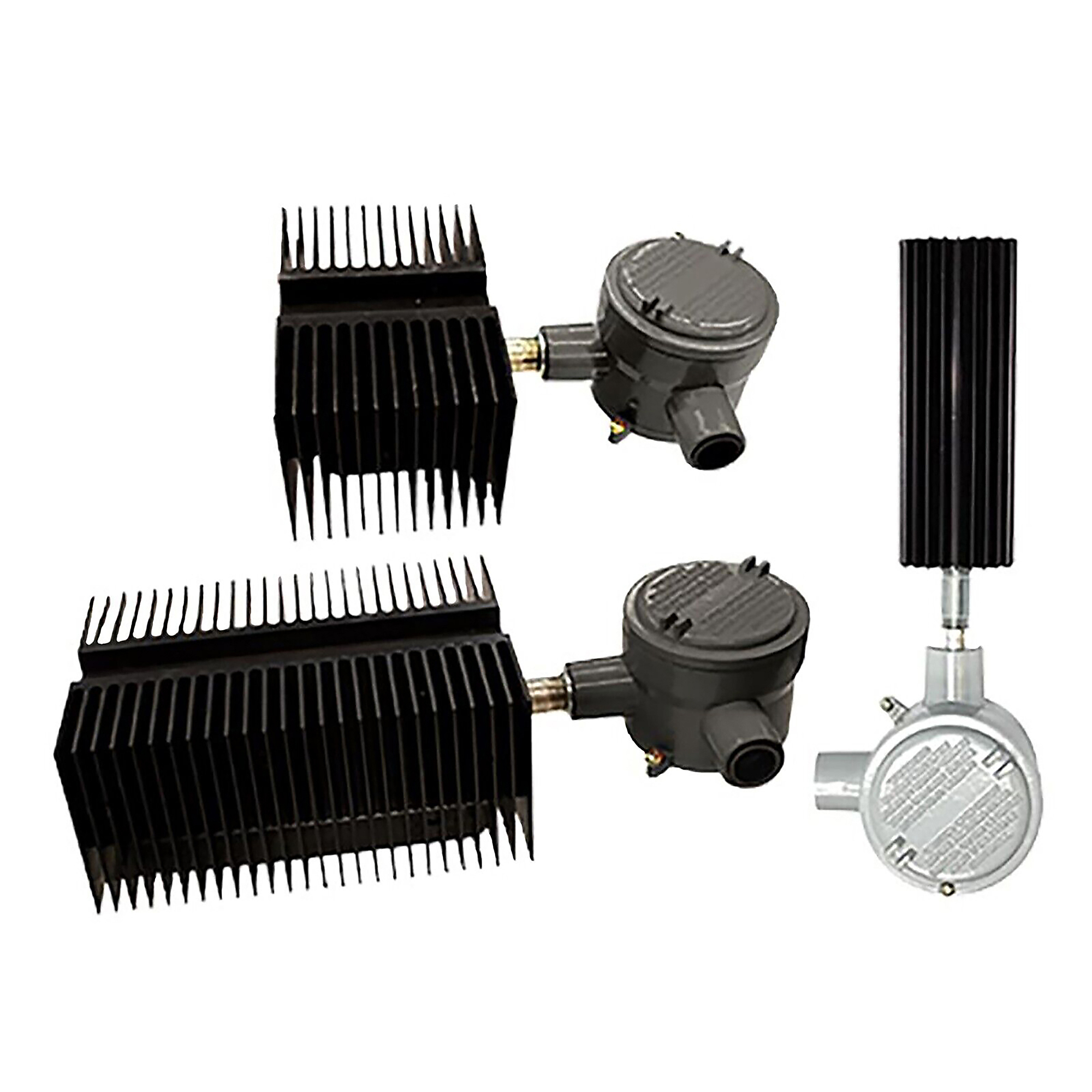

  • Available in three different size extrusions.
  • Custom engineered heaters or heating systems are available for specialized applications.
  • Depending on the particular model ordered, the heater is suitable for the following areas: ? CSA C/US certified for Class I, Div. 1 and 2, Groups A, B, C, and D; Class II, Div. 1 and 2, Groups E, F, and G; Class III, Div. 1 and 2; Temperature Code T2D, T3B, T4A or T6. CSA type 4, Class I, Zone 1 and 2, Groups IIA, IIB and IIC.
  • Heaters marked with temperature code T2B are not suitable for Class II and Class III applications.
  • Operating ambient temperature: Standard XB Models: -50°C to 40°C High Ambient XB Models: -50°C to 70°C
  • General Requirements: Norseman™ XB heaters are approved for wall or floor mounting with the terminal housing at the bottom. Ensure that is the wall sufficiently strong to support the heater which, depending on the model, could weigh up to 100 lbs (45 kg). Otherwise use the brackets supplied to stand the heater on the floor.
  • Do not recess the Norseman™ XB heater into the wall. Use of the brackets supplied will ensure that the minimum spacing from the wall of 3.75" (95 mm) is maintained.
  • Do not recess the Norseman™ XB heater into the wall. Use of the brackets supplied will ensure that the minimum spacing from the wall of 3.75" (95 mm)
  • The Norseman™ XB heater relies on natural convection and “black heat” radiation to transfer heat to the surroundings. Try to maintain a 12" (300 mm) clearance and NEVER LESS THAN 6" (150 mm) clearance in front of and at the sides of the heater.
  • Use guard rails in front of the heater if there is a possibility that moving equipment could come in contact with the heater

Key Specs

AttributeSpecification

item#

7397071

Brand

Norseman

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.0 LB

Heat Type

Convection

Heat Output

0 Btu/hour

Phase

Single-phase

Indoor Outdoor Use

Indoor

Volts

120
AttributeSpecification

Watts

700

Hardwired

Yes

Thermostat Included

No

Mounting Hardware Included

Yes

Housing Material

Aluminum

Hazardous Location Rating

The Norseman™ XPA heater is CCSAUS certified for Class I, Divisions 1 & 2, Groups A, B, C & D and ATEX/IECEx/UKCA certified for Ex d IIC or IIB, T2 (215ºC), T3 or T4, Gb IP66.

Product Weight

13.0000 lb

Dimensions L x W x H (in.)

16.0 x 7.0 x 7.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
